What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV166.0042

Rear Leaf Spring - Shackle Bushing Kit to Suit Volkswagen Amarok 2H 2wd/4Motion

Rear Leaf Spring - Shackle Bushing Kit to Suit Volkswagen Amarok 2H 2wd/4Motion

Contains both 30mm and 32mm OD bushings

Item Price

€55.86

SKU	REV166.0042
Warranty
Installation Time	1 Hour
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

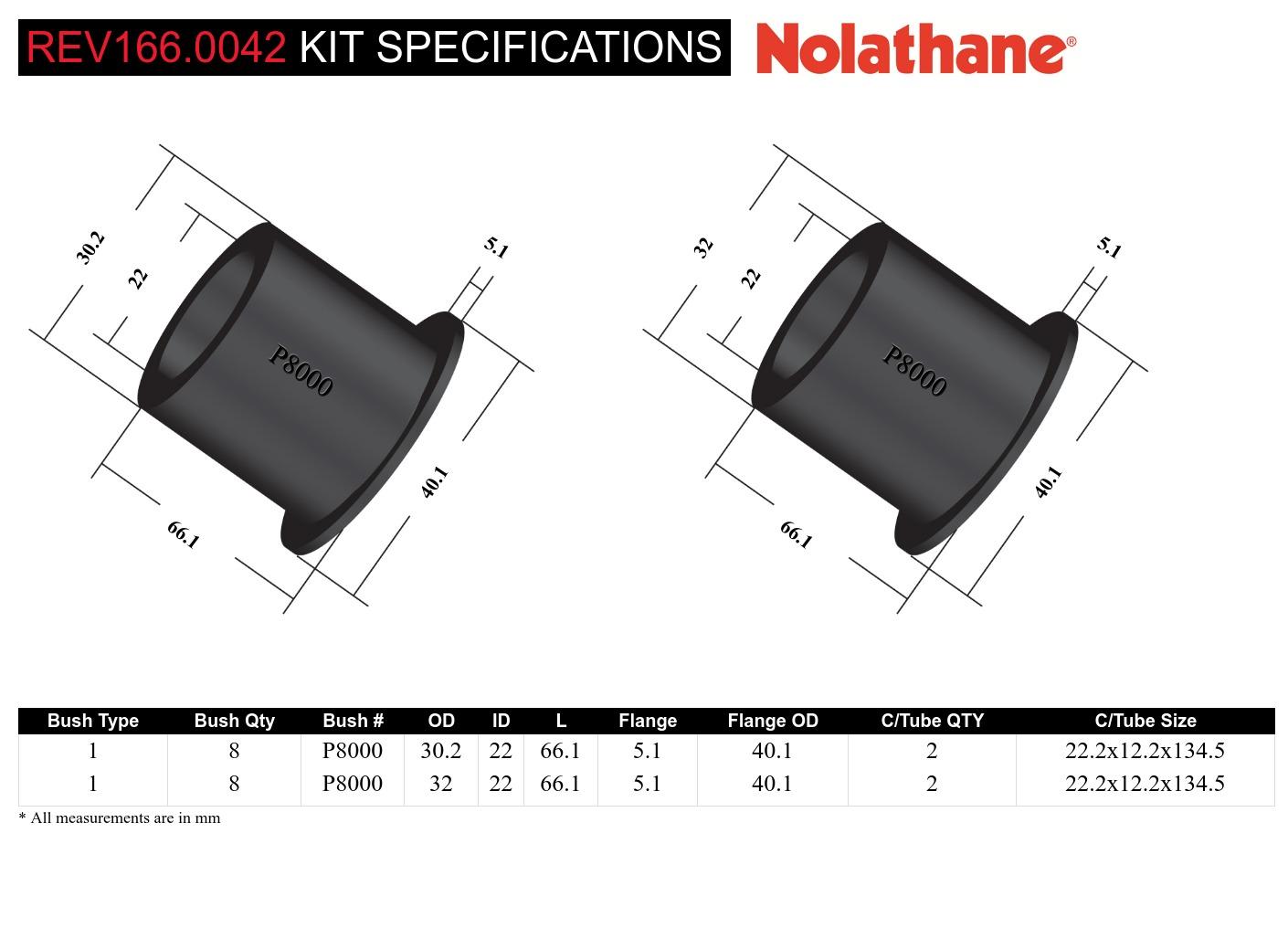

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	30.2	22	66.1	5.1	40.1	2	22.2x12.2x134.5	Click Here
1	4	32	22	66.1	5.1	40.1	2	22.2x12.2x134.5	Click Here

Bush Type	1	1
QTY	4	4
OD (A)	30.2	32
ID (B)	22	22
Length (C)	66.1	66.1
FL (D)	5.1	5.1
FLOD (E)	40.1	40.1
C/Tube Qty	2	2
C/Tube Size	22.2x12.2x134.5	22.2x12.2x134.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.83kg	10cm	16cm	26cm
in/lbs	1.83lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	0.83kg	1.83lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	REV166.0042
Foot Note 1	Contains both sizes 30mm and 32mm OD to fit chassis

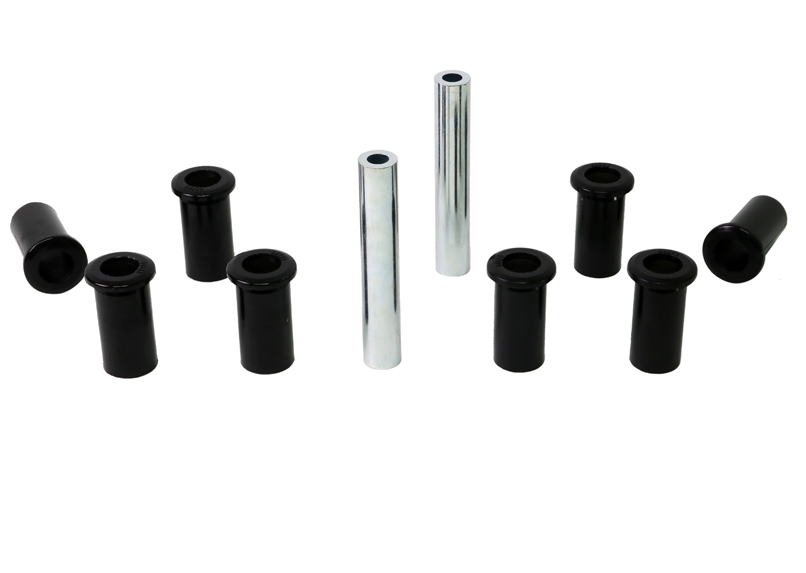

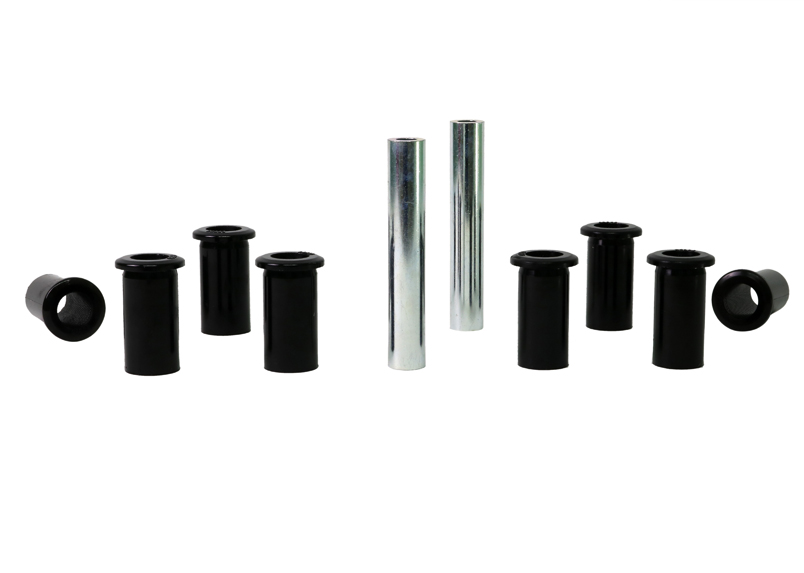

Components Per	8 Bushings, 2 Tubes
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924443147

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
