What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV008.0002

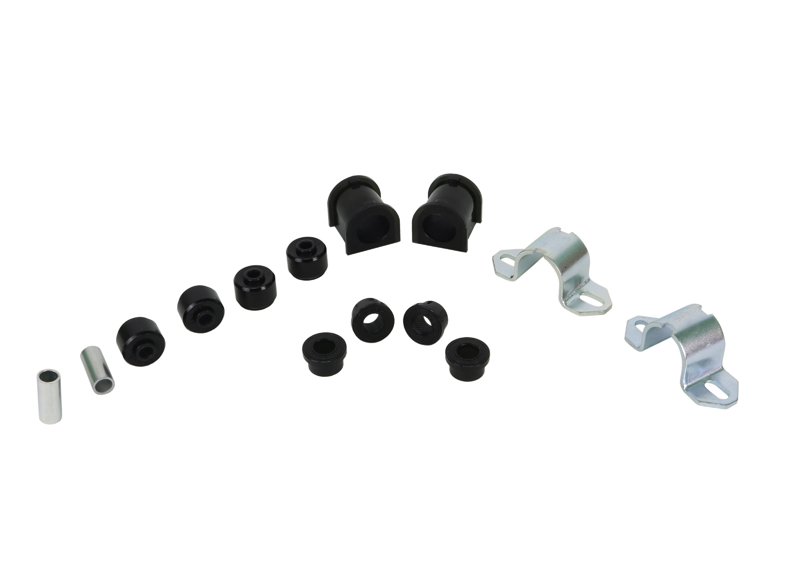

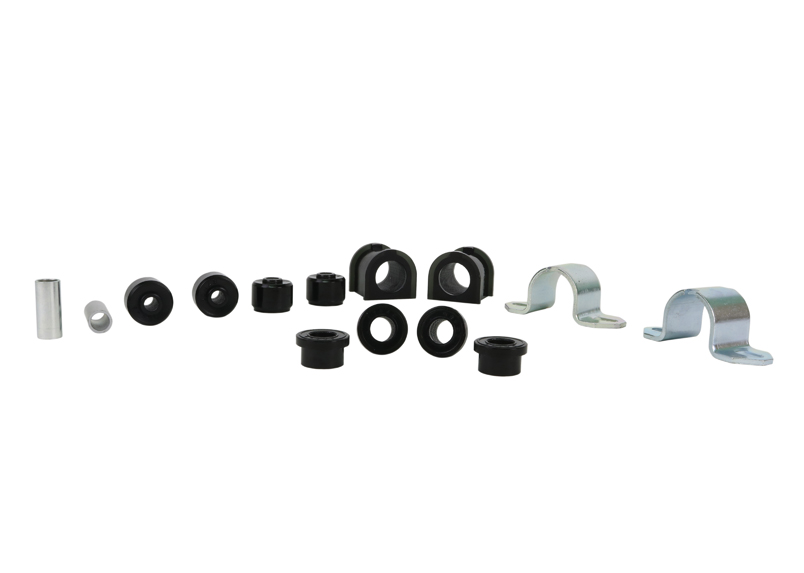

Anti Roll Bar Mount and Link - Bushing Kit 28.5mm to Suit Jeep Grand Cherokee ZG, ZJ

Anti Roll Bar Mount and Link - Bushing Kit 28.5mm to Suit Jeep Grand Cherokee ZG, ZJ

28.5mm

Item Price

€30.89

SKU	REV008.0002
Warranty	Lifetime Warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Designed to fit a 28.5mm sway bar. Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install and are backed by a limited lifetime warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

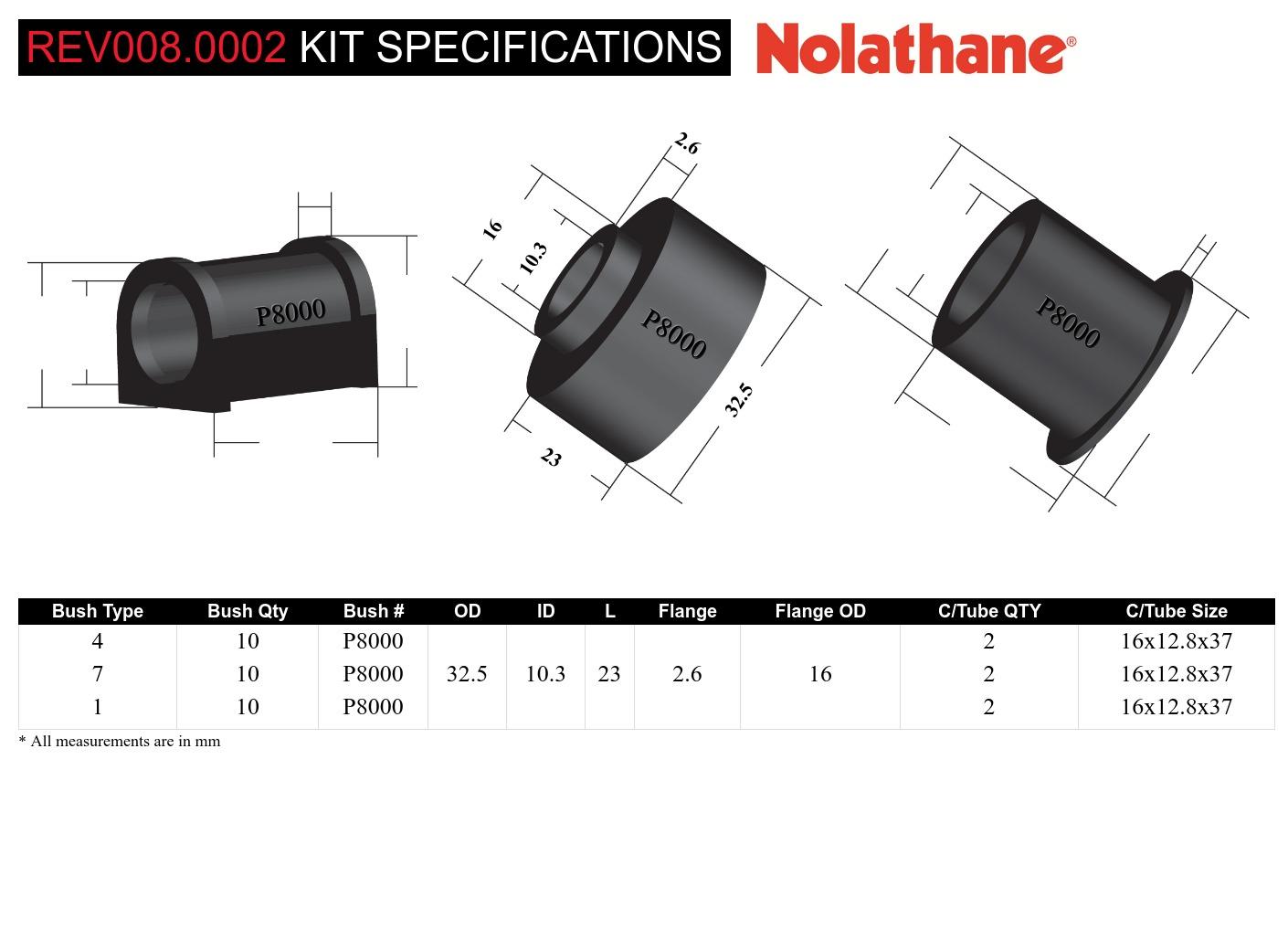

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	2	39	28.6	46.5	8	43	2	16x12.8x37	Click Here
1	4	25.8	16	17.8	5.5	32.2	2	16x12.8x37	Click Here
7	4	32.5	10.3	23.0	2.6	16	2	16x12.8x37	Click Here

Bush Type	4	1	7
QTY	2	4	4
OD (A)	39	25.8	32.5
ID (B)	28.6	16	10.3
Length (C)	46.5	17.8	23.0
FL (D)	8	5.5	2.6
FLOD (E)	43	32.2	16
C/Tube Qty	2	2	2
C/Tube Size	16x12.8x37	16x12.8x37	16x12.8x37
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.6kg	10cm	26cm	16cm
in/lbs	1.32lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.6kg	1.32lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV008.0002
Foot Note 1	Contains both mount and link bushings
Foot Note 2	28.5mm
Foot Note 3	Lifetime Warranty
Components Per	10 Bushings, 2 Tubes, 2 Saddles
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 10 Bushings, 2 Tubes, 2 Saddles
EAN	9319924400591

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
