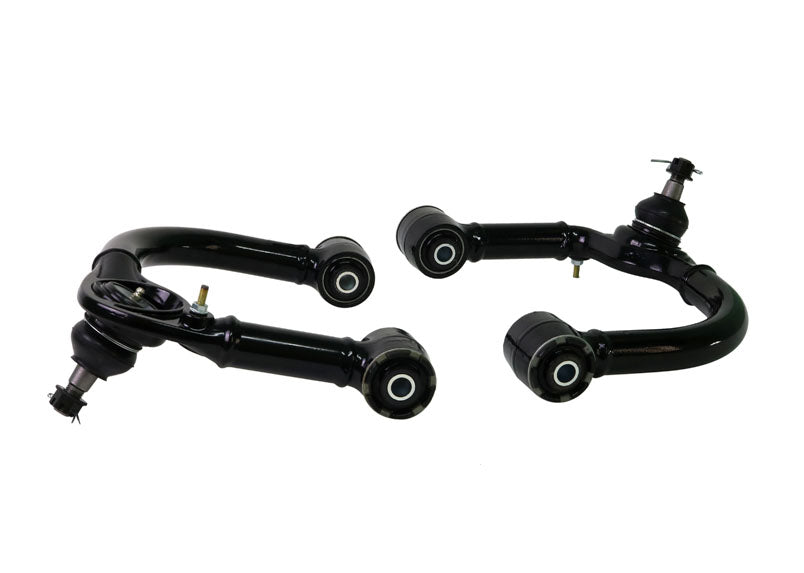

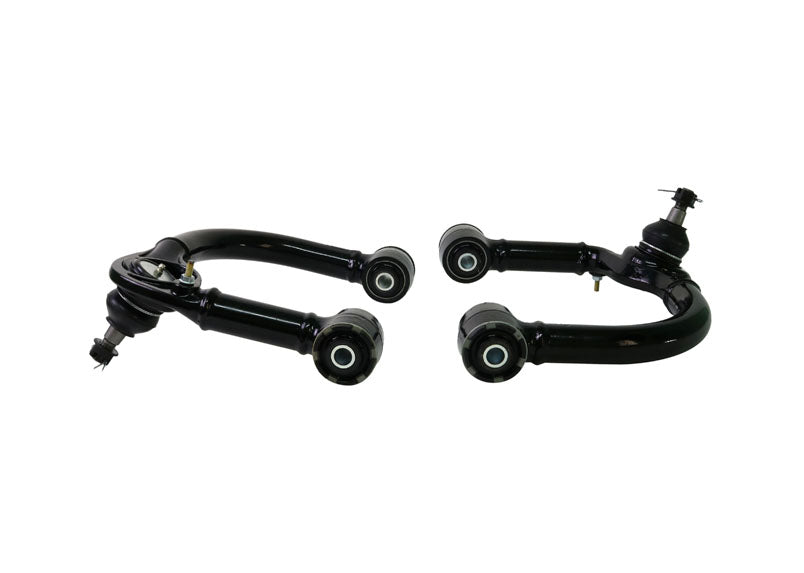

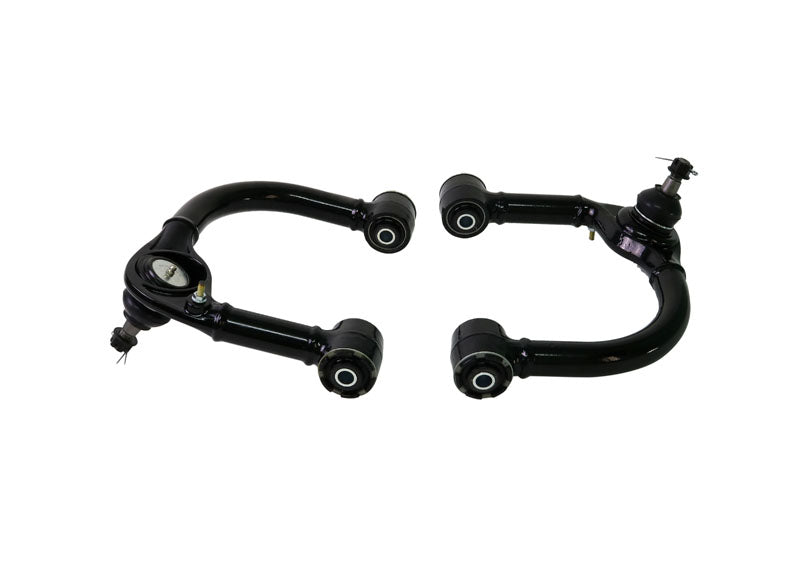

Nolathane - Control Arms - Upper Arm Assembly
- Regular price
- $675.00
- Sale price
- $675.00
- Regular price
-
- Unit price
- per
IN STOCK In Stock! Ships within 24 hours
Free Shipping- Lifetime warranty
- 24/7 Customer Support available!
Free ShippingNolathane - Control Arms - Upper Arm Assembly
A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Nolathane offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.Nolathane - Control Arms - Upper Arm Assembly
Installation Guide: Download Now
Installation Time (hours): 2.5
Difficulty: Trade Specialist
Wheel Alignment Required? Yes
Nolathane - Control Arms - Upper Arm Assembly
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Control Arms - Upper Arm Assembly works with the following vehicles.
- 2003 lexus gx470 base
- 2003 toyota 4runner limited
- 2004 toyota 4runner limited
- 2007 toyota fj cruiser
- 2008 toyota fj cruiser
- 2009 lexus gx470 base
- 2009 toyota 4runner limited
- 2010 lexus gx460 base
- 2010 toyota 4runner limited
- 2010 toyota fj cruiser
- 2011 lexus gx460 base
- 2011 toyota 4runner limited
- 2011 toyota fj cruiser
- 2013 toyota fj cruiser
- 2017 toyota 4runner base
- 2018 lexus gx460 base
- 2019 lexus gx460 base
- 2019 toyota 4runner limited
- 2022 lexus gx460 base
- 2023 lexus gx460 base
