What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV008.0040

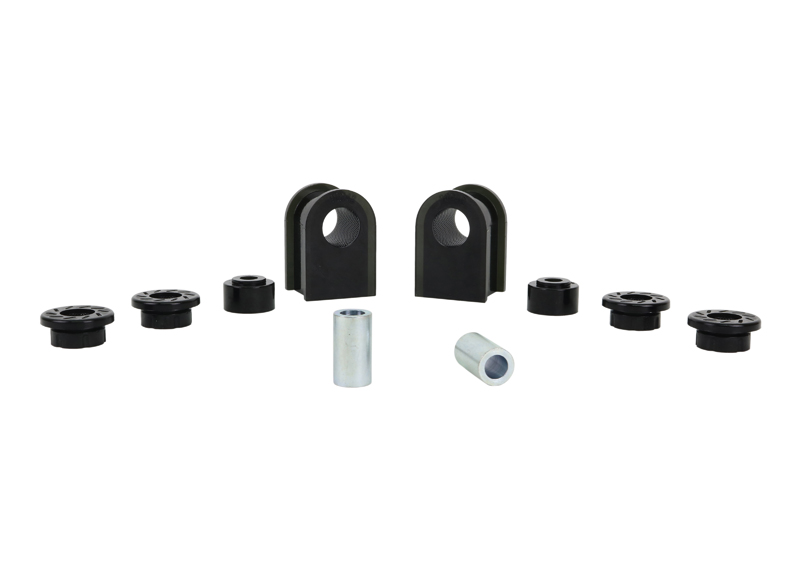

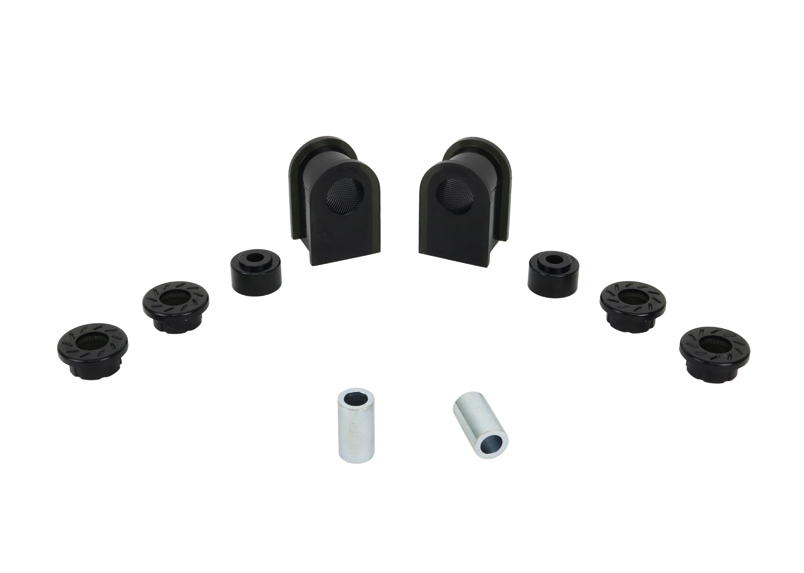

Anti Roll Bar Mount and Link - Bushing Kit 23mm to Suit Ford F-Series 5th-10th Gen

Anti Roll Bar Mount and Link - Bushing Kit 23mm to Suit Ford F-Series 5th-10th Gen

23mm - suits lifted models to 63mm

Item Price

£35.38

SKU	REV008.0040
Warranty	Lifetime Warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Designed to fit a 23mm sway bar. Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install and are backed by a limited lifetime warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	29.8	19	17.0	5	10.2	2	19x12.6x35	Click Here
4	2	66	25.4	42.5	4.5	71	2	19x12.6x35	Click Here
7	4	32	11.3	19.4	2.8	21.5	2	19x12.6x35	Click Here

Bush Type	1	4	7
QTY	4	2	4
OD (A)	29.8	66	32
ID (B)	19	25.4	11.3
Length (C)	17.0	42.5	19.4
FL (D)	5	4.5	2.8
FLOD (E)	10.2	71	21.5
C/Tube Qty	2	2	2
C/Tube Size	19x12.6x35	19x12.6x35	19x12.6x35
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.4kg	10cm	26cm	16cm
in/lbs	0.88lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.4kg	0.88lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV008.0040
Foot Note 1	Contains both mount and link bushings
Foot Note 2	23mm
Foot Note 3	Lifetime Warranty
Components Per	10 Bushings, 2 Tubes
Product Note	Minimises vehicle sway during turns, keeping the vehicle stable and balanced; the best, replacement upgrade. Includes: 10 Bushings, 2 Tubes
EAN	9319924408665

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
