What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV034.0052

Front Lower Control Arm - Bushing Kit Double Offset to Suit Nissan Navara D40, D23 and Pathfinder R51

Front Lower Control Arm - Bushing Kit Double Offset to Suit Nissan Navara D40, D23 and Pathfinder R51

Performance Alignment - adds +0.5deg camber

Item Price

€113.77

SKU	REV034.0052
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability, This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Kit Specifications

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No

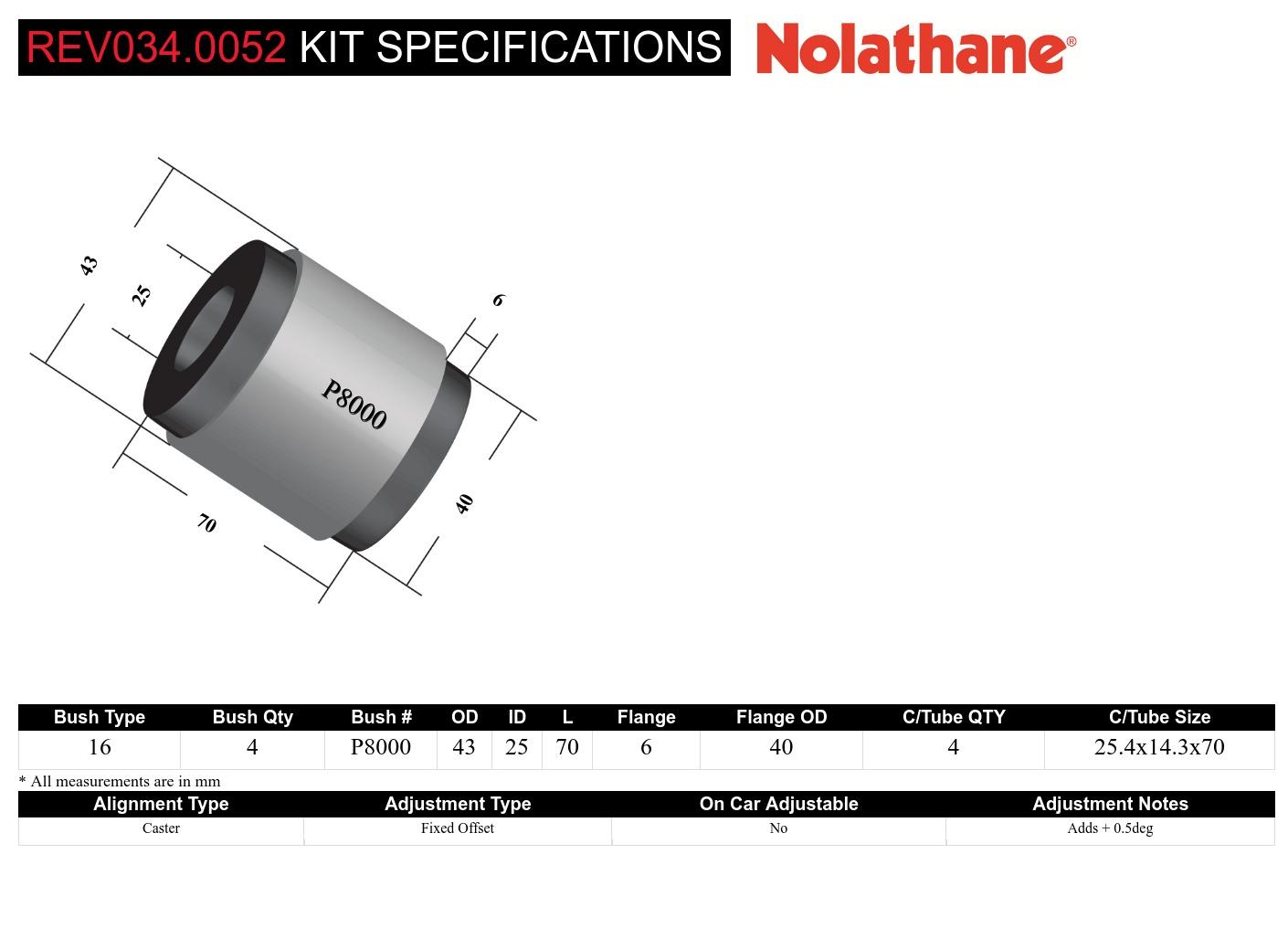

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16 - Shell Without Flange Bushing	4	43	25	70	6	40	4	25.4x14.3x70	Click Here

Bush Type	16 - Shell Without Flange Bushing
QTY	4
OD (A)	43
ID (B)	25
Length (C)	70
FL (D)	6
FLOD (E)	40
C/Tube Qty	4
C/Tube Size	25.4x14.3x70
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.716kg	10cm	26cm	16cm
in/lbs	3.78lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.716kg	3.78lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV034.0052
Foot Note 1	Performance Alignment

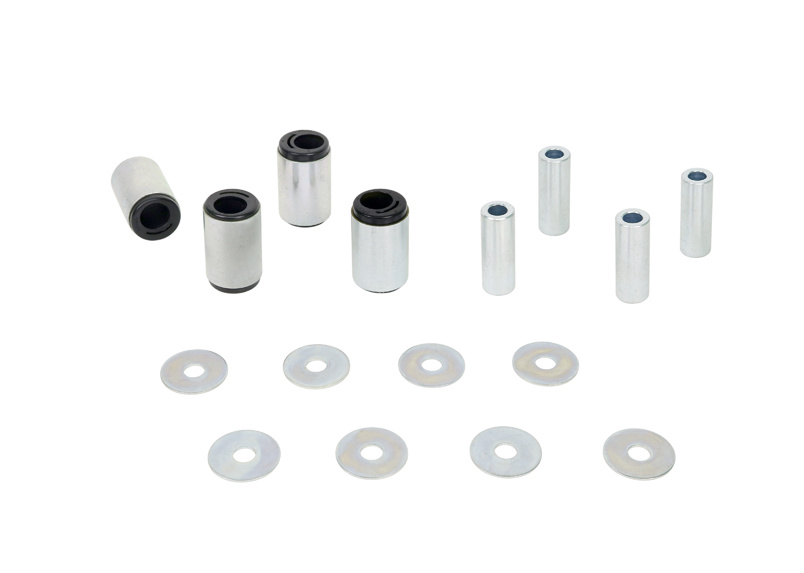

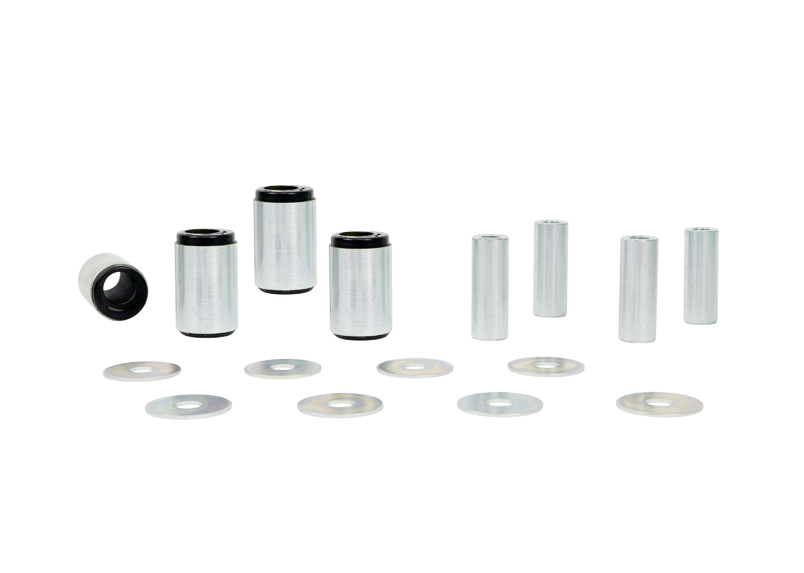

Components Per	4 Shell Bushings, 4 Tubes, 8 Washers
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes, 8 Washers
EAN	9319924416332

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
