What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV039.0072

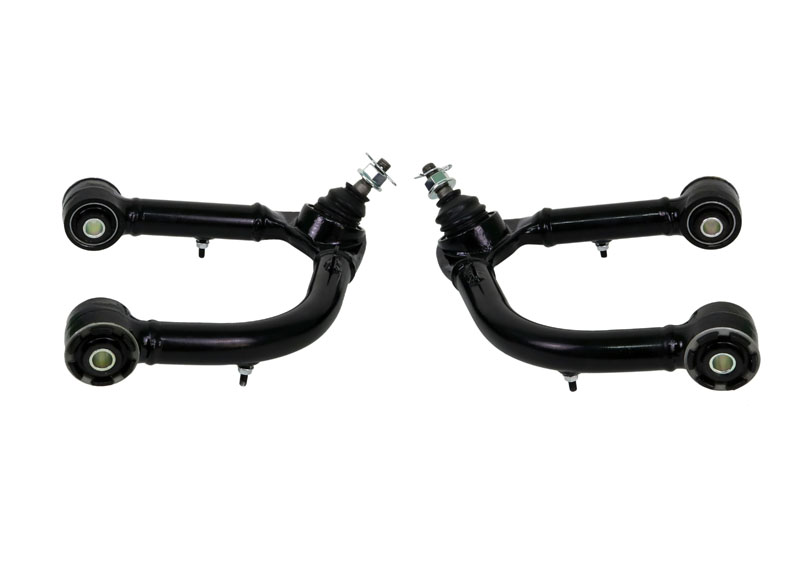

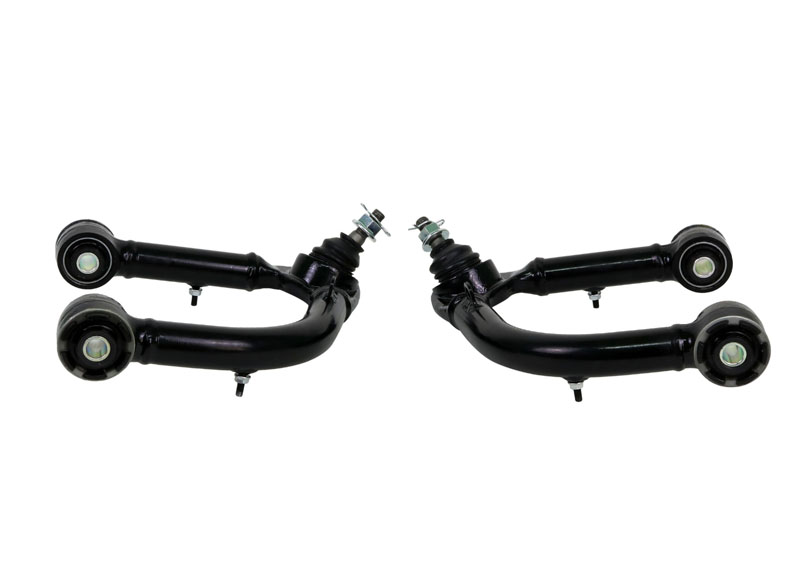

Front Upper Control Arms Fixed Offset to Suit Ford Everest, Ranger PX and Mazda BT-50 UP, UR

Front Upper Control Arms Fixed Offset to Suit Ford Everest, Ranger PX and Mazda BT-50 UP, UR

Fixed offset alignment correction arms - includes ball joint

Item Price

€516.09

SKU	REV039.0072
Warranty	lifetime warranty
Installation Time	2 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Nolathane offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Kit Specifications

Arm Type	Units	Ball Joint Included	Adjustable (Arms)	Alignment Type	Adjustment Type	On Car Adjustable
Alignment	Pair	Yes	No	Camber / Caster	Fixed	No

Arm Type	Alignment
Units	Pair
Ball Joint Included	Yes
Adjustable (Arms)	No
Alignment Type	Camber / Caster
Adjustment Type	Fixed
On Car Adjustable	No

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	6.9kg	43cm	17cm	23cm
in/lbs	15.21lbs	16.93"	6.69"	9.06"

Units	cm/kg	in/lbs
Weight	6.9kg	15.21lbs
Length	43cm	16.93"
Width	17cm	6.69"
Height	23cm	9.06"

Misc. Product Information

More Information
SKU	REV039.0072
Foot Note 1	Fixed offset alignment correction arms
Foot Note 2	Includes Ball Joint
Components Per	2 Arms
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Arms
EAN	9319924449620

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Video
