REV161.0006

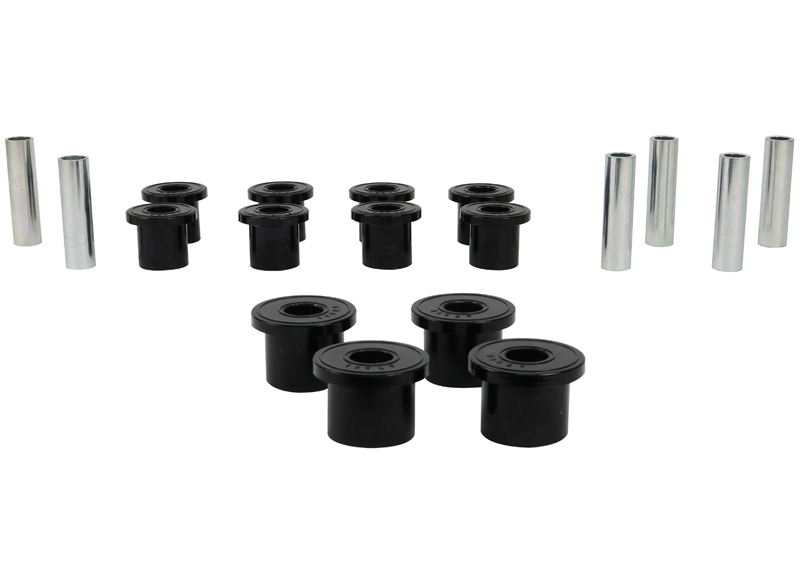

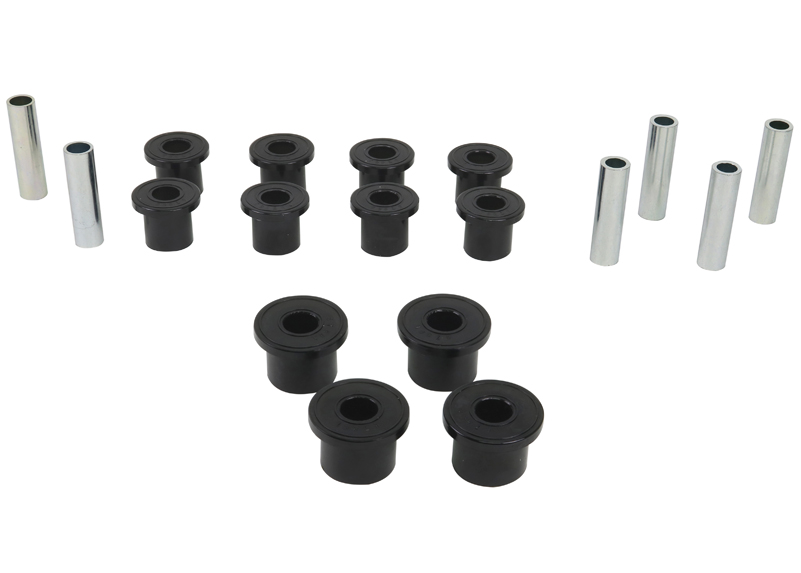

Leaf Spring - Bushing Kit to Suit Chrysler Galant GA-GD

Leaf Spring - Bushing Kit to Suit Chrysler Galant GA-GD

Suits models with 104mm pin

Item Price

€51.74

SKU	REV161.0006
Warranty	Lifetime Warranty
Installation Time	3 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	38.4	19	37.0	6.4	50.8	4 / 2	19x13.2x76 / 19x15x76	Click Here
1	8	31.8	19	37.5	6.2	44.8	4 / 2	19x13.2x76 / 19x15x76	Click Here

Bush Type	1	1
QTY	4	8
OD (A)	38.4	31.8
ID (B)	19	19
Length (C)	37.0	37.5
FL (D)	6.4	6.2
FLOD (E)	50.8	44.8
C/Tube Qty	4 / 2	4 / 2
C/Tube Size	19x13.2x76 / 19x15x76	19x13.2x76 / 19x15x76
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.9kg	10cm	26cm	16cm
in/lbs	1.98lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.9kg	1.98lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV161.0006
Foot Note 3	Lifetime Warranty
Components Per	12 Bushings, 6 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924400850

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
