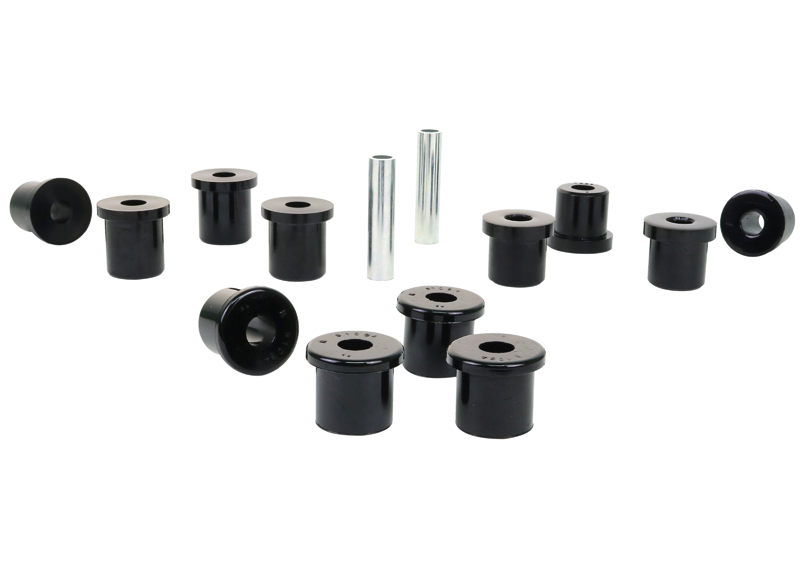

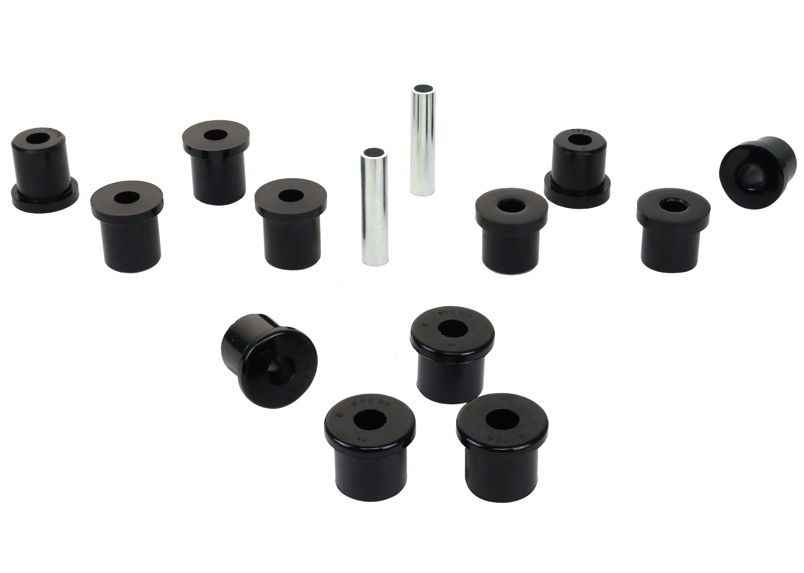

United StatesLeaf Spring - Bushing Kit to Suit Toyota LandCruiser 76, 78 Series
 SKU | REV161.0028 |
|---|---|
 Warranty | lifetime warranty |
 Installation Time | 3 Hours |
 Fitting Position | Rear Axle |
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.
*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.
Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 1 - Shackle Bushing | 4 | 40.1 | 18.2 | 45 | 8 | 50 | 2 | 19x14.3x85 | Click Here |
| 1 - Shackle Bushing | 4 | 40.1 | 18 | 50 | 8 | 50 | 2 | 19x14.3x85 | Click Here |
| 1 - Shackle Bushing | 4 | 40.3 | 18.2 | 41.5 | 6.7 | 54.3 | 2 | 19x14.3x85 | Click Here |
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|
| QTY | 4 | 4 | 4 |
| OD (A) | 40.1 | 40.1 | 40.3 |
| ID (B) | 18.2 | 18 | 18.2 |
| Length (C) | 45 | 50 | 41.5 |
| FL (D) | 8 | 8 | 6.7 |
| FLOD (E) | 50 | 50 | 54.3 |
| C/Tube Qty | 2 | 2 | 2 |
| C/Tube Size | 19x14.3x85 | 19x14.3x85 | 19x14.3x85 |
| Similar Bushings | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | Weight | Length | Width | Height |
|---|---|---|---|---|
| cm/kg | 0.89kg | 7cm | 20cm | 14cm |
| in/lbs | 1.96lbs | 2.76" | 7.87" | 5.51" |
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.89kg | 1.96lbs |
| Length | 7cm | 2.76" |
| Width | 20cm | 7.87" |
| Height | 14cm | 5.51" |
Misc. Product Information
| SKU | REV161.0028 |
| Foot Note 3 | Lifetime Warranty |
| Components Per | 12 Bushings, 2 Tubes |
| Product Note | Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes: |
| EAN | 9319924419890 |
| Installation Time | 3 Hours |
|---|---|
 Installation Difficulty | Tricky installation may take longer then you think if you are not experienced. |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Rear Wheel Alignment |
