What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV226.0010

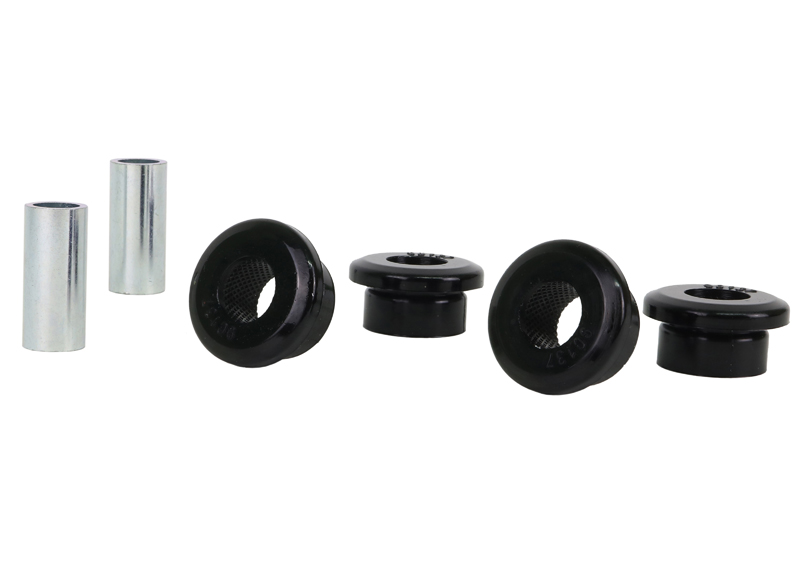

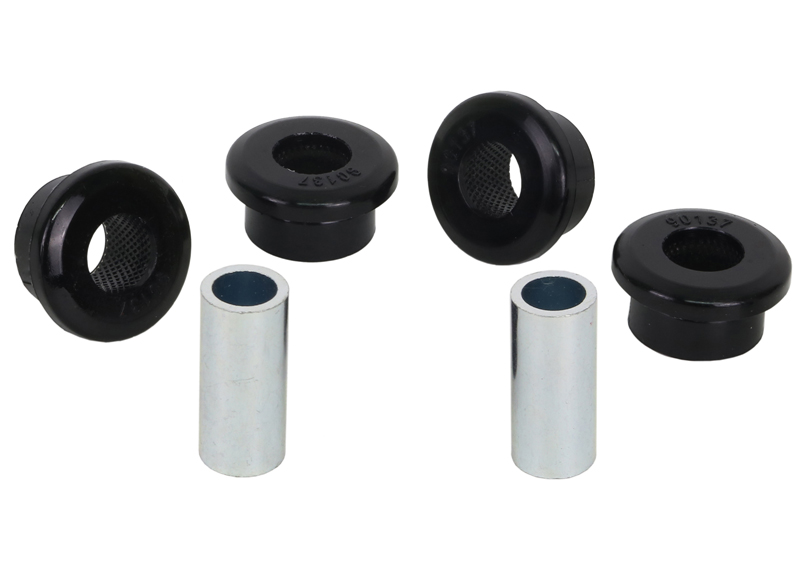

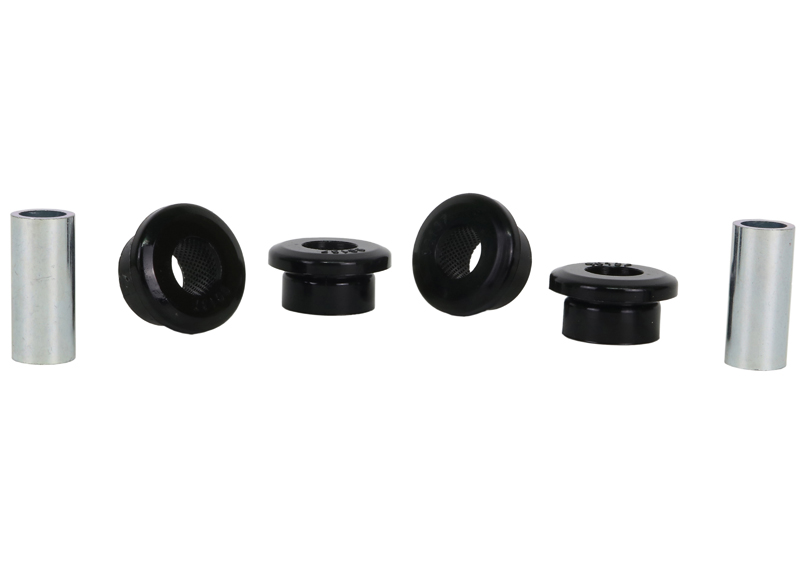

Bushing - Universal Range to Suit Universal Applications

Bushing - Universal Range to Suit Universal Applications

Bushing OD=31.9, Eye L=31.7, CT ID=14.3, CT L=44.5

Item Price

£21.12

SKU	REV226.0010
Warranty	lifetime warranty
Installation Time	2 Hours

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	31.9 mm	19 mm	21.3 mm	6.5 mm	41.9 mm	2	19x14.3x44.5 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	31.9 mm
ID (B)	19 mm
Length (C)	21.3 mm
Flange Thickness (D)	6.5 mm
Flange OD (E)	41.9 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x14.3x44.5 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	31.9	19	21.3	6.5	41.9	2	19x14.3x44.5	Click Here

Bush Type	1
QTY	4
OD (A)	31.9
ID (B)	19
Length (C)	21.3
FL (D)	6.5
FLOD (E)	41.9
C/Tube Qty	2
C/Tube Size	19x14.3x44.5
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.2kg	7cm	20cm	14cm
in/lbs	0.44lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.2kg	0.44lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV226.0010
Foot Note 2	Bushing OD = 31.9 (1-1/4), Eye L = 31.7 (1-1/4), CT ID = 14.3 (9/16), CT L = 44.5 (1-3/4)
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924410415

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	No
