What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

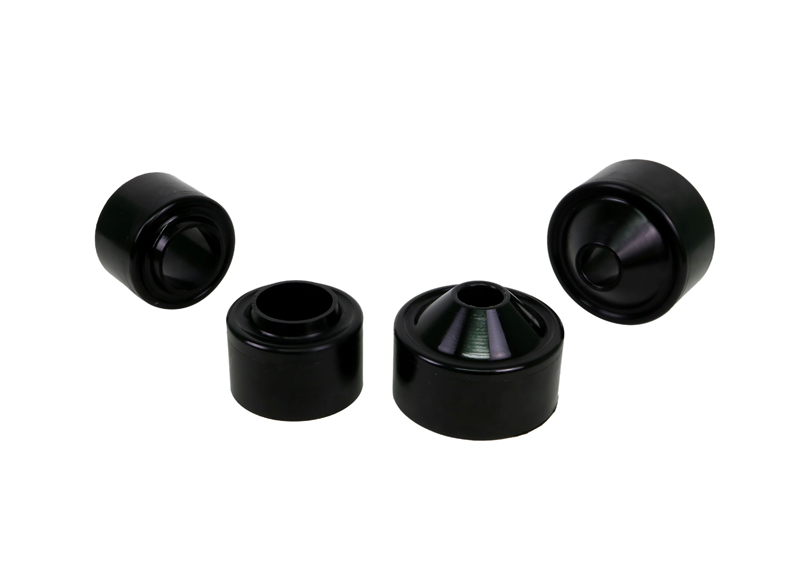

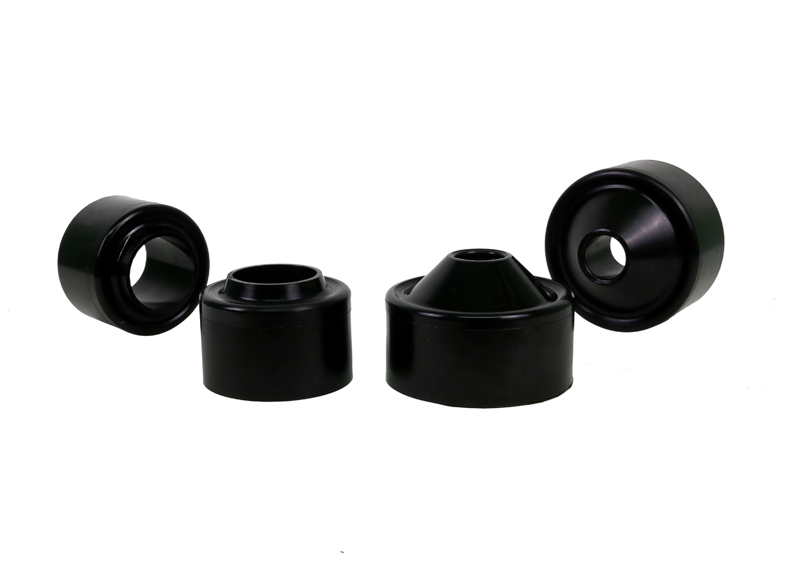

Front and Rear Lift Kit to Suit Jeep Wrangler JK

Description

Benefit Note:
Nolathane Lift Kits are a quick and easy way to lift a standard height Dual or Single Cab 4WD Ute and still maintain the standard suspension. Nolathane lift kits have been put through their paces by our R and D to ensure the lift for each application maintains a safe working height for the vehicles standard suspension.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

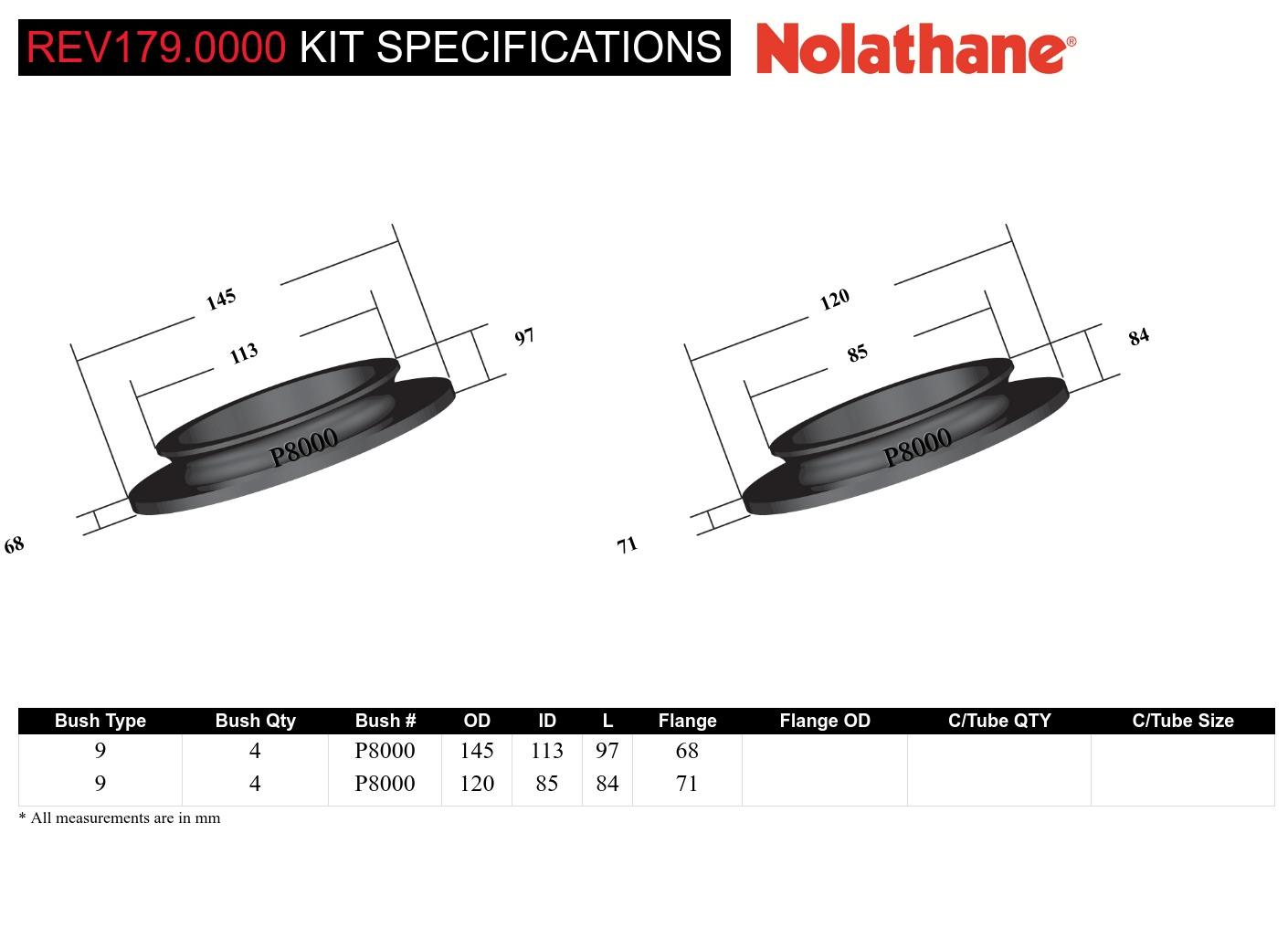

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9 - Coil Spring Seats And Spacer Bushing	2	145	113	97	68				Click Here
9 - Coil Spring Seats And Spacer Bushing	2	120	85	84	71				Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing	9 - Coil Spring Seats And Spacer Bushing
QTY	2	2
OD (A)	145	120
ID (B)	113	85
Length (C)	97	84
FL (D)	68	71
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	3.44kg	80cm	10cm	20cm
in/lbs	7.58lbs	31.5"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	3.44kg	7.58lbs
Length	80cm	31.5"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	REV179.0000
Foot Note 1	Ride height increase
Foot Note 2	50mm
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924449651

Installation & Fitment Guide

More Information
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment
