What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

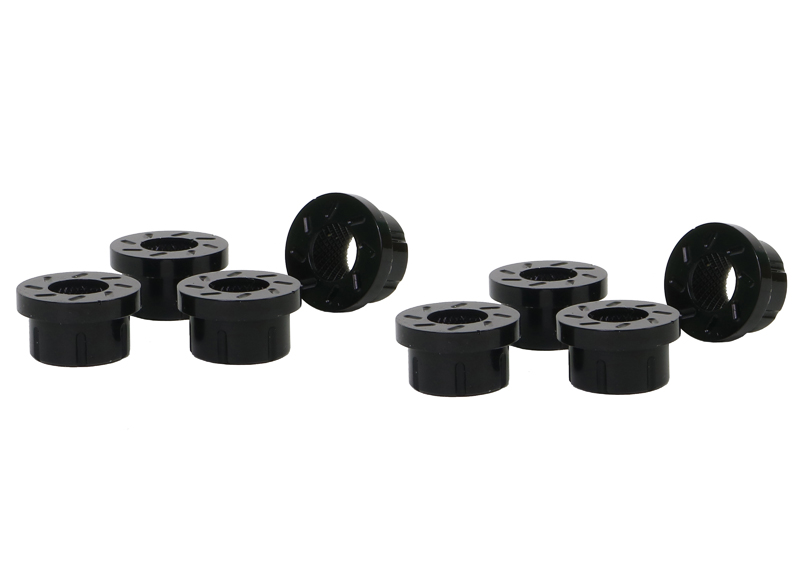

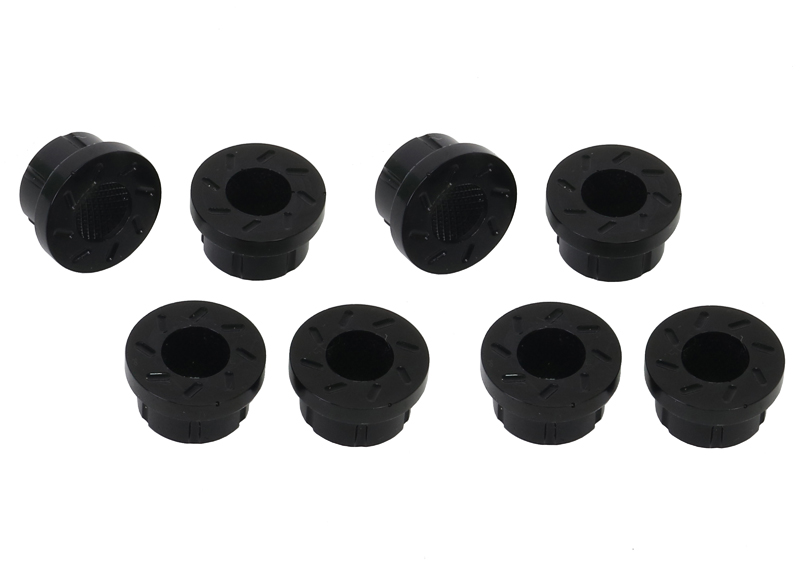

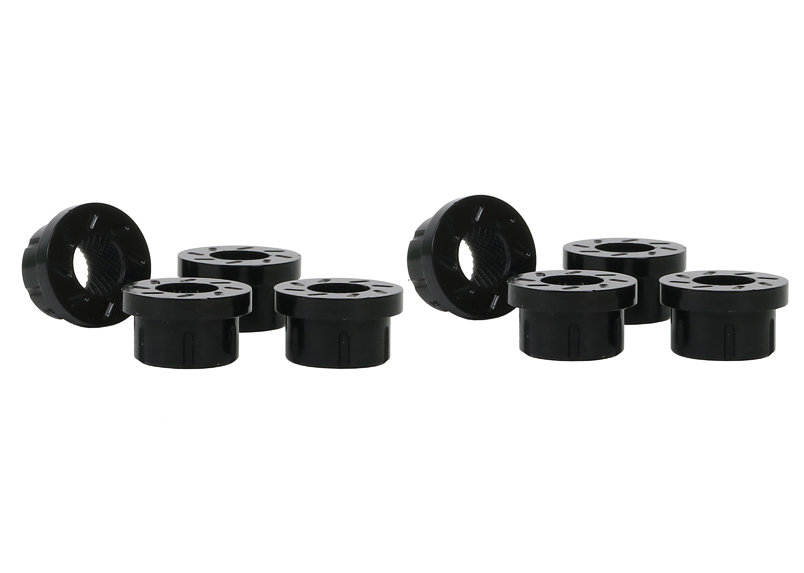

22mm Sway Bar Mount & End Link Bushing Set

Description

One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected. With over 40 years of history, Nolathane remains the number 1 replacement and enhancement bushing and chassis component brand throughout Australia & New Zealand and now boasts a warehouse in California & catalog to suit the North American market.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	8	26	16	18.0	5.5	32	4	16x12.8x37	Click Here
4	2	41	22	45.0	5	44	4	16x12.8x37	Click Here

Bush Type	1	4
QTY	8	2
OD (A)	26	41
ID (B)	16	22
Length (C)	18.0	45.0
FL (D)	5.5	5
FLOD (E)	32	44
C/Tube Qty	4	4
C/Tube Size	16x12.8x37	16x12.8x37
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	REV008.0168
Foot Note 3	Limited Lifetime
Kit Contents	8 Bushings, Grease, Install Guide
EAN	09319924462469

Installation & Fitment Guide

More Information
Wheel Alignment Required	No
