What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

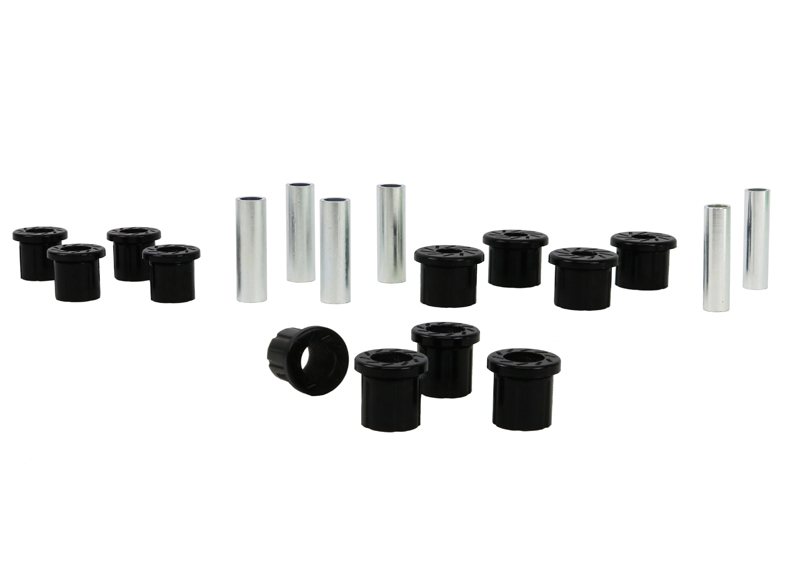

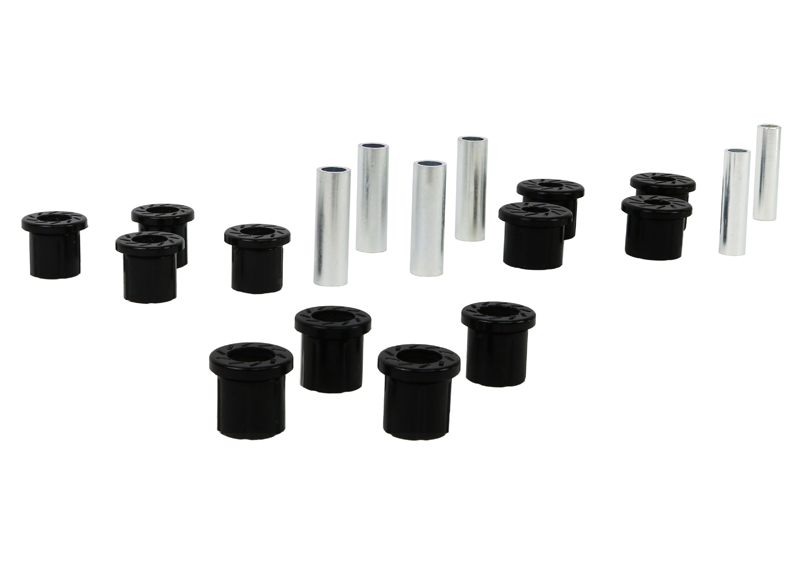

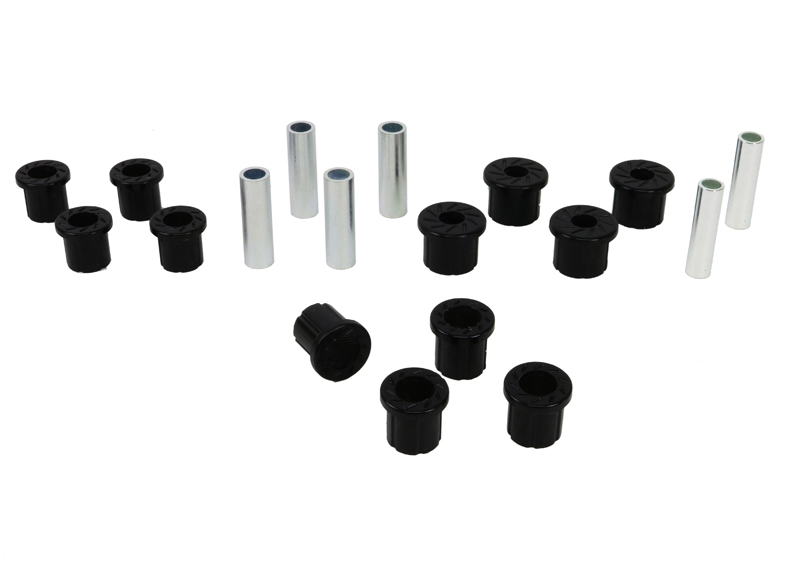

Rear Leaf Spring And Shackle Bushings

Description

A critical service item for any leaf sprung vehicle. High kilometers and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD’s, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering. With over 40 years of history, Nolathane remains the number 1 replacement and enhancement bushing and chassis component brand throughout Australia & New Zealand and now boasts a warehouse in California & catalog to suit the North American market.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	31.9 mm	22.2 mm	36.5 mm	6 mm	39.4 mm	4 / 2	19x14.3x76 / 22.2x16.2x74.6 mm	Click Here
1 - Shackle Bushing	4 mm	40.9 mm	19 mm	37.7 mm	6.3 mm	51 mm	4 / 2	19x14.3x76 / 22.2x16.2x74.6 mm	Click Here
1 - Shackle Bushing	4 mm	32.5 mm	22.2 mm	36.6 mm	5.6 mm	42.2 mm	4 / 2	19x14.3x76 / 22.2x16.2x74.6 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm	4 mm
OD (A)	31.9 mm	40.9 mm	32.5 mm
ID (B)	22.2 mm	19 mm	22.2 mm
Length (C)	36.5 mm	37.7 mm	36.6 mm
Flange Thickness (D)	6 mm	6.3 mm	5.6 mm
Flange OD (E)	39.4 mm	51 mm	42.2 mm
C/Tube Quantity	4 / 2	4 / 2	4 / 2
C/Tube ODxIDxL	19x14.3x76 / 22.2x16.2x74.6 mm	19x14.3x76 / 22.2x16.2x74.6 mm	19x14.3x76 / 22.2x16.2x74.6 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	31.9	22.2	36.5	6	39.4	4 / 2	19x14.3x76 / 22.2x16.2x74.6	Click Here
1	4	40.9	19	37.7	6.3	51	4 / 2	19x14.3x76 / 22.2x16.2x74.6	Click Here
1	4	32.5	22.2	36.6	5.6	42.2	4 / 2	19x14.3x76 / 22.2x16.2x74.6	Click Here

Bush Type	1	1	1
QTY	4	4	4
OD (A)	31.9	40.9	32.5
ID (B)	22.2	19	22.2
Length (C)	36.5	37.7	36.6
FL (D)	6	6.3	5.6
FLOD (E)	39.4	51	42.2
C/Tube Qty	4 / 2	4 / 2	4 / 2
C/Tube Size	19x14.3x76 / 22.2x16.2x74.6	19x14.3x76 / 22.2x16.2x74.6	19x14.3x76 / 22.2x16.2x74.6
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Misc. Product Information

More Information
SKU	REV161.0074
Foot Note 3	Limited Lifetime
Kit Contents	12 Bushings, 6 Tubes, Grease
EAN	09319924442218

Installation & Fitment Guide

More Information
Install Guide	Downloads
Wheel Alignment Required	No

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
