Sway Bar Mount and Link - Bushing Kit 30.5mm to Suit Jeep Wrangler TJ

Description

Designed to Fit a 30.5mm Swaybar. Nolathane Swaybar Bushings feature a knurled ID specifically designed to retain grease. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks. With over 40 years of history, Nolathane remains the number 1 replacement and enhancement bushing and chassis component brand throughout Australia & New Zealand and now boasts a warehouse in California & catalog to suit the North American market.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
20 - Misc	2 mm	AI=36 AII=22 mm	BI=30.4 BII=12 mm	24.5 mm			2	16x12.2x37 mm	Click Here
15 - Tapered Cotton Real Bushing	2 mm	AI=29.2 AII=25.6 mm	16 mm	37.5 mm	6 mm	26 mm	2	16x12.2x37 mm	Click Here
5 - D-bushing Without Flange	2 mm	53.5 mm	30.4 mm	48.5 mm			2	16x12.2x37 mm	Click Here

Bush Type	20 - Misc	15 - Tapered Cotton Real Bushing	5 - D-bushing Without Flange
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	AI=36 AII=22 mm	AI=29.2 AII=25.6 mm	53.5 mm
ID (B)	BI=30.4 BII=12 mm	16 mm	30.4 mm
Length (C)	24.5 mm	37.5 mm	48.5 mm
Flange Thickness (D)		6 mm
Flange OD (E)		26 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	16x12.2x37 mm	16x12.2x37 mm	16x12.2x37 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

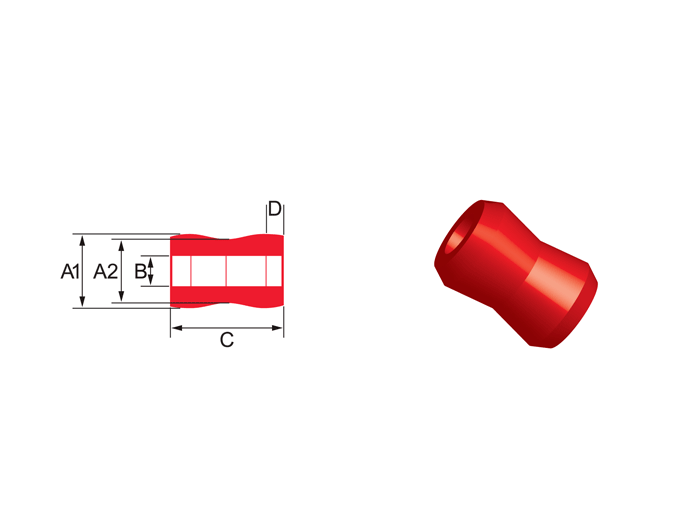

Bushing Type 15 - Tapered Cotton Real Bushing

Bushing Type 5 - D-bushing Without Flange

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
15	2	AI=29.2 AII=25.6	16	37.5	6	26	2	16x12.2x37	Click Here
5	2	53.5	30.4	48.5			2	16x12.2x37	Click Here

Bush Type	15	5
QTY	2	2
OD (A)	AI=29.2 AII=25.6	53.5
ID (B)	16	30.4
Length (C)	37.5	48.5
FL (D)	6
FLOD (E)	26
C/Tube Qty	2	2
C/Tube Size	16x12.2x37	16x12.2x37
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Misc. Product Information

More Information
SKU	REV008.0000
Foot Note 1	Contains both mount and link bushings
Foot Note 2	30.5mm
Foot Note 3	Lifetime Warranty
Components Per	6 Bushings, 2 Tubes
Kit Contents	6 Bushings, 2 Tubes
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 6 Bushings, 2 Tubes
EAN	9319924400560

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	No
