What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

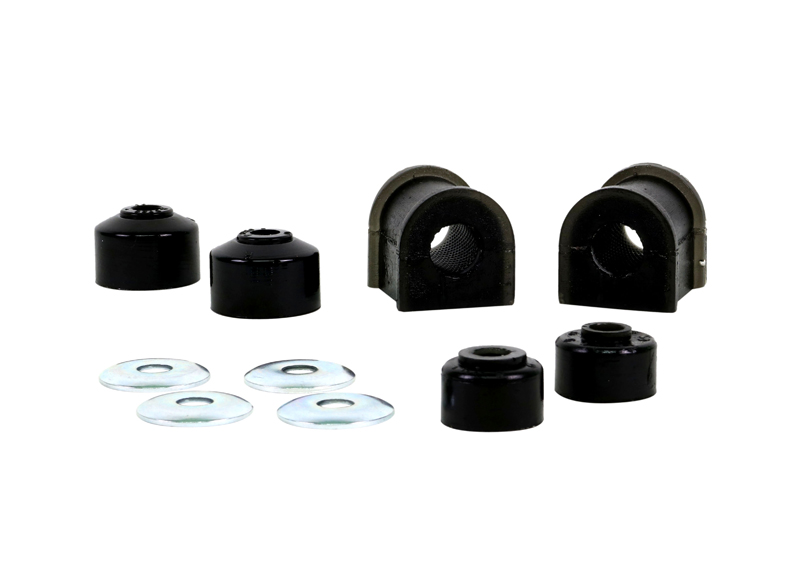

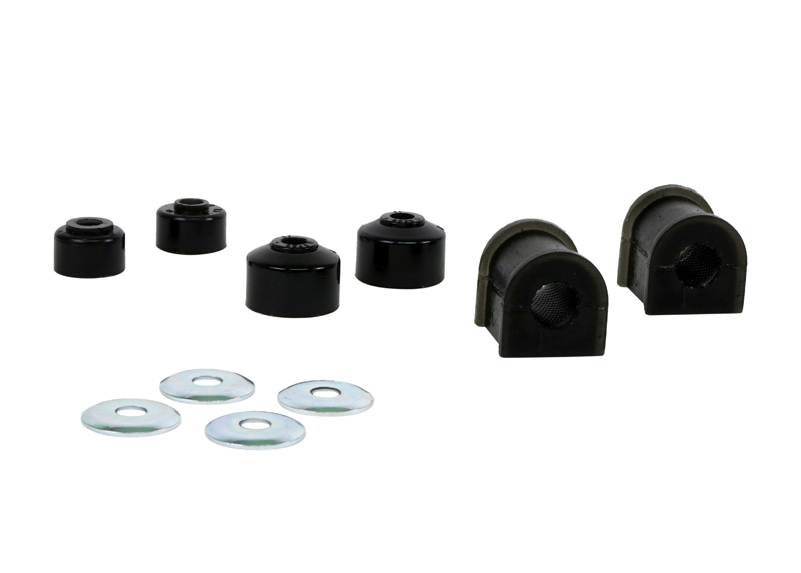

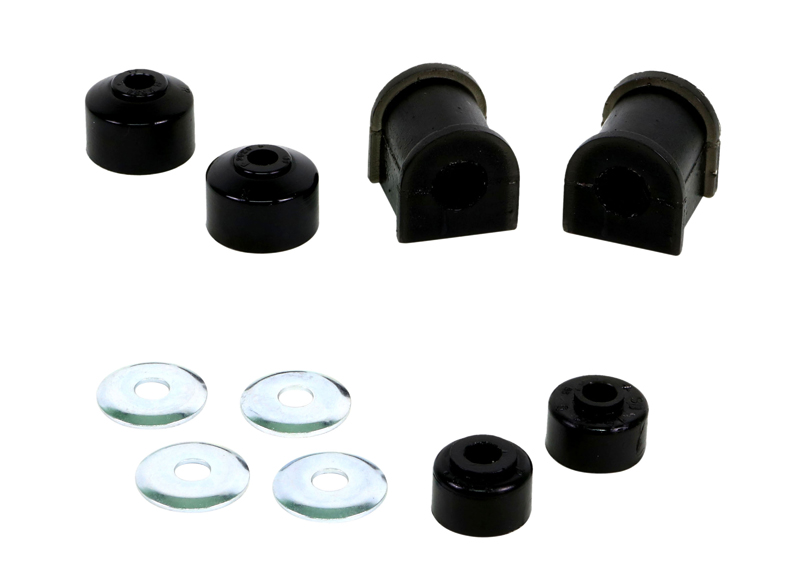

Sway Bar - Mount Bushing 17mm

Description

Designed to fit a 17mm sway bar Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar Link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks. With over 40 years of history, Nolathane remains the number 1 replacement and enhancement bushing and chassis component brand throughout Australia & New Zealand and now boasts a warehouse in California & catalog to suit the North American market.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	Similar Bushing Size
7 - Pin Bush With & Without Spigot	2 mm	28.5 mm	10 mm	18.5 mm	2.5 mm	18.5 mm	Click Here
4 - D-bushing With Flange	2 mm	34 mm	17 mm	40 mm	4.5 mm	38 mm	Click Here
7 - Pin Bush With & Without Spigot	2 mm	AI=35.5 AII=18 mm	9.6 mm	21.8 mm	2 mm		Click Here

Bush Type	7 - Pin Bush With & Without Spigot	4 - D-bushing With Flange	7 - Pin Bush With & Without Spigot
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	28.5 mm	34 mm	AI=35.5 AII=18 mm
ID (B)	10 mm	17 mm	9.6 mm
Length (C)	18.5 mm	40 mm	21.8 mm
Flange Thickness (D)	2.5 mm	4.5 mm	2 mm
Flange OD (E)	18.5 mm	38 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	Similar Bushings
7	2	28.5	10	18.5	2.5	18.5	Click Here
4	2	34	17	40.0	4.5	38	Click Here
7	2	AI=35.5 AII=18	9.6	21.8	2		Click Here

Bush Type	7	4	7
QTY	2	2	2
OD (A)	28.5	34	AI=35.5 AII=18
ID (B)	10	17	9.6
Length (C)	18.5	40.0	21.8
FL (D)	2.5	4.5	2
FLOD (E)	18.5	38
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	REV016.0016
Foot Note 3	Limited Lifetime
Kit Contents	6 Bushings, 4 Washers, Grease
EAN	09319924446865

Installation & Fitment Guide

More Information
Install Guide	Downloads
Wheel Alignment Required	No
