What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

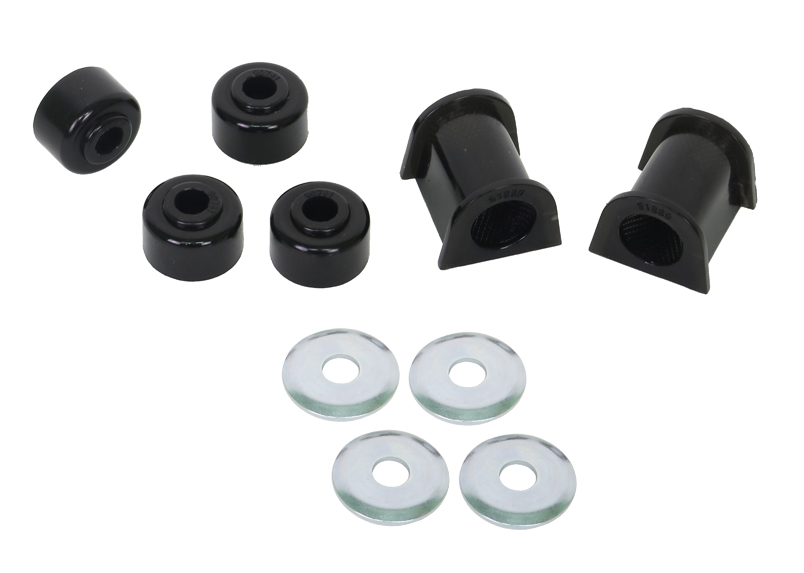

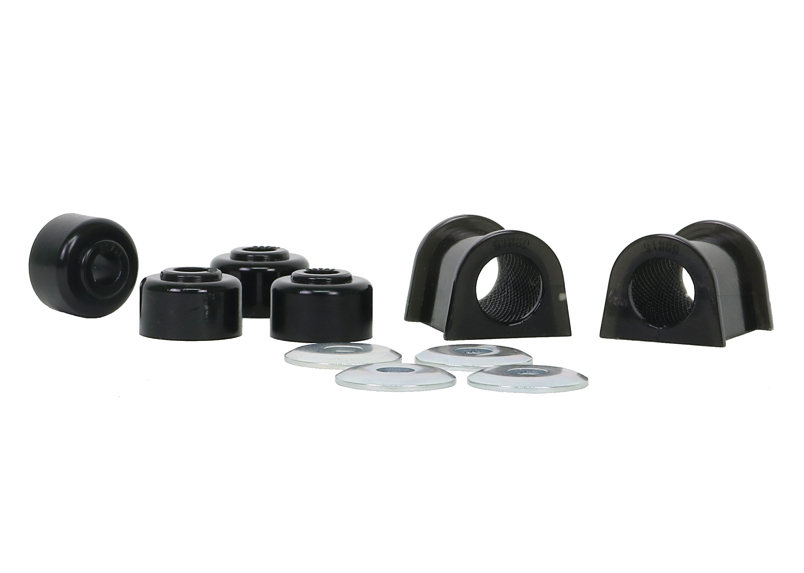

20mm Sway Bar Mount & End Link Bushing Set

Description

With over 40 years of history, Nolathane remains the number 1 replacement and enhancement bushing and chassis component brand throughout Australia & New Zealand and now boasts a warehouse in California & catalog to suit the North American market. Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane formulation bushings are engineered to last and deliver improved driving performance.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
4 - D-bushing With Flange	2 mm	26.5 mm	20 mm	40.2 mm	3.1 mm	30.5 mm			Click Here
7 - Pin Bush With & Without Spigot	4 mm	29 mm	10 mm	18.2 mm	2 mm				Click Here

Bush Type	4 - D-bushing With Flange	7 - Pin Bush With & Without Spigot
Bush Quantity	2 mm	4 mm
OD (A)	26.5 mm	29 mm
ID (B)	20 mm	10 mm
Length (C)	40.2 mm	18.2 mm
Flange Thickness (D)	3.1 mm	2 mm
Flange OD (E)	30.5 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	2	26.5	20	40.2	3.1	30.5			Click Here
7	4	29	10	18.2	2				Click Here

Bush Type	4	7
QTY	2	4
OD (A)	26.5	29
ID (B)	20	10
Length (C)	40.2	18.2
FL (D)	3.1	2
FLOD (E)	30.5
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Misc. Product Information

More Information
SKU	REV008.0172
Foot Note 3	Limited Lifetime
Kit Contents	6 Bushings, 4 Washers, Grease, Install Guide
EAN	09319924462216

Installation & Fitment Guide

More Information
Install Guide	Downloads
Wheel Alignment Required	No
