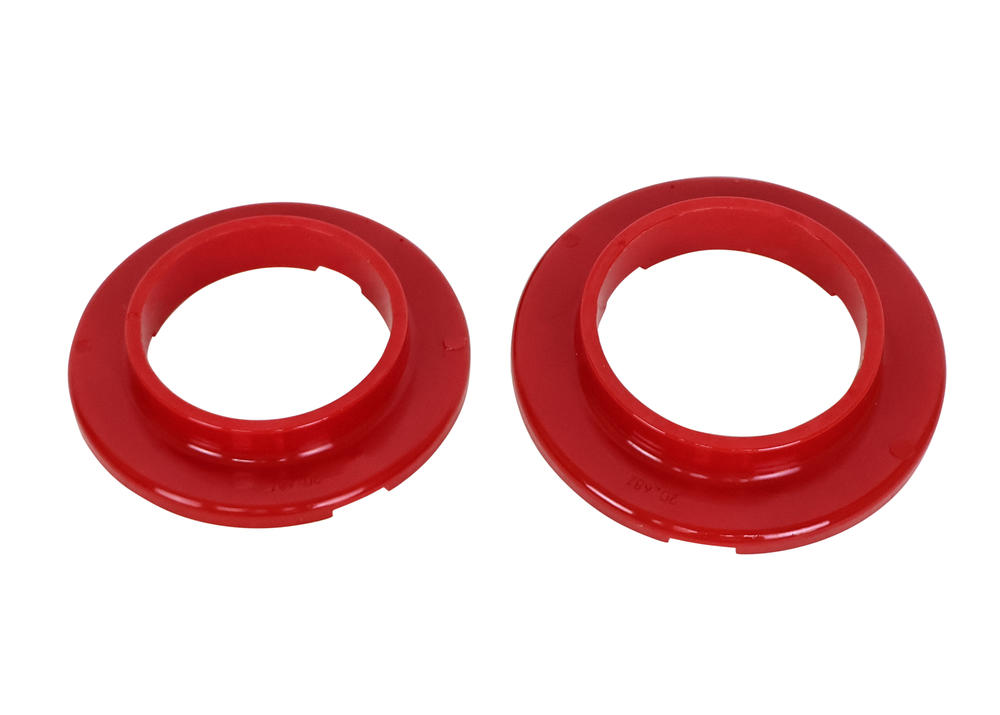

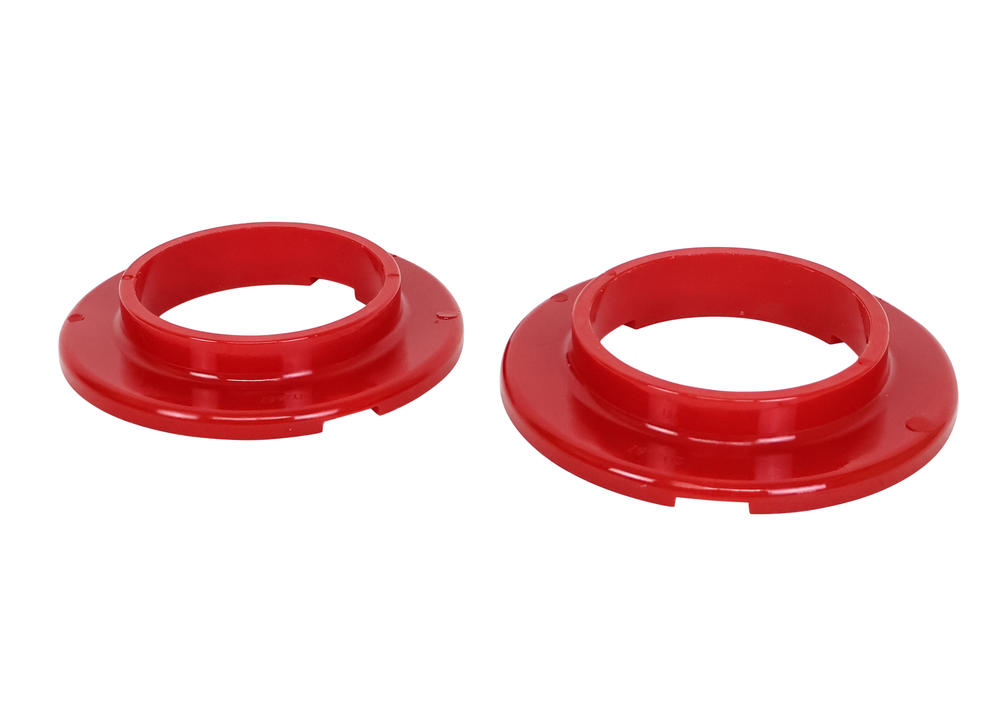

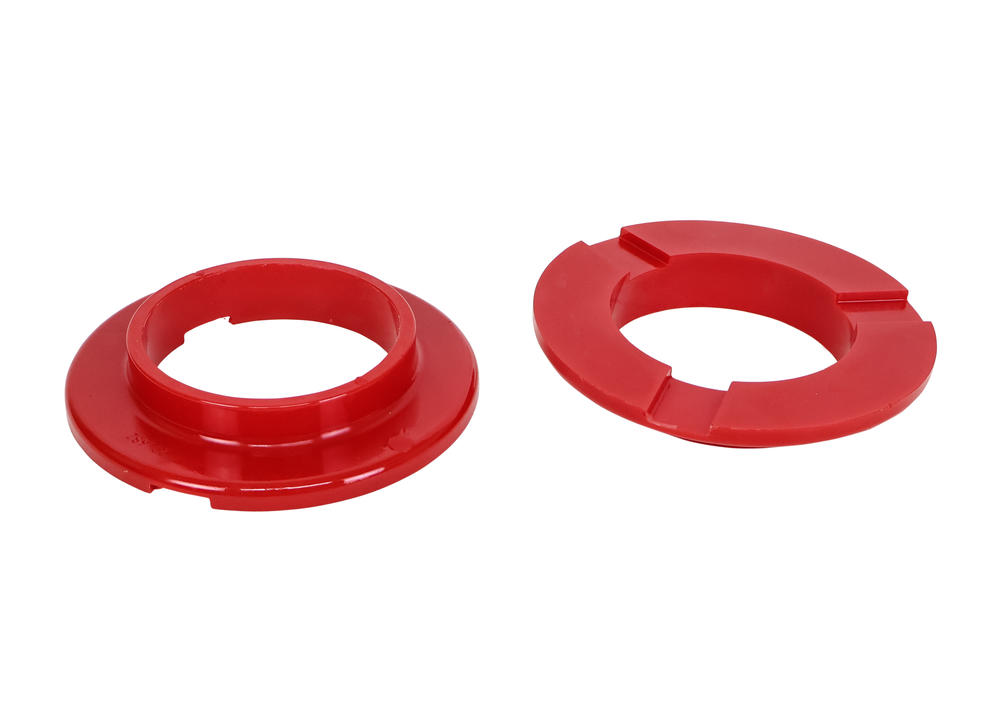

Coil Spring Pad - Upper Bushing Kit to Suit Mitsubishi Triton MV

Description

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle (common to 4x4 models), looking to obtain that preferred ride height setting or improve steering response. Nolathane spring pads are an economical solution.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
9 - Coil Spring Seats And Spacer Bushing	2 mm	135 mm	93 mm	22.8 mm	14.5 mm				Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing
Bush Quantity	2 mm
OD (A)	135 mm
ID (B)	93 mm
Length (C)	22.8 mm
Flange Thickness (D)	14.5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	2	135	93	22.8	14.5				Click Here

Bush Type	9
QTY	2
OD (A)	135
ID (B)	93
Length (C)	22.8
FL (D)	14.5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.21kg	10cm	16cm	26cm
in/lbs	0.46lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	0.21kg	0.46lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	44049
Foot Note 1	Standard replacement
Foot Note 3	Lifetime Warranty
Components Per	2 Bushings
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes: 2 Coil Spring Bushings
EAN	9319924483068

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
