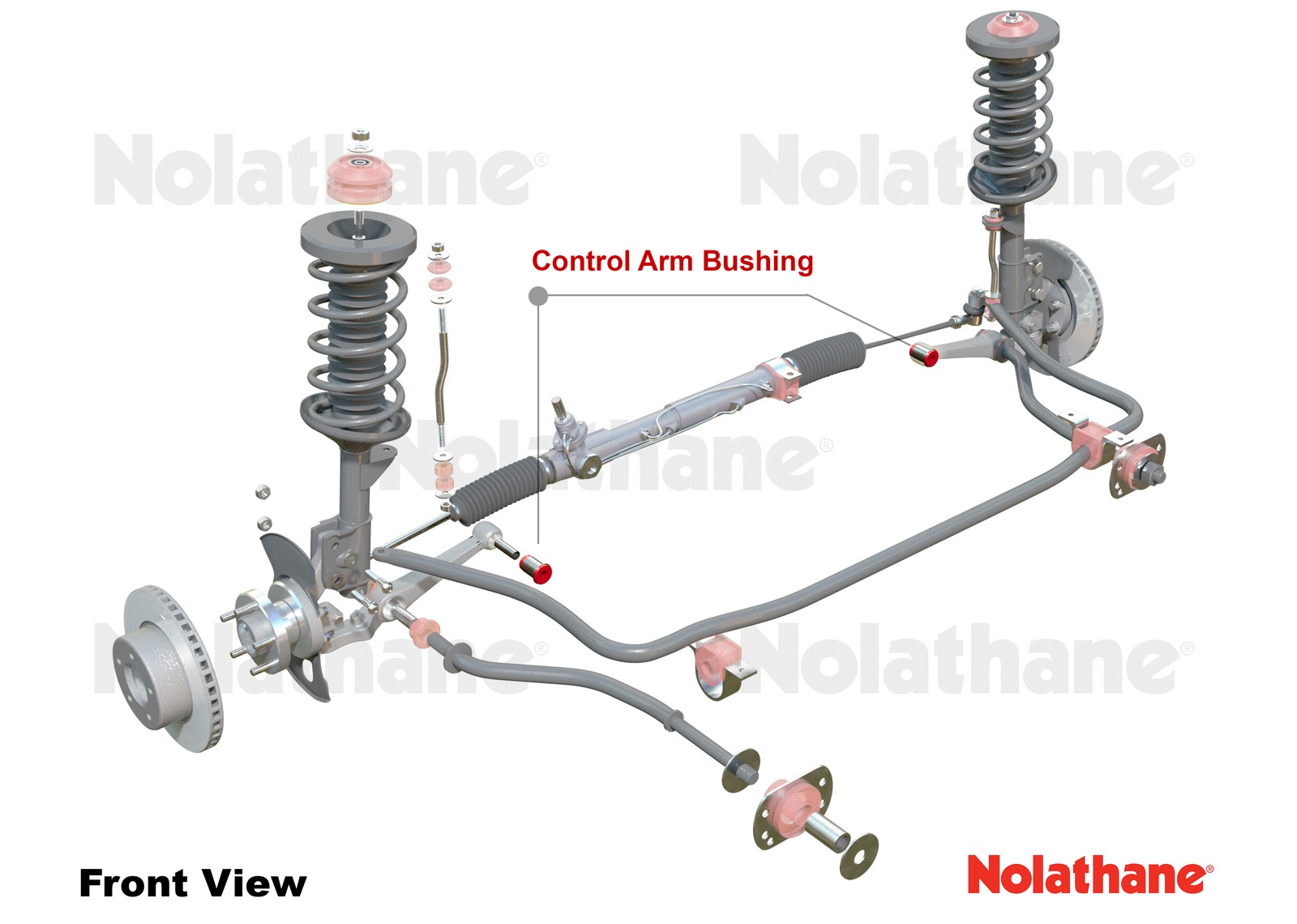

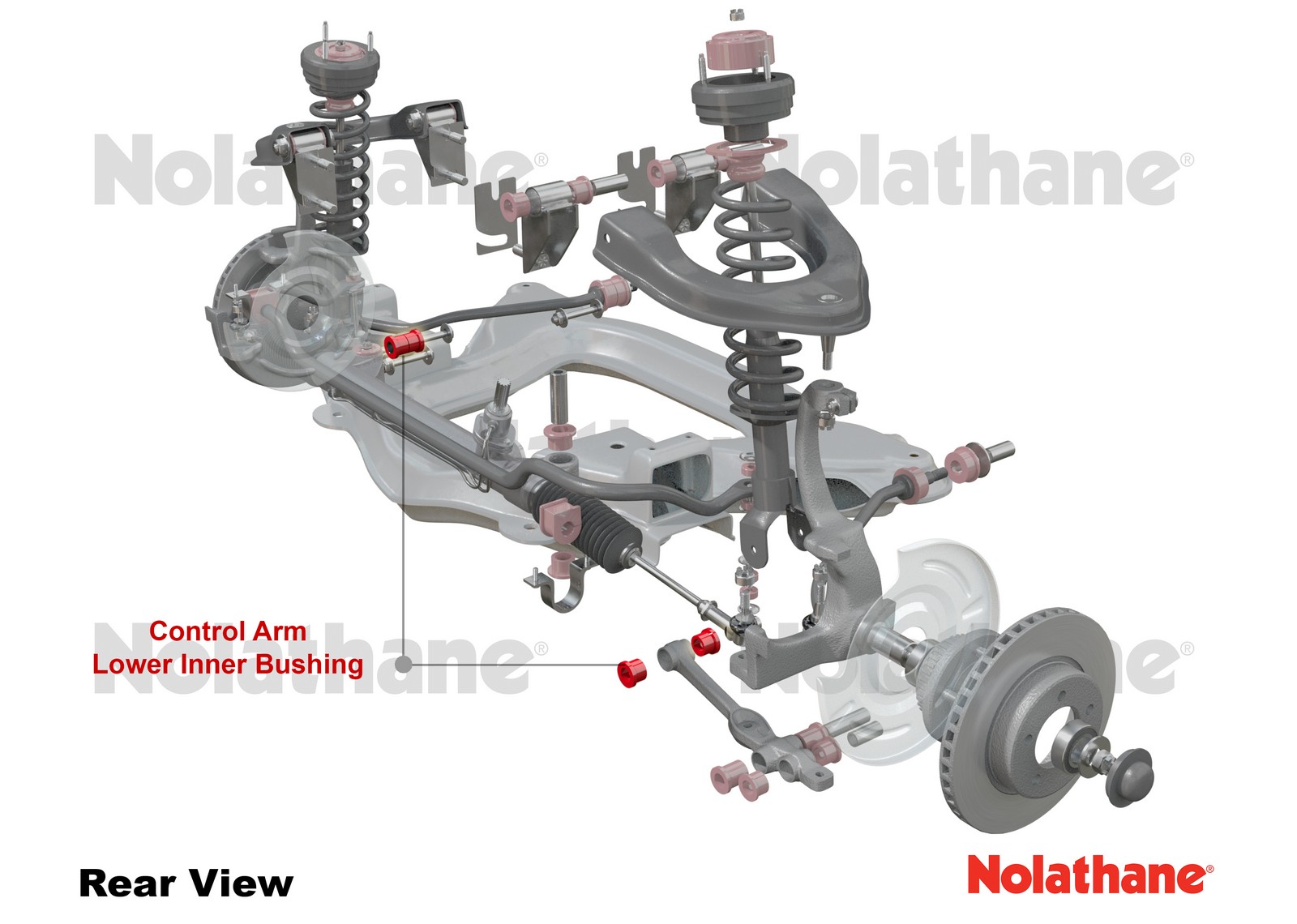

Control Arm Lower - Bushing Kit to Suit Ford Courier PA and Mazda B Series PE, UC and UD

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	4	34.4	22.2	57.8	6.9	30.5	4	22.2x18.2x57	Click Here

Bush Type	16
QTY	4
OD (A)	34.4
ID (B)	22.2
Length (C)	57.8
FL (D)	6.9
FLOD (E)	30.5
C/Tube Qty	4
C/Tube Size	22.2x18.2x57
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.624kg	10cm	26cm	16cm
in/lbs	1.38lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.624kg	1.38lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45271
Foot Note 3	Lifetime Warranty

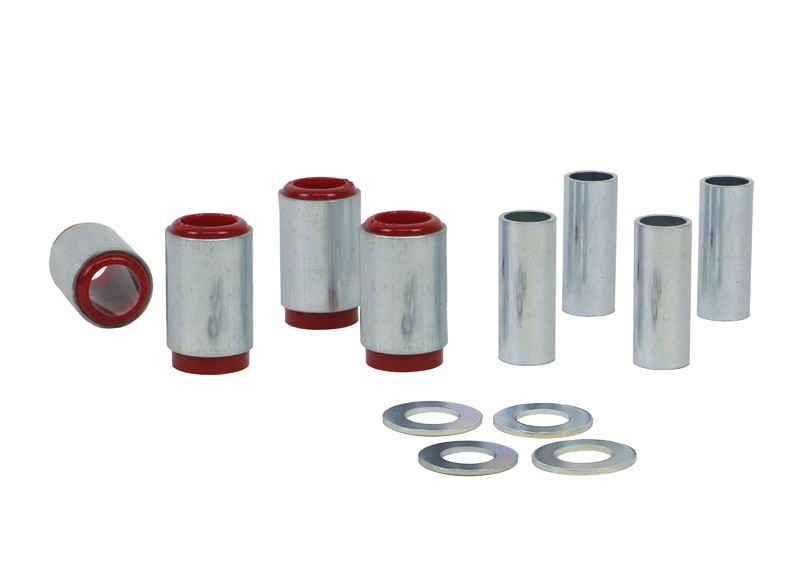

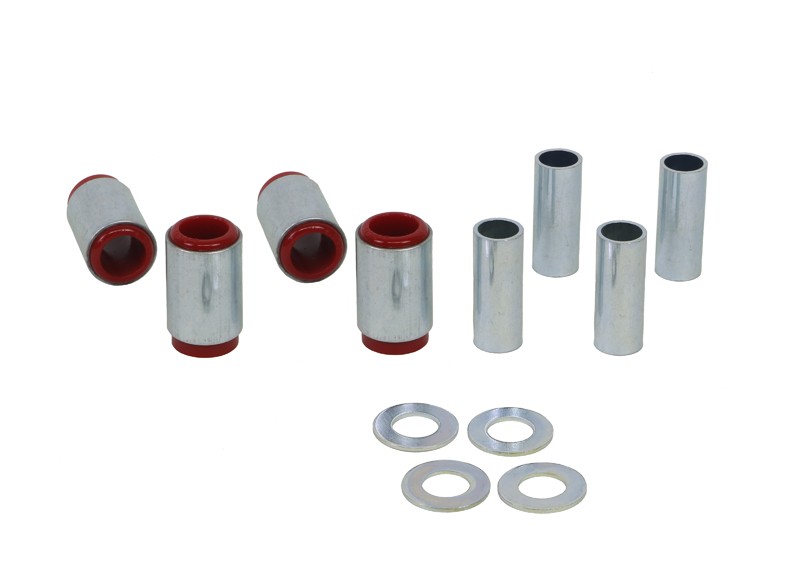

Components Per	4 Shell Bushings, 4 Tubes, 4 Washers
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes, 4 Washers
EAN	9314258041298

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
