What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

49275

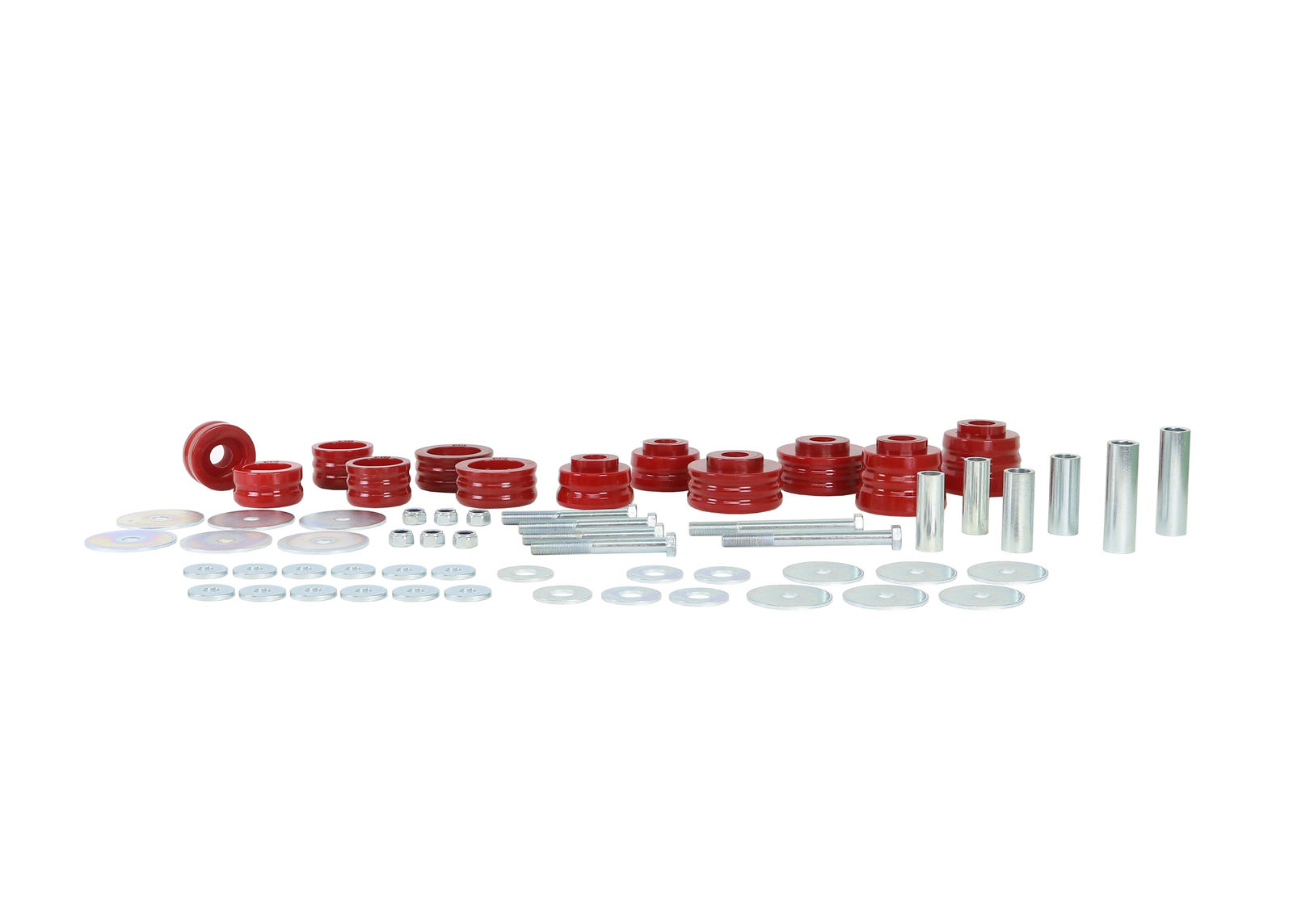

Front and Rear Body Mount - Bushing Kit to Suit Ford Courier PE, PH and Mazda B Series UN

Front and Rear Body Mount - Bushing Kit to Suit Ford Courier PE, PH and Mazda B Series UN

Item Price

$732.69

SKU	49275
Warranty	Lifetime Warranty
Installation Time	4 Hours
Fitting Position	Front and Rear

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD’s, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

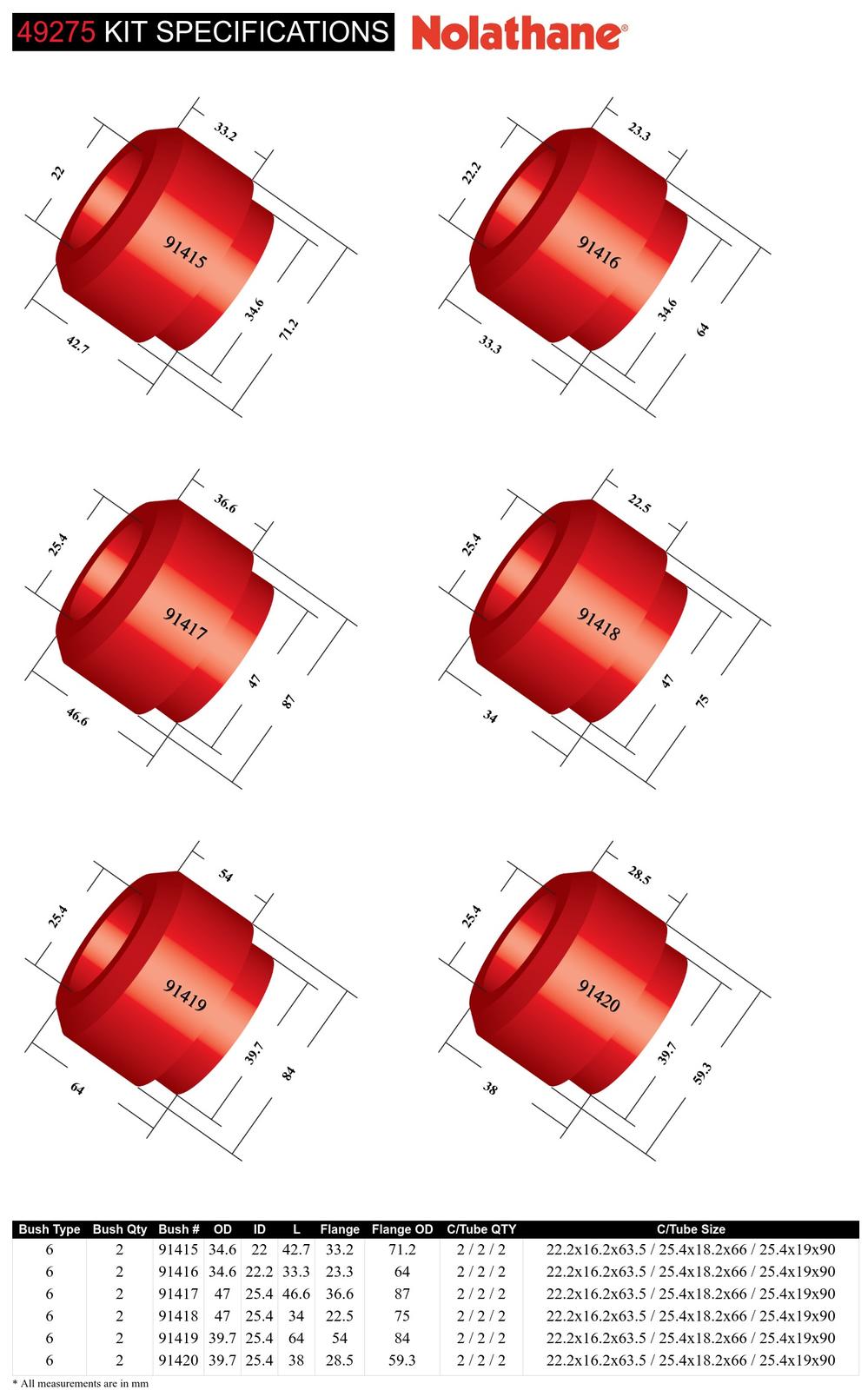

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
6	2	34.6	22	42.7	33.2	71.2	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here
6	2	39.7	25.4	64.0	54	84	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here
6	2	47	25.4	46.6	36.6	87	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here
6	2	47	25.4	34.0	22.5	75	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here
6	2	34.6	22.2	33.3	23.3	64	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here
6	2	39.7	25.4	38.0	28.5	59.3	2 / 2 / 2	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	Click Here

Bush Type	6	6	6	6	6	6
QTY	2	2	2	2	2	2
OD (A)	34.6	39.7	47	47	34.6	39.7
ID (B)	22	25.4	25.4	25.4	22.2	25.4
Length (C)	42.7	64.0	46.6	34.0	33.3	38.0
FL (D)	33.2	54	36.6	22.5	23.3	28.5
FLOD (E)	71.2	84	87	75	64	59.3
C/Tube Qty	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2
C/Tube Size	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90
Similar Bushings	Click Here	Click Here	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	4.7kg	40cm	10cm	20cm
in/lbs	10.36lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	4.7kg	10.36lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	49275
Foot Note 3	Lifetime Warranty

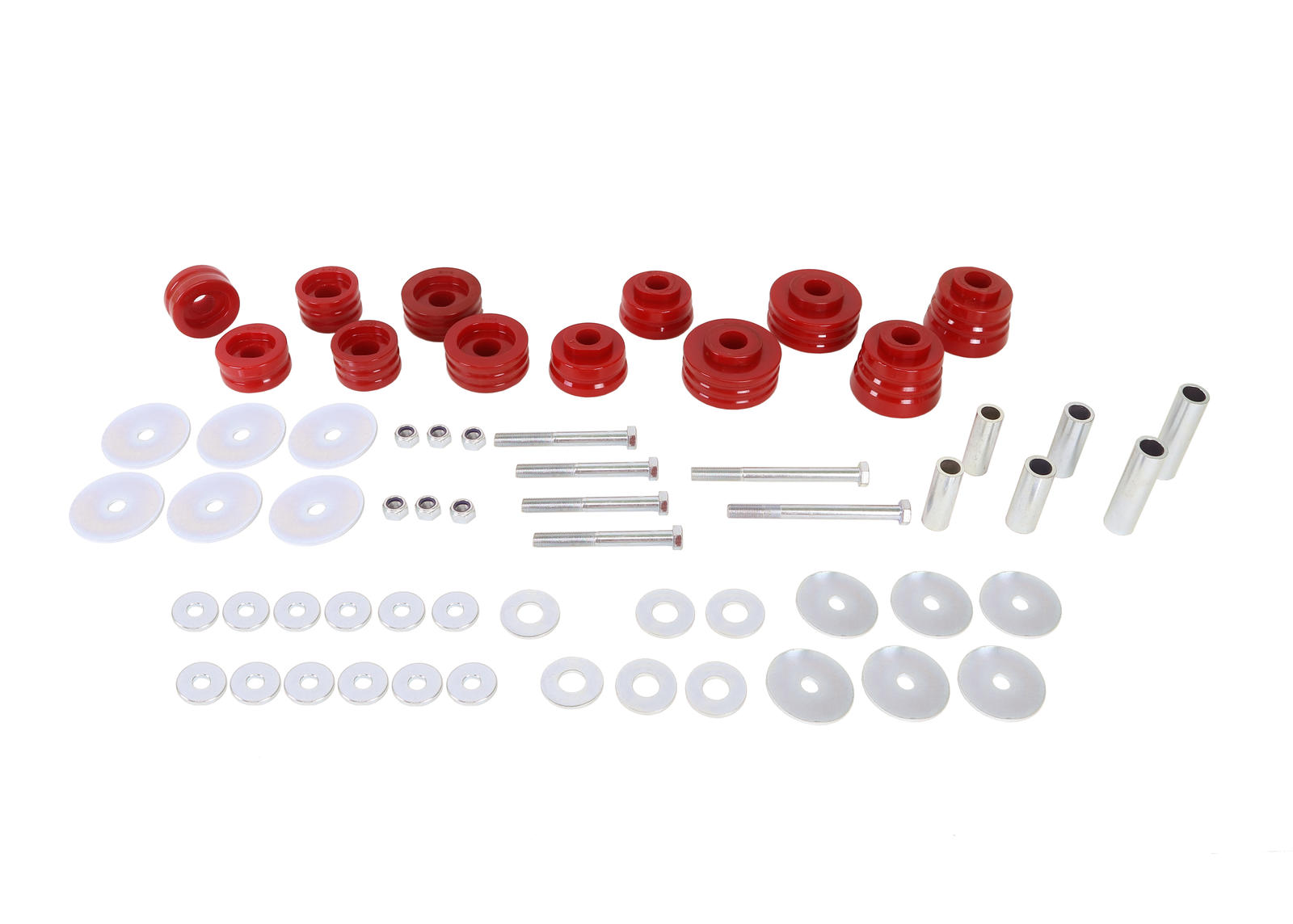

Components Per	12 Bushings, 6 Tubes, 6 Bolts, 30 Washers, 6 Nuts
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924463138

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment
