What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

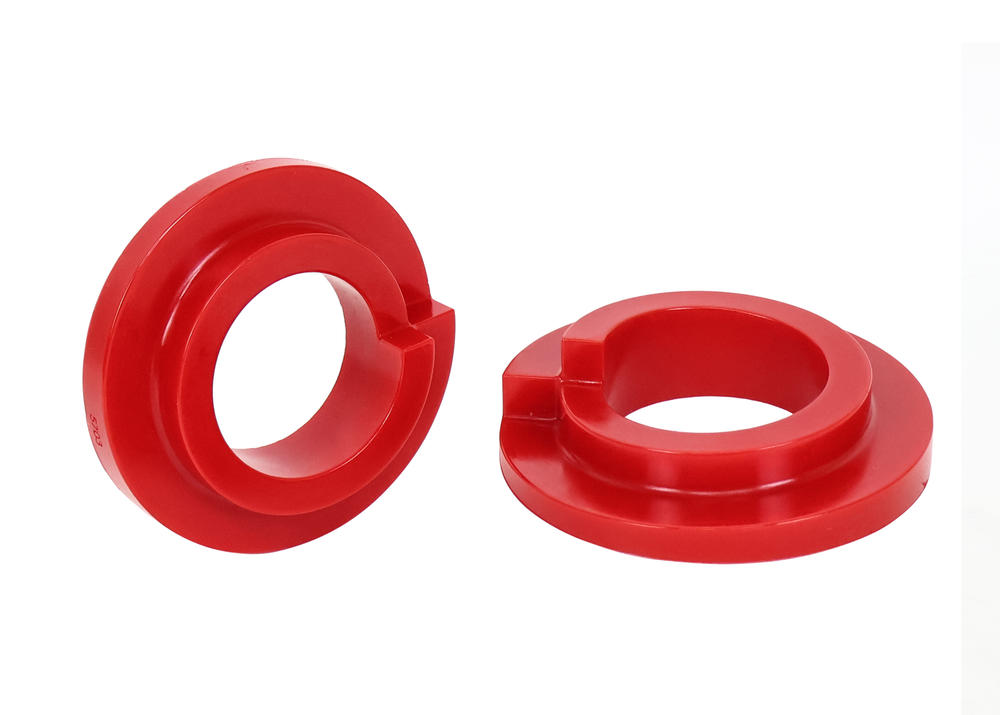

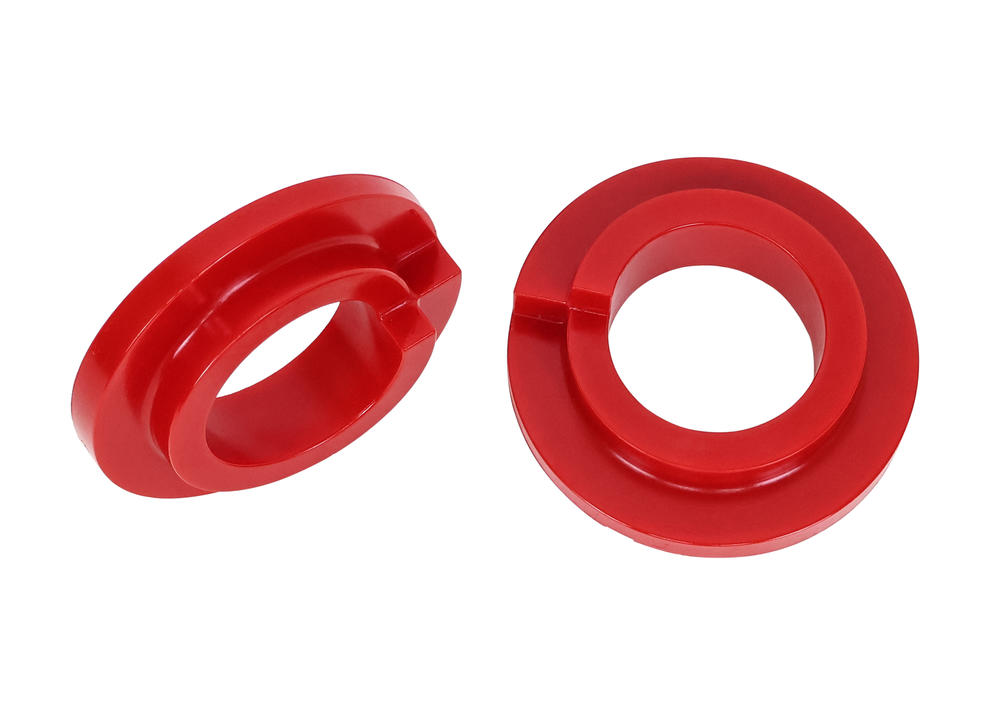

Front Coil Spring Pad - Upper Bushing Kit to Suit Ford Ranger PY and VW Amarok T1

Description

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle (common to 4x4 models), looking to obtain that preferred ride height setting or improve steering response. Nolathane spring pads are an economical solution.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
9 - Coil Spring Seats And Spacer Bushing	2 mm	112.5 mm	87.5 mm	32.7 mm	20.2 mm				Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing
Bush Quantity	2 mm
OD (A)	112.5 mm
ID (B)	87.5 mm
Length (C)	32.7 mm
Flange Thickness (D)	20.2 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	2	112.5	87.5	32.7	20.2				Click Here

Bush Type	9
QTY	2
OD (A)	112.5
ID (B)	87.5
Length (C)	32.7
FL (D)	20.2
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	15kg	10cm	16cm	26cm
in/lbs	33.07lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	15kg	33.07lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	47457
Foot Note 1	Standard ride height
Components Per	2 Bushings
Product Note	Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes: 2 Bushings
EAN	9319924484171

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
