What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

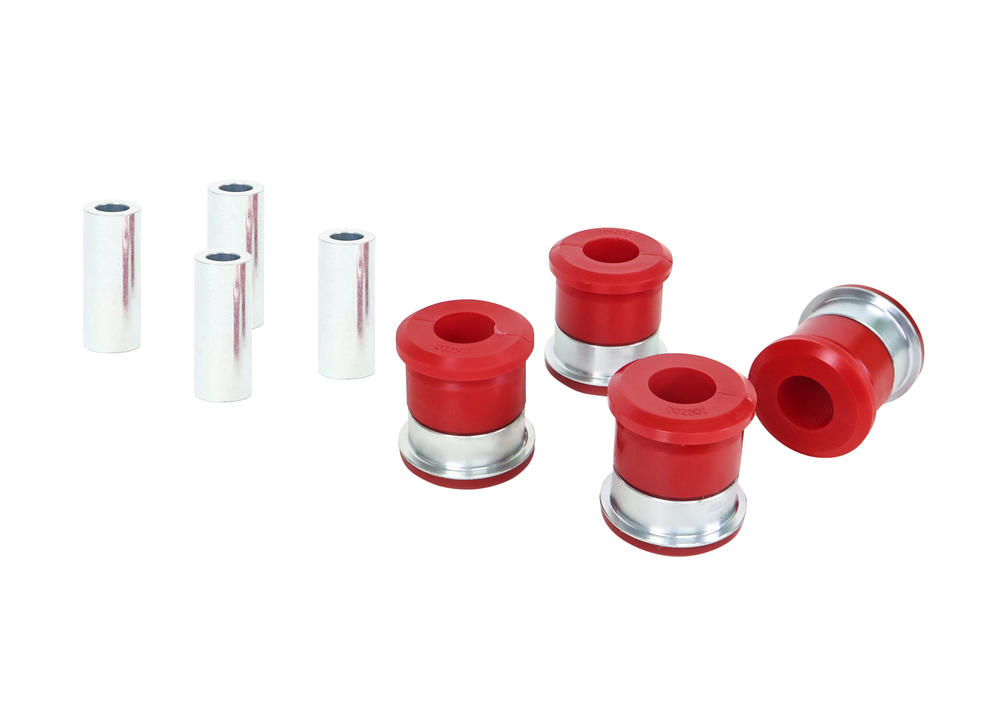

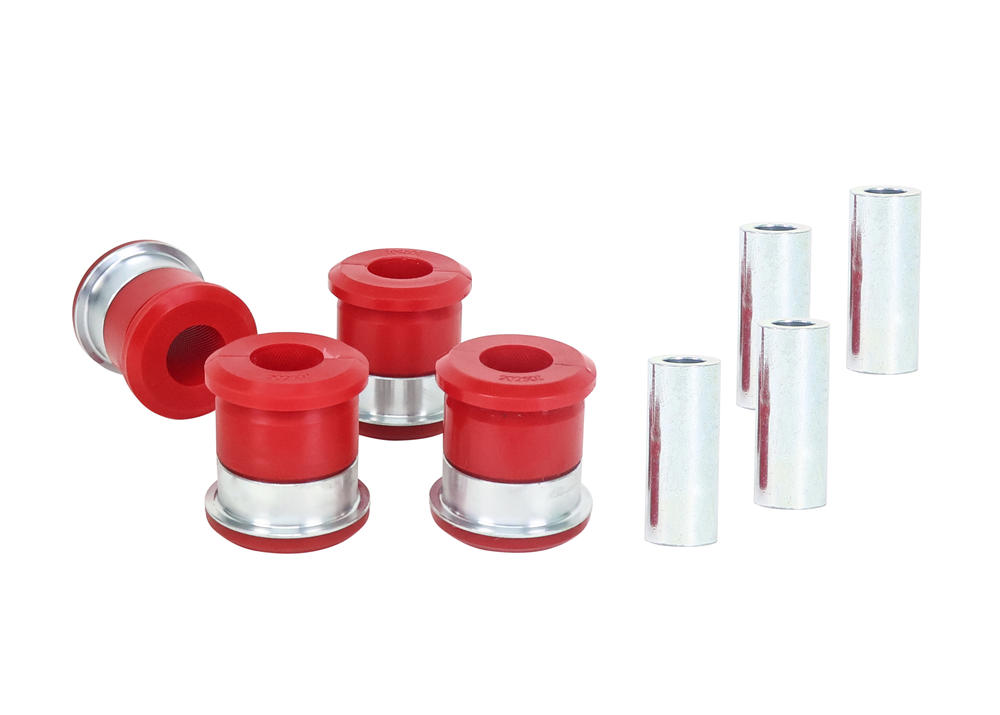

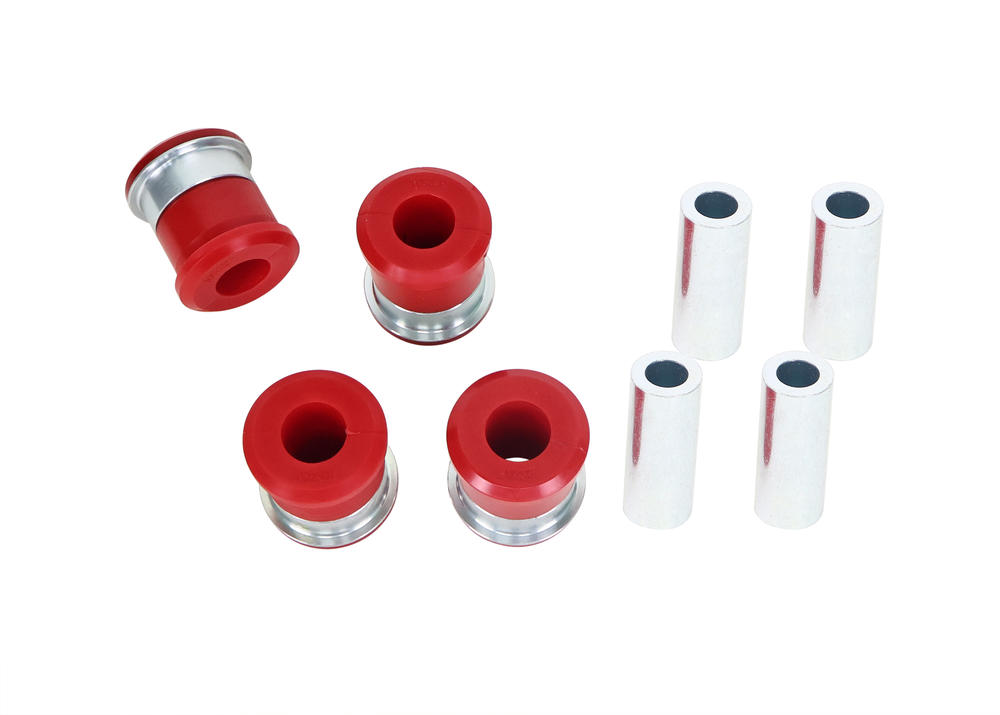

Front Control Arm Upper - Bushing Kit to Suit Mitsubishi Triton MV and Nissan Navara D27

Description

Benefit Note:Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	46 mm	23.8 mm	58.4 mm	3 mm	52 mm	4	24x14.3x59.2 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	46 mm
ID (B)	23.8 mm
Length (C)	58.4 mm
Flange Thickness (D)	3 mm
Flange OD (E)	52 mm
C/Tube Quantity	4
C/Tube ODxIDxL	24x14.3x59.2 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.03kg	10cm	16cm	26cm
in/lbs	2.27lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	1.03kg	2.27lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	451012
Components Per	4 Shell Bushings, 4 Tubes
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN	9319924483075

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
