What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

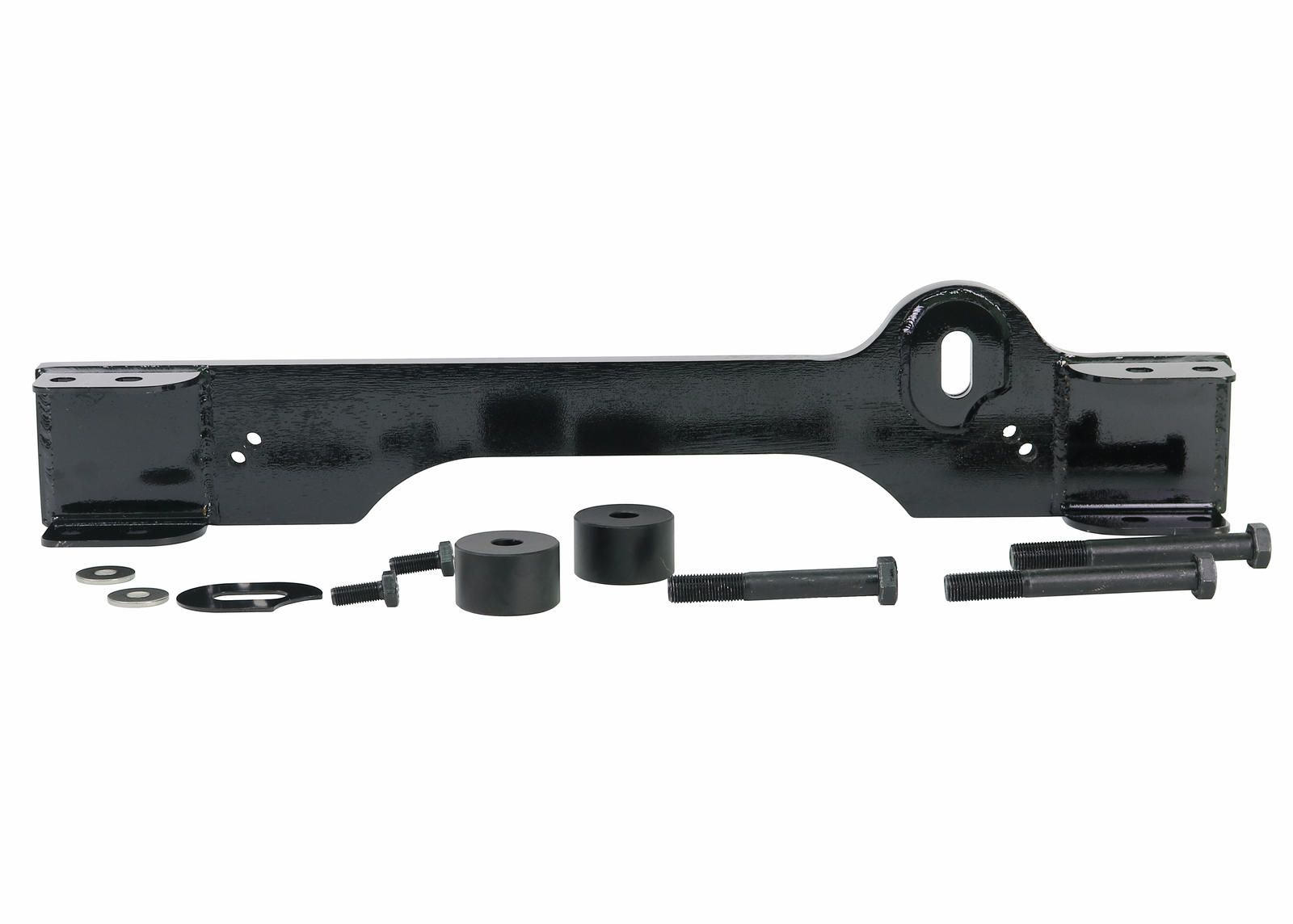

Front Differential Drop - Kit to Suit Holden Colorado, Trailblazer, Isuzu D-Max and MU-X

Description

Benefit Note:
This Nolathane differential drop kit when fitted to lifted vehicles corrects CV shaft angles and eliminates the potential issue of popping or breaking a driveshaft. In turn, wear on the CV boots will be reduced and the kit provides provision for fitting of the original protection bash plates.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
20 - Misc	1 mm								Click Here

Bush Type	20 - Misc
Bush Quantity	1 mm
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	7.6kg	68cm	16cm	8cm
in/lbs	16.76lbs	26.77"	6.3"	3.15"

Units	cm/kg	in/lbs
Weight	7.6kg	16.76lbs
Length	68cm	26.77"
Width	16cm	6.3"
Height	8cm	3.15"

Misc. Product Information

More Information
SKU	49282
Foot Note 1	Drops differential to correct CV angle

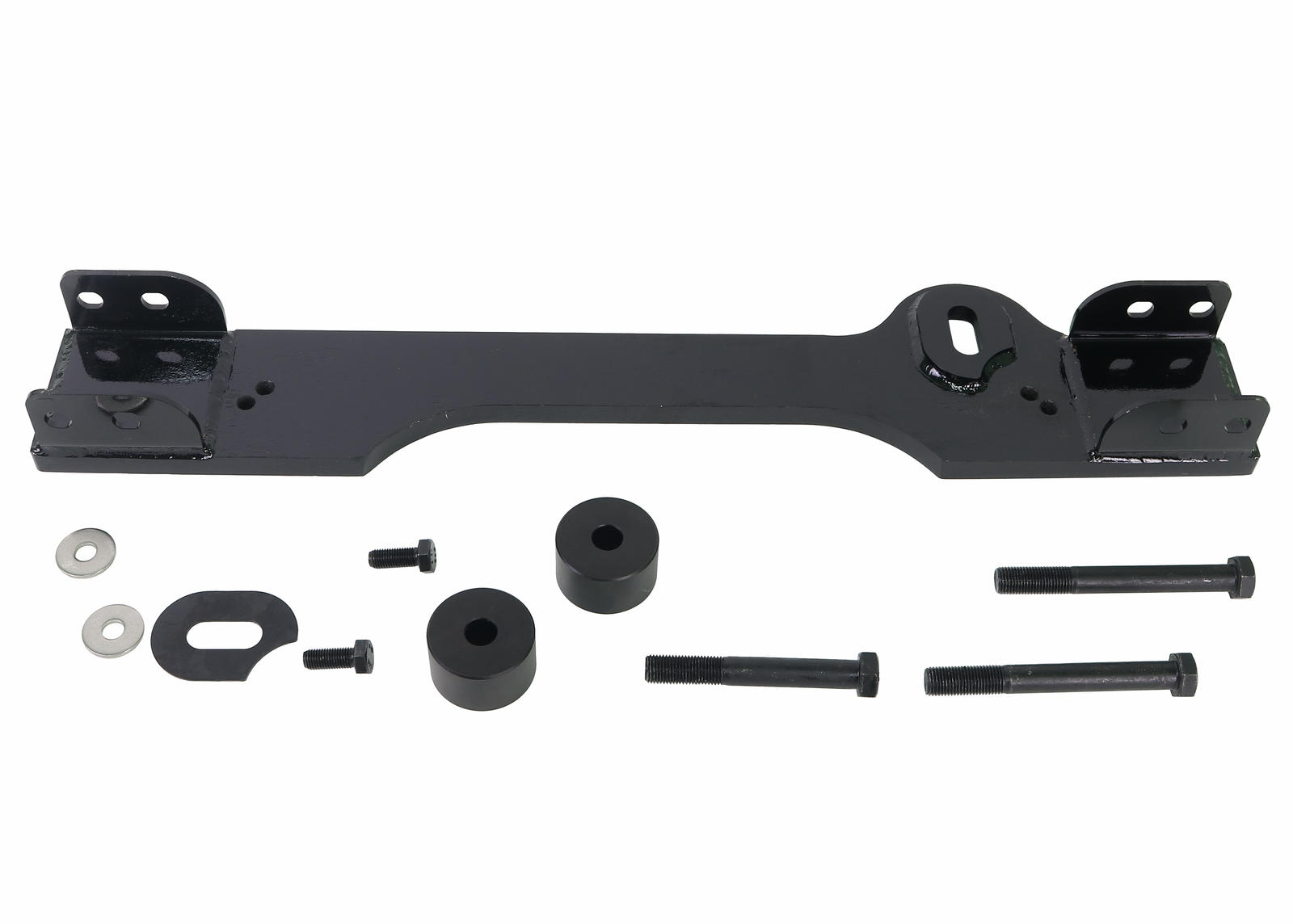

Components Per	1 Bracket, 5 Bolts, 2 Spacers, 3 Washers
Product Note	Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:
EAN	9319924468171

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Video

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
