What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

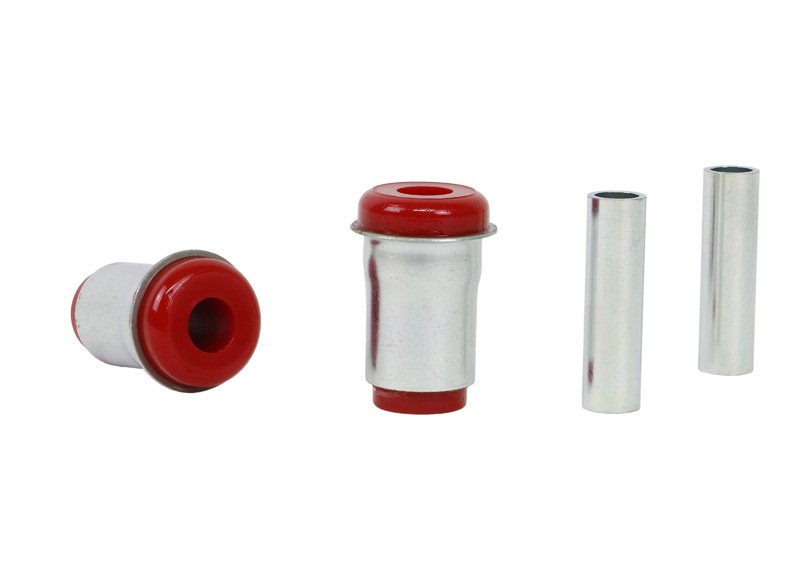

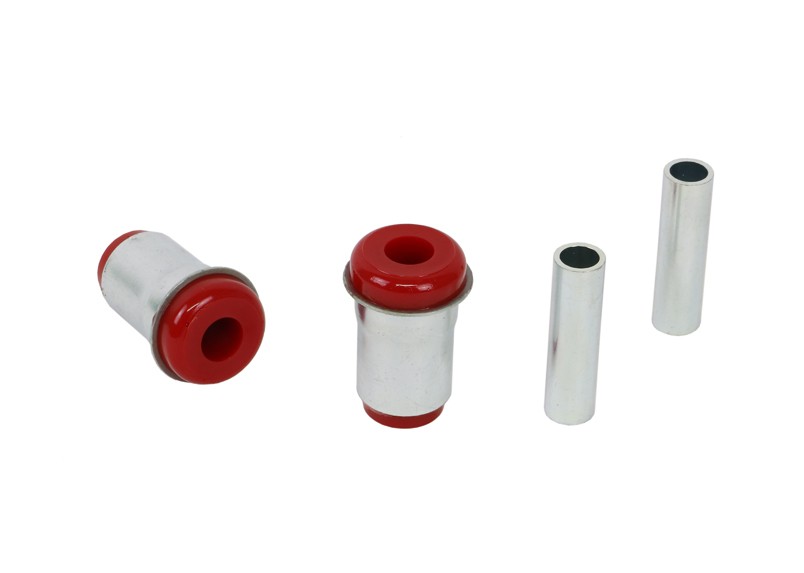

Front Lower Control Arm - Inner Bushing Kit to Suit Toyota Celica, Corona, Cressida and Supra

Description

Benefit Note:

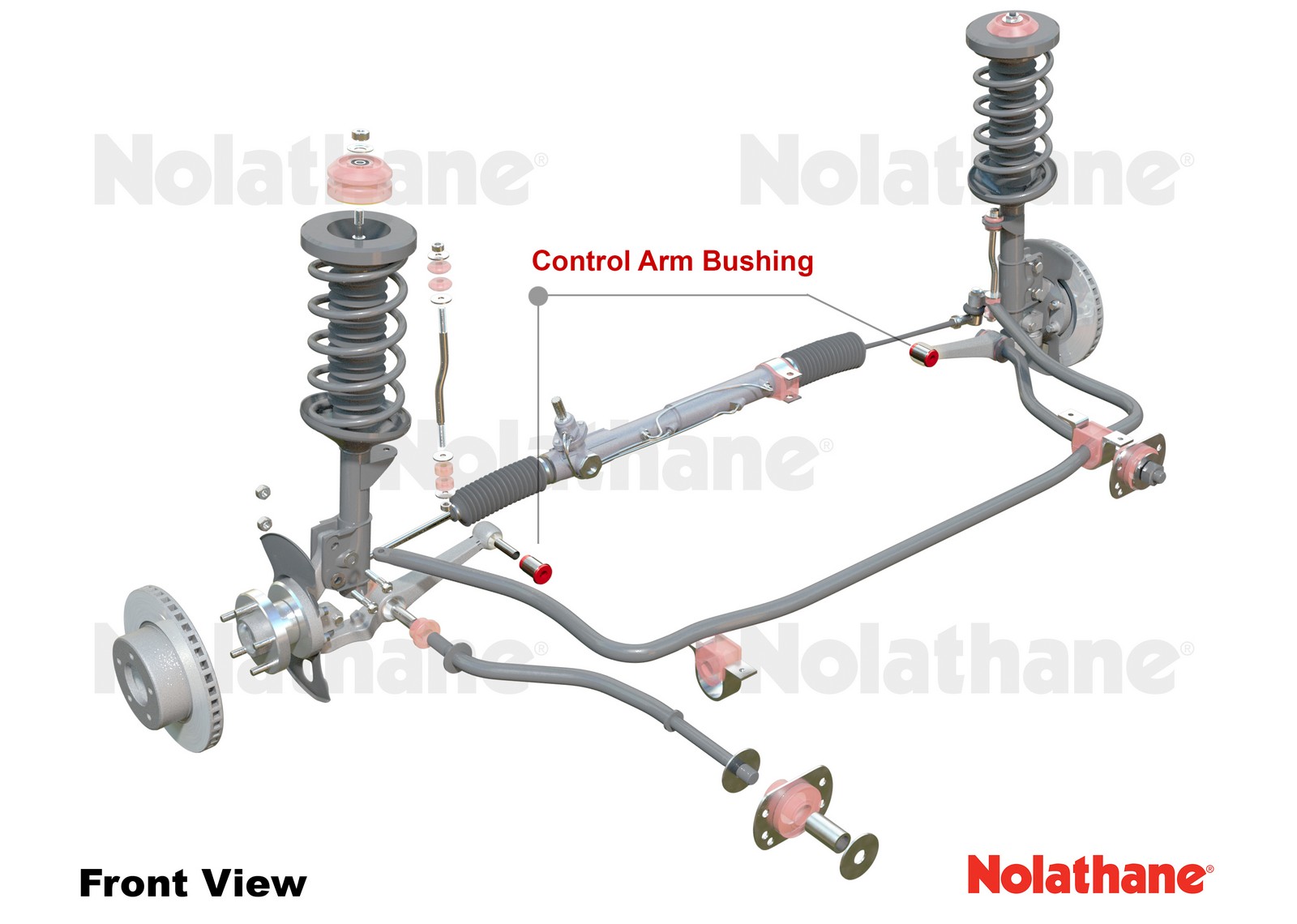

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

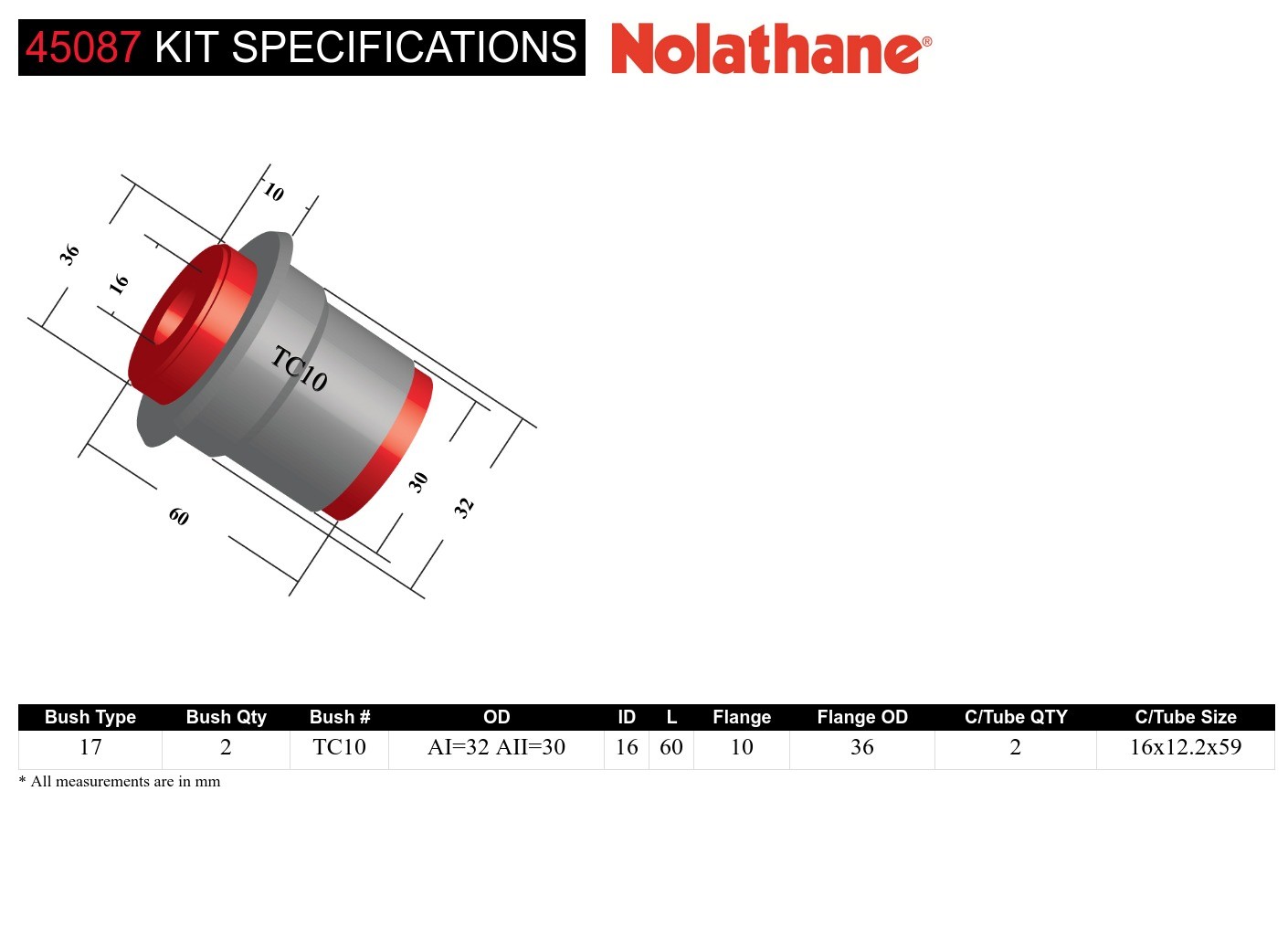

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
17 - Shell With Flange Bushing	2 mm	AI=32 AII=30 mm	16 mm	60 mm	10 mm	36 mm	2	16x12.2x59 mm	Click Here

Bush Type	17 - Shell With Flange Bushing
Bush Quantity	2 mm
OD (A)	AI=32 AII=30 mm
ID (B)	16 mm
Length (C)	60 mm
Flange Thickness (D)	10 mm
Flange OD (E)	36 mm
C/Tube Quantity	2
C/Tube ODxIDxL	16x12.2x59 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
17	2	AI=32 AII=30	16	60.0	10	36	2	16x12.2x59	Click Here

Bush Type	17
QTY	2
OD (A)	AI=32 AII=30
ID (B)	16
Length (C)	60.0
FL (D)	10
FLOD (E)	36
C/Tube Qty	2
C/Tube Size	16x12.2x59
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.265kg	7cm	20cm	14cm
in/lbs	0.58lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.265kg	0.58lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	45087
Foot Note 3	Lifetime Warranty
Components Per	2 Shell Bushings, 2 Tubes
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9314258508104

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
