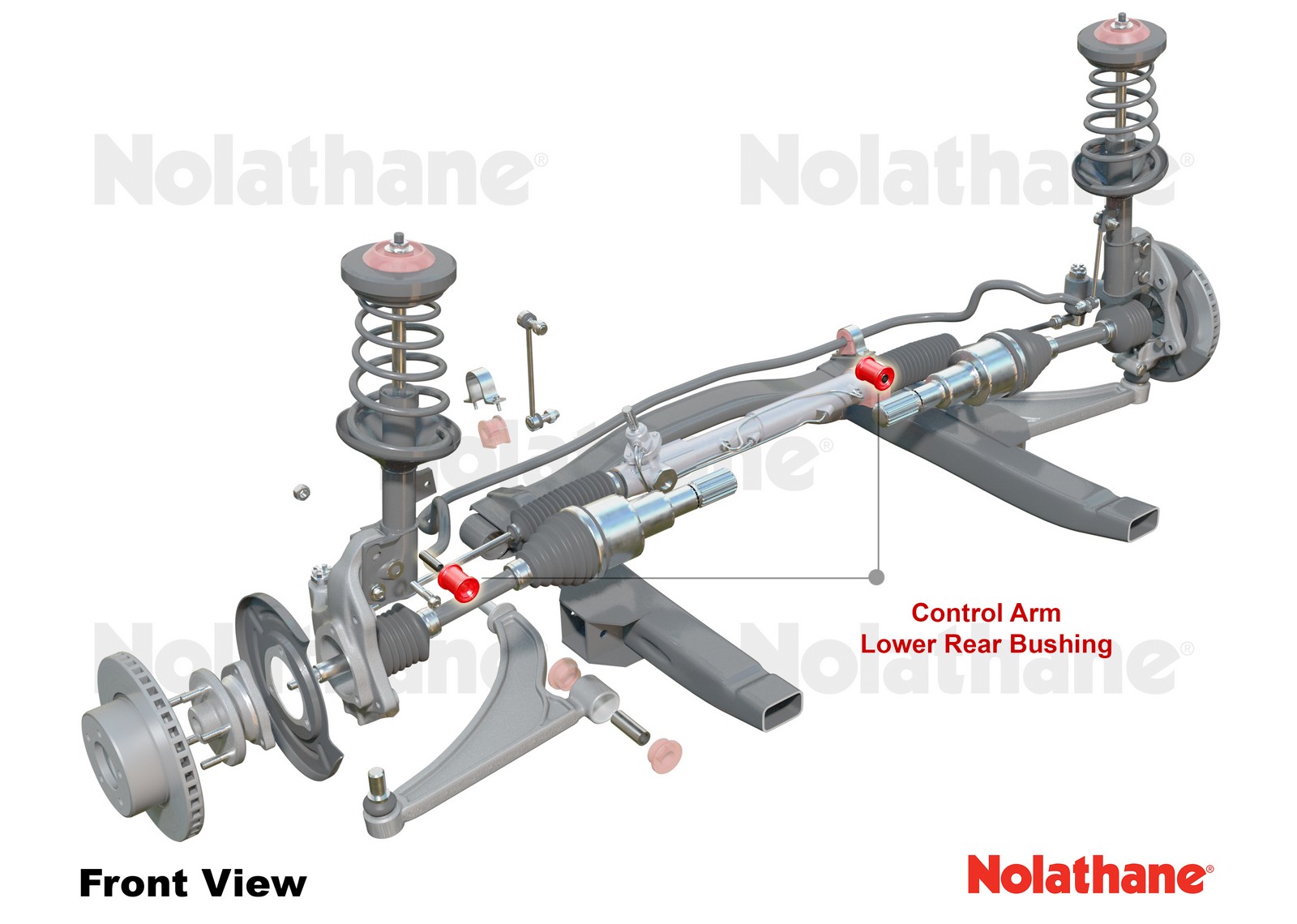

Front Lower Control Arm - Inner Rear Bushing Double Offset Kit to Suit BMW 3 Series E46 and Z4 E86, E86

Description

Benefit Note:

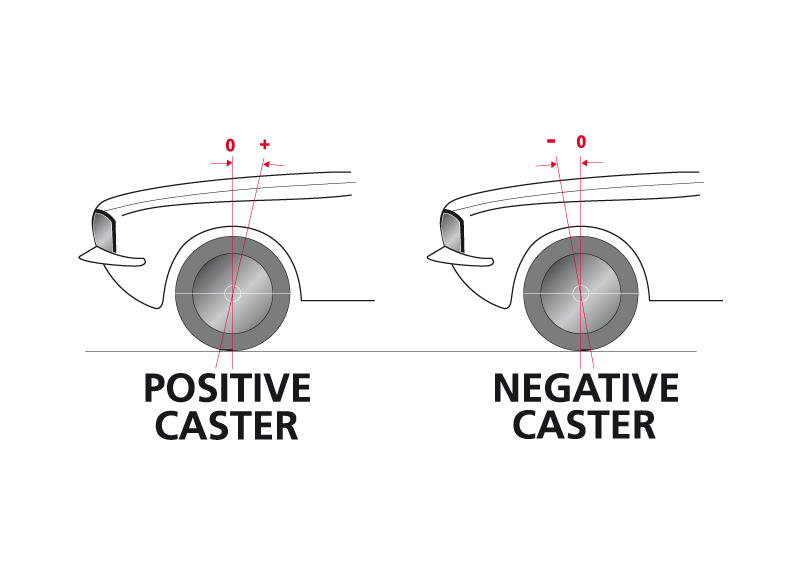

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

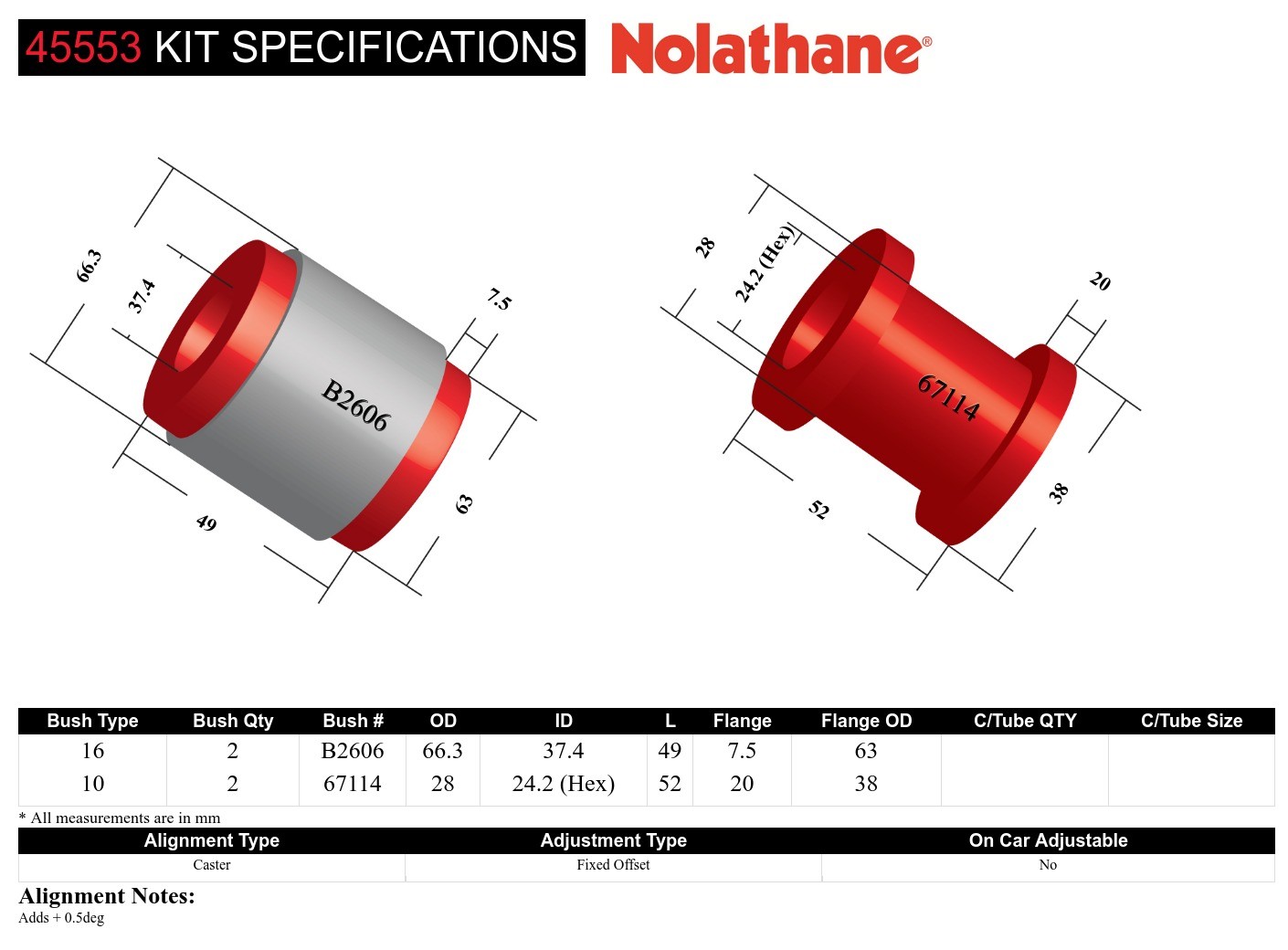

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	66.3 mm	37.4 mm	49 mm	7.5 mm	63 mm			Click Here
10 - Cotton Reel With & Without Tapper Bushing	2 mm	28 mm	24.2 (Hex) mm	52 mm	20 mm	38 mm			Click Here

Bush Type	16 - Shell Without Flange Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm	2 mm
OD (A)	66.3 mm	28 mm
ID (B)	37.4 mm	24.2 (Hex) mm
Length (C)	49 mm	52 mm
Flange Thickness (D)	7.5 mm	20 mm
Flange OD (E)	63 mm	38 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	66.3	37.4	49.0	7.5	63			Click Here
10	2	28	24.2 (Hex)	52.0	20	38			Click Here

Bush Type	16	10
QTY	2	2
OD (A)	66.3	28
ID (B)	37.4	24.2 (Hex)
Length (C)	49.0	52.0
FL (D)	7.5	20
FLOD (E)	63	38
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.603kg	10cm	26cm	16cm
in/lbs	1.33lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.603kg	1.33lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45553
Foot Note 1	Performance Alignment
Foot Note 2	Adds +0.5deg caster
Foot Note 3	Lifetime Warranty

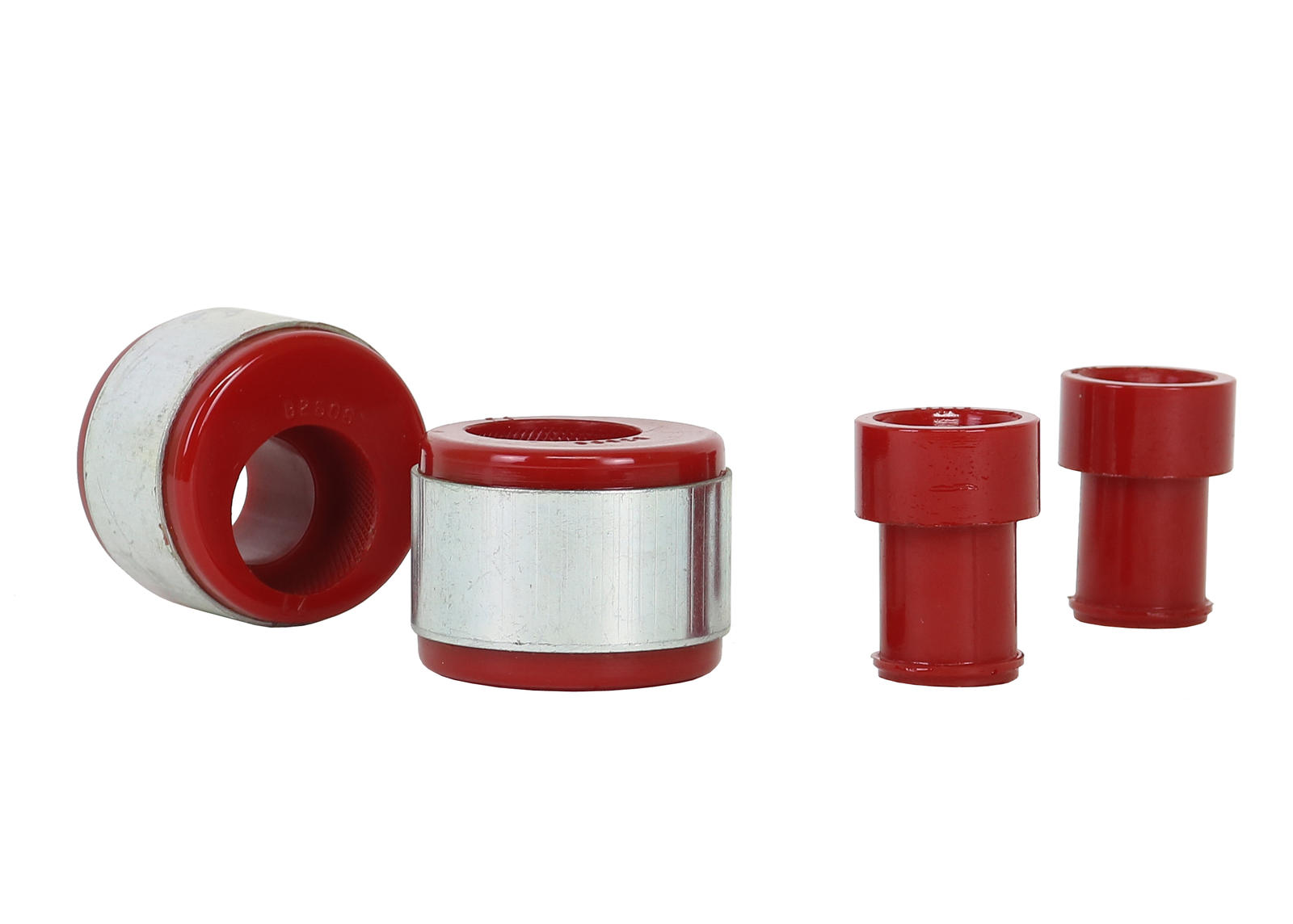

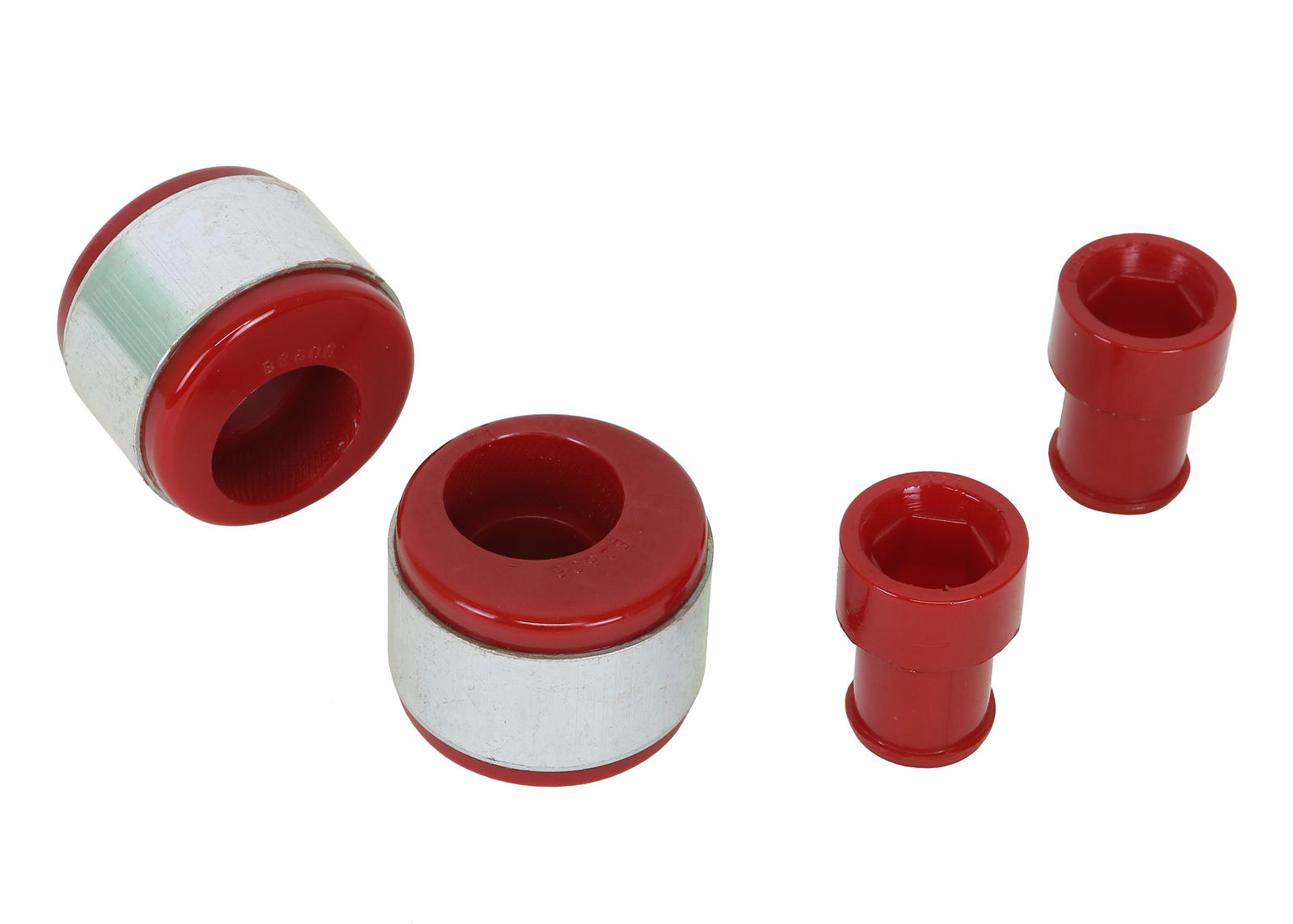

Components Per	2 Shell Bushings, 2 Bushings
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Bushings
EAN	9330074009236

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
