What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

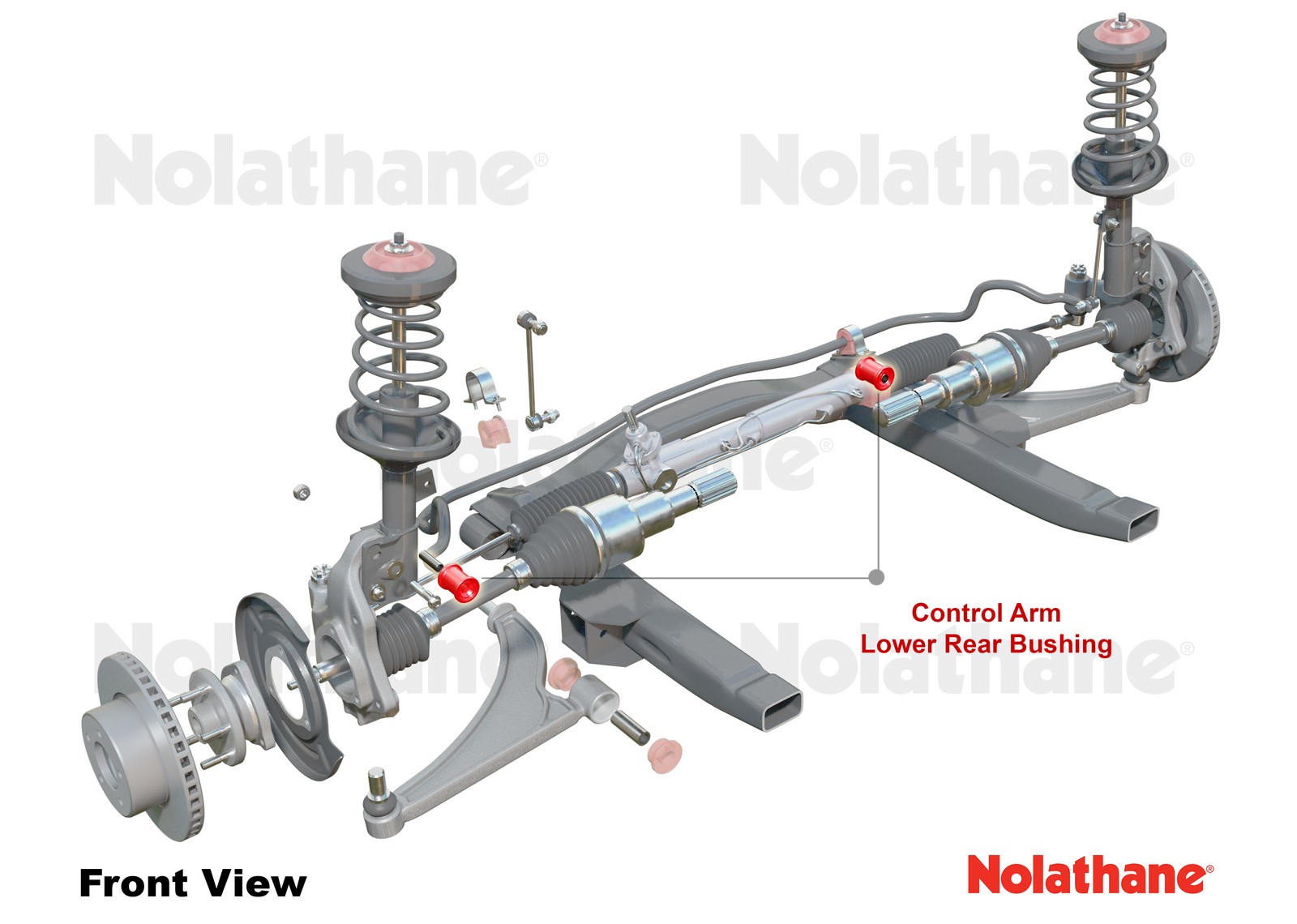

Front Lower Control Arm - Inner Rear Bushing Kit to Suit Suzuki Vitara ET, TA and X-90 SZ416

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

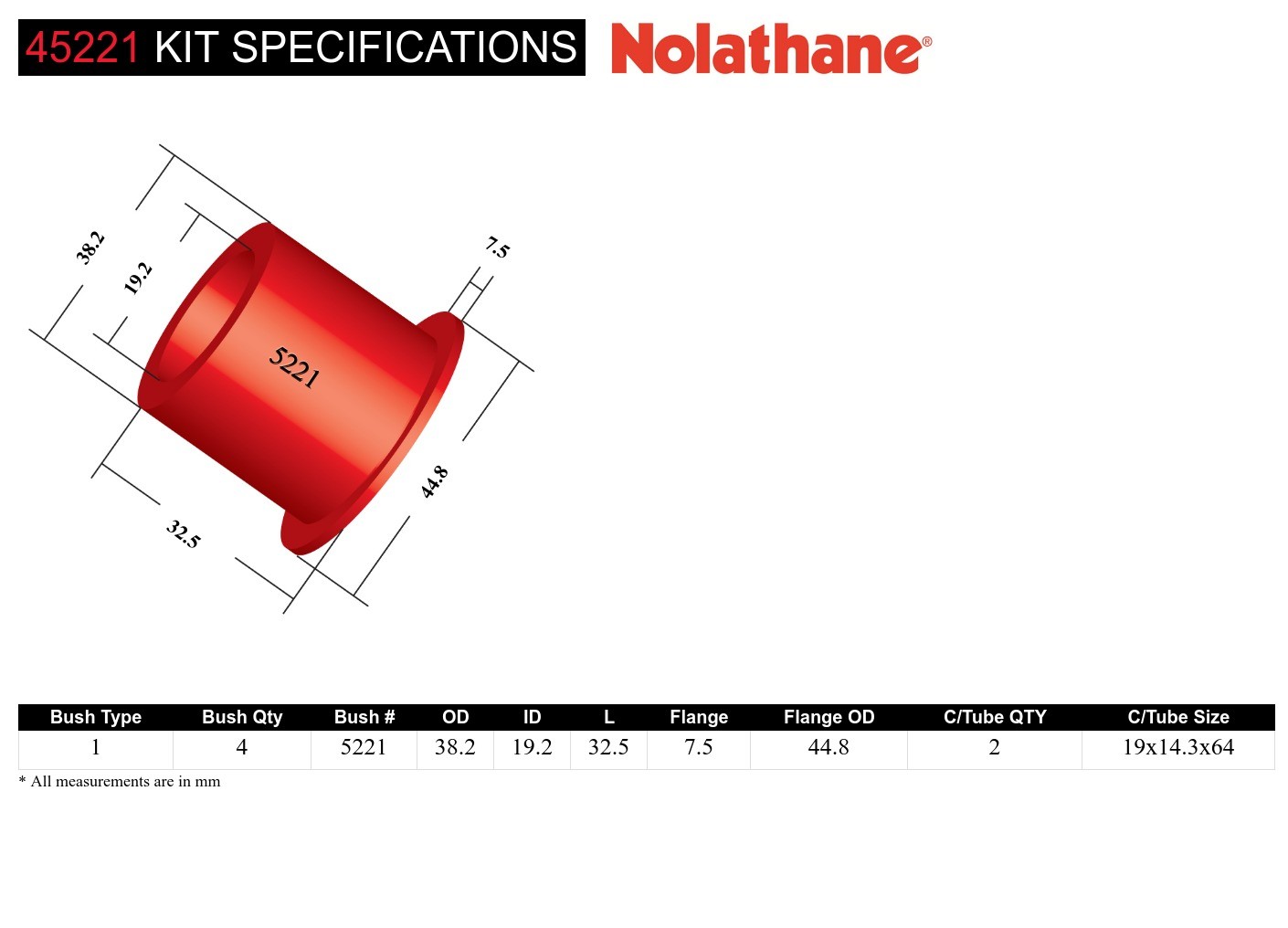

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	38.2 mm	19.2 mm	32.5 mm	7.5 mm	44.8 mm	2	19x14.3x64 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	38.2 mm
ID (B)	19.2 mm
Length (C)	32.5 mm
Flange Thickness (D)	7.5 mm
Flange OD (E)	44.8 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x14.3x64 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	38.2	19.2	32.5	7.5	44.8	2	19x14.3x64	Click Here

Bush Type	1
QTY	4
OD (A)	38.2
ID (B)	19.2
Length (C)	32.5
FL (D)	7.5
FLOD (E)	44.8
C/Tube Qty	2
C/Tube Size	19x14.3x64
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.288kg	7cm	20cm	14cm
in/lbs	0.63lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.288kg	0.63lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	45221
Foot Note 3	Lifetime Warranty

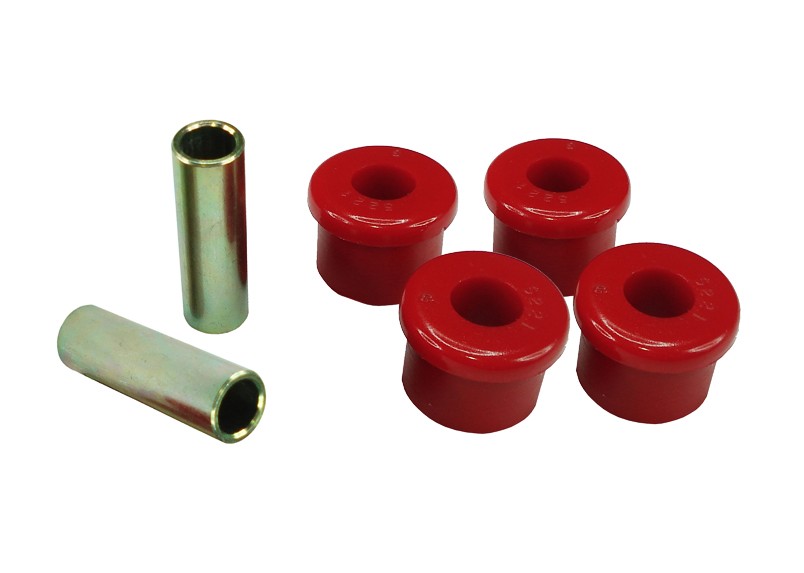

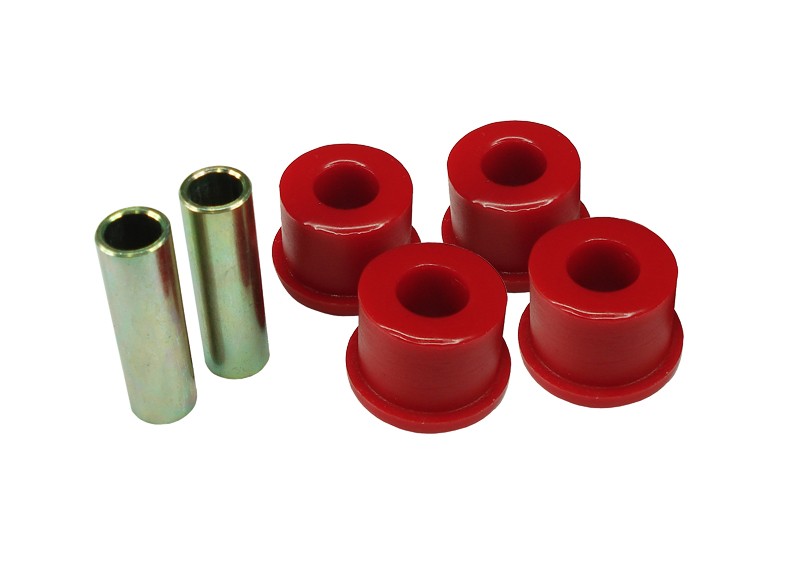

Components Per	4 Bushings, 2 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9330074000363

Installation & Fitment Guide

More Information
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
