What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

49223

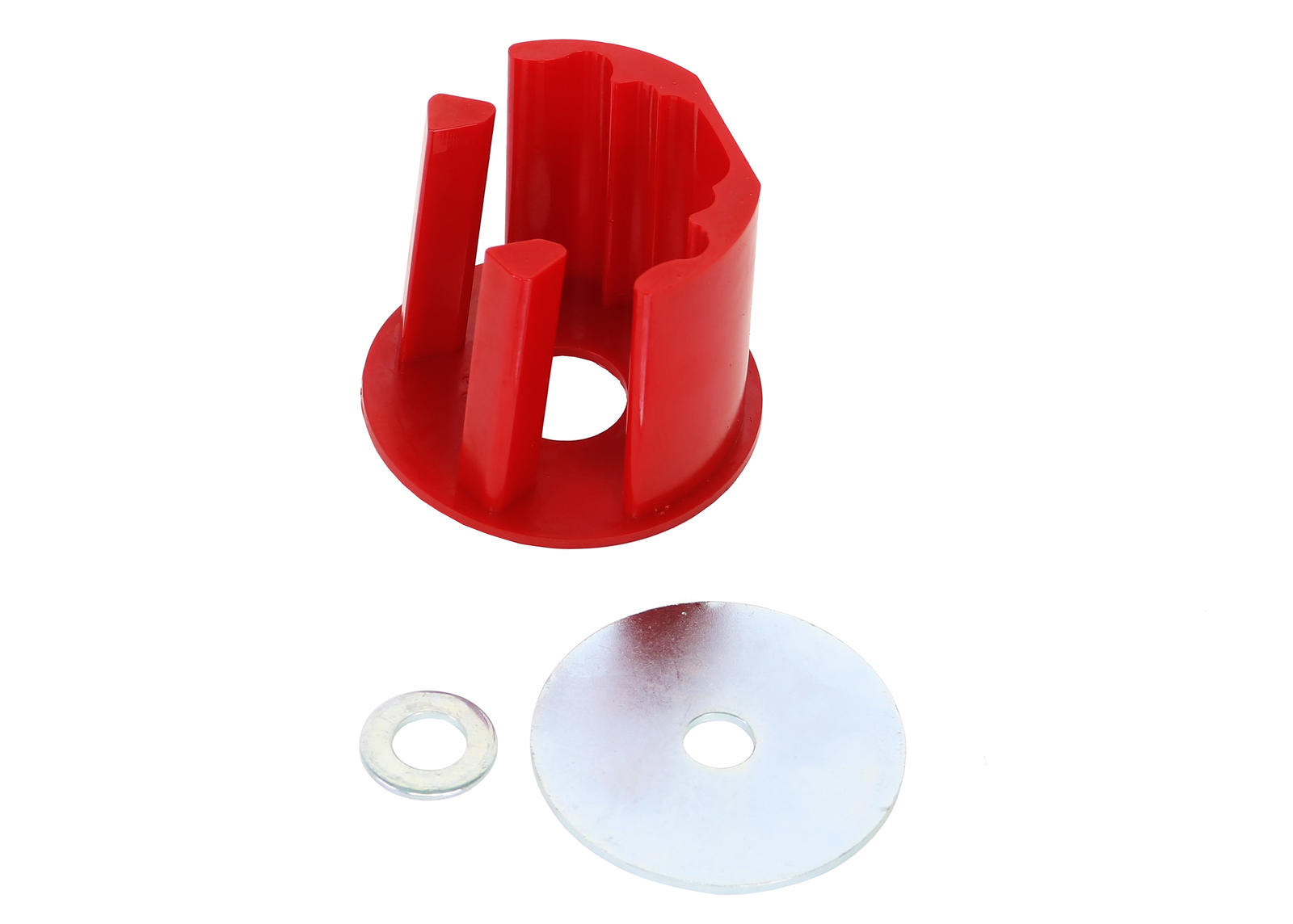

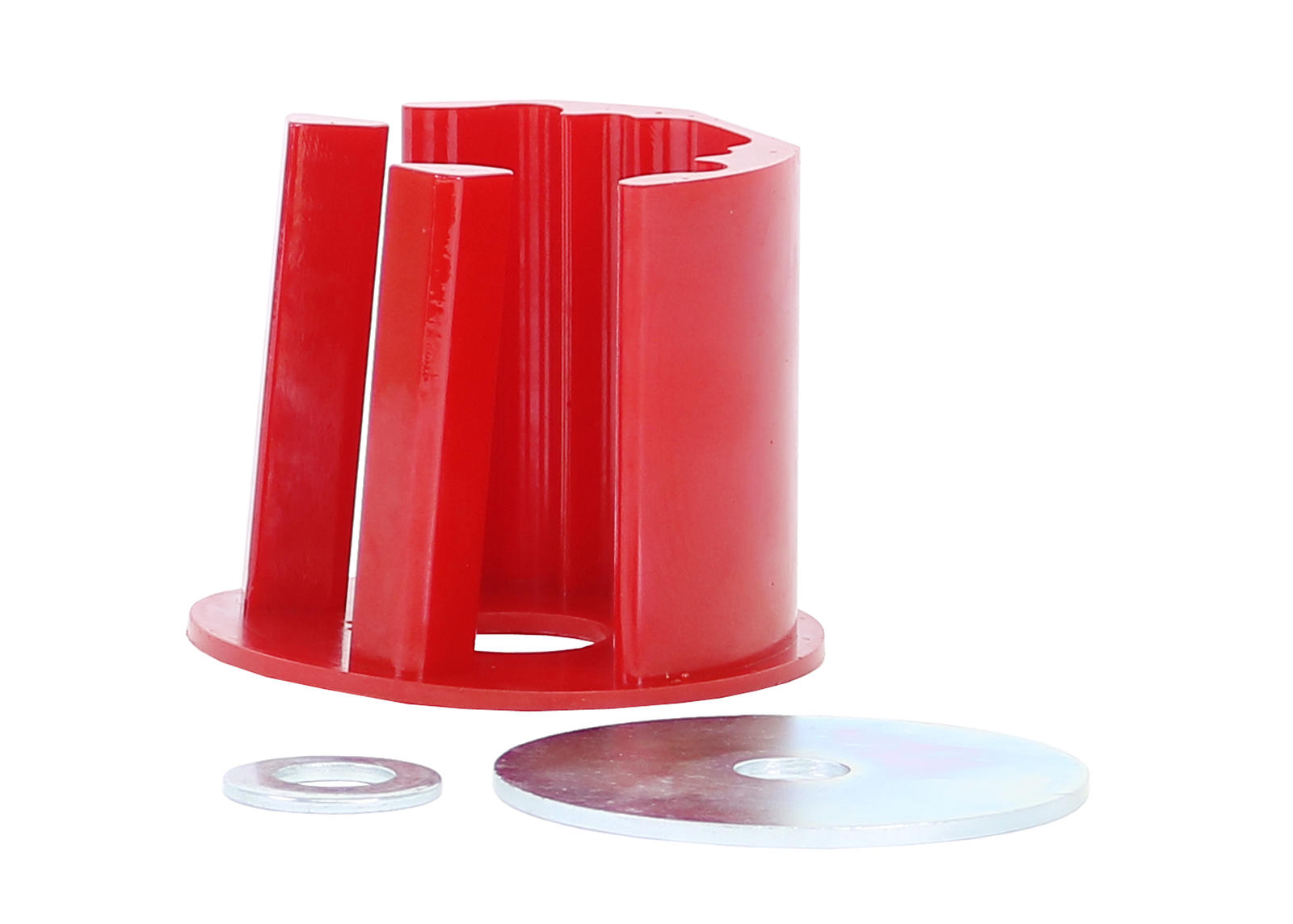

Front Lower Engine Mount - Insert Bushing Kit to Suit Audi, Seat, Skoda and Volkswagen PQ35 Fwd/Awd

Front Lower Engine Mount - Insert Bushing Kit to Suit Audi, Seat, Skoda and Volkswagen PQ35 Fwd/Awd

Inserts - performance - check voiding of OEM bushings first - induces NVH

Item Price

$46.00

SKU	49223
Warranty	lifetime warranty
Installation Time	0.5 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Stock due on 5/12/2026.

Description

Benefit Note:
Not your typical remove and replace bushing kit but simple installation means great for the DIYer's. Soft factory bushings whilst they do a good job of not transmitting engine vibration, they do create vague and unresponsiveness in the vehicles drive train. Under hard acceleration, the engine and transmission rotates, Nolathane torque arm inserts work in conjunction with the OEM rubber bushing giving your car better throttle response as well as more crisp and defined gear shifts. Suits both Automatic or manual transmissions.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
20 - Misc	1 mm								Click Here

Bush Type	20 - Misc
Bush Quantity	1 mm
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.191kg	10cm	26cm	16cm
in/lbs	0.42lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.191kg	0.42lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	49223
Foot Note 1	Inserts - installs into voiding of original bushings
Foot Note 2	Performance use
Foot Note 3	Lifetime Warranty
Components Per	1 Insert Bushing, 2 Washers
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 1 Insert Bushing, 2 Washers
EAN	9319924393817

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	0.5 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
