What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

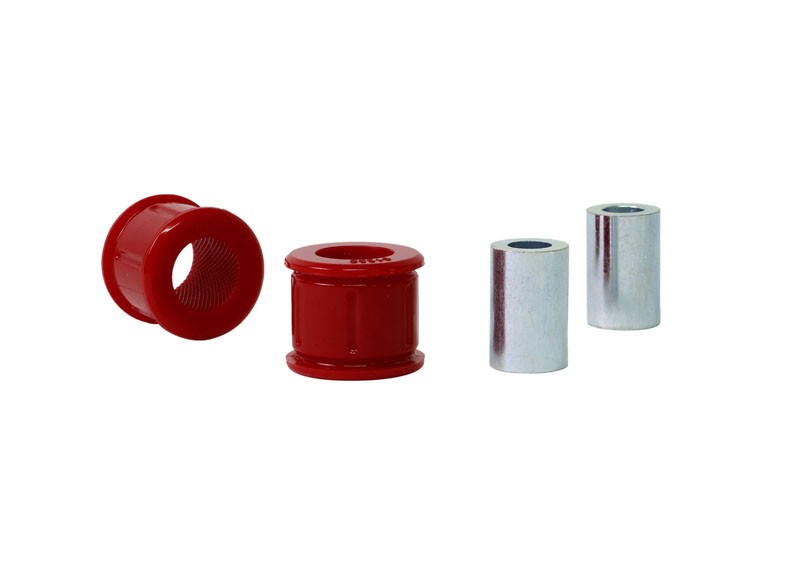

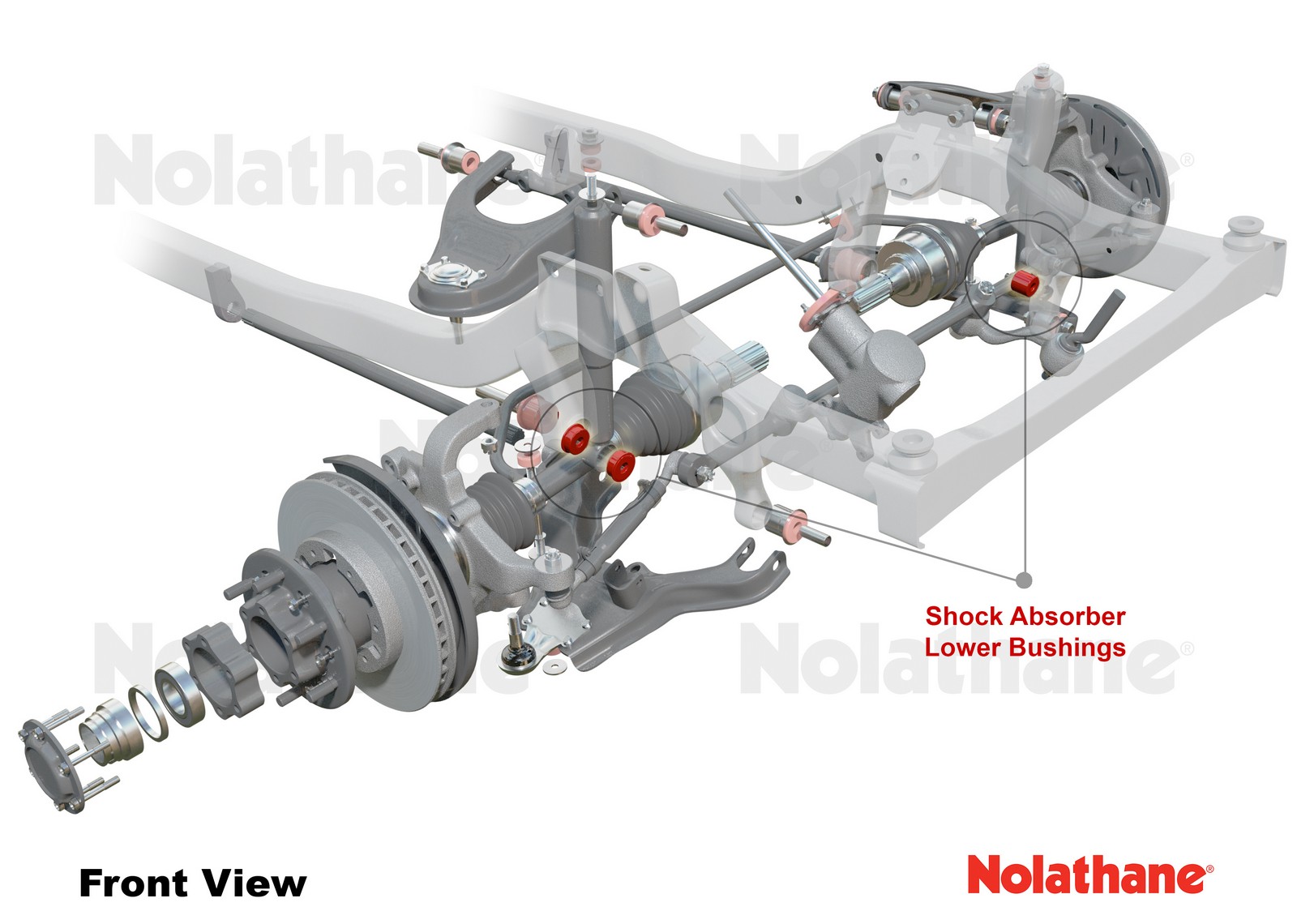

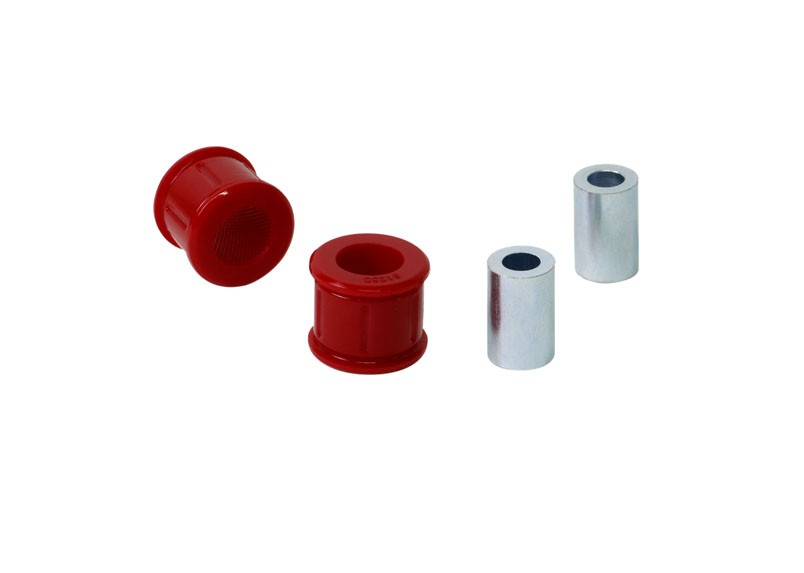

Front Shock Absorber - Lower Bushing Kit to Suit Toyota Land Cruiser 100 Series IFS

Description

Benefit Note:
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

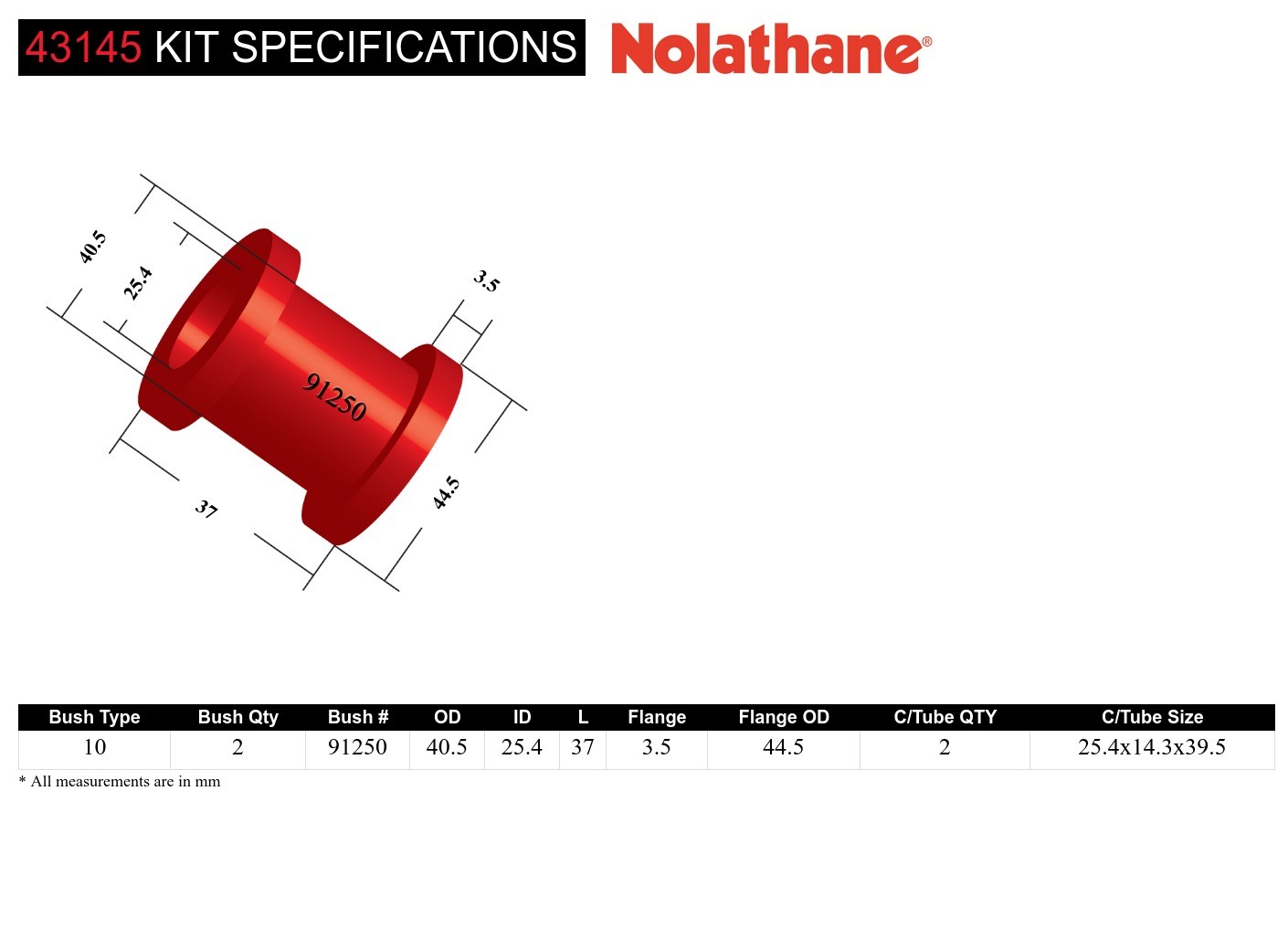

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	2 mm	40.5 mm	25.4 mm	37 mm	3.5 mm	44.5 mm	2	25.4x14.3x39.5 mm	Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm
OD (A)	40.5 mm
ID (B)	25.4 mm
Length (C)	37 mm
Flange Thickness (D)	3.5 mm
Flange OD (E)	44.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	25.4x14.3x39.5 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	2	40.5	25.4	37.0	3.5	44.5	2	25.4x14.3x39.5	Click Here

Bush Type	10
QTY	2
OD (A)	40.5
ID (B)	25.4
Length (C)	37.0
FL (D)	3.5
FLOD (E)	44.5
C/Tube Qty	2
C/Tube Size	25.4x14.3x39.5
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.28kg	7cm	20cm	14cm
in/lbs	0.62lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.28kg	0.62lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	43145
Foot Note 3	Lifetime Warranty
Components Per	2 Bushings, 2 Tubes
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924404322

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
