What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

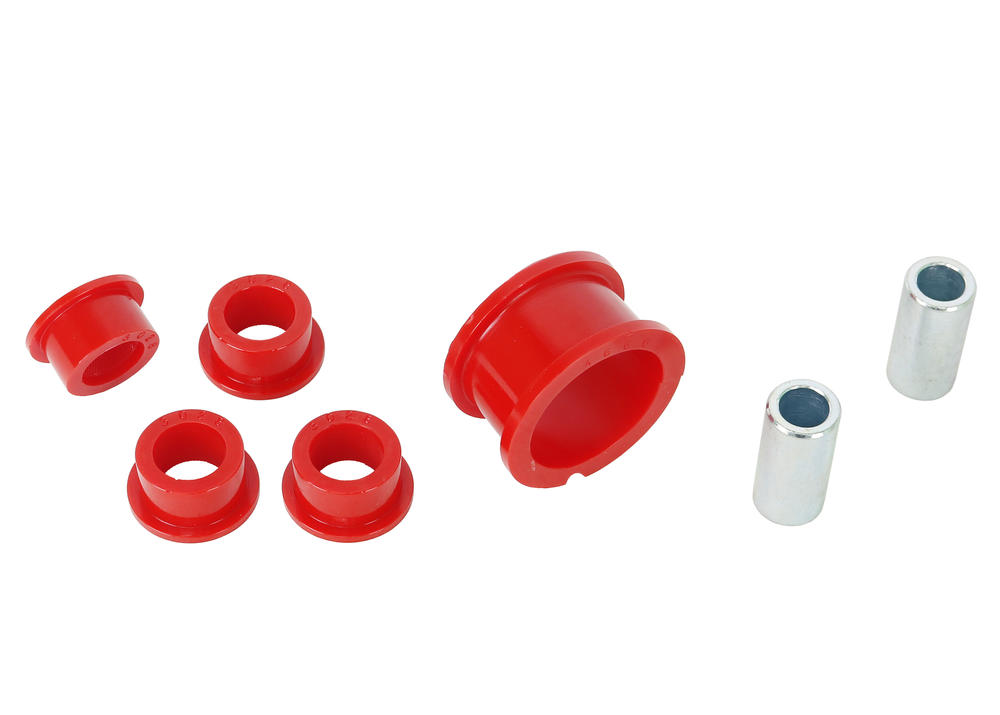

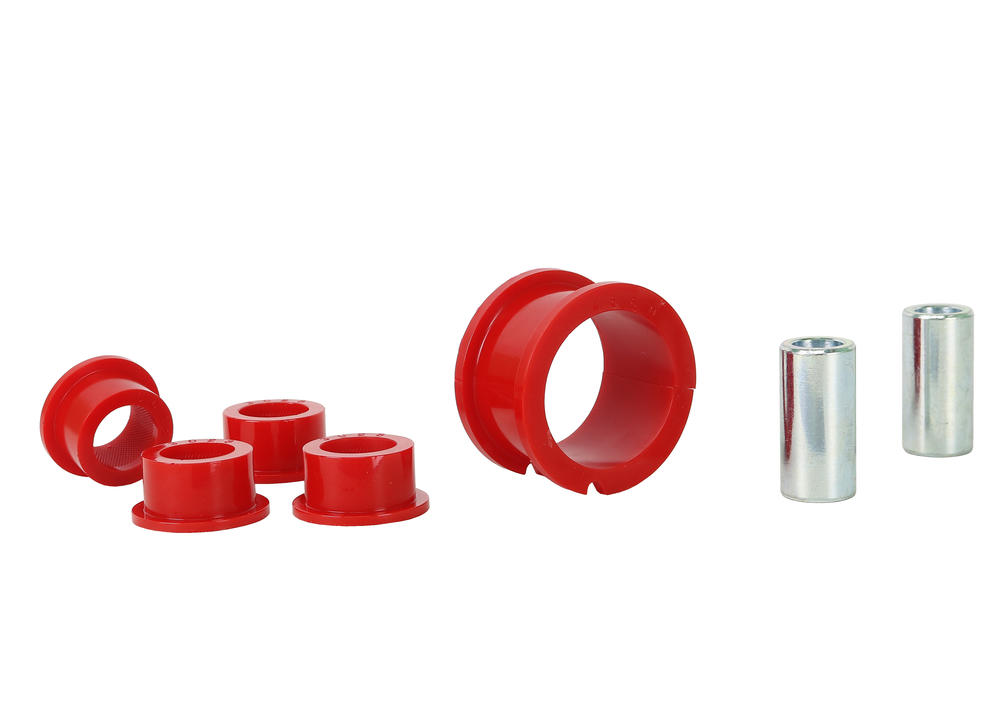

Front Steering Rack and Pinion - Mount Bushing Kit to Suit Nissan Navara D40 2wd/4wd

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

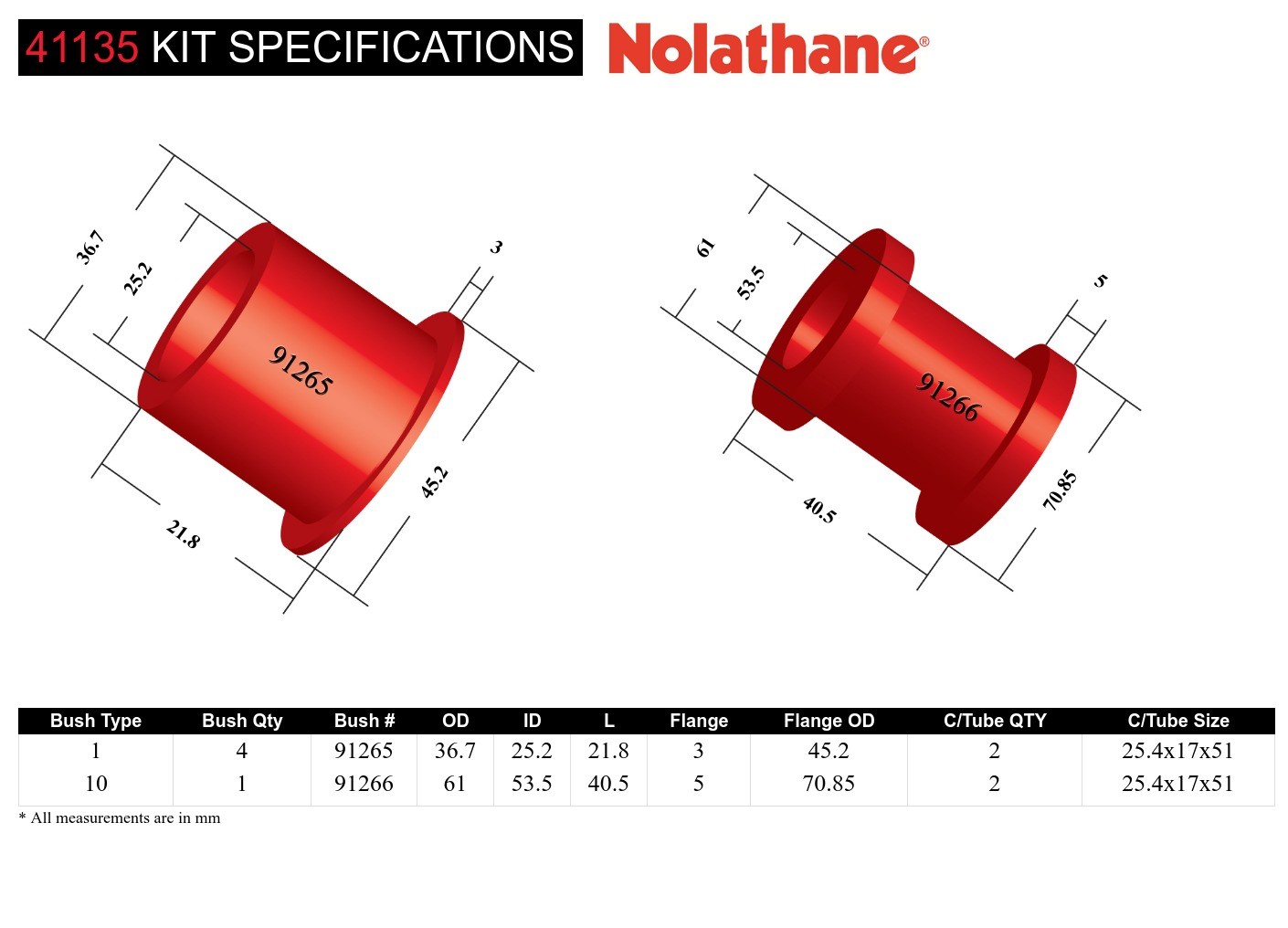

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	36.7 mm	25.2 mm	21.8 mm	3 mm	45.2 mm	2	25.4x17x51 mm	Click Here
10 - Cotton Reel With & Without Tapper Bushing	1 mm	61 mm	53.5 mm	40.5 mm	5 mm	70.85 mm	2	25.4x17x51 mm	Click Here

Bush Type	1 - Shackle Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	4 mm	1 mm
OD (A)	36.7 mm	61 mm
ID (B)	25.2 mm	53.5 mm
Length (C)	21.8 mm	40.5 mm
Flange Thickness (D)	3 mm	5 mm
Flange OD (E)	45.2 mm	70.85 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	25.4x17x51 mm	25.4x17x51 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	36.7	25.2	21.8	3	45.2	2	25.4x17x51	Click Here
10	1	61	53.5	40.5	5	70.85	2	25.4x17x51	Click Here

Bush Type	1	10
QTY	4	1
OD (A)	36.7	61
ID (B)	25.2	53.5
Length (C)	21.8	40.5
FL (D)	3	5
FLOD (E)	45.2	70.85
C/Tube Qty	2	2
C/Tube Size	25.4x17x51	25.4x17x51
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.34kg	10cm	26cm	16cm
in/lbs	0.75lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.34kg	0.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	41135
Foot Note 3	Lifetime Warranty
Components Per	5 Bushings, 2 Tubes
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924455379

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
