Front Steering Rack and Pinion - Mount Bushing Kit to Suit Nissan Navara D40 and Pathfinder R51

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

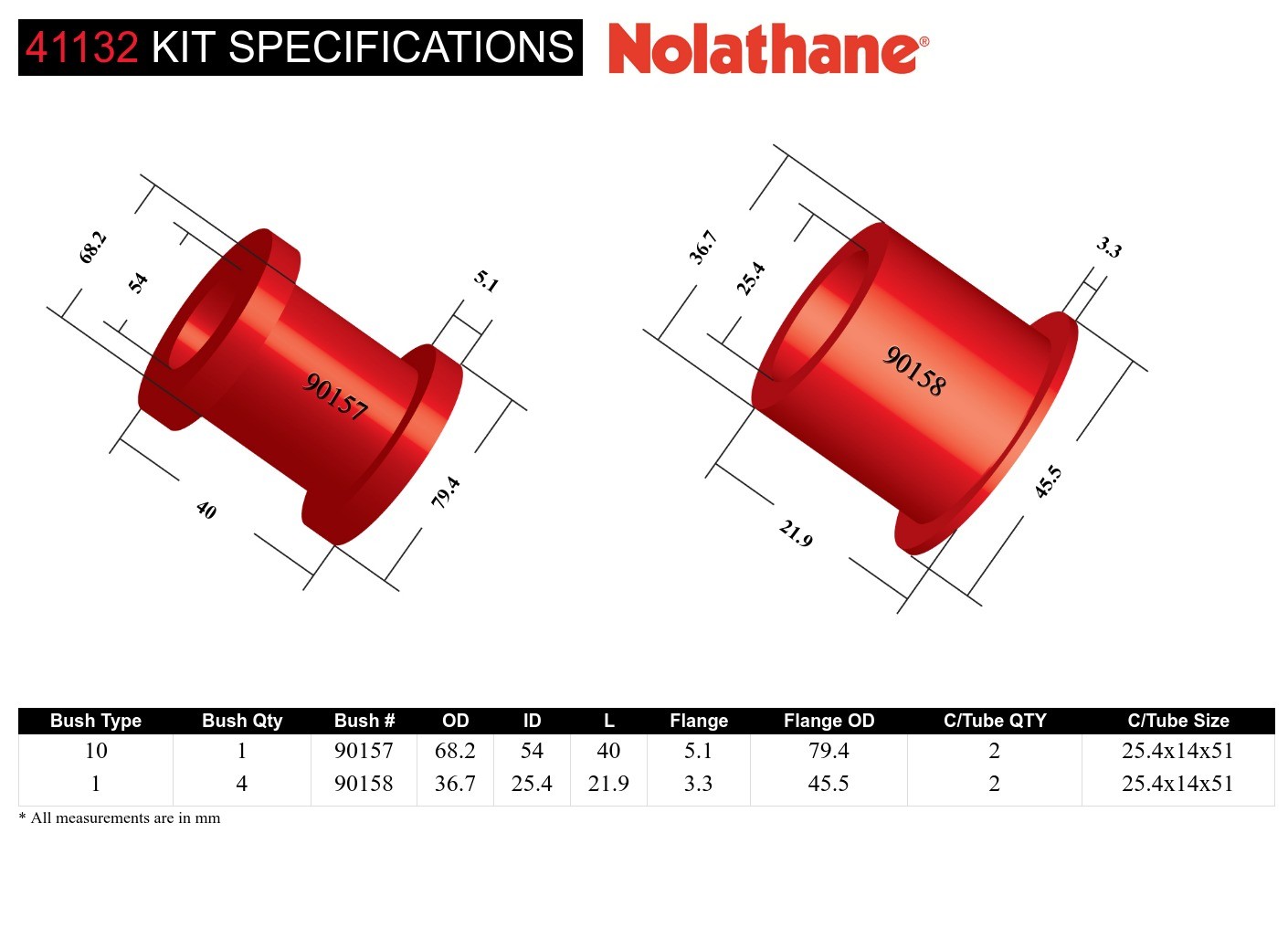

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	1 mm	68.2 mm	54 mm	40 mm	5.1 mm	79.4 mm	2	25.4x14x51 mm	Click Here
1 - Shackle Bushing	4 mm	36.7 mm	25.4 mm	21.9 mm	3.3 mm	45.5 mm	2	25.4x14x51 mm	Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	1 - Shackle Bushing
Bush Quantity	1 mm	4 mm
OD (A)	68.2 mm	36.7 mm
ID (B)	54 mm	25.4 mm
Length (C)	40 mm	21.9 mm
Flange Thickness (D)	5.1 mm	3.3 mm
Flange OD (E)	79.4 mm	45.5 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	25.4x14x51 mm	25.4x14x51 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	1	68.2	54	40.0	5.1	79.4	2	25.4x14x51	Click Here
1	4	36.7	25.4	21.9	3.3	45.5	2	25.4x14x51	Click Here

Bush Type	10	1
QTY	1	4
OD (A)	68.2	36.7
ID (B)	54	25.4
Length (C)	40.0	21.9
FL (D)	5.1	3.3
FLOD (E)	79.4	45.5
C/Tube Qty	2	2
C/Tube Size	25.4x14x51	25.4x14x51
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.35kg	7cm	20cm	14cm
in/lbs	0.77lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.35kg	0.77lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	41132
Foot Note 3	Lifetime Warranty

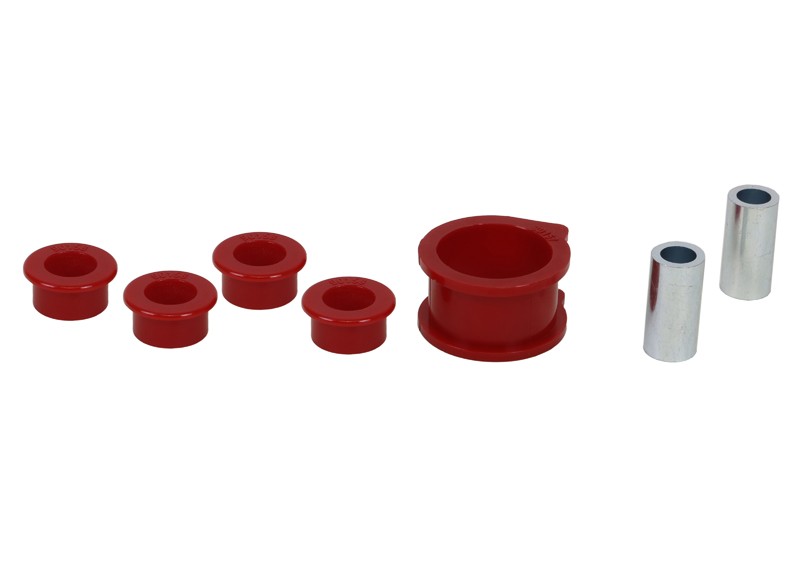

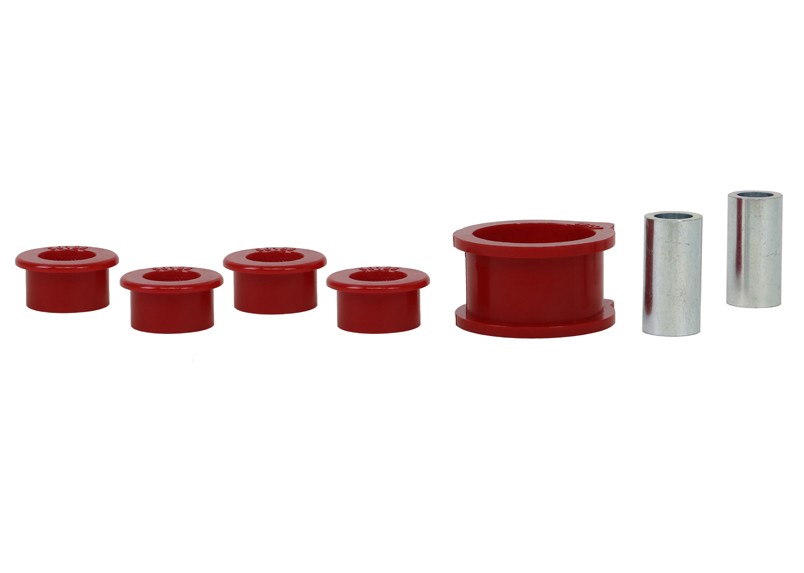

Components Per	5 Bushings, 2 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924449019

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
