What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

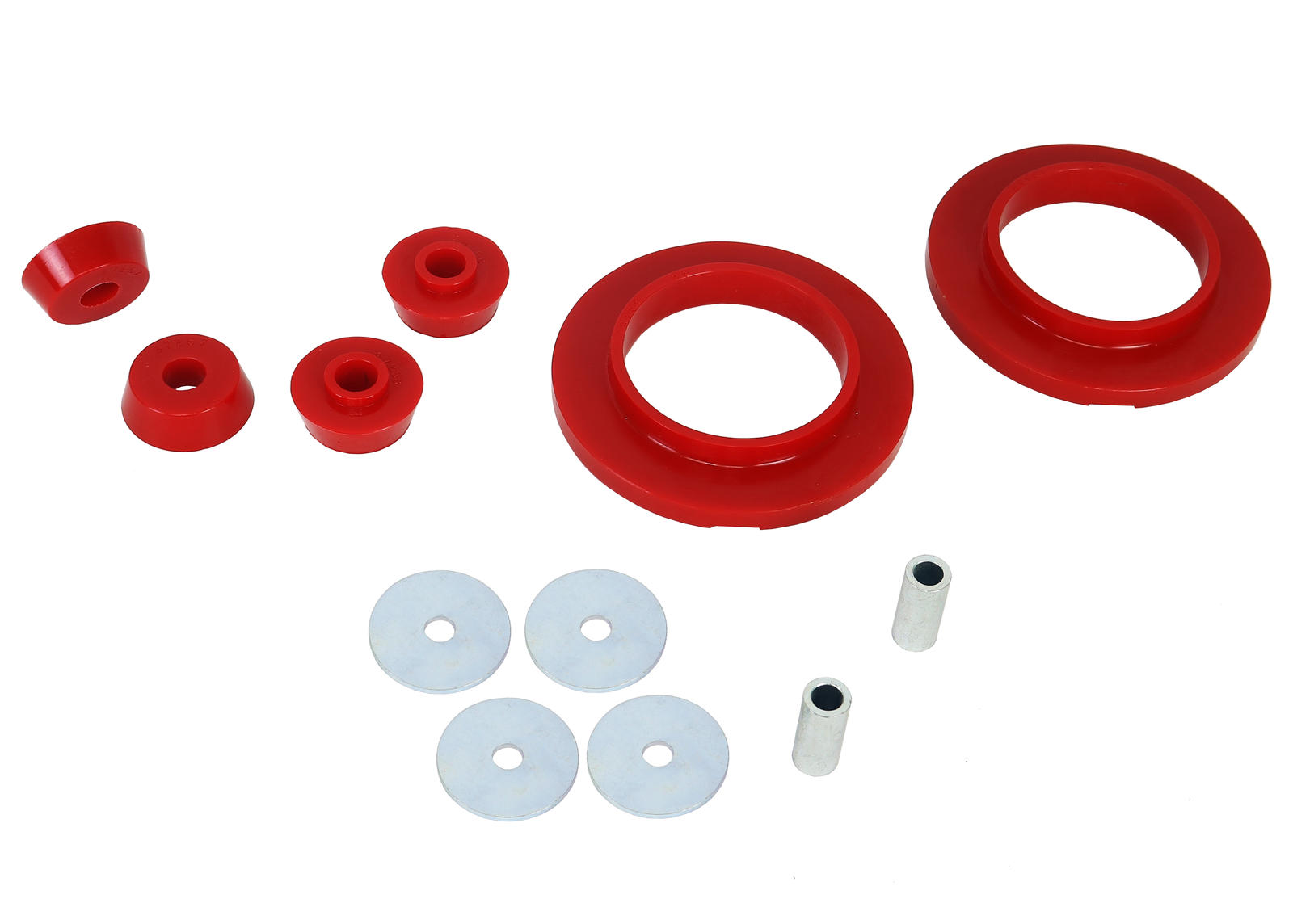

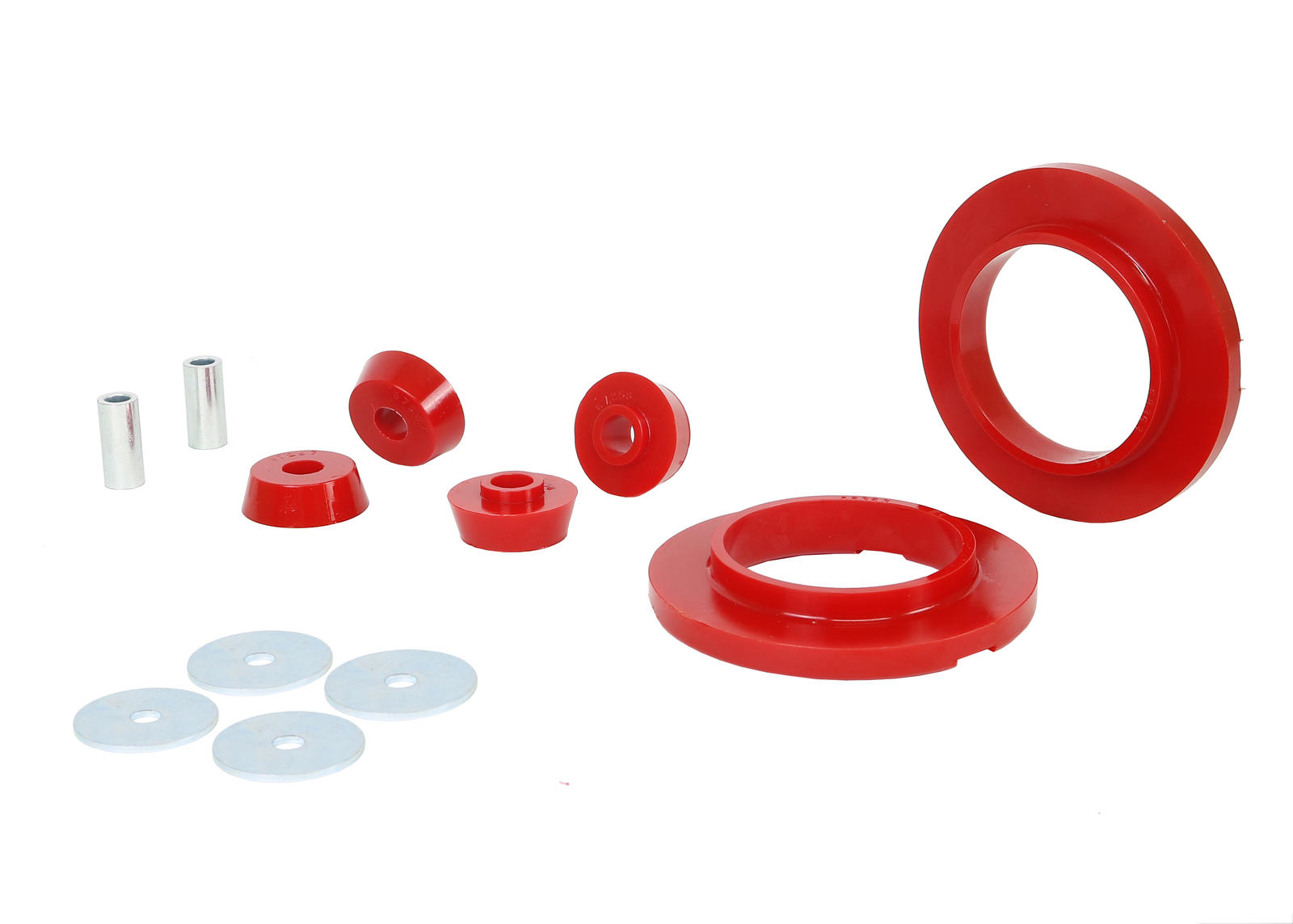

Front Strut Mount - Bushing Kit to Suit Mitsubishi Challenger, Pajero Sport and Triton 2wd/4wd

Description

Benefit Note:

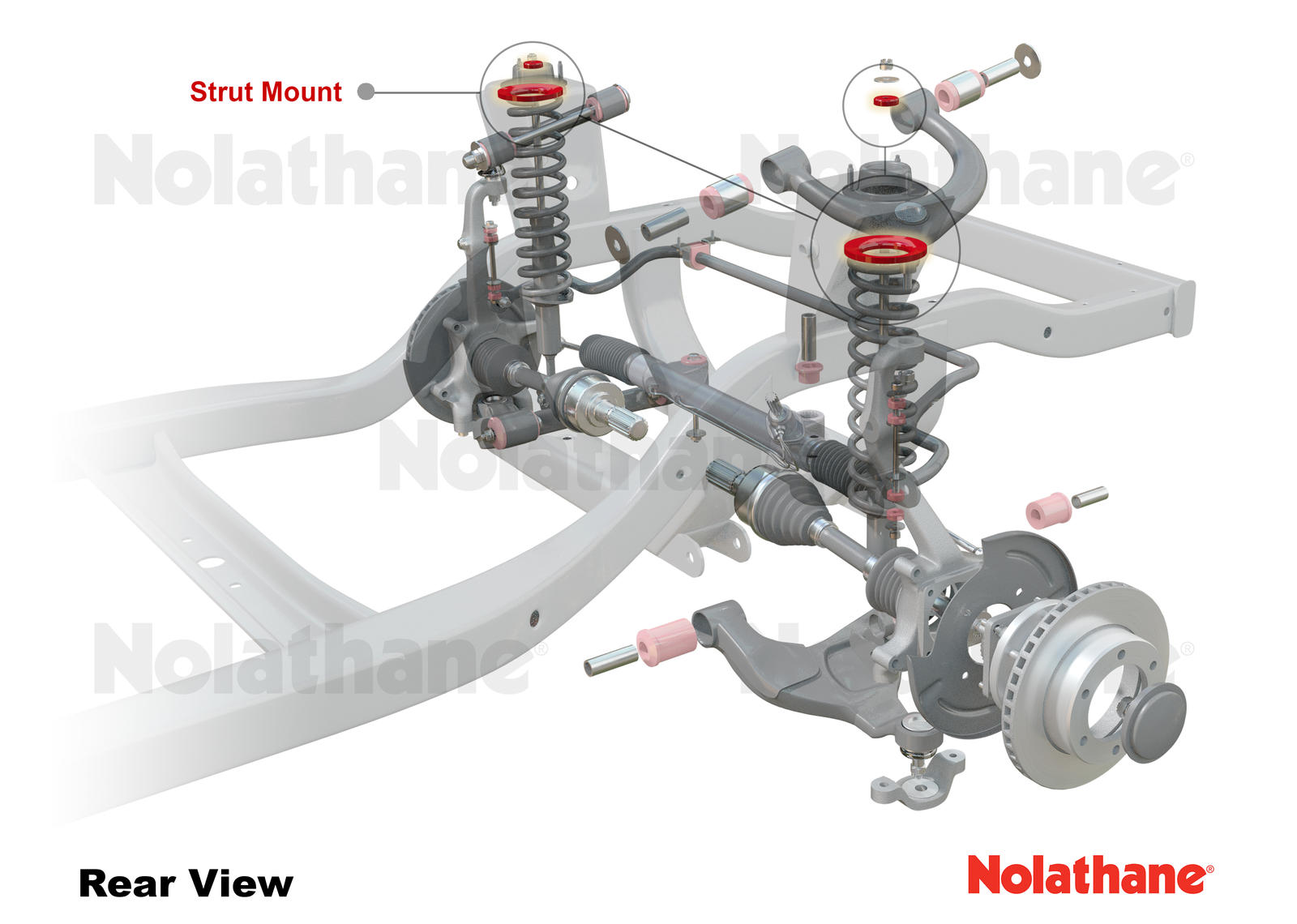

Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Nolathane kit contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

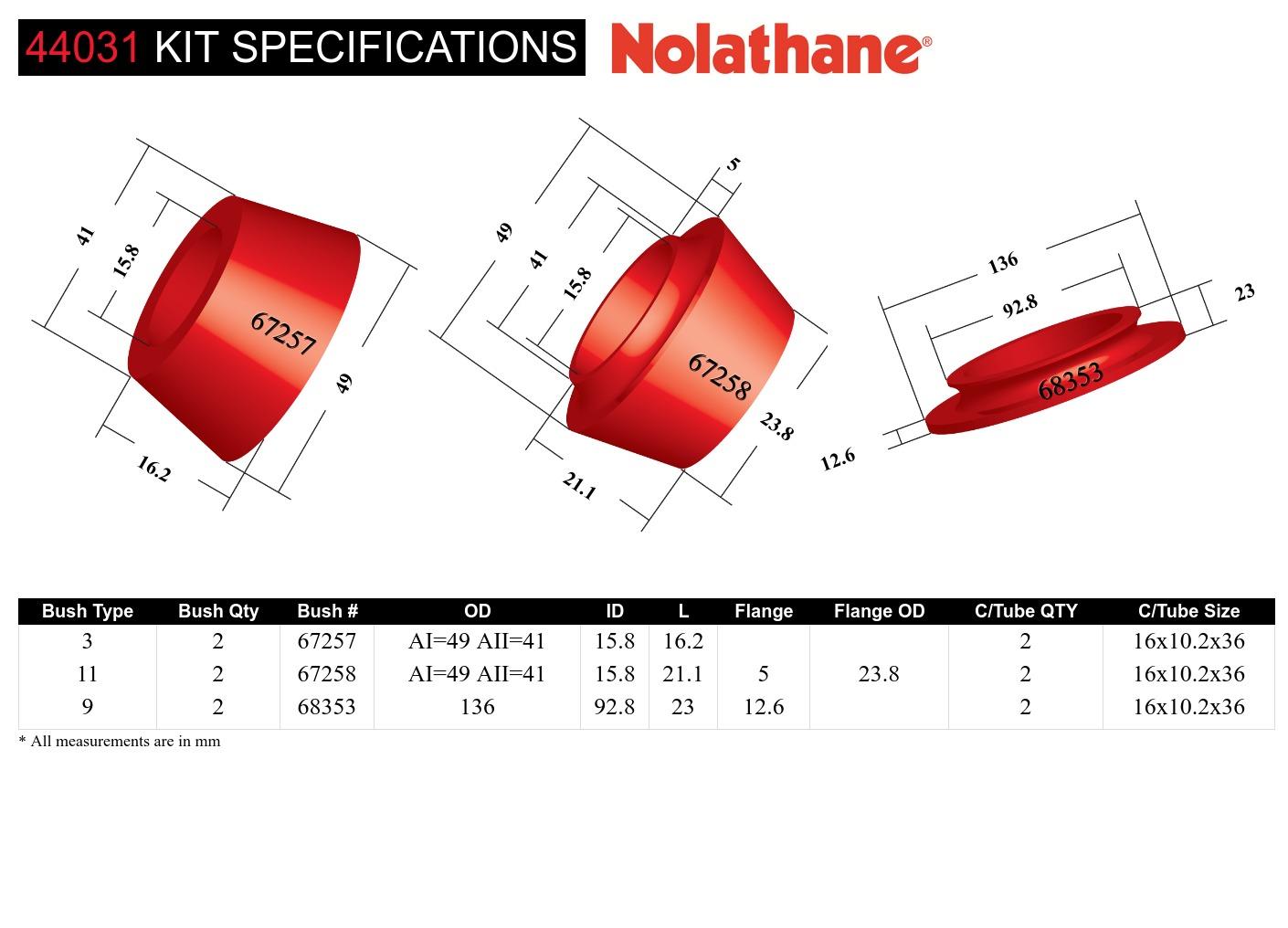

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	2	136	92.8	23.0	12.6		2	16x10.2x36	Click Here
3	2	AI=49 AII=41	15.8	16.2			2	16x10.2x36	Click Here
11	2	AI=49 AII=41	15.8	21.1	5	23.8	2	16x10.2x36	Click Here

Bush Type	9	3	11
QTY	2	2	2
OD (A)	136	AI=49 AII=41	AI=49 AII=41
ID (B)	92.8	15.8	15.8
Length (C)	23.0	16.2	21.1
FL (D)	12.6		5
FLOD (E)			23.8
C/Tube Qty	2	2	2
C/Tube Size	16x10.2x36	16x10.2x36	16x10.2x36
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.549kg	40cm	10cm	20cm
in/lbs	1.21lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	0.549kg	1.21lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	44031
Foot Note 1	Includes top spring pad
Foot Note 3	Lifetime Warranty
Components Per	6 Bushings, 2 Tubes, 2 Washers
Product Note	Enhances strut assembly stability and ride quality; ideal for reducing noise, vibration and harshness. Includes: Upper strut mount pads and shock absorber pin bushings.
EAN	9319924395286

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
