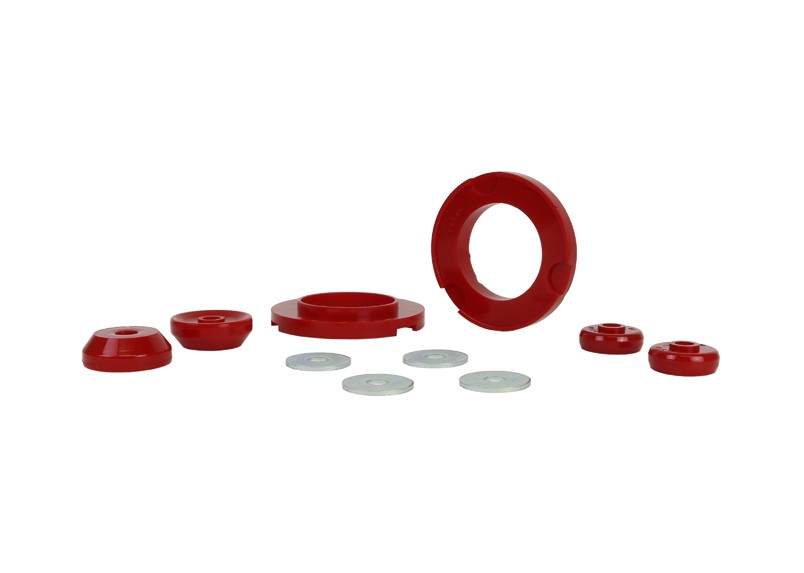

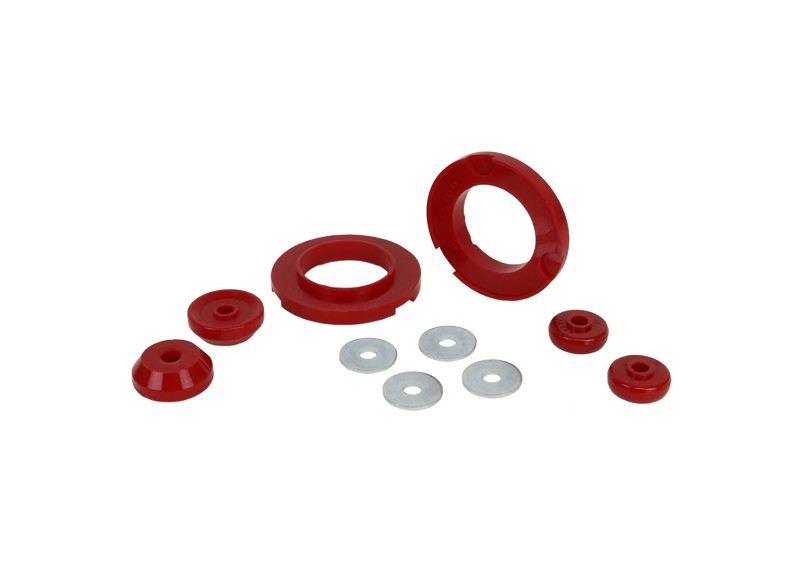

Front Strut Mount - Bushing Kit to Suit Toyota FJ Cruiser, HiLux, Prado and Foton Tunland

Description

Benefit Note:

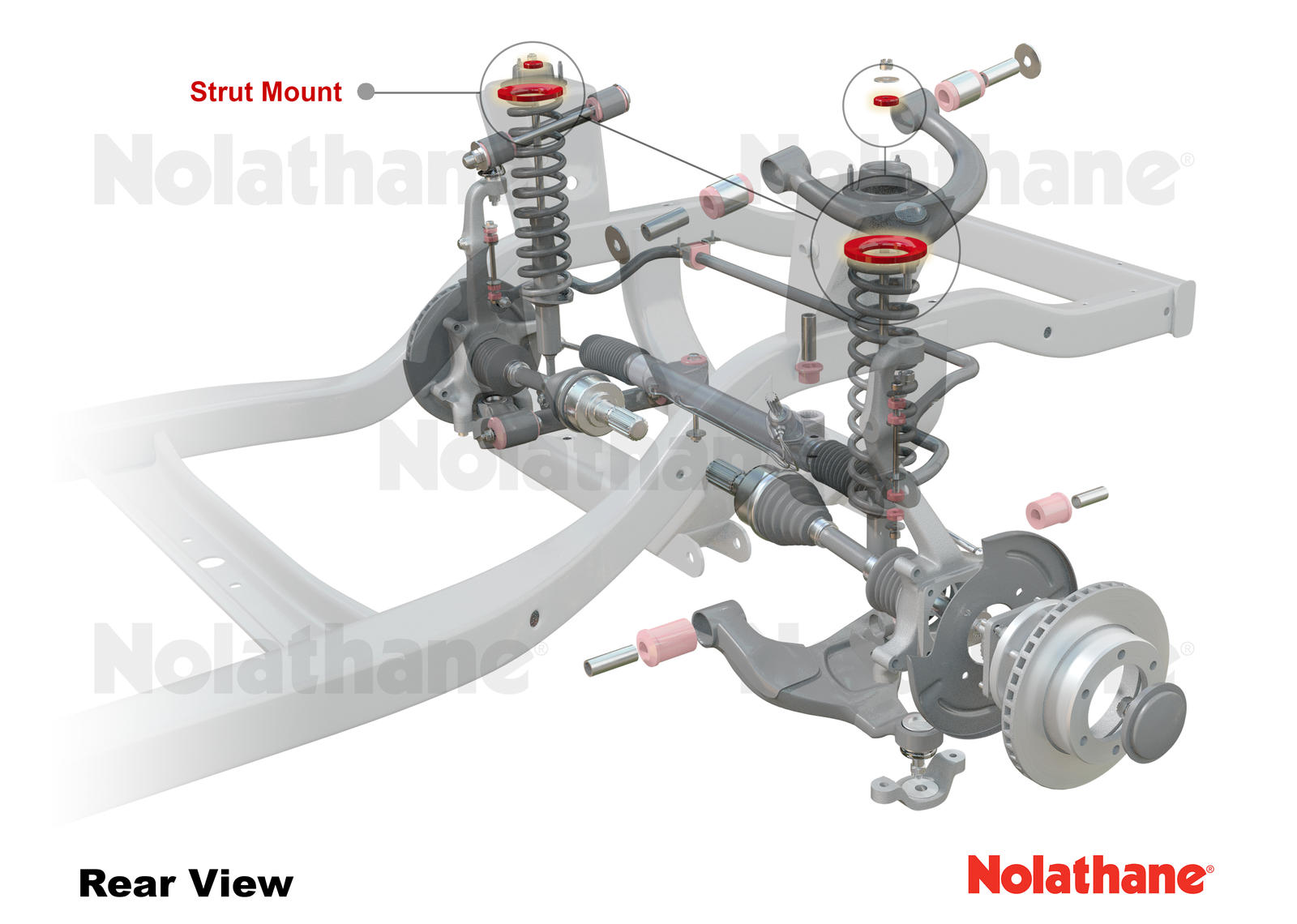

Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Nolathane kit contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

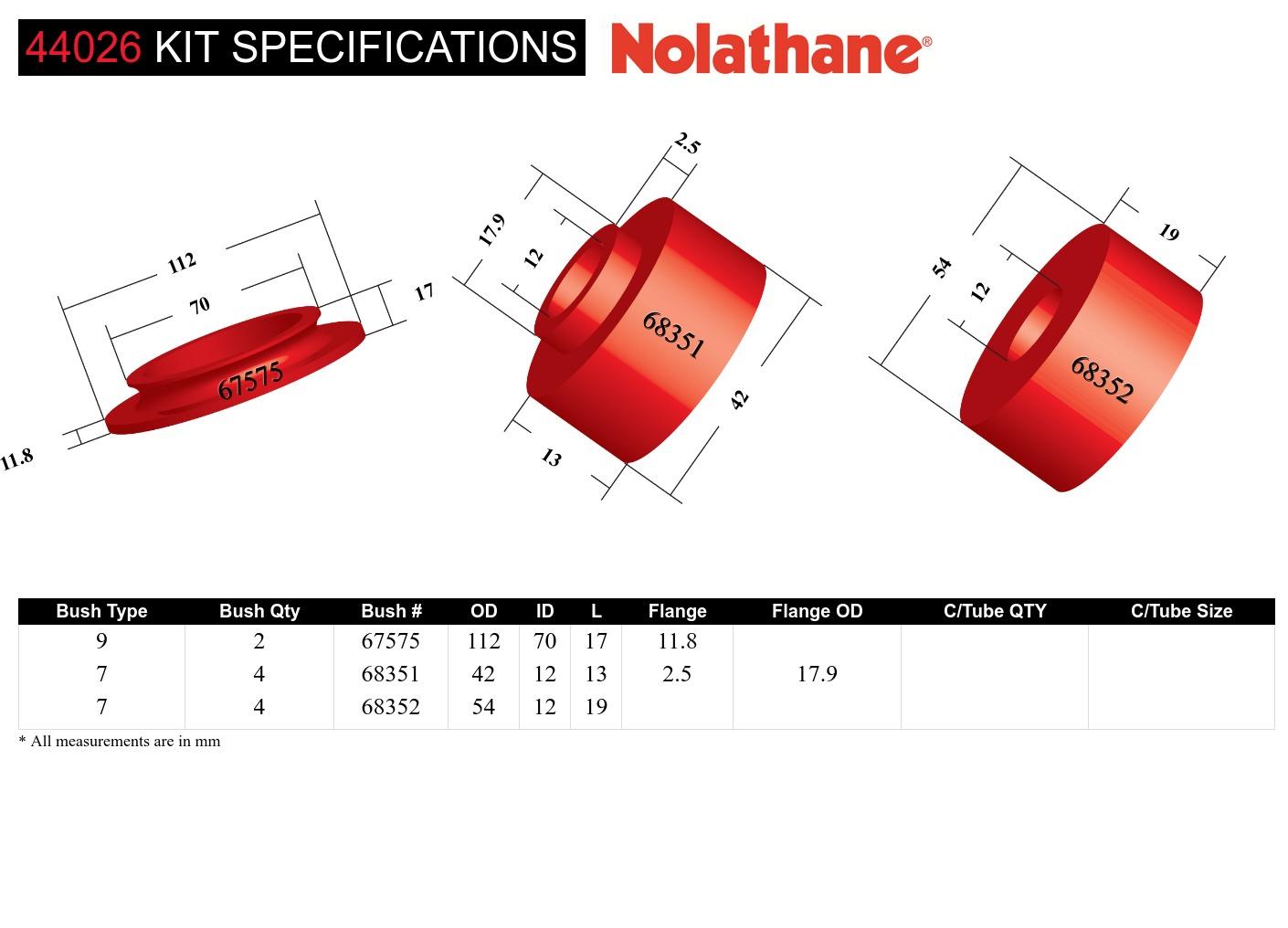

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	Similar Bushing Size
7 - Pin Bush With & Without Spigot	4 mm	54 mm	12 mm	19 mm			Click Here
7 - Pin Bush With & Without Spigot	4 mm	42 mm	12 mm	13 mm	2.5 mm	17.9 mm	Click Here
9 - Coil Spring Seats And Spacer Bushing	2 mm	112 mm	70 mm	17 mm	11.8 mm		Click Here

Bush Type	7 - Pin Bush With & Without Spigot	7 - Pin Bush With & Without Spigot	9 - Coil Spring Seats And Spacer Bushing
Bush Quantity	4 mm	4 mm	2 mm
OD (A)	54 mm	42 mm	112 mm
ID (B)	12 mm	12 mm	70 mm
Length (C)	19 mm	13 mm	17 mm
Flange Thickness (D)		2.5 mm	11.8 mm
Flange OD (E)		17.9 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	Similar Bushings
7	4	54	12	19.0			Click Here
7	4	42	12	13.0	2.5	17.9	Click Here
9	2	112	70	17.0	11.8		Click Here

Bush Type	7	7	9
QTY	4	4	2
OD (A)	54	42	112
ID (B)	12	12	70
Length (C)	19.0	13.0	17.0
FL (D)		2.5	11.8
FLOD (E)		17.9
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.33kg	10cm	26cm	16cm
in/lbs	0.73lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.33kg	0.73lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	44026
Foot Note 1	Includes top spring pad
Foot Note 3	Lifetime Warranty
Components Per	6 Bushings, 4 Washers
Product Note	Enhances strut assembly stability and ride quality; ideal for reducing noise, vibration and harshness. Includes: Upper strut mount pads and shock absorber pin bushings.
EAN	9319924387991

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
