What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

Rear Differential Mount - Front Bushing Kit to Suit Ford Falcon/Fairlane BA-FGX, Territory SX-SZ and FPV

Description

Benefit Note:
Critical service item for the rear suspension. 49186 is an installer friendly differential solution for the high wearing front mounts on the rear of the Falcon/ Territory differential. 2 piece design eliminates the need for press tools to replace factory unit.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1 - Shackle Bushing	4	71.8	23.8	29.5	1.8	78	2	24x14x45	Click Here

Bush Type	1 - Shackle Bushing
QTY	4
OD (A)	71.8
ID (B)	23.8
Length (C)	29.5
FL (D)	1.8
FLOD (E)	78
C/Tube Qty	2
C/Tube Size	24x14x45
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.992kg	10cm	26cm	16cm
in/lbs	2.19lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.992kg	2.19lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	49186
Foot Note 1	Fitter friendly design
Foot Note 3	Lifetime Warranty

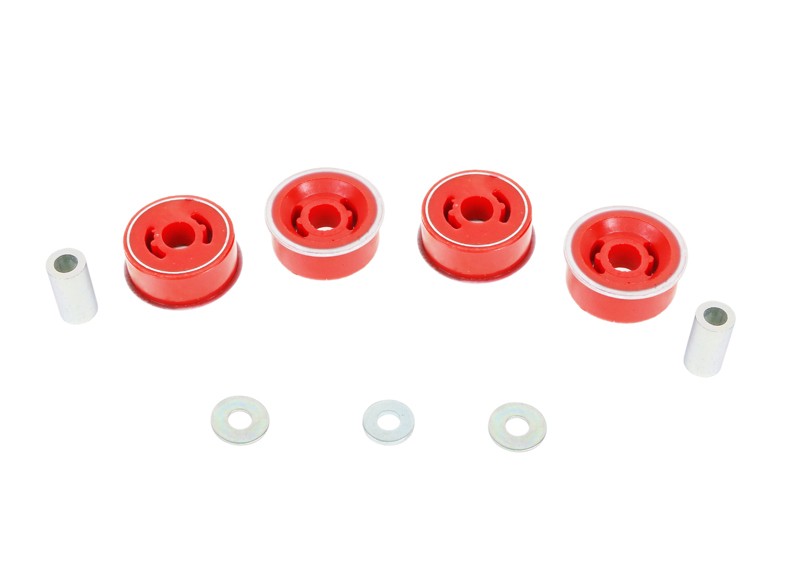

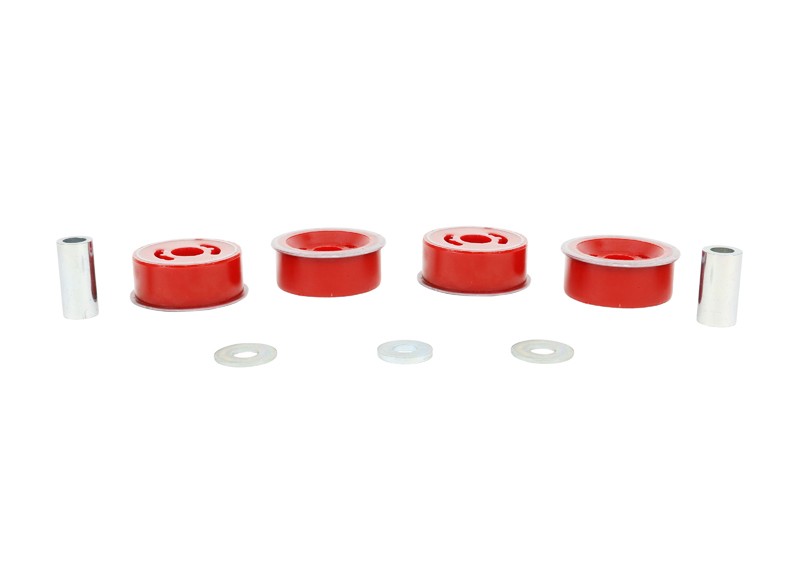

Components Per	4 Bushings, 2 Tubes, 3 Washers
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924388653

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Video

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
