What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

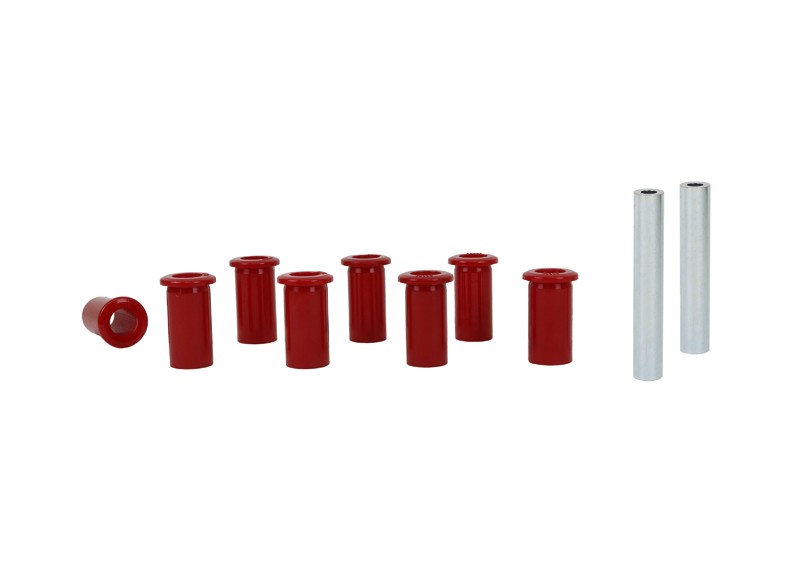

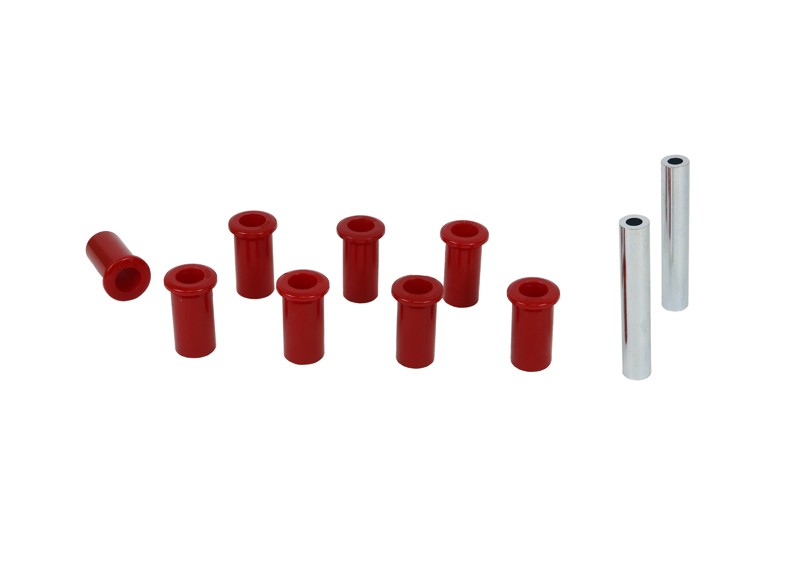

Rear Leaf Spring - Shackle Bushing Kit to Suit Volkswagen Amarok 2H 2wd/4Motion

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

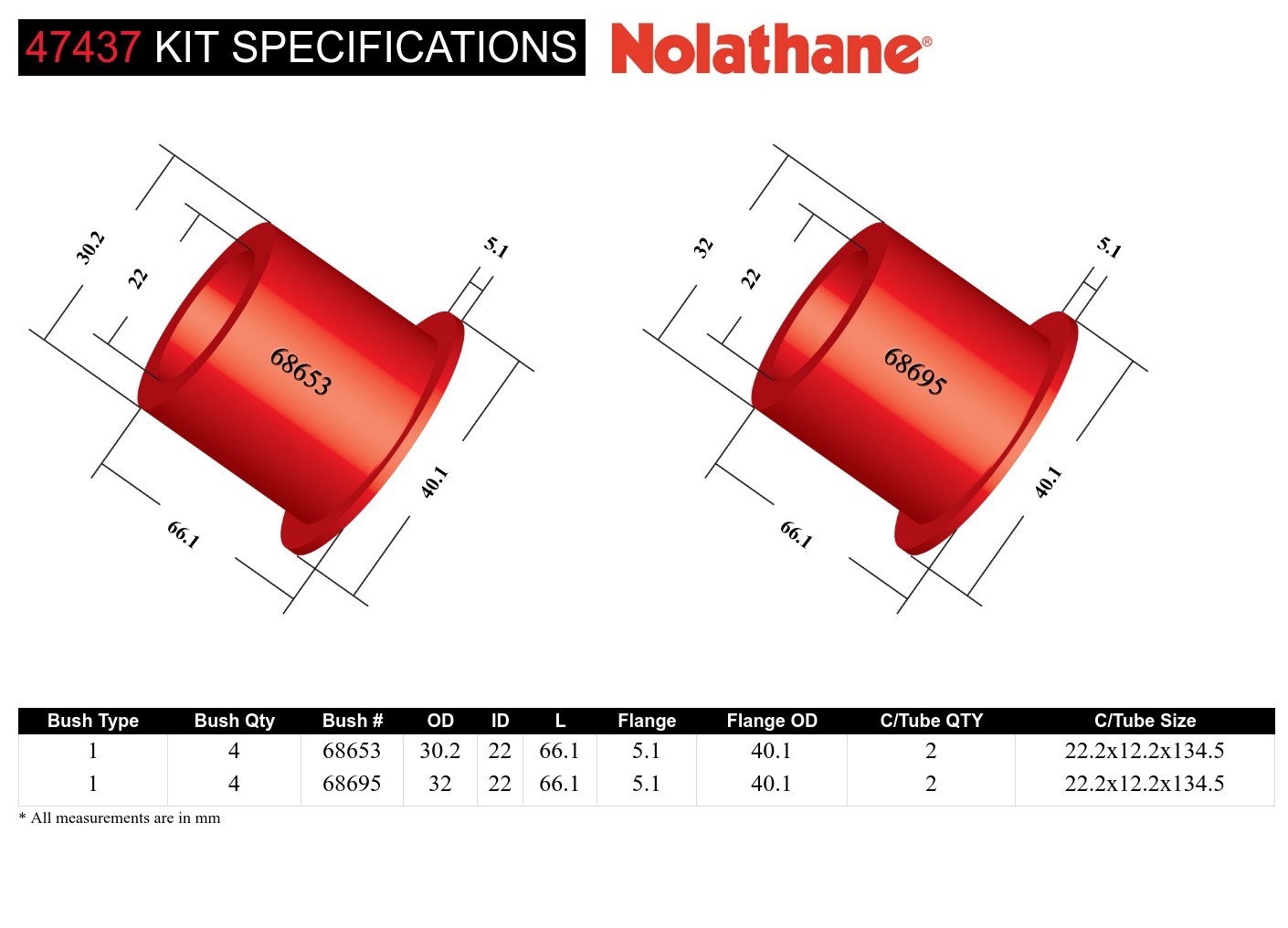

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	32 mm	22 mm	66.1 mm	5.1 mm	40.1 mm	2	22.2x12.2x134.5 mm	Click Here
1 - Shackle Bushing	4 mm	30.2 mm	22 mm	66.1 mm	5.1 mm	40.1 mm	2	22.2x12.2x134.5 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	32 mm	30.2 mm
ID (B)	22 mm	22 mm
Length (C)	66.1 mm	66.1 mm
Flange Thickness (D)	5.1 mm	5.1 mm
Flange OD (E)	40.1 mm	40.1 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	22.2x12.2x134.5 mm	22.2x12.2x134.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.83kg	10cm	16cm	26cm
in/lbs	1.83lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	0.83kg	1.83lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	47437
Foot Note 1	Contains both sizes 30mm and 32mm OD to fit chassis
Components Per	8 Bushings, 2 Tubes
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924406418

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
