Rear Lowering Block - Kit 1.5" to Suit Ford Falcon EF-EL Wagon

Description

Benefit Note:

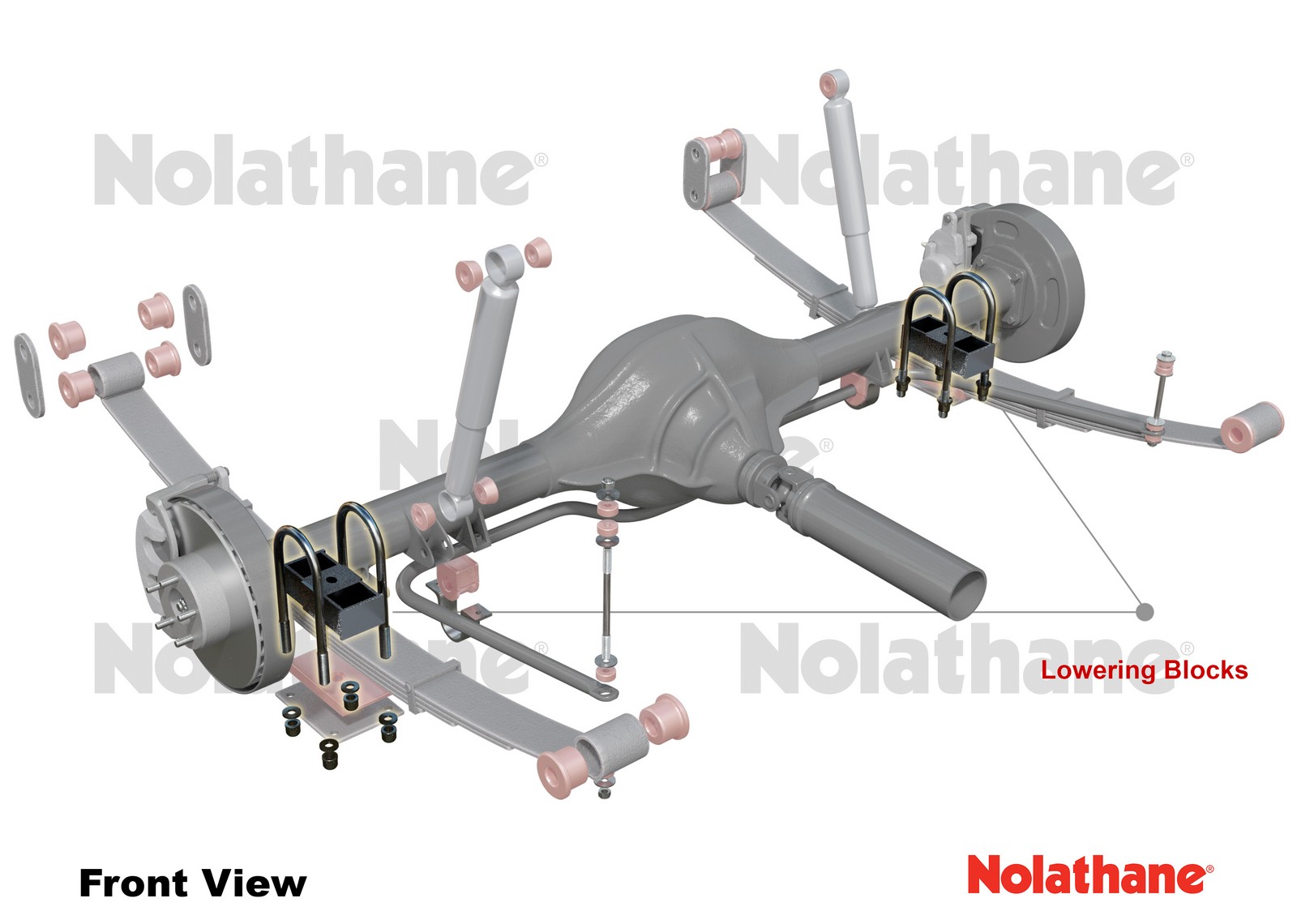

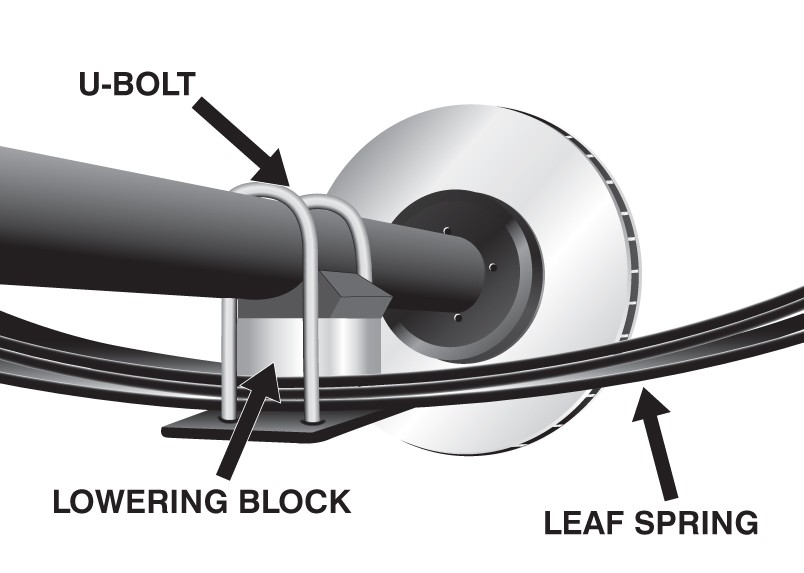

Nolathane aluminium lowering blocks are the economical and quick way to lower many leaf sprung vehicles. Lowering blocks allow the vehicle's height to be modified, transforming the handling and looks of your vehicle.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
20 - Misc	2 mm								Click Here

Bush Type	20 - Misc
Bush Quantity	2 mm
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	3.13kg	40cm	10cm	20cm
in/lbs	6.9lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	3.13kg	6.9lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	47950
Foot Note 2	1.5 Inch
Foot Note 3	3 Year / 60,000Kms

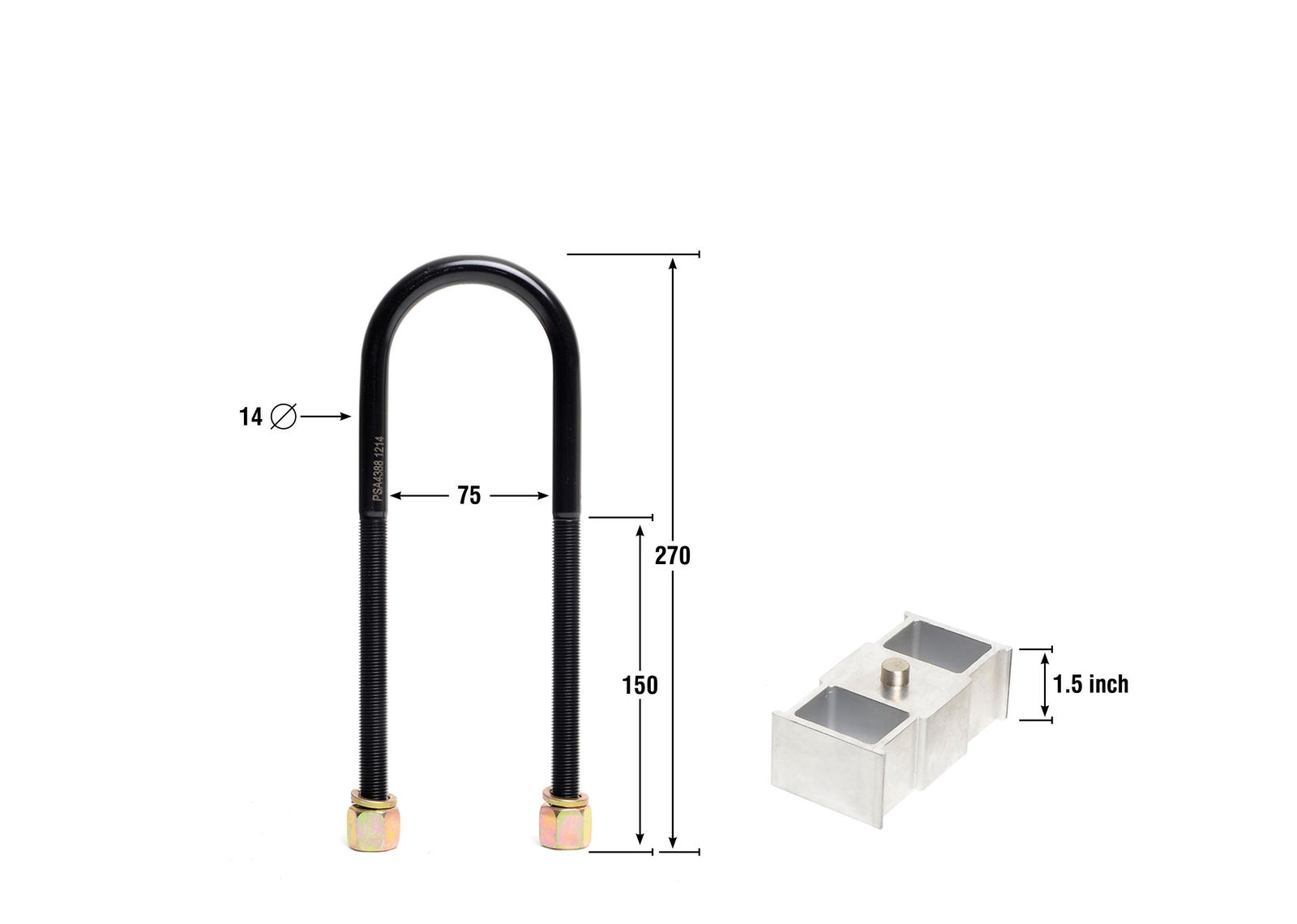

Components Per	2 Blocks, 4 U-Bolts, 4 Washers, 4 Nuts
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9330074005412

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
