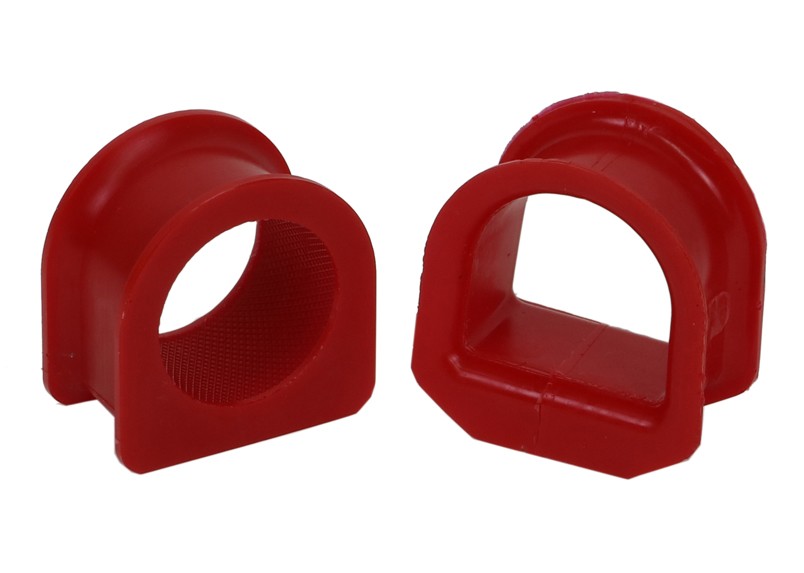

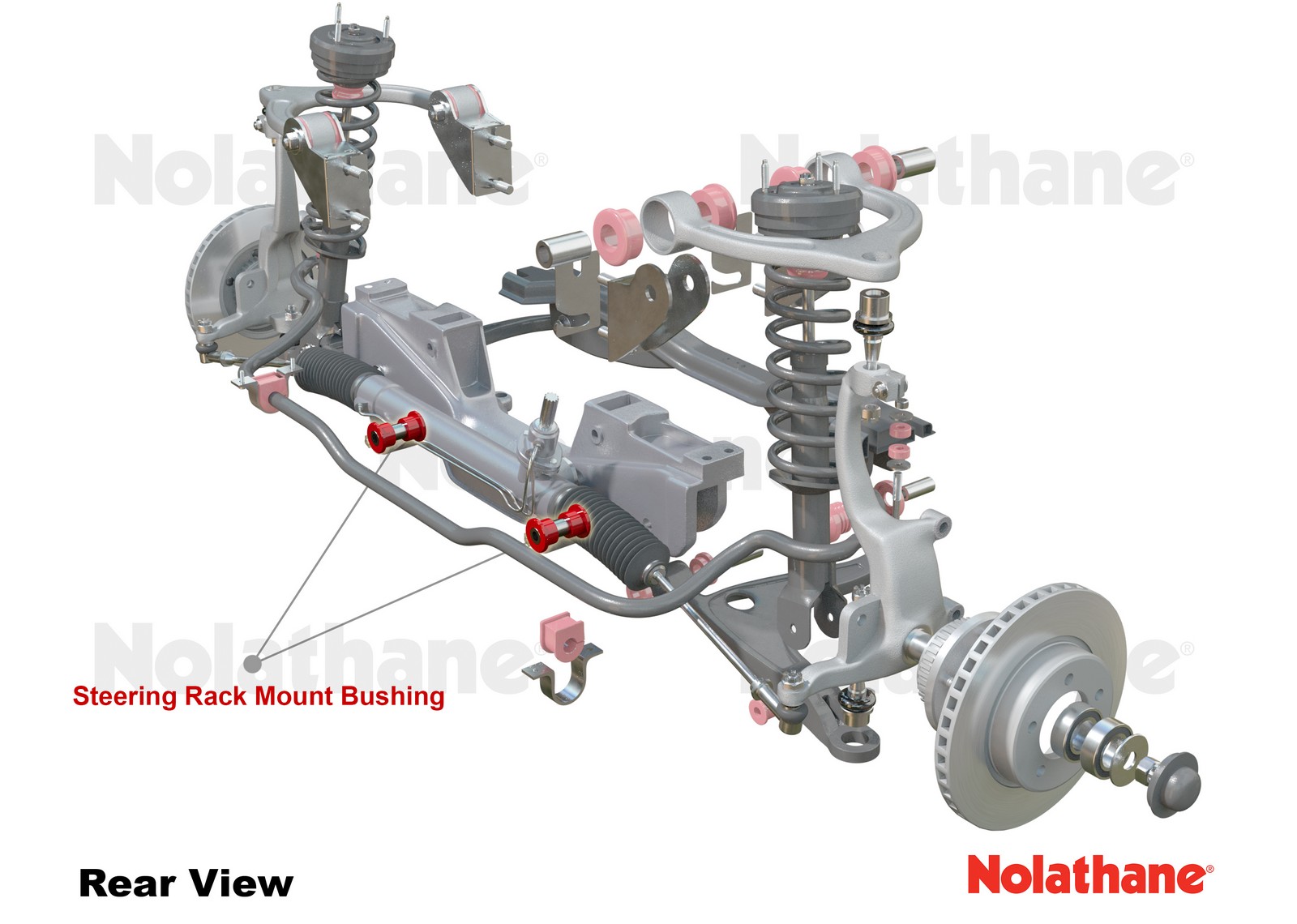

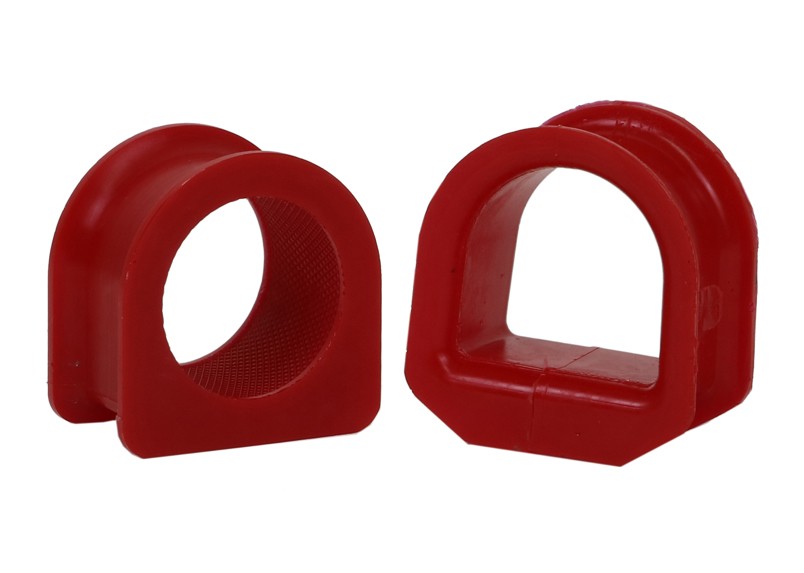

Steering Rack and Pinion - Mount Bushing Kit to Suit Mazda MX-5 NA

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

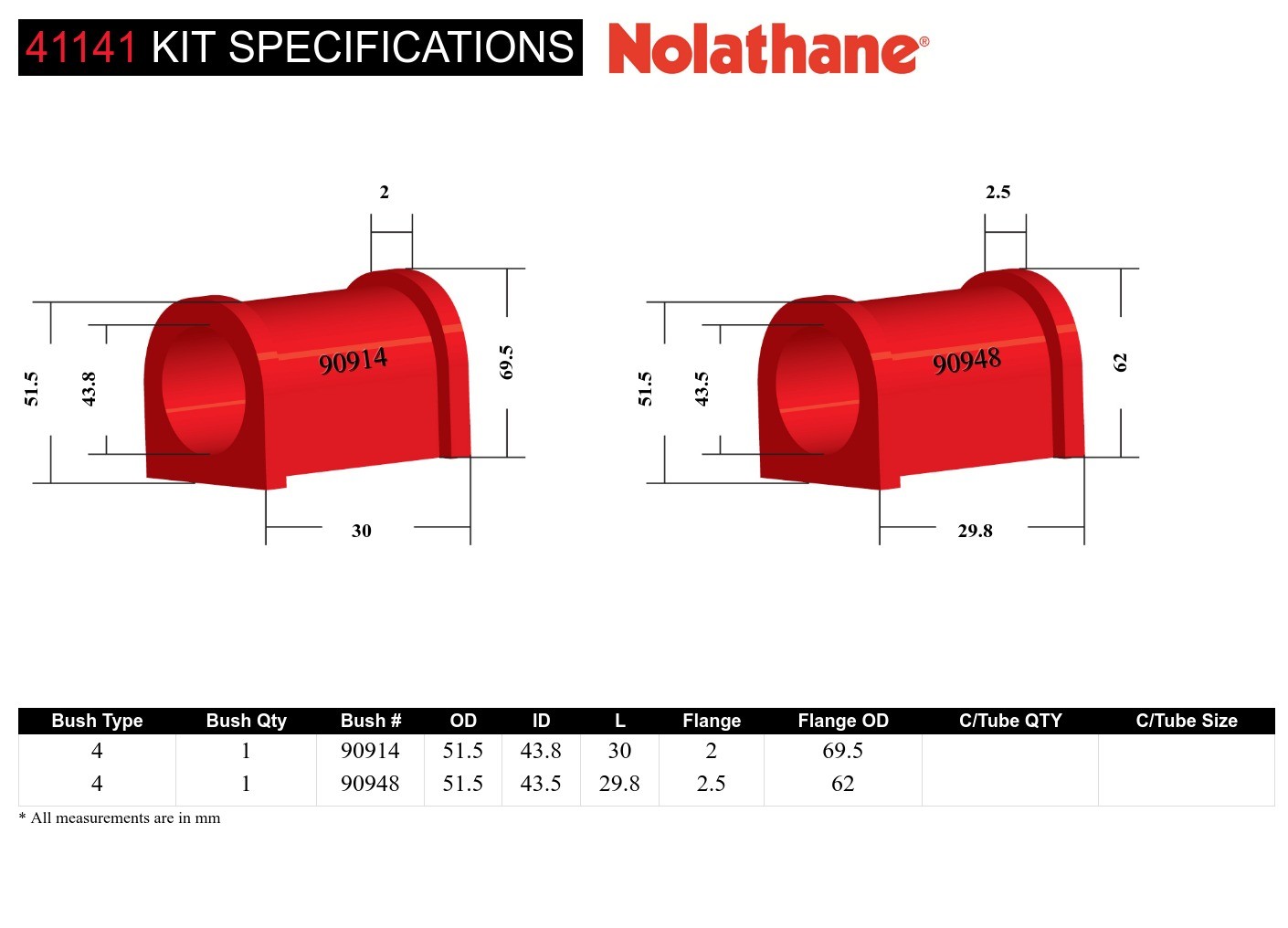

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	1 mm	51.5 mm	43.5 mm	29.8 mm	2.5 mm	62 mm			Click Here
10 - Cotton Reel With & Without Tapper Bushing	1 mm	51.5 mm	43.8 mm	30 mm	2 mm	69.5 mm			Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	1 mm	1 mm
OD (A)	51.5 mm	51.5 mm
ID (B)	43.5 mm	43.8 mm
Length (C)	29.8 mm	30 mm
Flange Thickness (D)	2.5 mm	2 mm
Flange OD (E)	62 mm	69.5 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	1	51.5	43.5	29.8	2.5	62			Click Here
10	1	51.5	43.8	30.0	2	69.5			Click Here

Bush Type	10	10
QTY	1	1
OD (A)	51.5	51.5
ID (B)	43.5	43.8
Length (C)	29.8	30.0
FL (D)	2.5	2
FLOD (E)	62	69.5
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.093kg	7cm	14cm	20cm
in/lbs	0.21lbs	2.76"	5.51"	7.87"

Units	cm/kg	in/lbs
Weight	0.093kg	0.21lbs
Length	7cm	2.76"
Width	14cm	5.51"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	41141
Components Per	2 Bushings
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924450169

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
