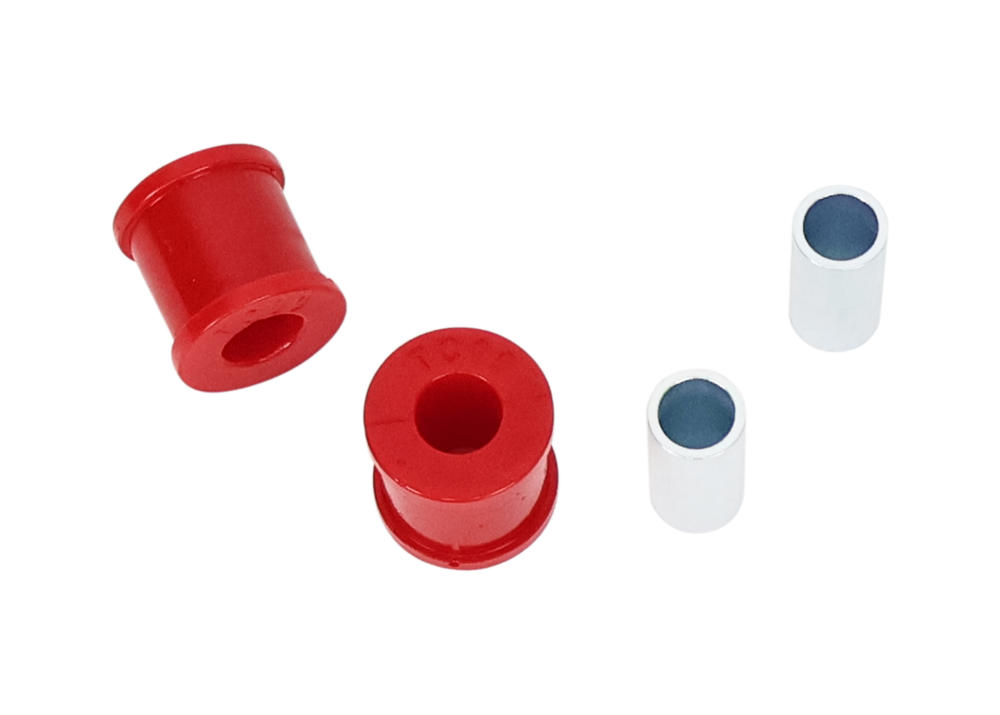

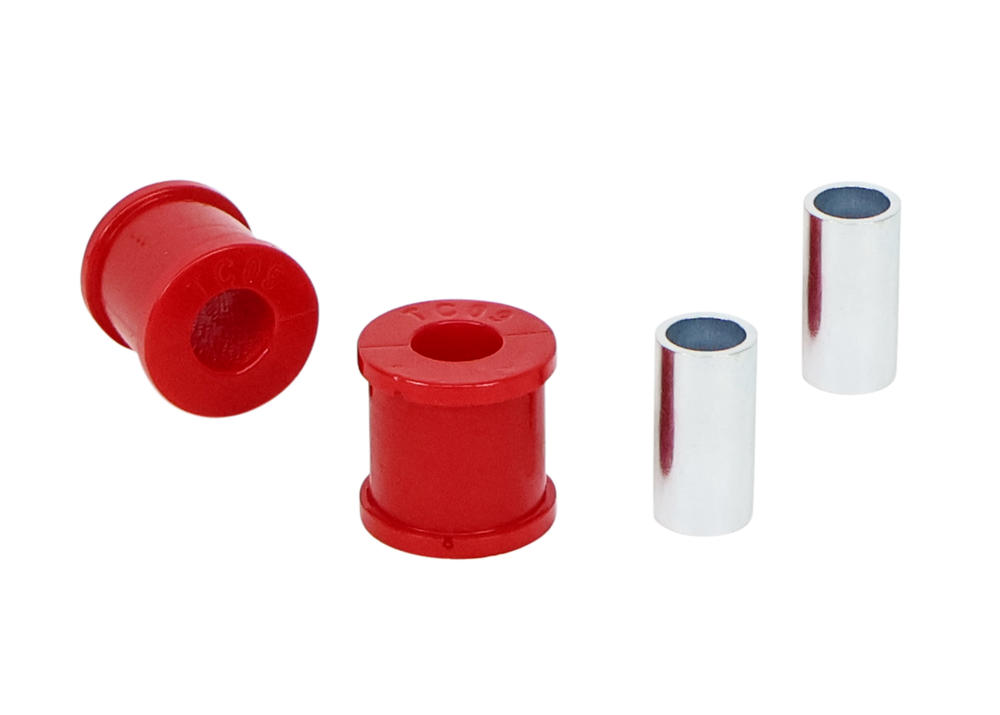

Sway Bar Link - Bushing Kit to Suit Toyota LandCruiser 40-105 Series

Description

Benefit Note:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

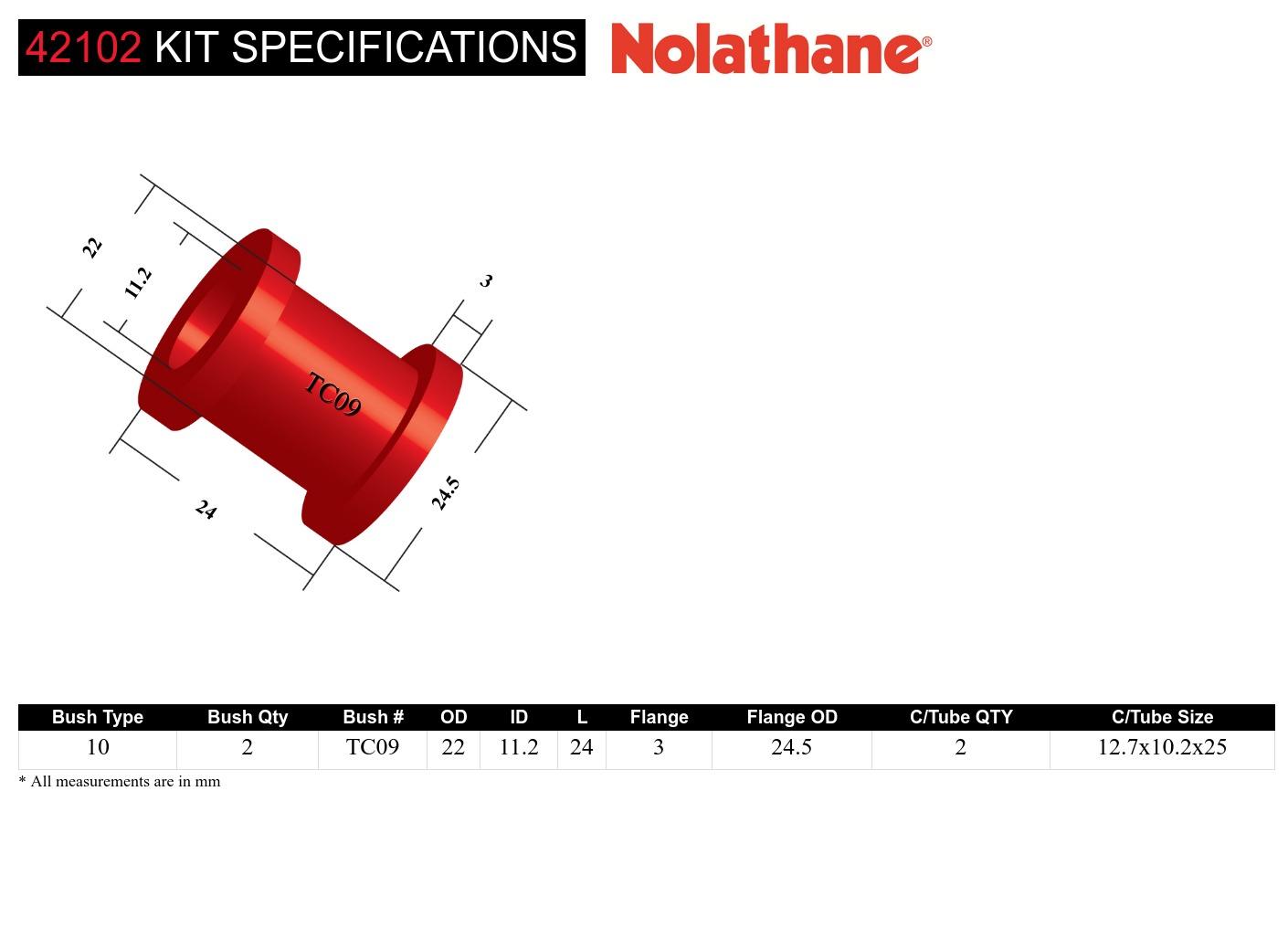

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	2 mm	22 mm	11.2 mm	24 mm	3 mm	24.5 mm	2	12.7x10.2x25 mm	Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm
OD (A)	22 mm
ID (B)	11.2 mm
Length (C)	24 mm
Flange Thickness (D)	3 mm
Flange OD (E)	24.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	12.7x10.2x25 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	2	22	11.2	24.0	3	24.5	2	12.7x10.2x25	Click Here

Bush Type	10
QTY	2
OD (A)	22
ID (B)	11.2
Length (C)	24.0
FL (D)	3
FLOD (E)	24.5
C/Tube Qty	2
C/Tube Size	12.7x10.2x25
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.06kg	7cm	20cm	14cm
in/lbs	0.13lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.06kg	0.13lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42102
Foot Note 1	1 Piece bushing design
Foot Note 3	Lifetime Warranty
Components Per	2 Bushings, 2 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings, 2 Tubes
EAN	9314258508098

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
