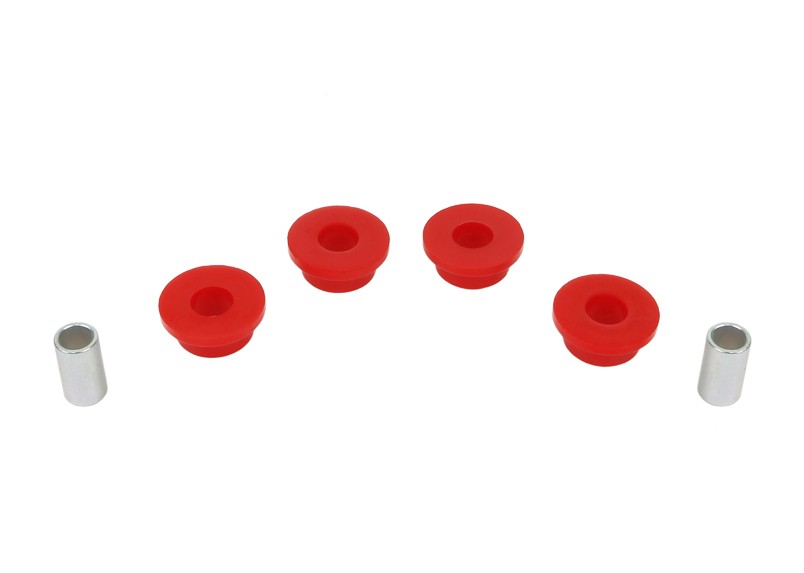

Sway Bar Link - Upper Bushing Kit to Suit Ford F100, F250, F350 and Bronco

Description

Benefit Note:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

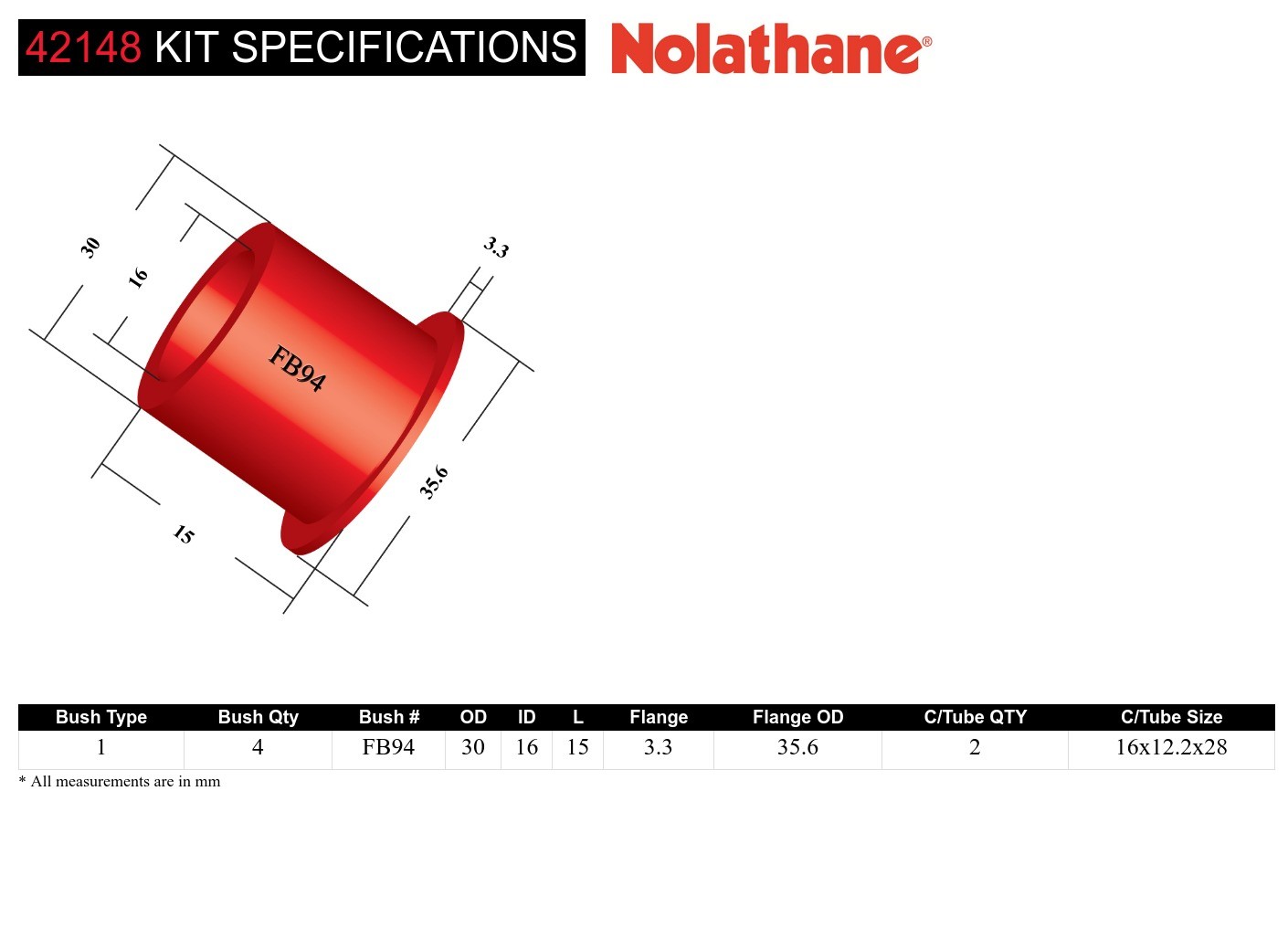

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	30 mm	16 mm	15 mm	3.3 mm	35.6 mm	2	16x12.2x28 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	30 mm
ID (B)	16 mm
Length (C)	15 mm
Flange Thickness (D)	3.3 mm
Flange OD (E)	35.6 mm
C/Tube Quantity	2
C/Tube ODxIDxL	16x12.2x28 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	30	16	15.0	3.3	35.6	2	16x12.2x28	Click Here

Bush Type	1
QTY	4
OD (A)	30
ID (B)	16
Length (C)	15.0
FL (D)	3.3
FLOD (E)	35.6
C/Tube Qty	2
C/Tube Size	16x12.2x28
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.104kg	7cm	20cm	14cm
in/lbs	0.23lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.104kg	0.23lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42148
Foot Note 3	Lifetime Warranty

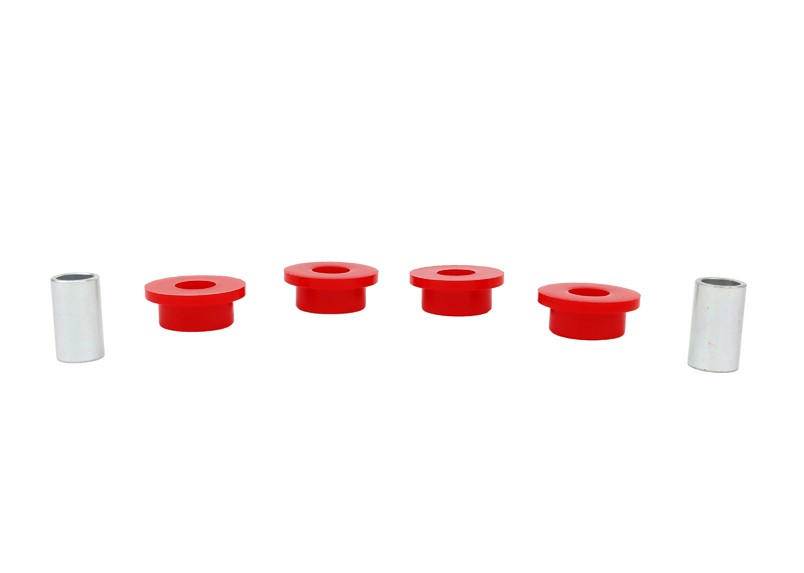

Components Per	4 Bushings, 2 Tubes
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9314258502348

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
