What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

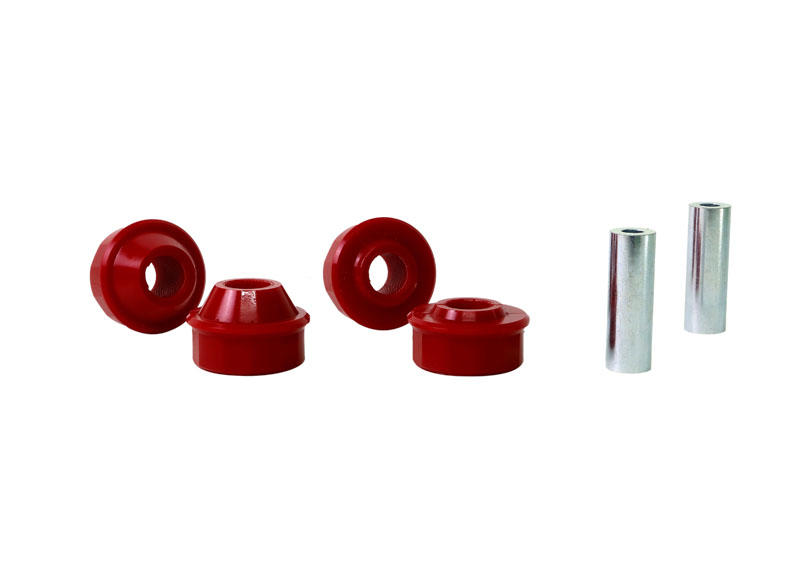

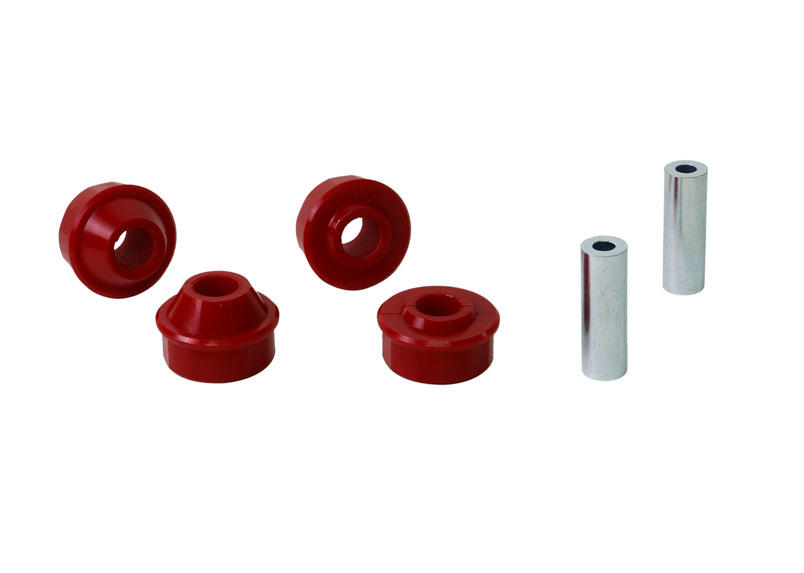

Beam Axle - Bushing Kit to Suit Honda City and Jazz

Description

Benefit Note:

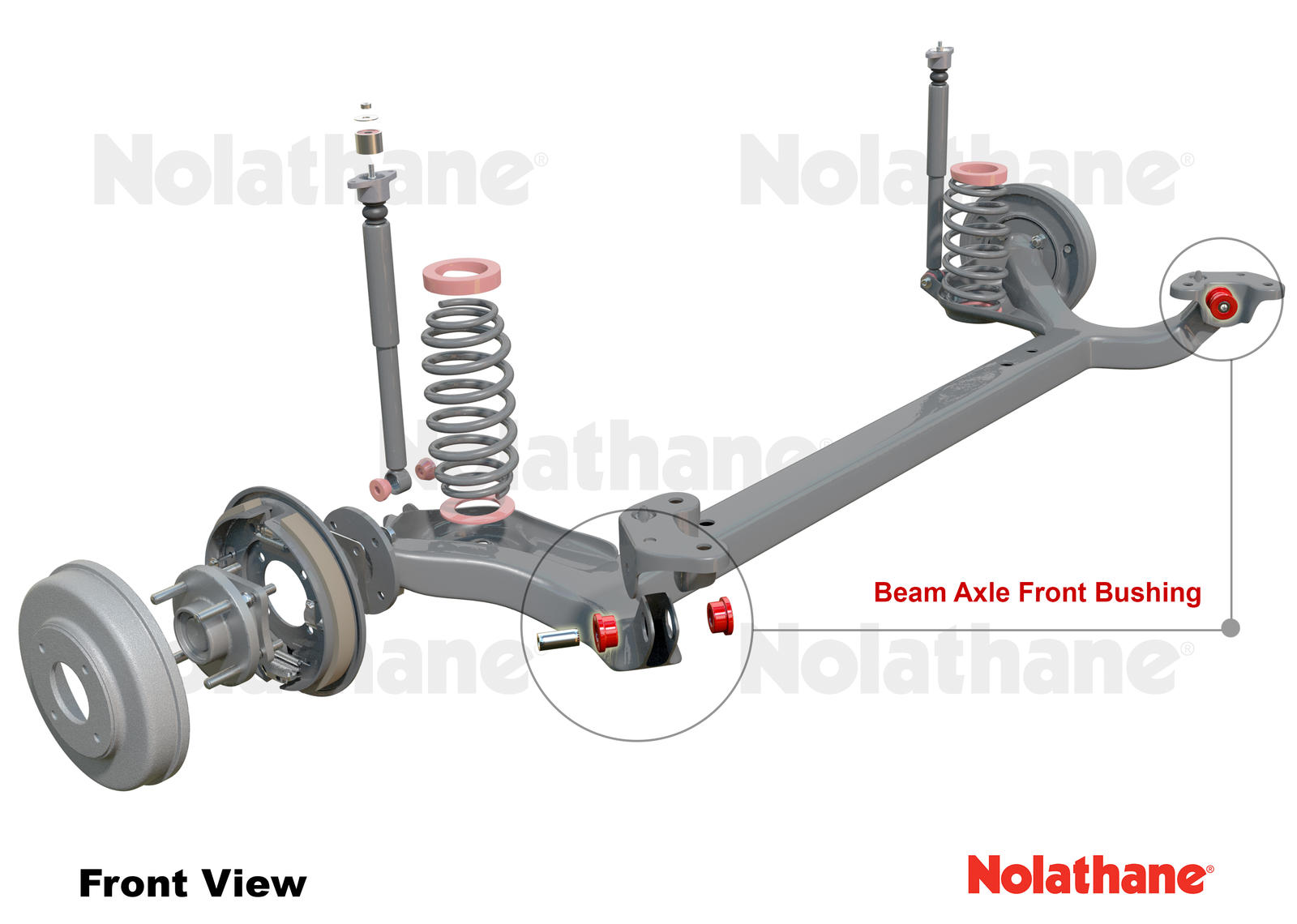

A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Nolathane beam axle kit.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

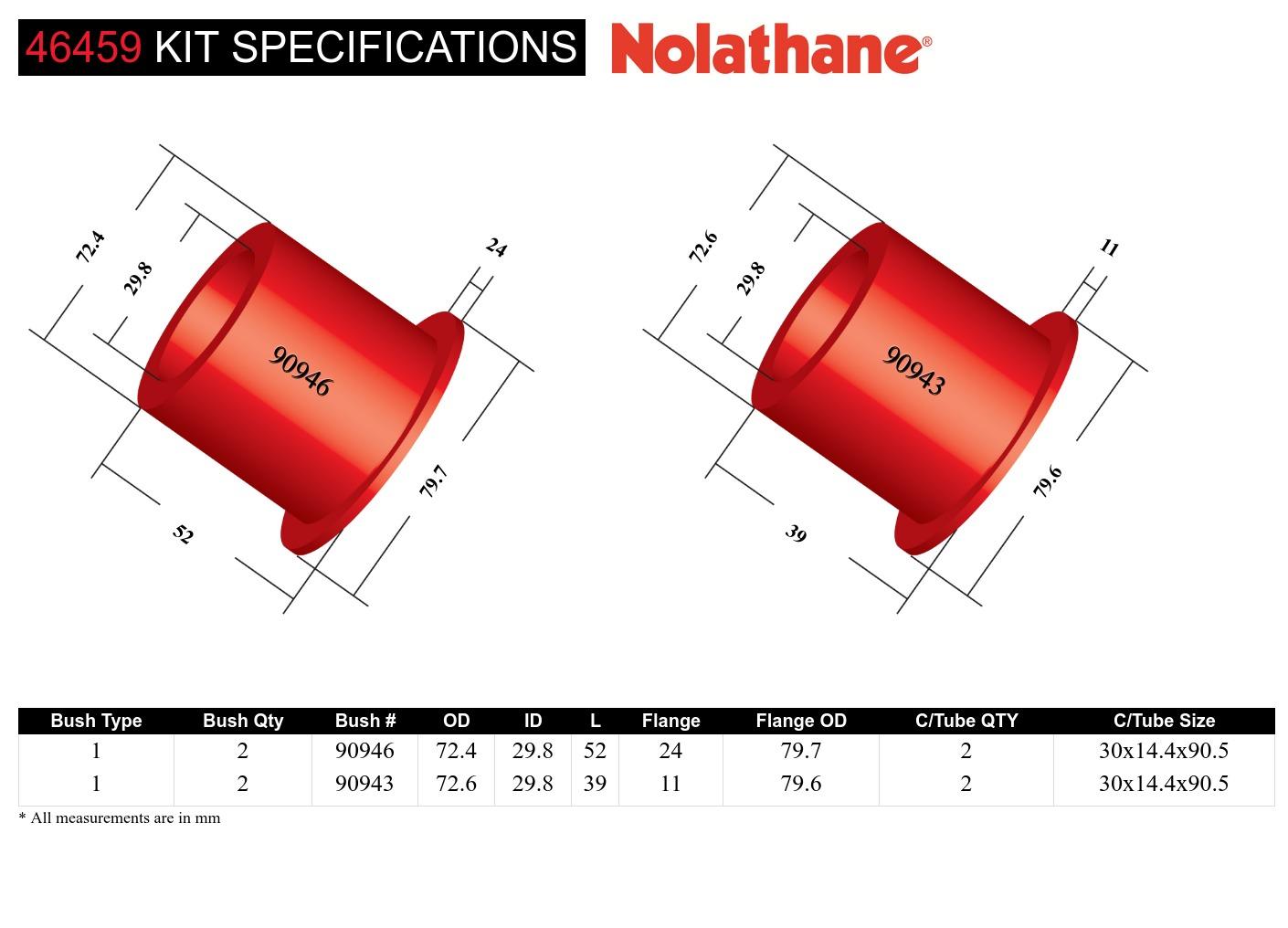

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	72.4 mm	29.8 mm	52 mm	24 mm	79.7 mm	2	30x14.4x90.5 mm	Click Here
1 - Shackle Bushing	2 mm	72.6 mm	29.8 mm	39 mm	11 mm	79.6 mm	2	30x14.4x90.5 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	72.4 mm	72.6 mm
ID (B)	29.8 mm	29.8 mm
Length (C)	52 mm	39 mm
Flange Thickness (D)	24 mm	11 mm
Flange OD (E)	79.7 mm	79.6 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	30x14.4x90.5 mm	30x14.4x90.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.408kg	10cm	26cm	16cm
in/lbs	3.1lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.408kg	3.1lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46459
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924450411

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
