What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

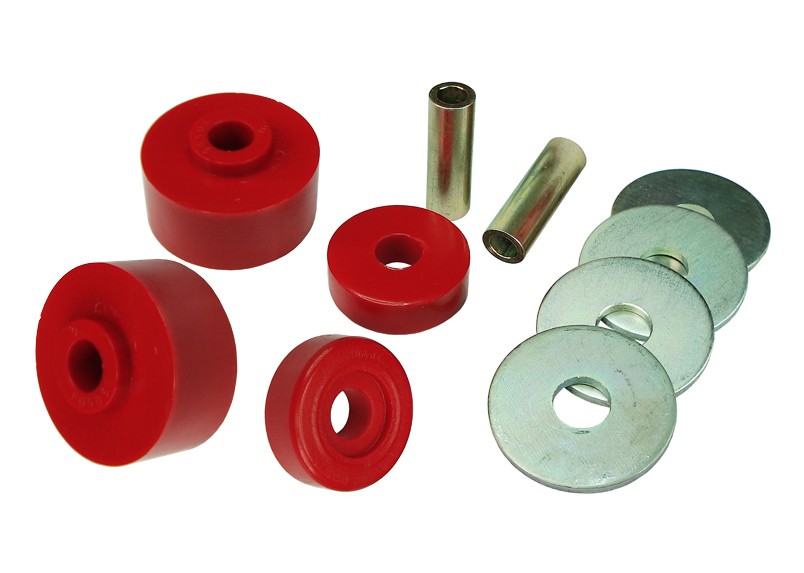

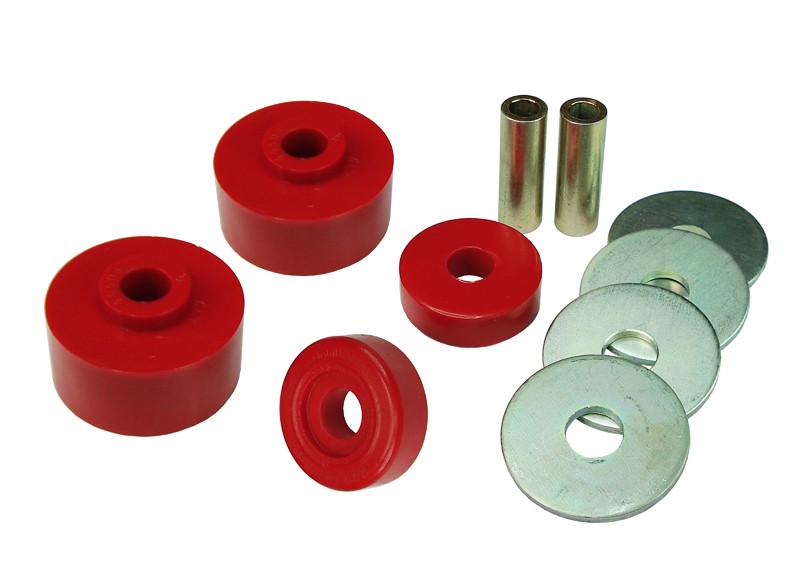

Front Body Mount - Bushing Kit-Cab Front to Suit Nissan Patrol GQ, GU and Ford Maverick DA

Description

Benefit Note:
Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD’s, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

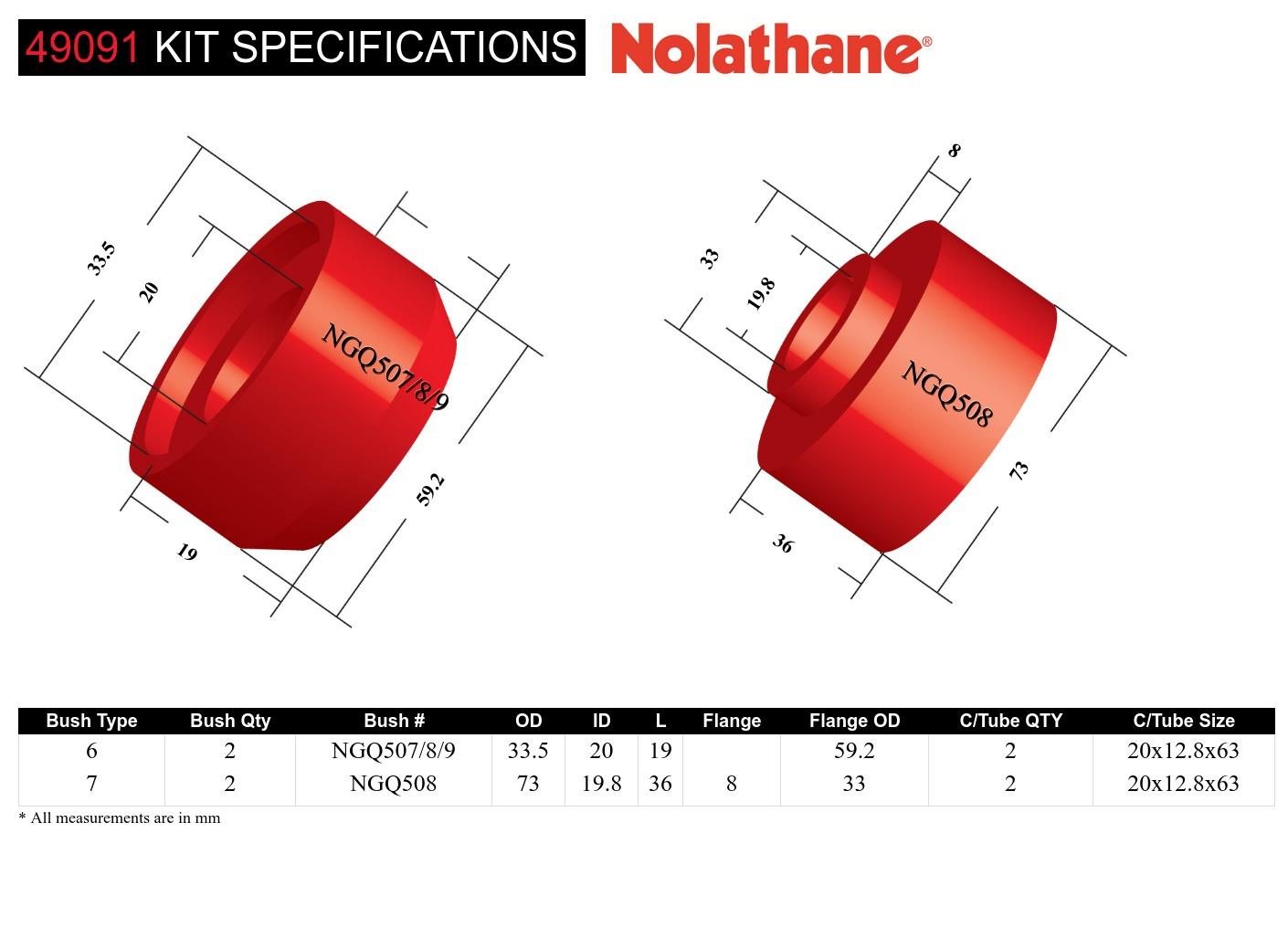

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
7 - Pin Bush With & Without Spigot	2 mm	73 mm	19.8 mm	36 mm	8 mm	33 mm	2	20x12.8x63 mm	Click Here
6 - Male/female Interconnecting Bushing	2 mm	33.5 mm	20 mm	19 mm		59.2 mm	2	20x12.8x63 mm	Click Here

Bush Type	7 - Pin Bush With & Without Spigot	6 - Male/female Interconnecting Bushing
Bush Quantity	2 mm	2 mm
OD (A)	73 mm	33.5 mm
ID (B)	19.8 mm	20 mm
Length (C)	36 mm	19 mm
Flange Thickness (D)	8 mm
Flange OD (E)	33 mm	59.2 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	20x12.8x63 mm	20x12.8x63 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Type 6 - Male/female Interconnecting Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	2	73	19.8	36.0	8	33	2	20x12.8x63	Click Here
6	2	33.5	20	19.0		59.2	2	20x12.8x63	Click Here

Bush Type	7	6
QTY	2	2
OD (A)	73	33.5
ID (B)	19.8	20
Length (C)	36.0	19.0
FL (D)	8
FLOD (E)	33	59.2
C/Tube Qty	2	2
C/Tube Size	20x12.8x63	20x12.8x63
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.142kg	10cm	26cm	16cm
in/lbs	2.52lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.142kg	2.52lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	49091
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes, 4 Washers
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9330074002862

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
