What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

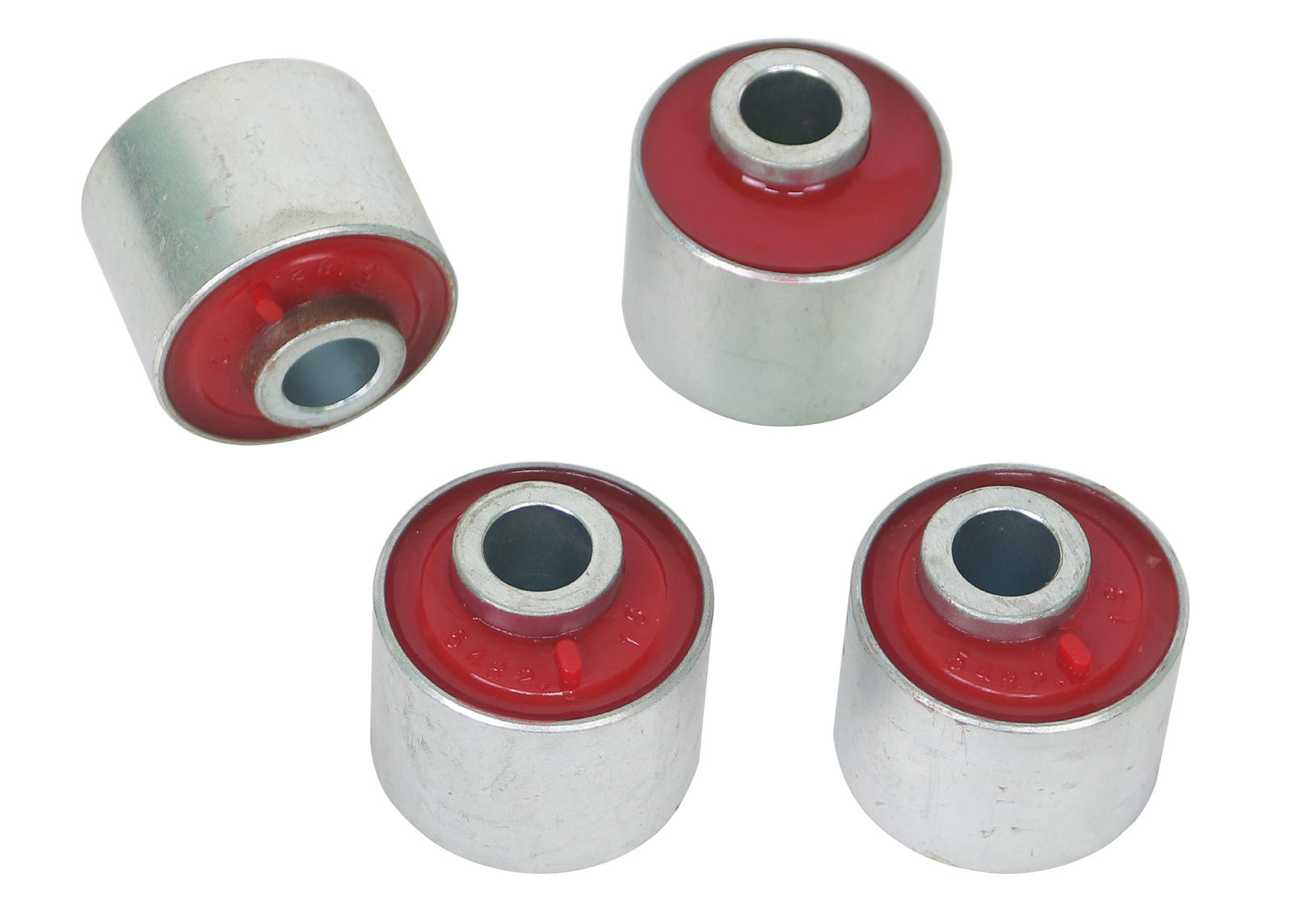

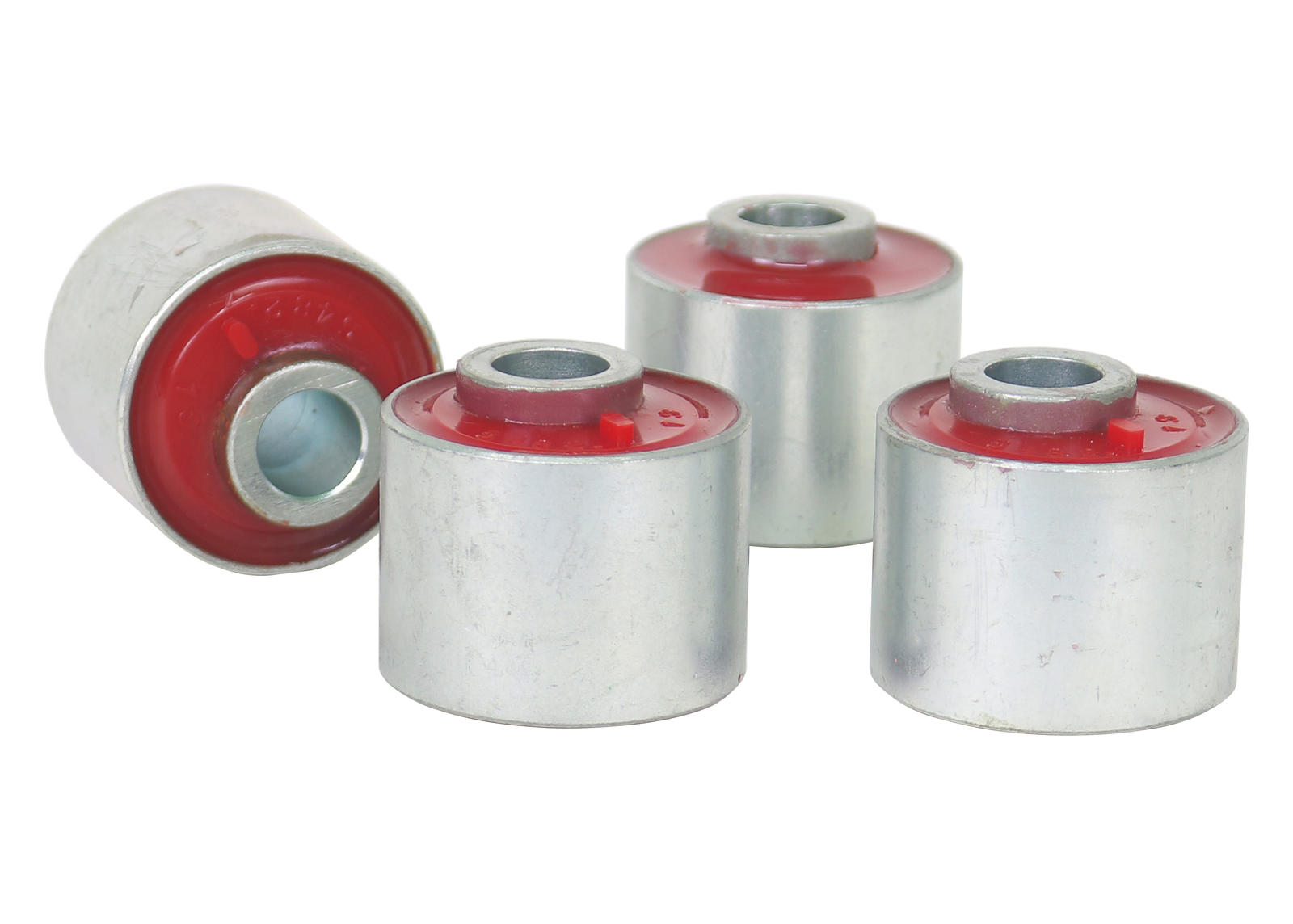

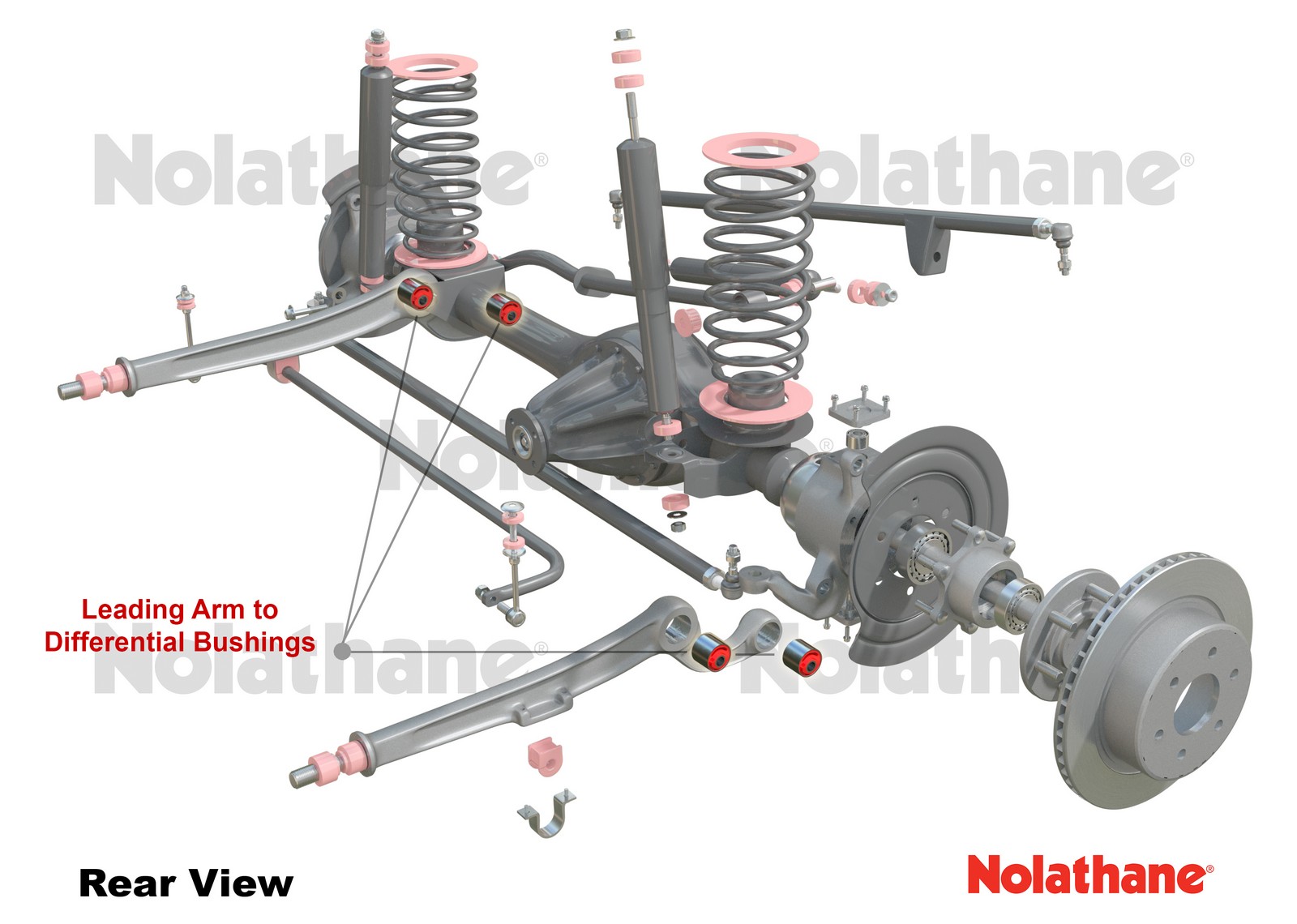

Front Leading Arm - To Differential Bushing Kit Offset to Suit Land Rover Defender and Range Rover Classic

Description

Benefit Note:
Raised your 4x4 and suffering vague steering or worse high speed tyre vibration's? Nolathane's caster correction kit features offset mounting points providing improved caster geometry for high precision steering and improved tyre performance.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

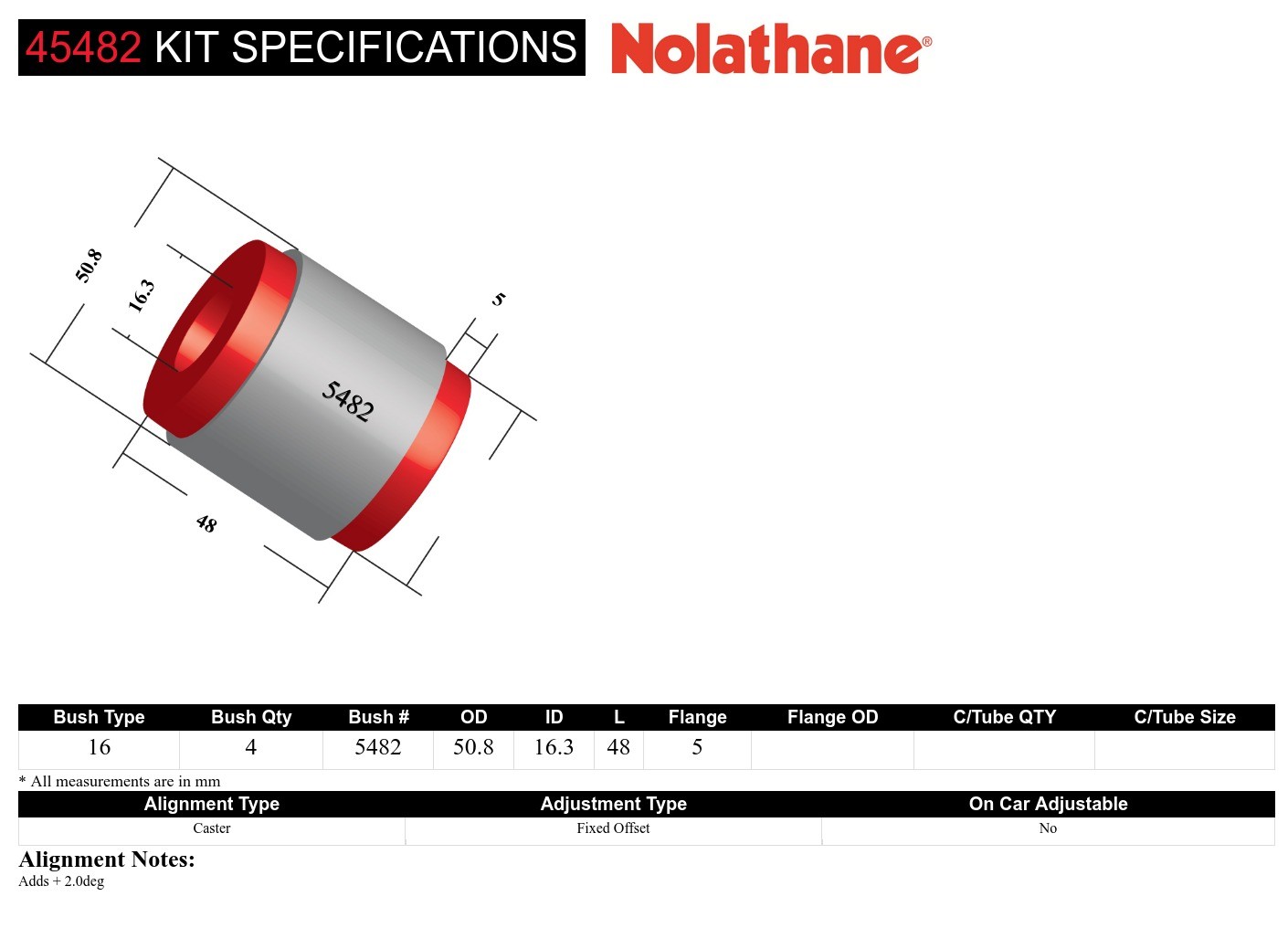

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	50.8 mm	16.3 mm	48 mm	5 mm				Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	50.8 mm
ID (B)	16.3 mm
Length (C)	48 mm
Flange Thickness (D)	5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	4	50.8	16.3	48.0	5				Click Here

Bush Type	16
QTY	4
OD (A)	50.8
ID (B)	16.3
Length (C)	48.0
FL (D)	5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.97kg	10cm	26cm	16cm
in/lbs	2.14lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.97kg	2.14lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45482
Foot Note 2	Adds +2.0deg caster
Foot Note 3	Lifetime Warranty
Components Per	4 Shell Bushings
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 4 Shell Bushings
EAN	9330074003975

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
