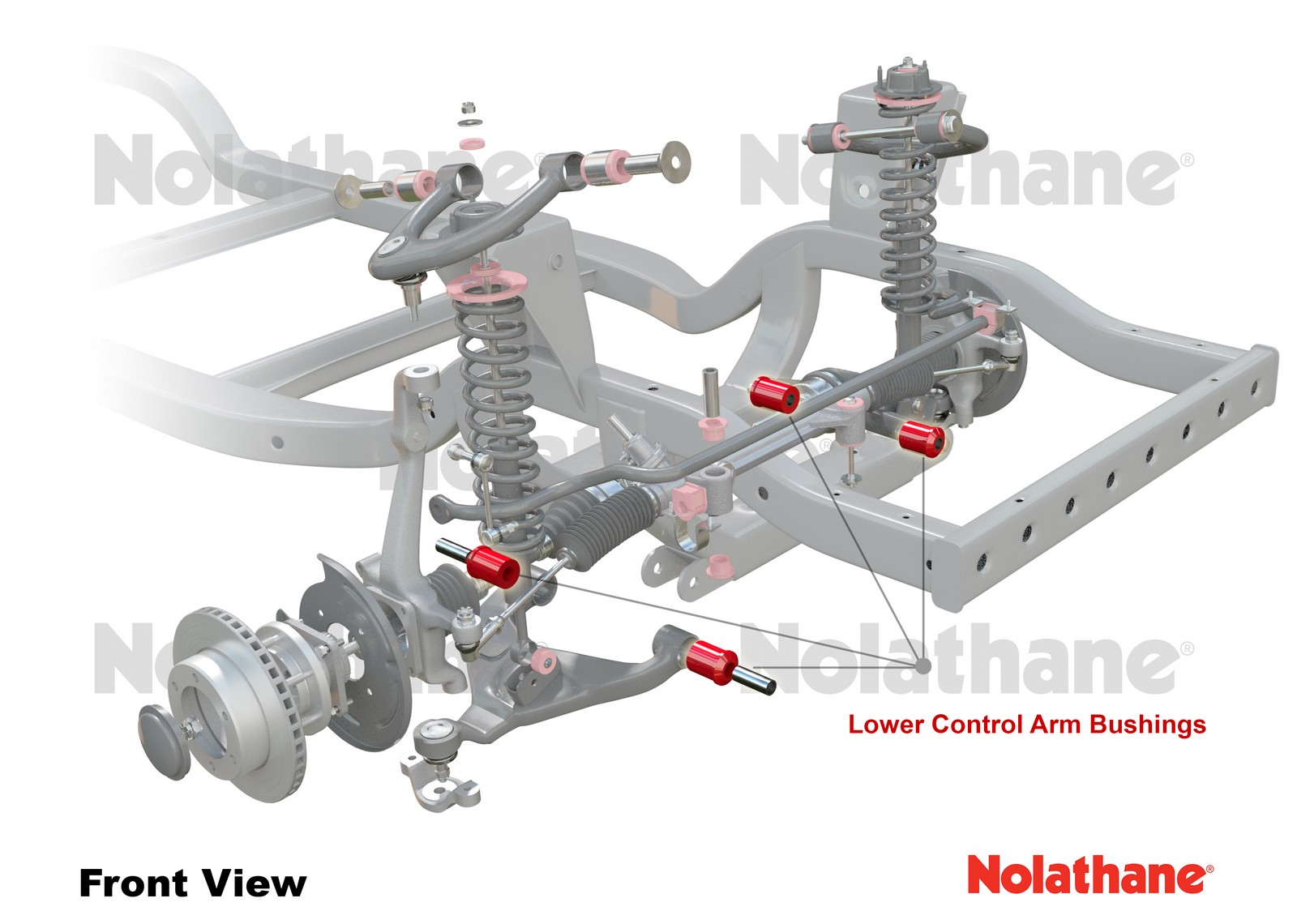

Front Lower Control Arm - Bushing Kit to Suit Nissan Navara D40, D23 and Pathfinder R51

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

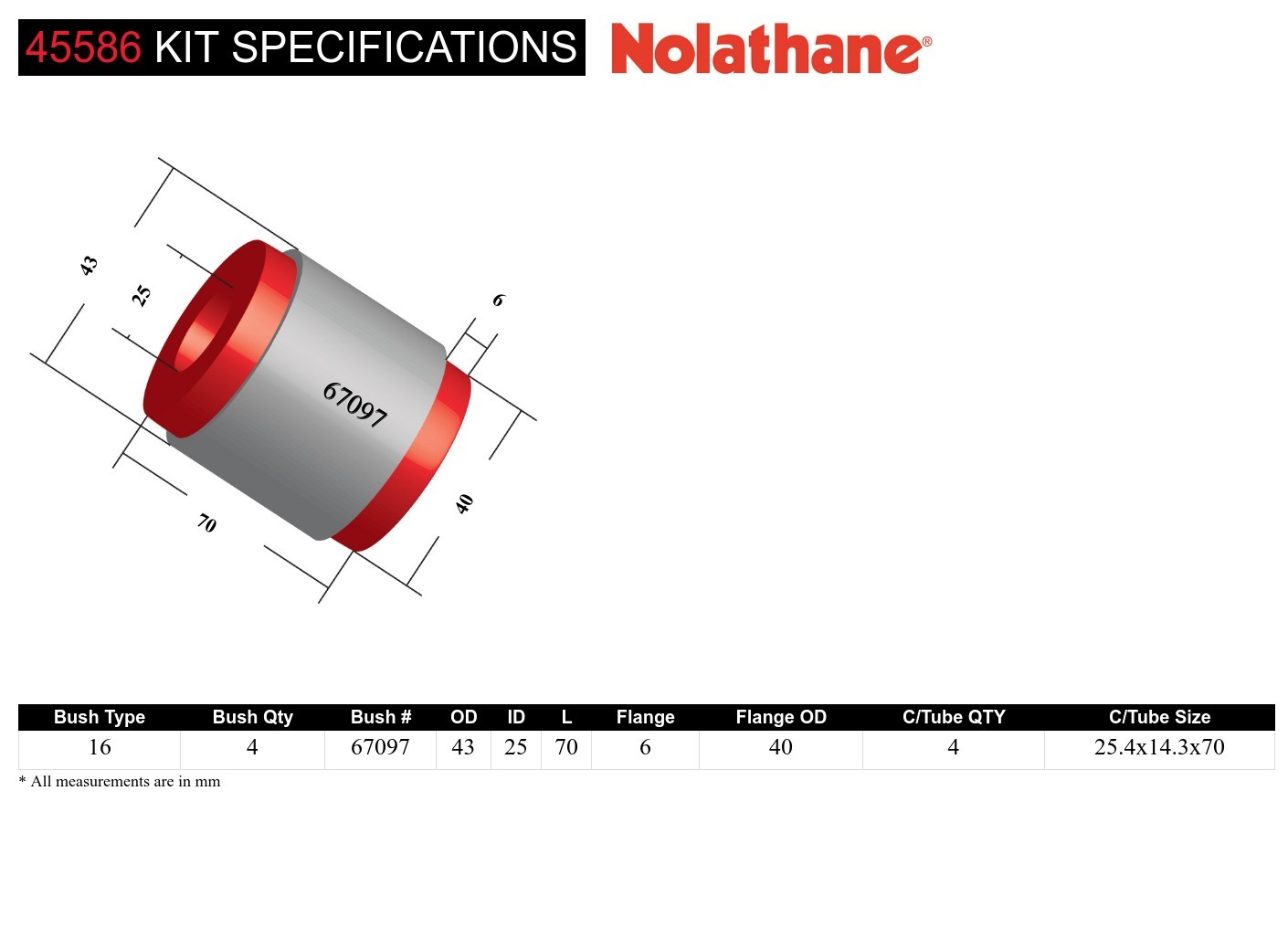

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	43 mm	25 mm	70 mm	6 mm	40 mm	4	25.4x14.3x70 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	43 mm
ID (B)	25 mm
Length (C)	70 mm
Flange Thickness (D)	6 mm
Flange OD (E)	40 mm
C/Tube Quantity	4
C/Tube ODxIDxL	25.4x14.3x70 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1kg	10cm	26cm	16cm
in/lbs	2.2lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1kg	2.2lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45586
Foot Note 1	Standard Alignment
Foot Note 3	Lifetime Warranty

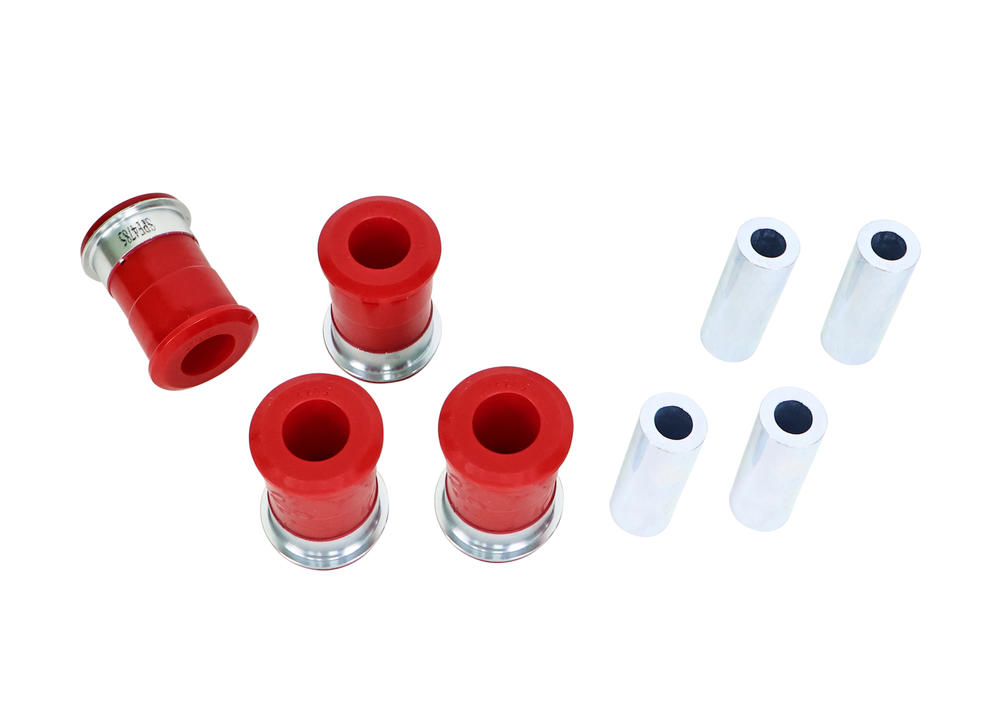

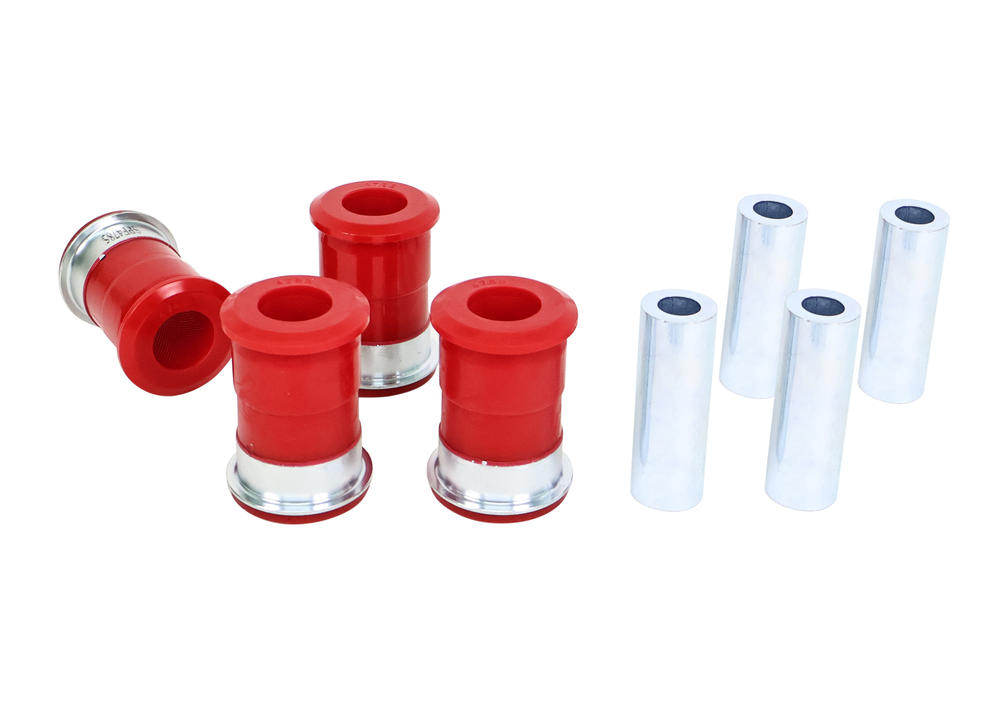

Components Per	4 Shell Bushings, 4 Tubes, 8 Washers
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes, 8 Washers
EAN	9319924373536

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
