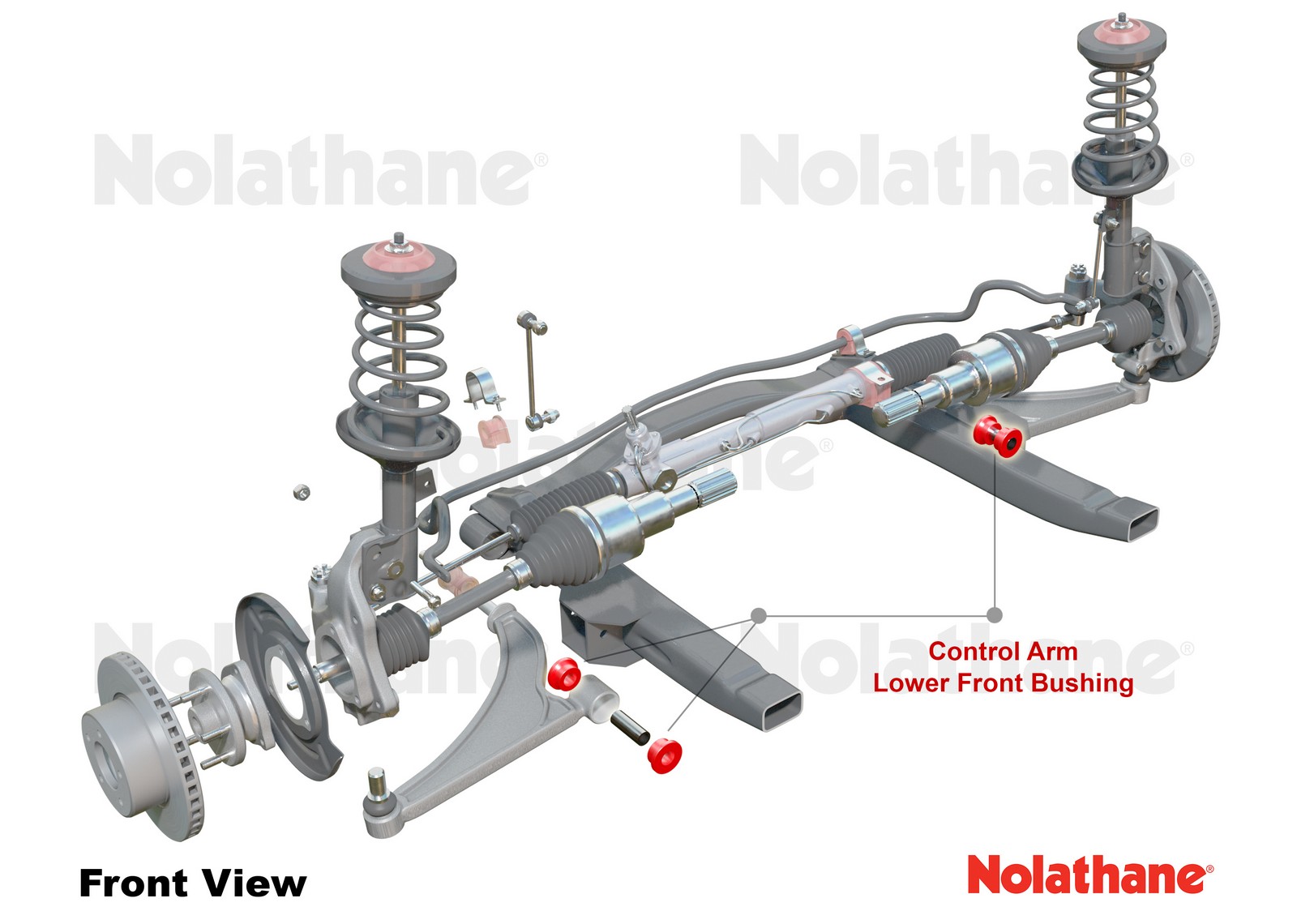

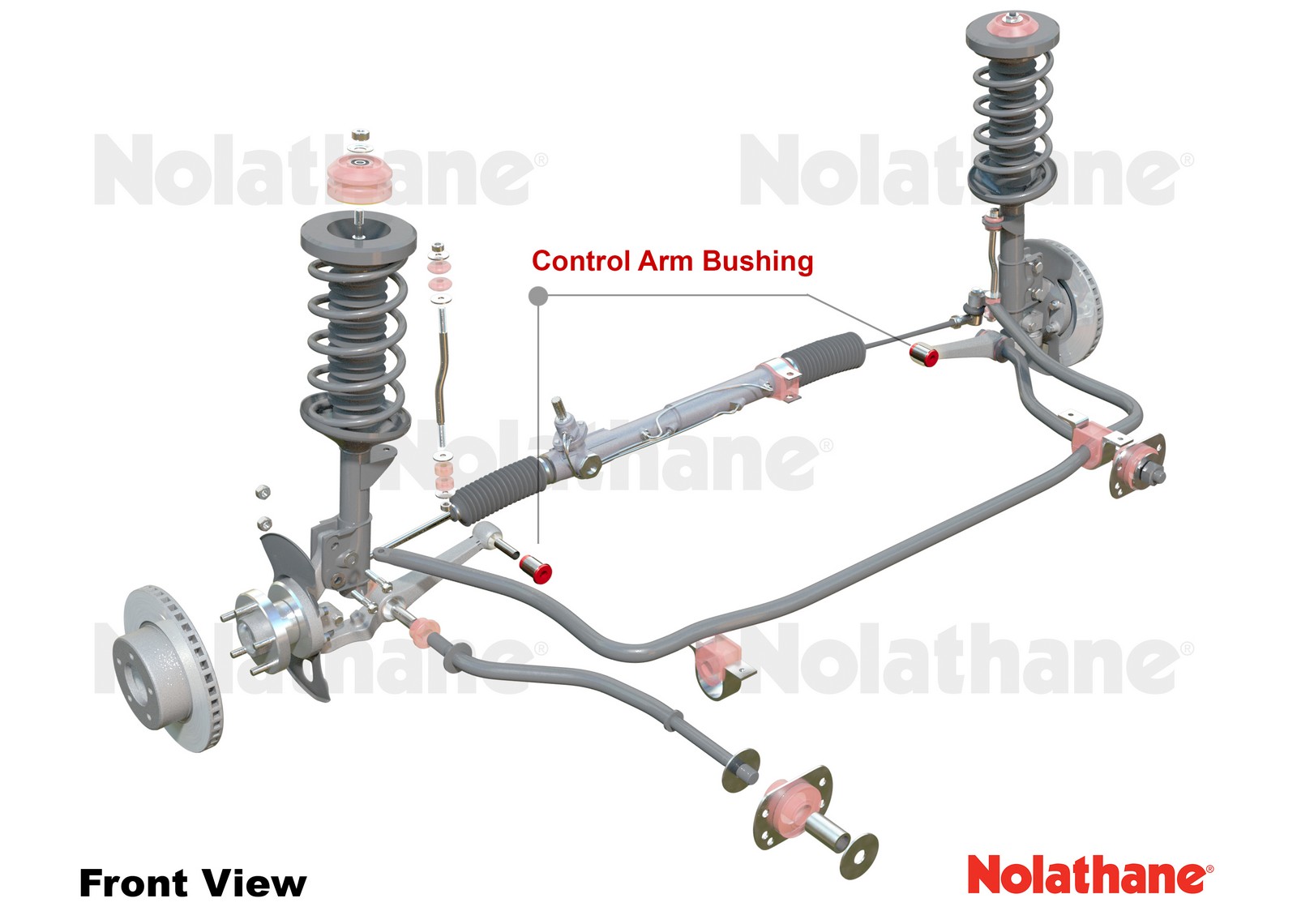

Front Lower Control Arm - Inner Front Bushing Kit to Suit Holden Barina, Suzuki Baleno, Cultus and Swift

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	33.6 mm	19.1 mm	24 mm	5.5 mm	42.5 mm	2	19x16.2x50 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	33.6 mm
ID (B)	19.1 mm
Length (C)	24 mm
Flange Thickness (D)	5.5 mm
Flange OD (E)	42.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x16.2x50 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	33.6	19.1	24.0	5.5	42.5	2	19x16.2x50	Click Here

Bush Type	1
QTY	4
OD (A)	33.6
ID (B)	19.1
Length (C)	24.0
FL (D)	5.5
FLOD (E)	42.5
C/Tube Qty	2
C/Tube Size	19x16.2x50
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.166kg	7cm	20cm	14cm
in/lbs	0.37lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.166kg	0.37lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42154
Foot Note 3	Lifetime Warranty

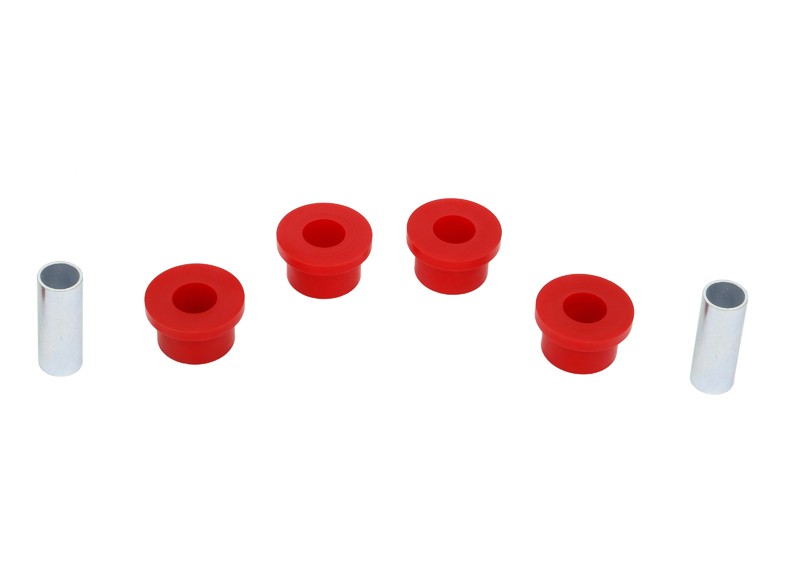

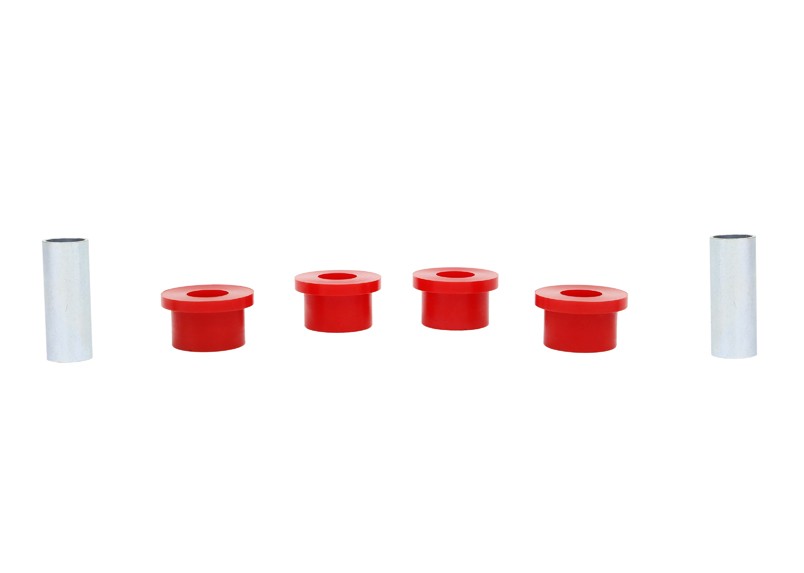

Components Per	4 Bushings, 2 Tubes
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9314258507947

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
