What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

48195

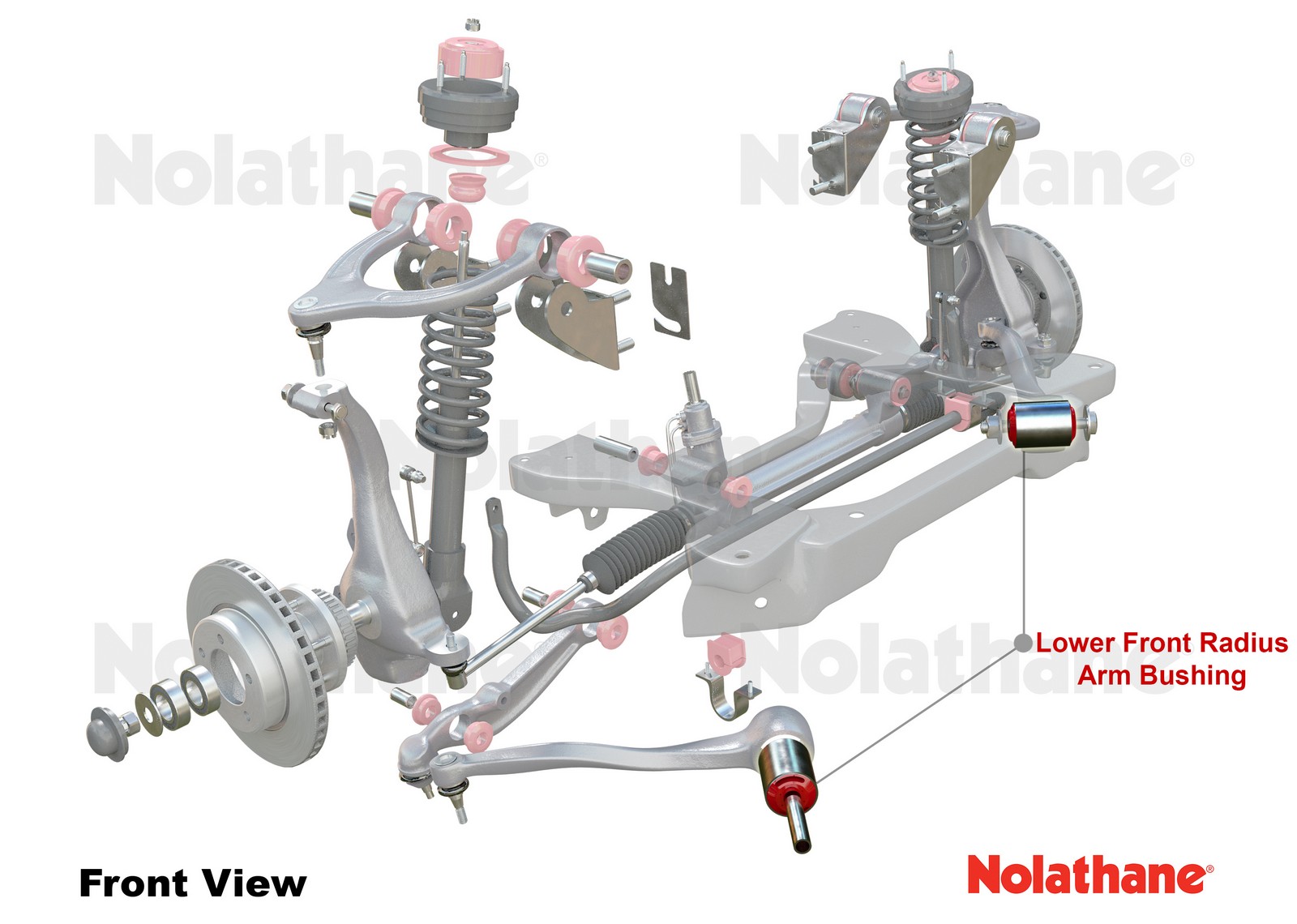

Front Radius Arm Lower - Bushing Kit Double Offset Caster Kit to Suit Audi A4-A8, S4-S8 Fwd/Awd

Front Radius Arm Lower - Bushing Kit Double Offset Caster Kit to Suit Audi A4-A8, S4-S8 Fwd/Awd

Performance Alignment - suits models to - 2010 - adds +/- 0.5deg caster

Item Price

$147.53

SKU	48195
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Stock due on 13/6/2026.

Description

Benefit Note:
Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

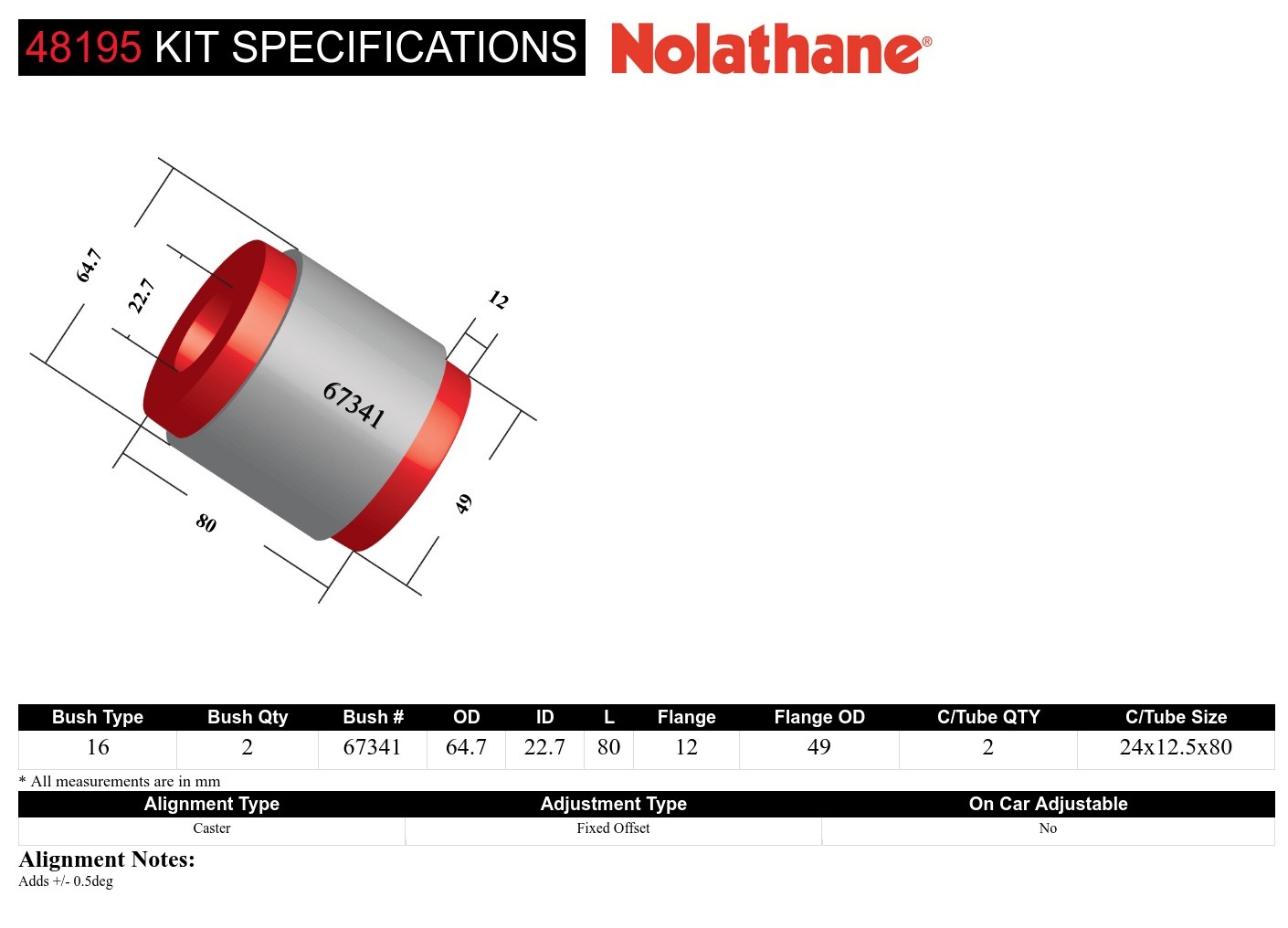

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	64.7 mm	22.7 mm	80 mm	12 mm	49 mm	2	24x12.5x80 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	64.7 mm
ID (B)	22.7 mm
Length (C)	80 mm
Flange Thickness (D)	12 mm
Flange OD (E)	49 mm
C/Tube Quantity	2
C/Tube ODxIDxL	24x12.5x80 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	64.7	22.7	80.0	12	49	2	24x12.5x80	Click Here

Bush Type	16
QTY	2
OD (A)	64.7
ID (B)	22.7
Length (C)	80.0
FL (D)	12
FLOD (E)	49
C/Tube Qty	2
C/Tube Size	24x12.5x80
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.087kg	10cm	26cm	16cm
in/lbs	2.4lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.087kg	2.4lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	48195
Foot Note 1	Performance Alignment
Foot Note 2	Adds +/-0.5deg caster
Foot Note 3	Lifetime Warranty

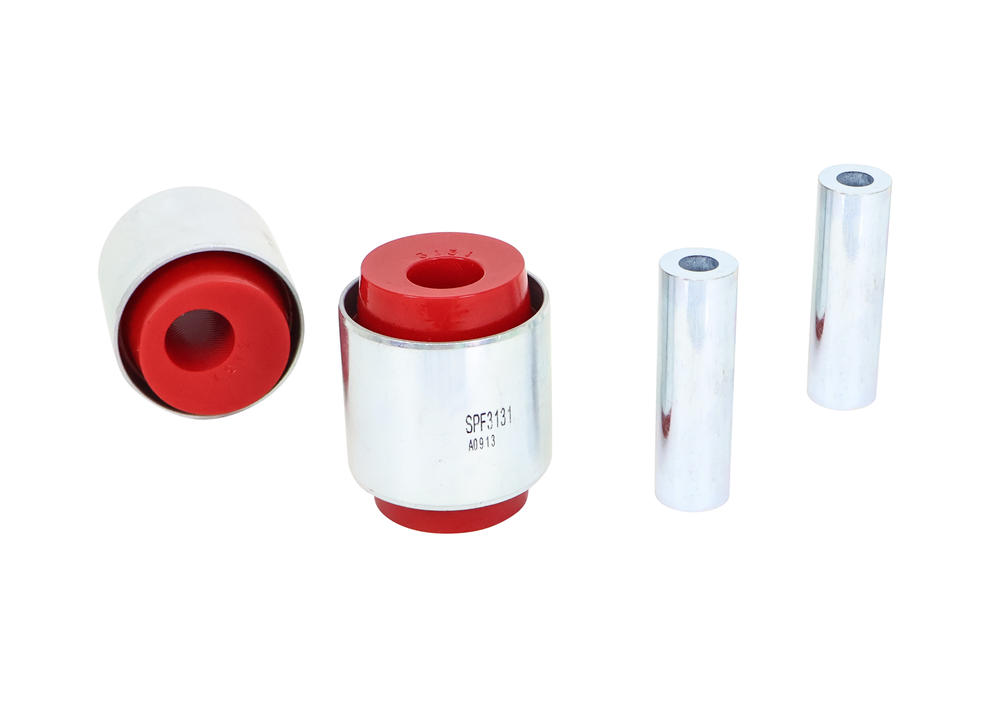

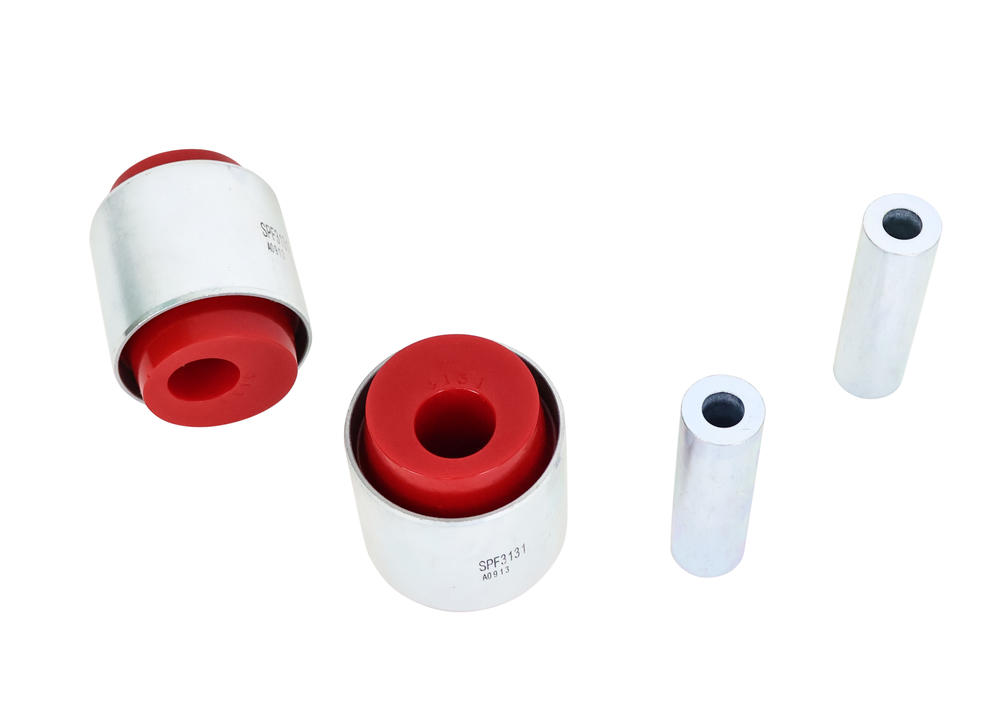

Components Per	2 Shell Bushings, 2 Tubes
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9319924393602

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
