Front Steering Coupling - Bushing Kit to Suit Ford Capri, Cortina and Escort and Holden Torana

Description

Benefit Note:
Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

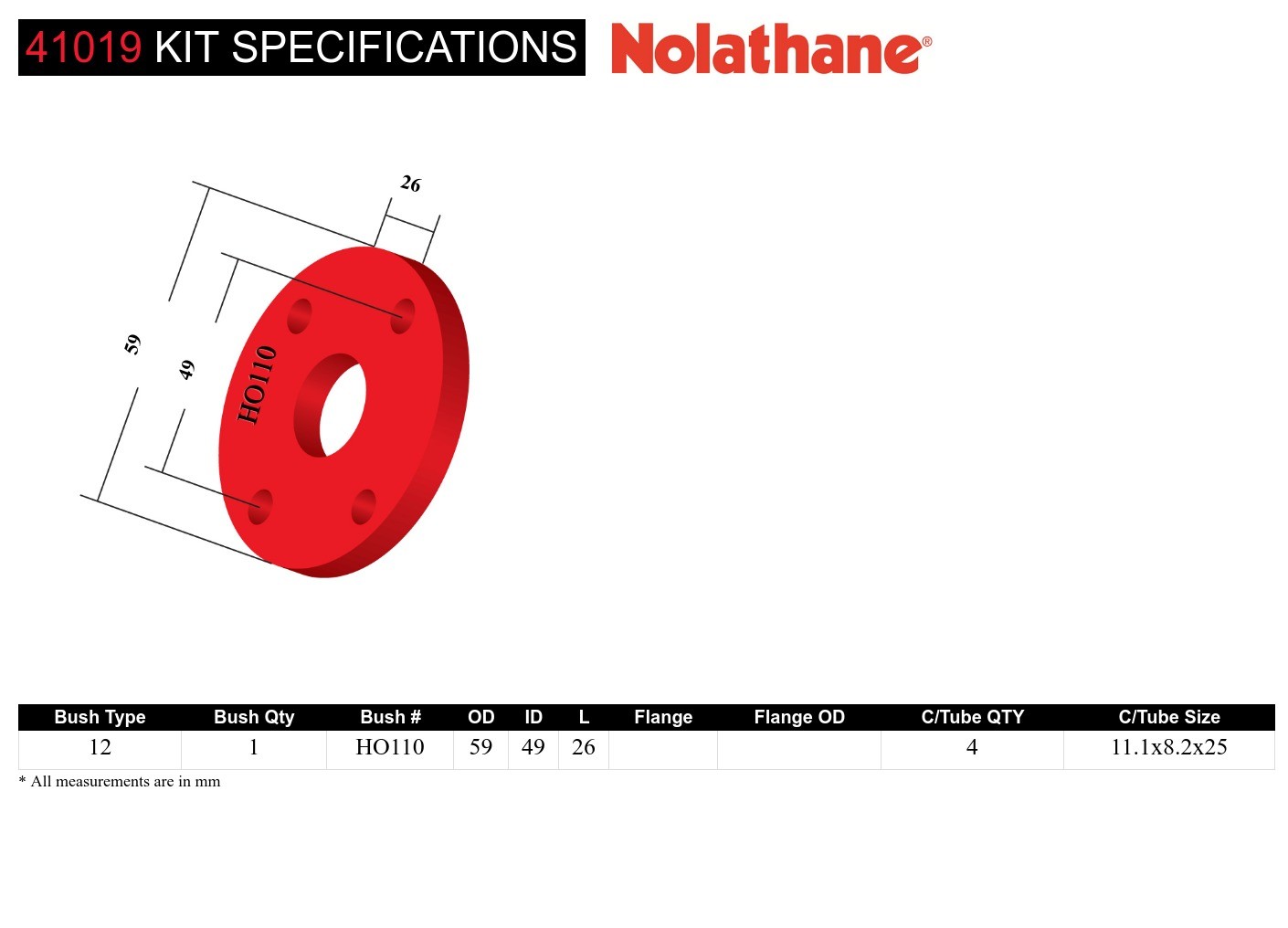

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
12 - Steering Coupling Bushing	1 mm	59 mm	49 mm	26 mm			4	11.1x8.2x25 mm	Click Here

Bush Type	12 - Steering Coupling Bushing
Bush Quantity	1 mm
OD (A)	59 mm
ID (B)	49 mm
Length (C)	26 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity	4
C/Tube ODxIDxL	11.1x8.2x25 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 12 - Steering Coupling Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
12	1	59	49	26.0			4	11.1x8.2x25	Click Here

Bush Type	12
QTY	1
OD (A)	59
ID (B)	49
Length (C)	26.0
FL (D)
FLOD (E)
C/Tube Qty	4
C/Tube Size	11.1x8.2x25
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.235kg	7cm	20cm	14cm
in/lbs	0.52lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.235kg	0.52lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	41019
Foot Note 2	26.5mm thick
Foot Note 3	Lifetime Warranty

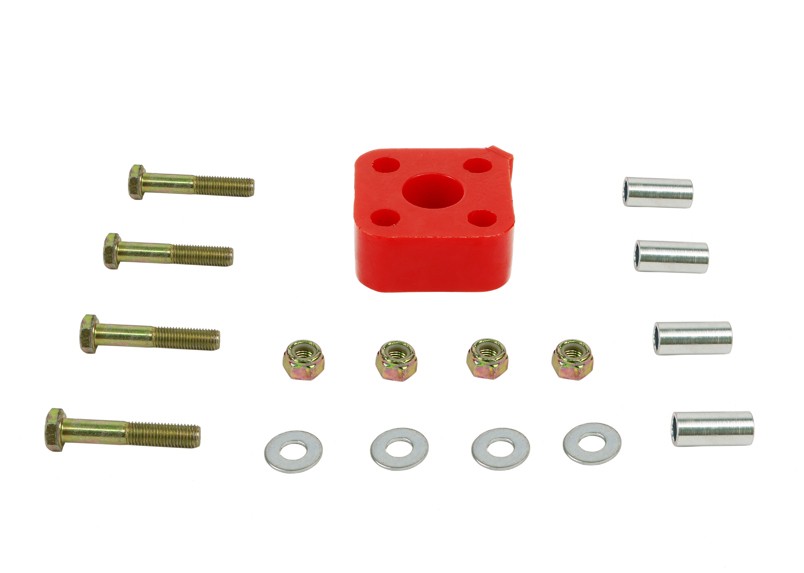

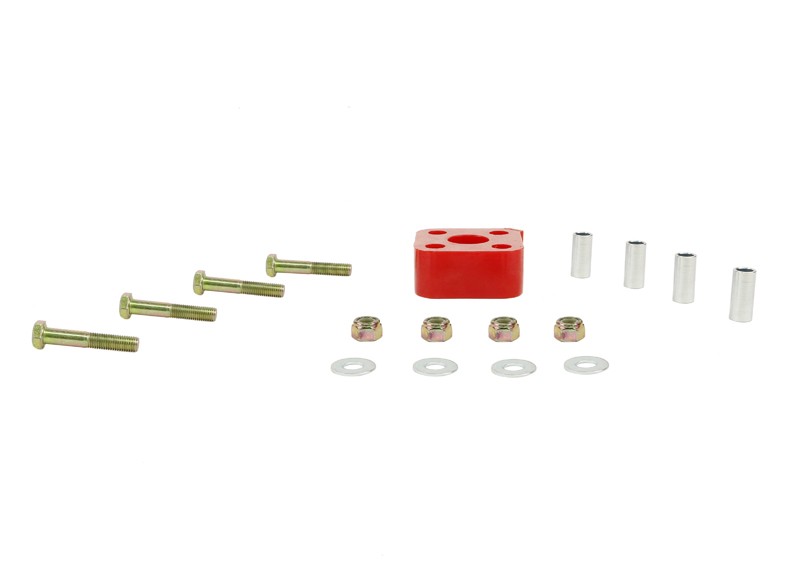

Components Per	1 Bushing, 4 Tubes, 4 Bolts, 4 Washers, 4 Nuts
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9314258503680

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
