What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

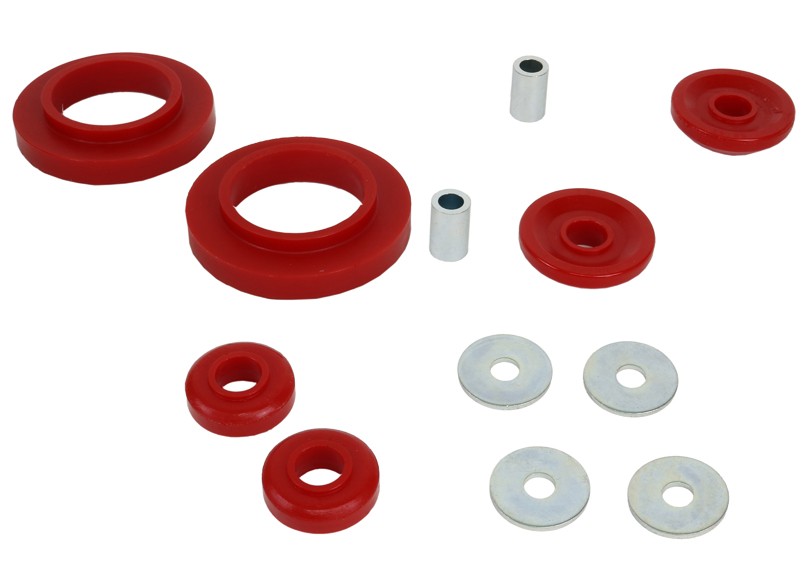

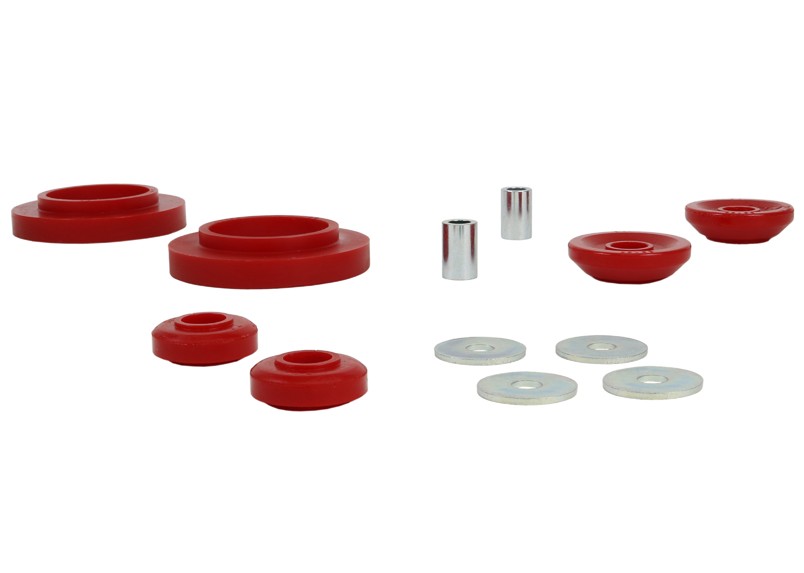

Front Strut Mount - Bushing Kit to Suit Ford Everest, Ranger and Mazda BT-50

Description

Benefit Note:
Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Nolathane kit contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

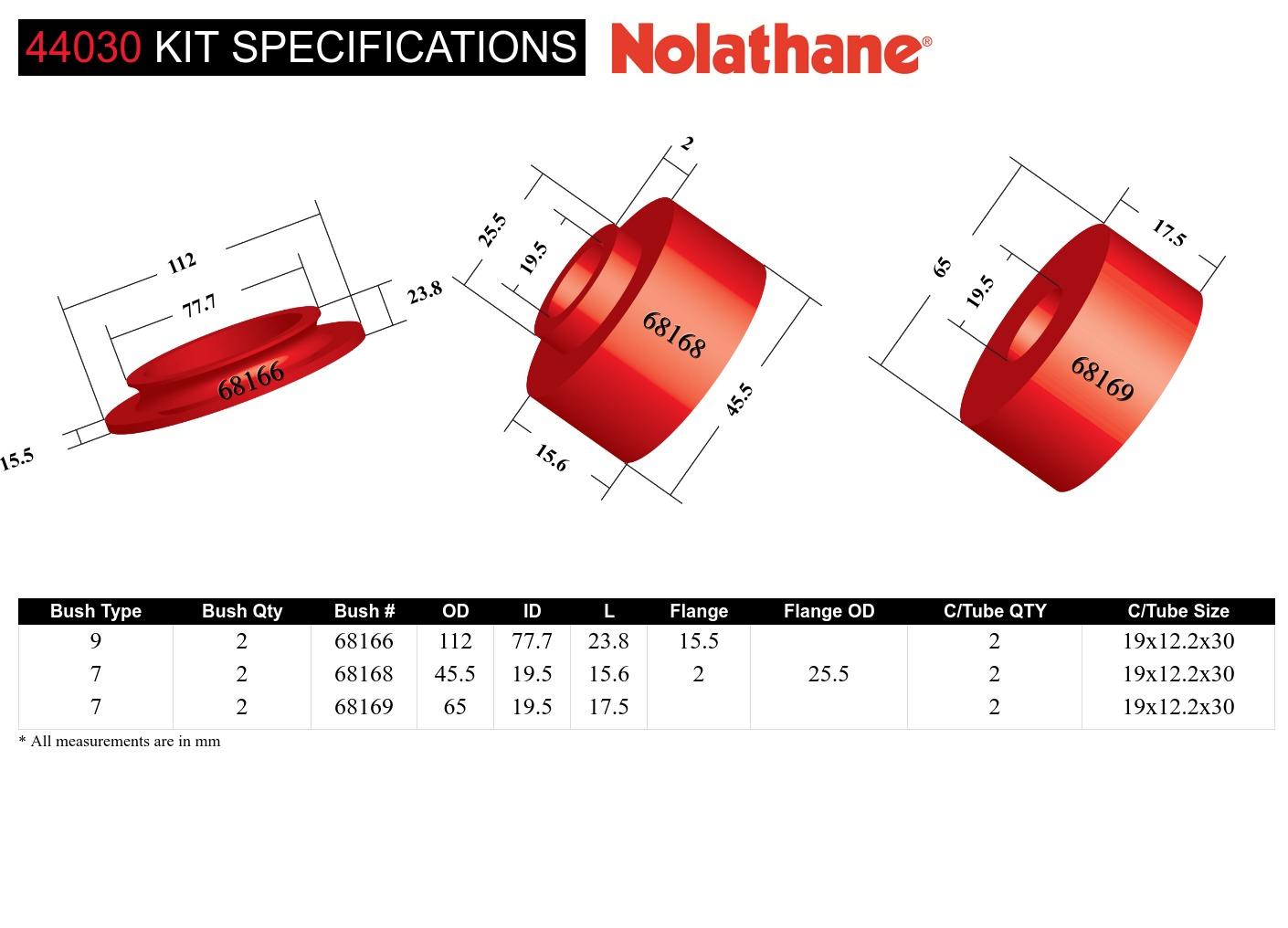

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
7 - Pin Bush With & Without Spigot	2 mm	45.5 mm	19.5 mm	15.6 mm	2 mm	25.5 mm	2	19x12.2x30 mm	Click Here
9 - Coil Spring Seats And Spacer Bushing	2 mm	112 mm	77.7 mm	23.8 mm	15.5 mm		2	19x12.2x30 mm	Click Here
7 - Pin Bush With & Without Spigot	2 mm	65 mm	19.5 mm	17.5 mm			2	19x12.2x30 mm	Click Here

Bush Type	7 - Pin Bush With & Without Spigot	9 - Coil Spring Seats And Spacer Bushing	7 - Pin Bush With & Without Spigot
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	45.5 mm	112 mm	65 mm
ID (B)	19.5 mm	77.7 mm	19.5 mm
Length (C)	15.6 mm	23.8 mm	17.5 mm
Flange Thickness (D)	2 mm	15.5 mm
Flange OD (E)	25.5 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	19x12.2x30 mm	19x12.2x30 mm	19x12.2x30 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	2	45.5	19.5	15.6	2	25.5	2	19x12.2x30	Click Here
9	2	112	77.7	23.8	15.5		2	19x12.2x30	Click Here
7	2	65	19.5	17.5			2	19x12.2x30	Click Here

Bush Type	7	9	7
QTY	2	2	2
OD (A)	45.5	112	65
ID (B)	19.5	77.7	19.5
Length (C)	15.6	23.8	17.5
FL (D)	2	15.5
FLOD (E)	25.5
C/Tube Qty	2	2	2
C/Tube Size	19x12.2x30	19x12.2x30	19x12.2x30
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.552kg	10cm	26cm	16cm
in/lbs	1.22lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.552kg	1.22lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	44030
Foot Note 1	Includes top spring pad
Foot Note 3	Lifetime Warranty
Components Per	6 Bushings, 2 Tubes, 4 Washers

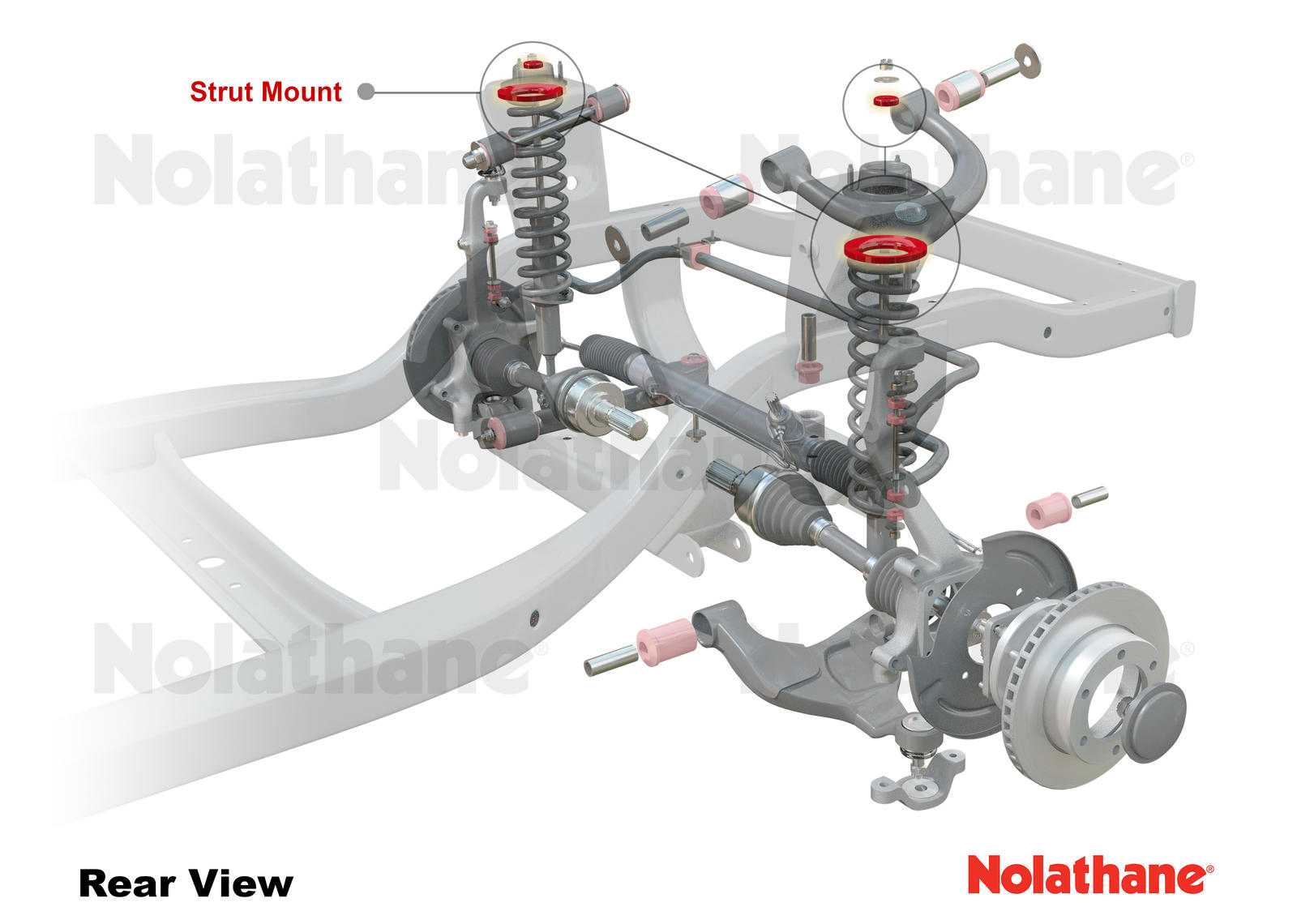

Product Note	Enhances strut assembly stability and ride quality; ideal for reducing noise, vibration and harshness. Includes: Upper strut mount pads and shock absorber pin bushings.
EAN	9319924395347

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
