Front Strut Mount - Bushing Kit to Suit Nissan Navara D40, D23 and Pathfinder R51

Description

Benefit Note:

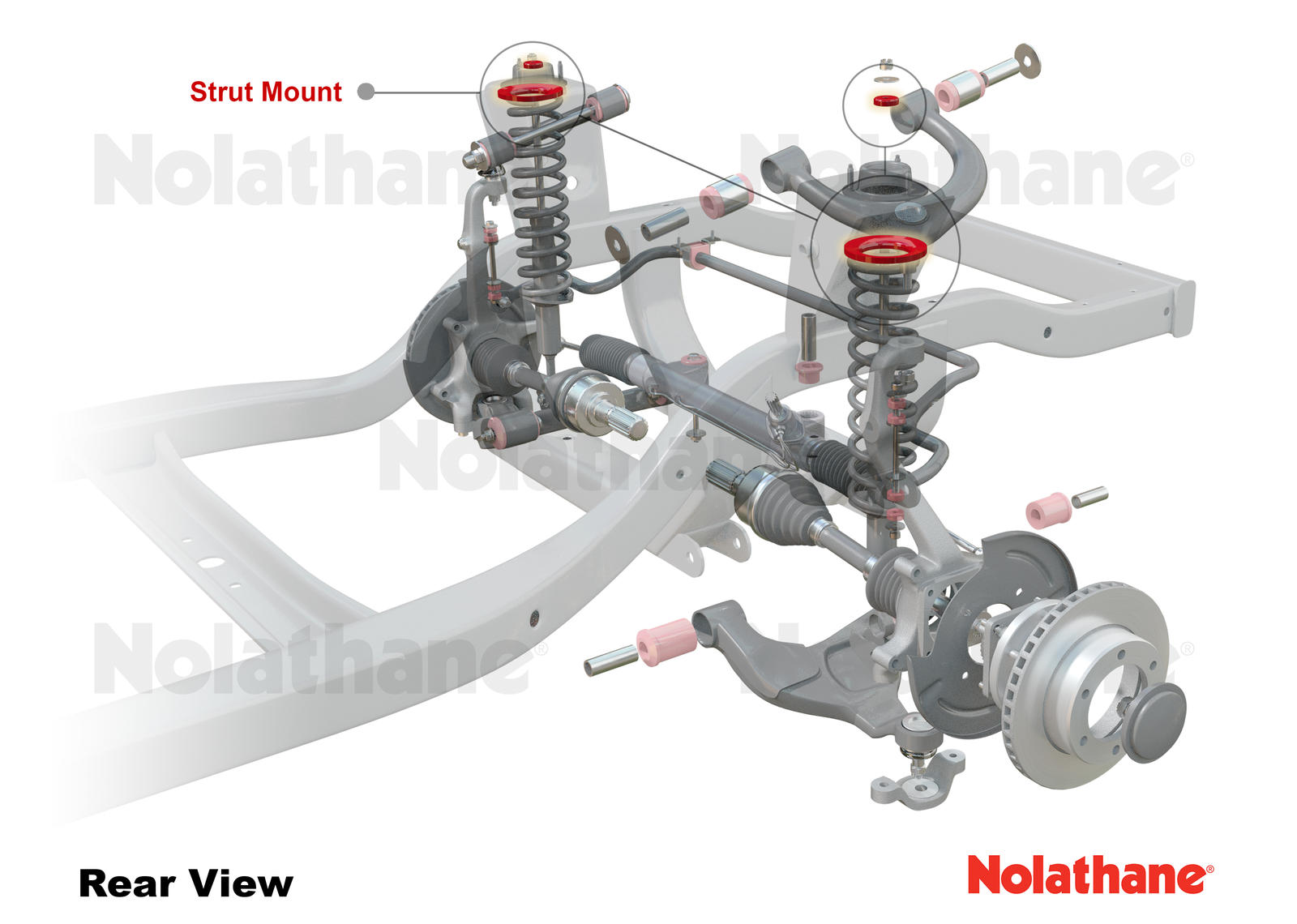

Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Nolathane kit contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

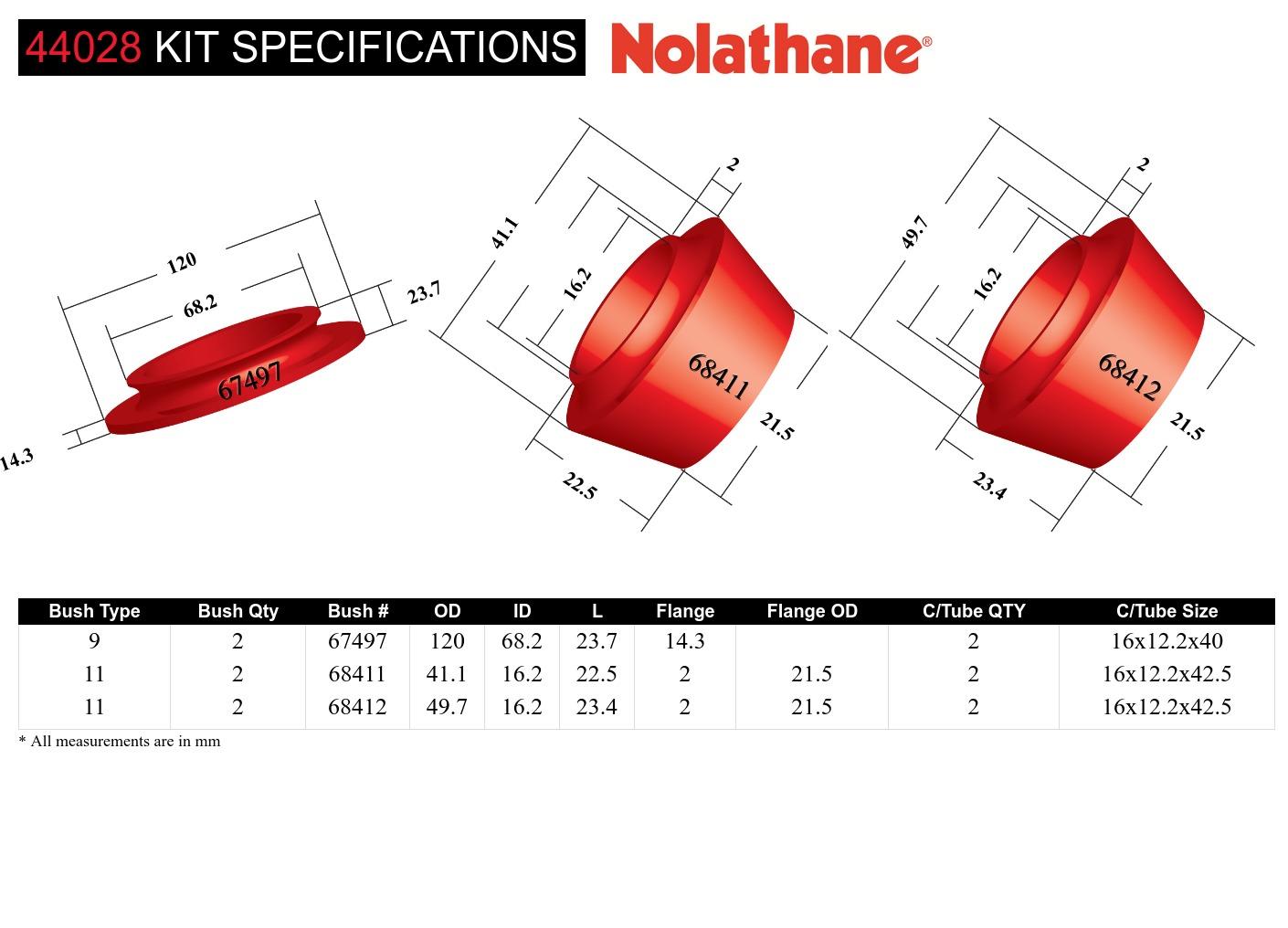

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
9 - Coil Spring Seats And Spacer Bushing	2 mm	120 mm	68.2 mm	23.7 mm	14.3 mm		2	16x12.2x40 mm	Click Here
11 - Half Tapered With Stepped Head Bushing	2 mm	49.7 mm	16.2 mm	23.4 mm	2 mm	21.5 mm	2	16x12.2x42.5 mm	Click Here
11 - Half Tapered With Stepped Head Bushing	2 mm	41.1 mm	16.2 mm	22.5 mm	2 mm	21.5 mm	2	16x12.2x42.5 mm	Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing	11 - Half Tapered With Stepped Head Bushing	11 - Half Tapered With Stepped Head Bushing
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	120 mm	49.7 mm	41.1 mm
ID (B)	68.2 mm	16.2 mm	16.2 mm
Length (C)	23.7 mm	23.4 mm	22.5 mm
Flange Thickness (D)	14.3 mm	2 mm	2 mm
Flange OD (E)		21.5 mm	21.5 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	16x12.2x40 mm	16x12.2x42.5 mm	16x12.2x42.5 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Type 11 - Half Tapered With Stepped Head Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	2	120	68.2	23.7	14.3		2	16x12.2x40	Click Here
11	2	49.7	16.2	23.4	2	21.5	2	16x12.2x42.5	Click Here
11	2	41.1	16.2	22.5	2	21.5	2	16x12.2x42.5	Click Here

Bush Type	9	11	11
QTY	2	2	2
OD (A)	120	49.7	41.1
ID (B)	68.2	16.2	16.2
Length (C)	23.7	23.4	22.5
FL (D)	14.3	2	2
FLOD (E)		21.5	21.5
C/Tube Qty	2	2	2
C/Tube Size	16x12.2x40	16x12.2x42.5	16x12.2x42.5
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.536kg	10cm	26cm	16cm
in/lbs	1.18lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.536kg	1.18lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	44028
Foot Note 1	Includes top spring pad
Foot Note 3	Lifetime Warranty

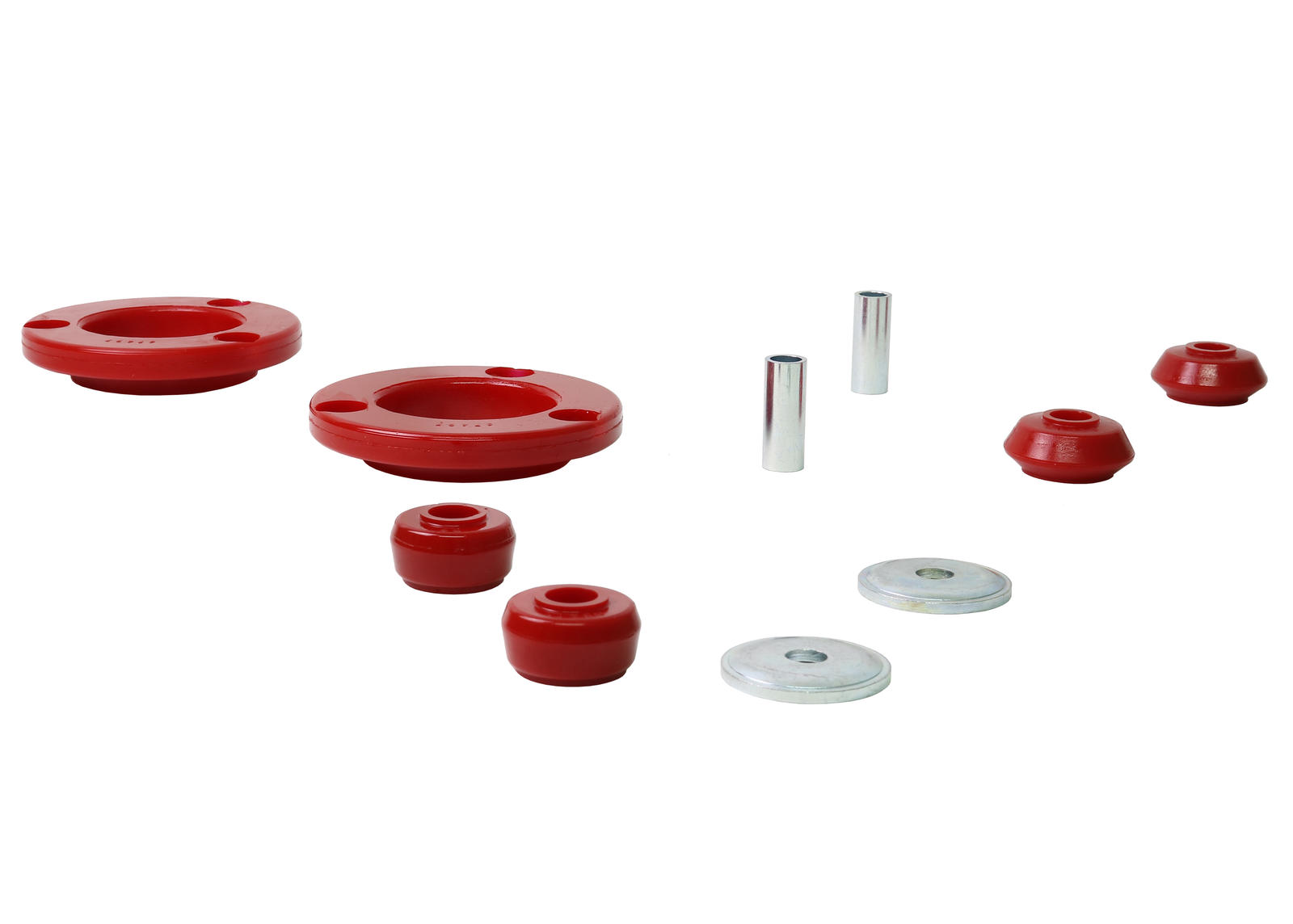

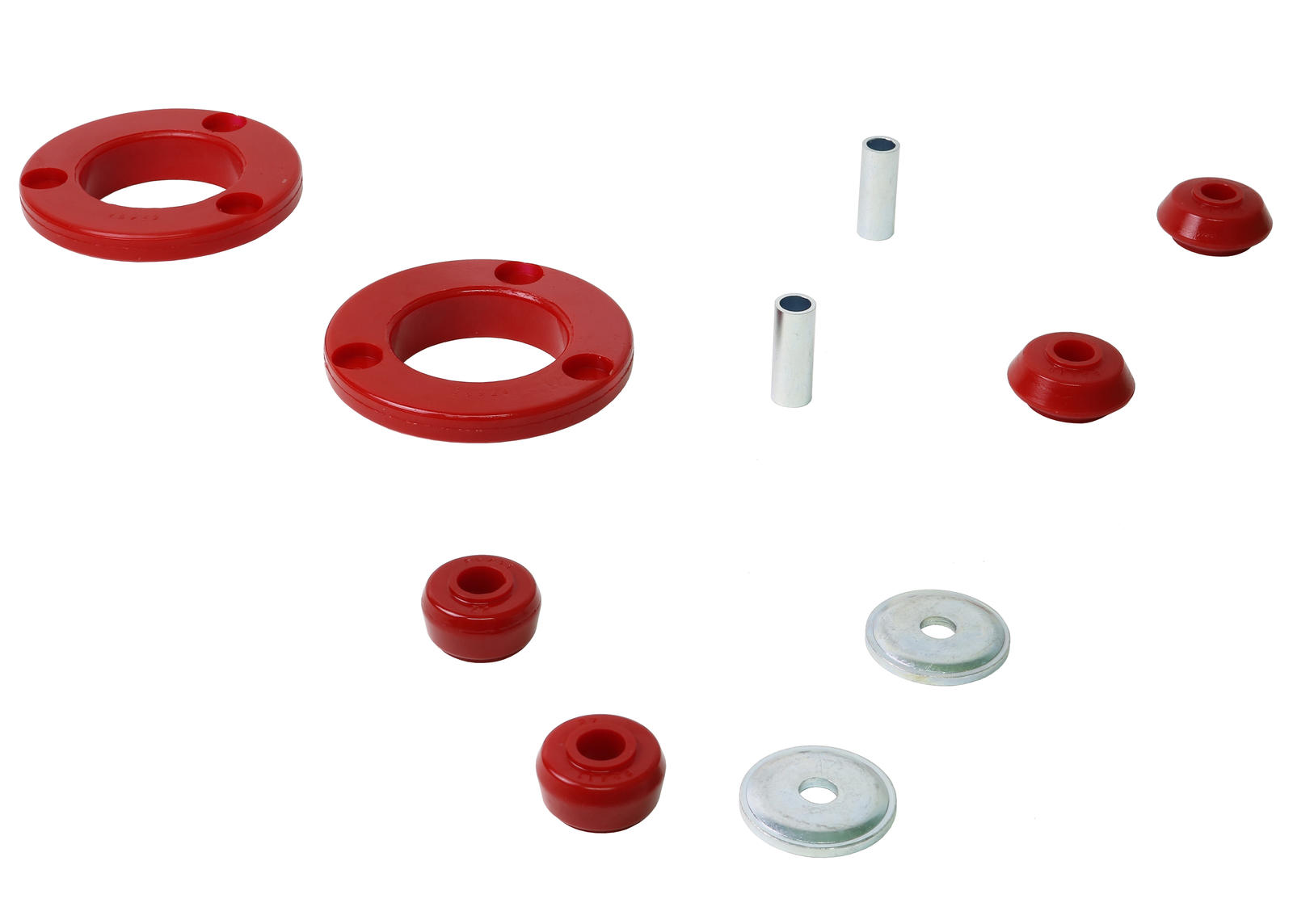

Components Per	6 Bushings, 2 Tubes, 2 Washers
Product Note	Enhances strut assembly stability and ride quality; ideal for reducing noise, vibration and harshness. Includes: Upper strut mount pads and shock absorber pin bushings.
EAN	9319924400294

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
