What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

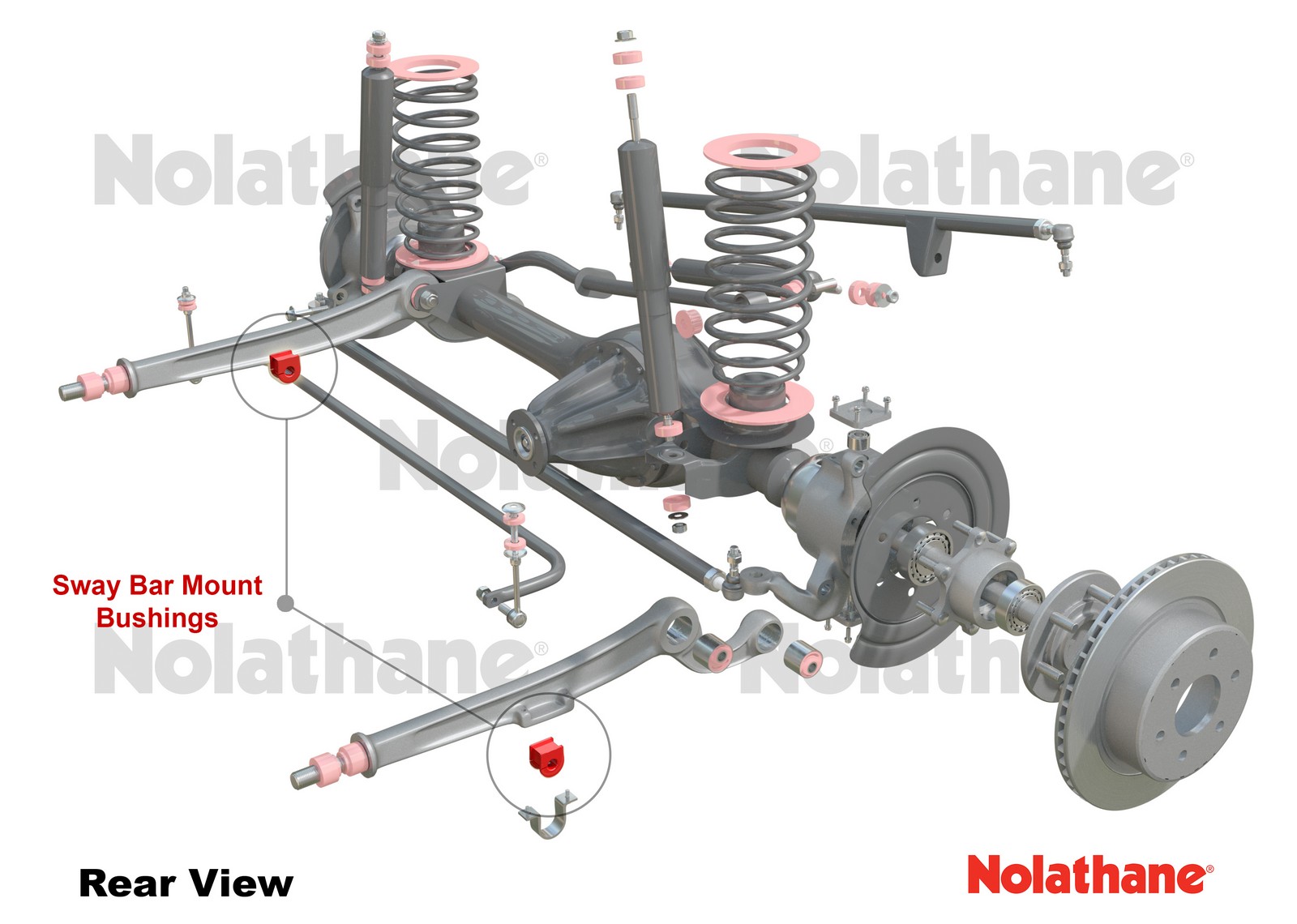

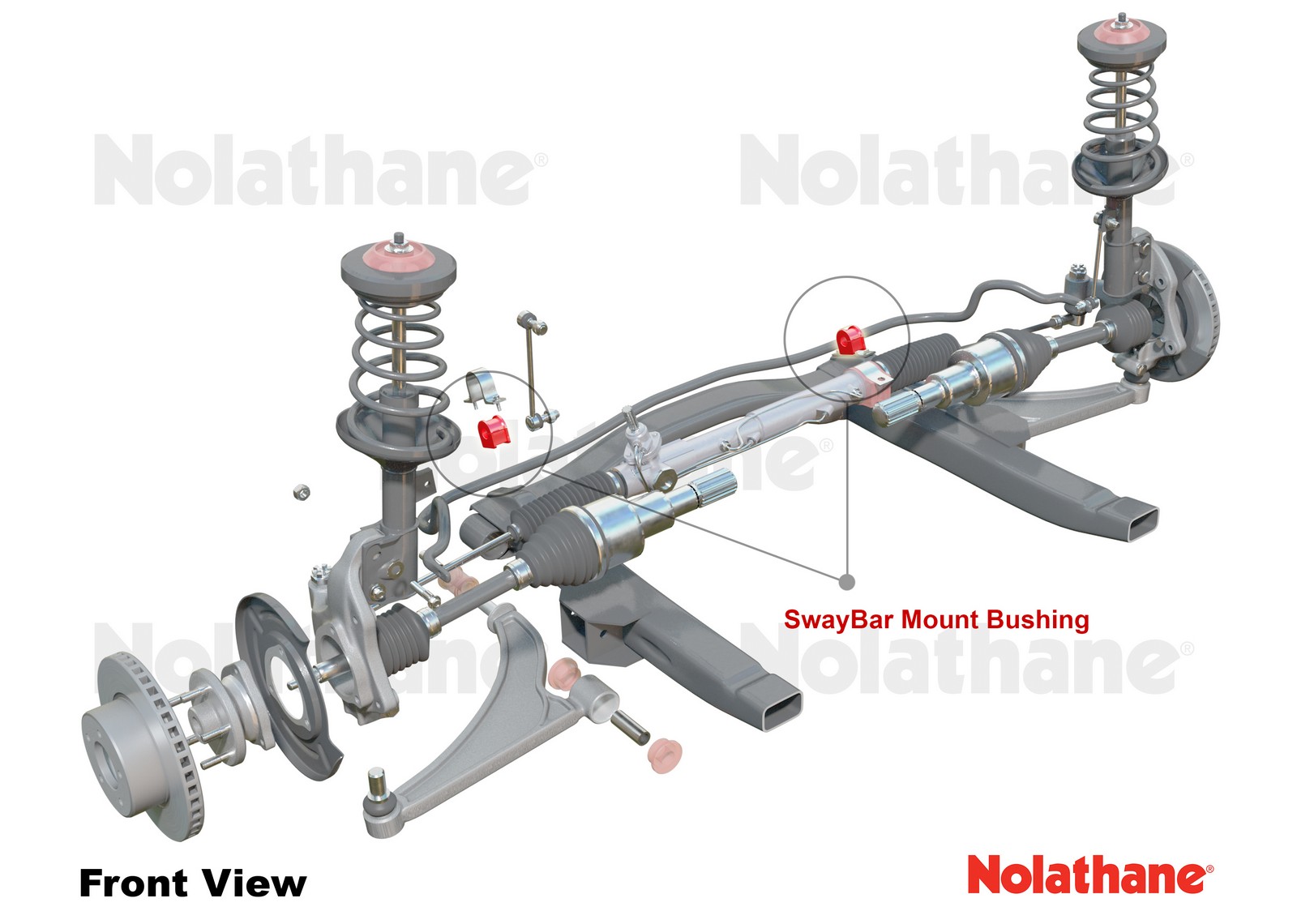

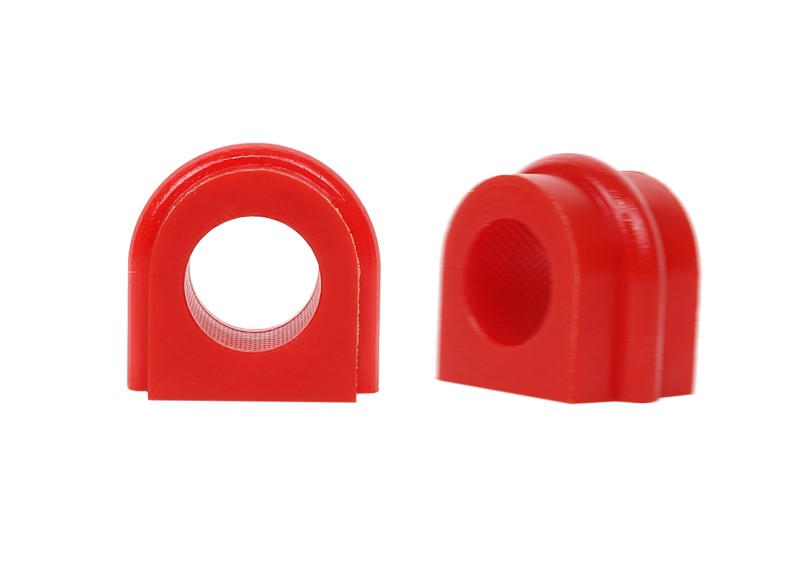

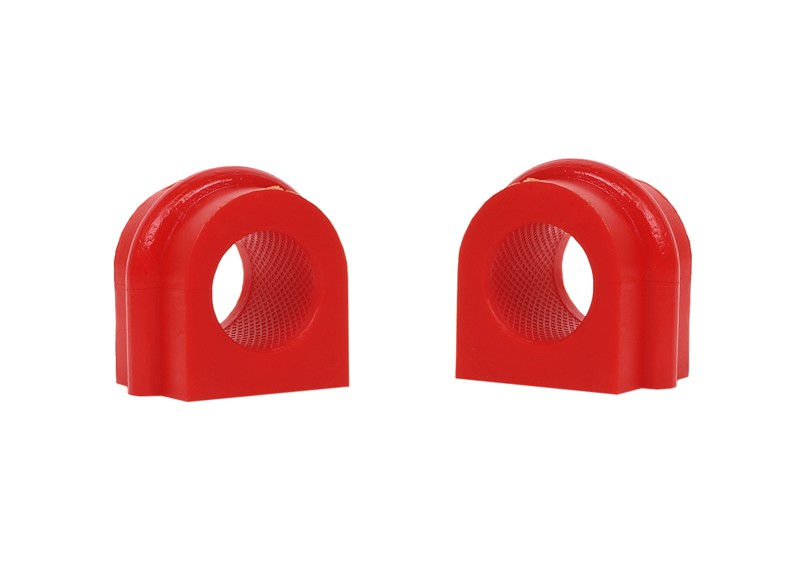

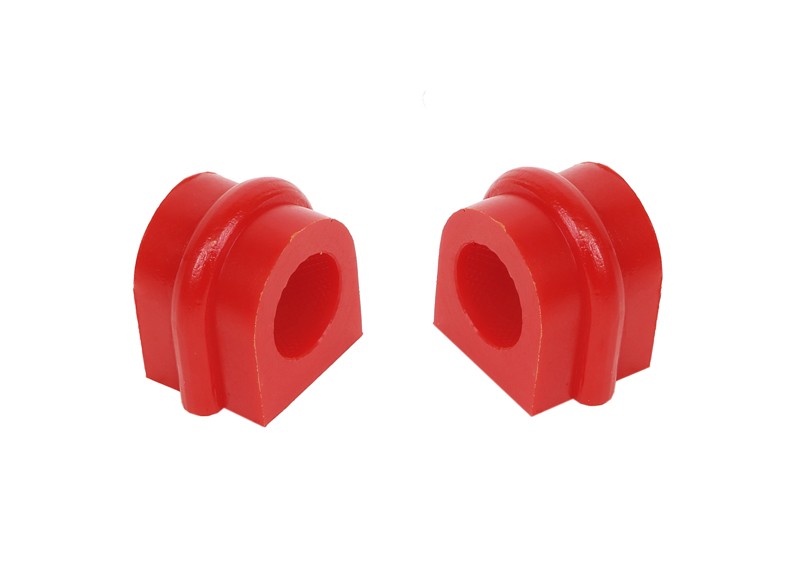

Front Sway Bar Mount - Bushing Kit 24mm to Suit Nissan Patrol GU and Pathfinder R50

Description

Benefit Note:
Designed to fit a 24mm sway bar. Nolathane's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

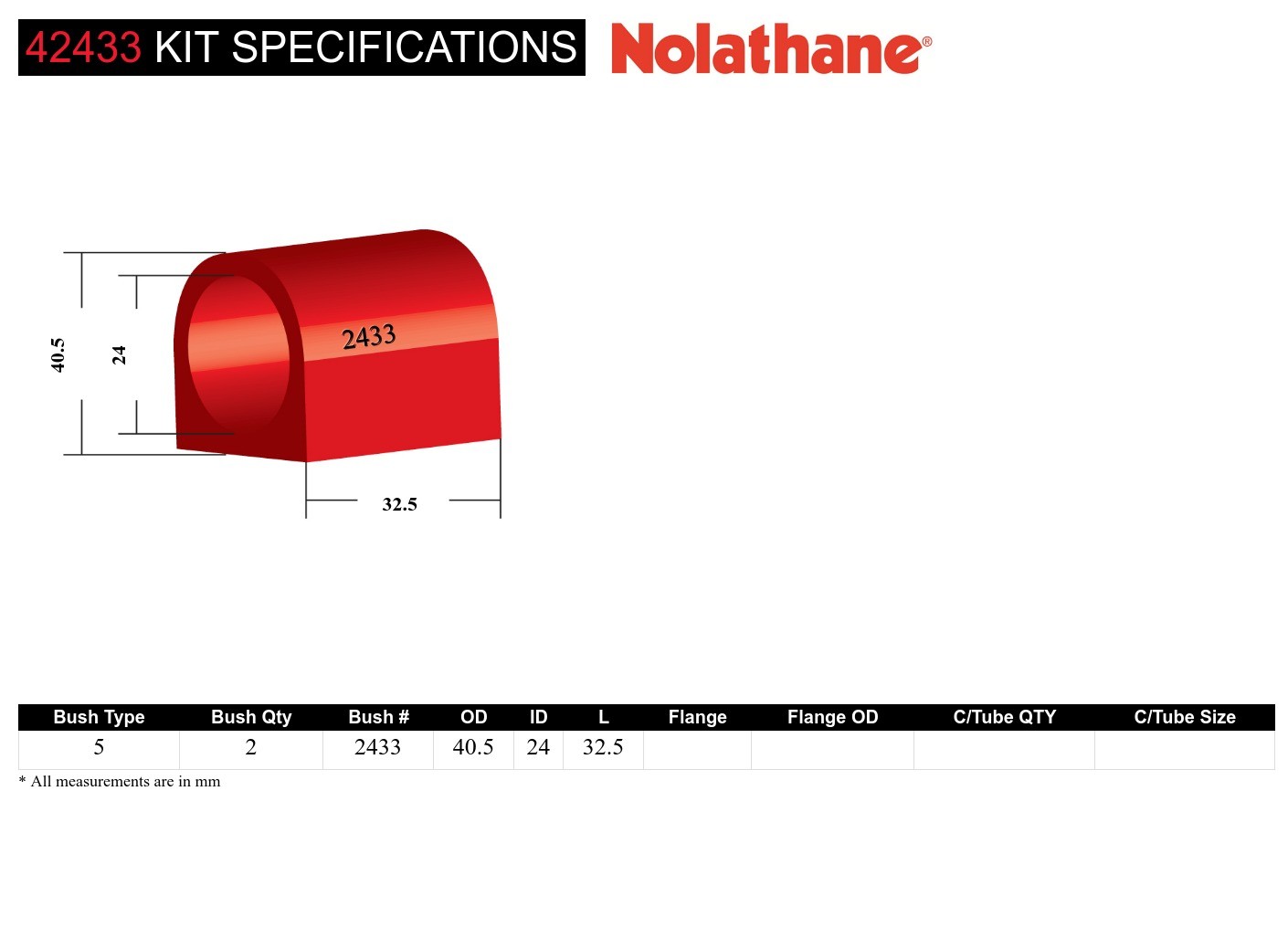

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
5 - D-bushing Without Flange	2 mm	40.5 mm	24 mm	32.5 mm					Click Here

Bush Type	5 - D-bushing Without Flange
Bush Quantity	2 mm
OD (A)	40.5 mm
ID (B)	24 mm
Length (C)	32.5 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 5 - D-bushing Without Flange

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
5	2	40.5	24	32.5					Click Here

Bush Type	5
QTY	2
OD (A)	40.5
ID (B)	24
Length (C)	32.5
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.095kg	7cm	20cm	14cm
in/lbs	0.21lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.095kg	0.21lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42433
Foot Note 2	24mm
Foot Note 3	Lifetime Warranty
Components Per	2 Bushings
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 2 Bushings
EAN	9330074003838

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
