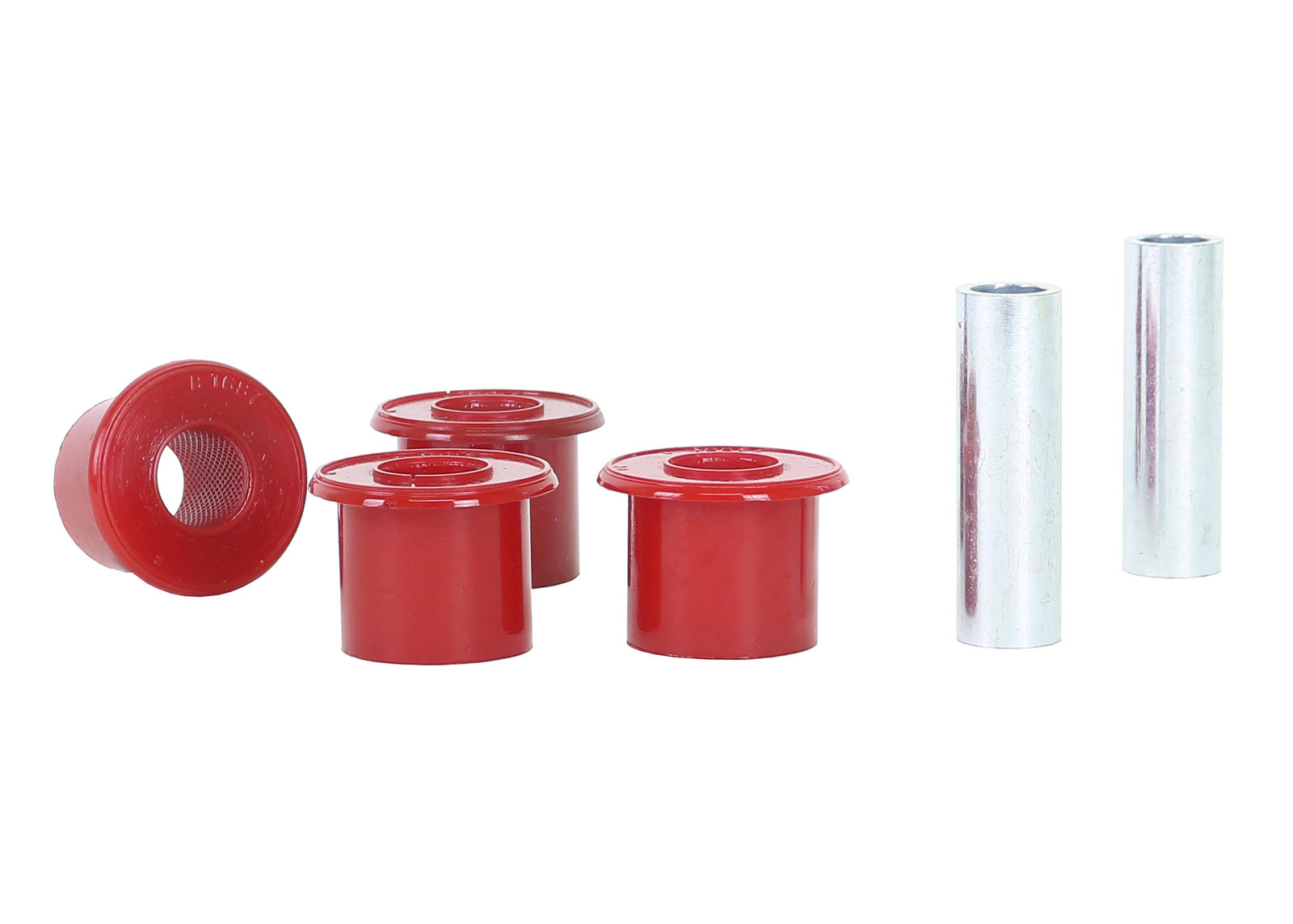

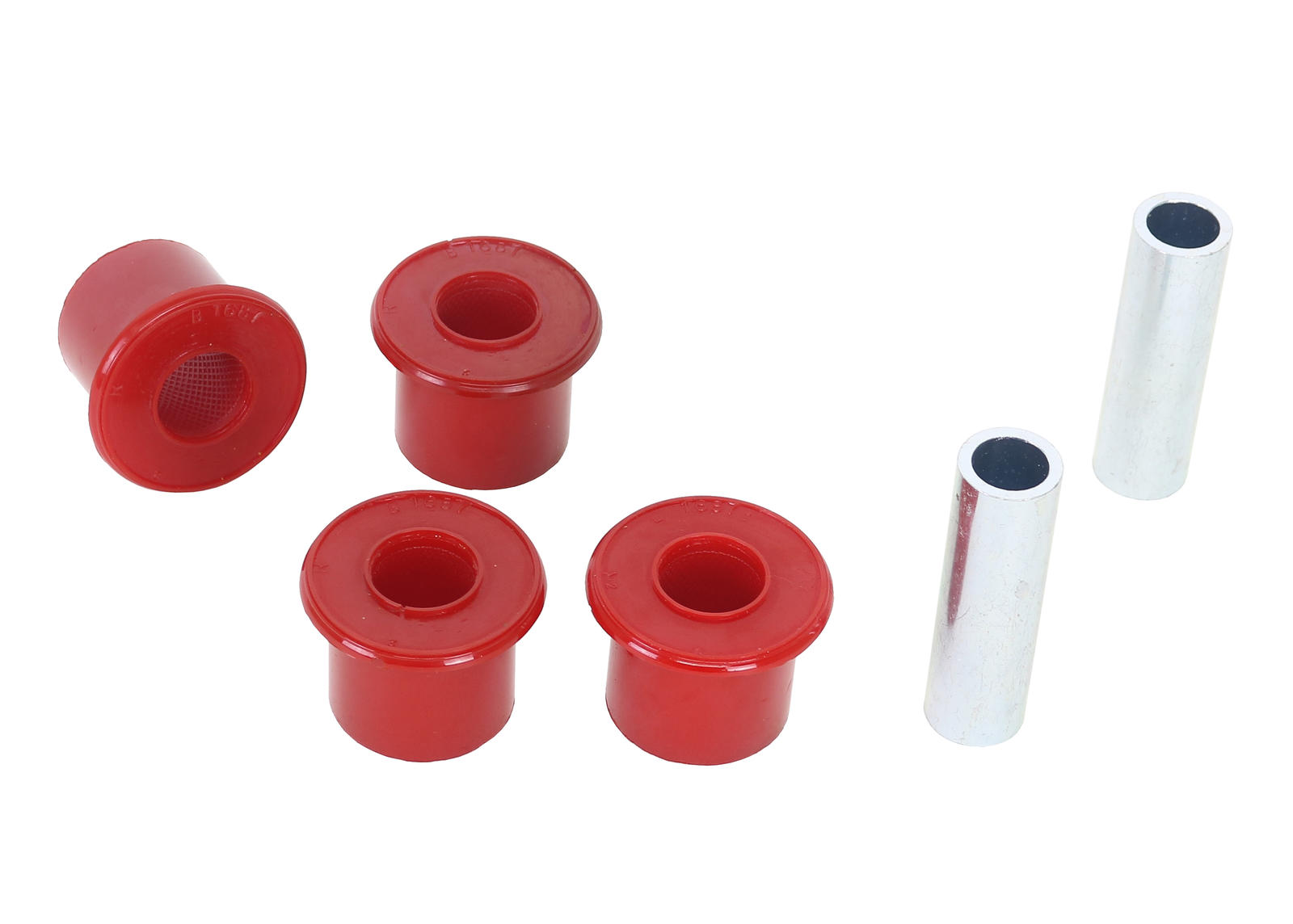

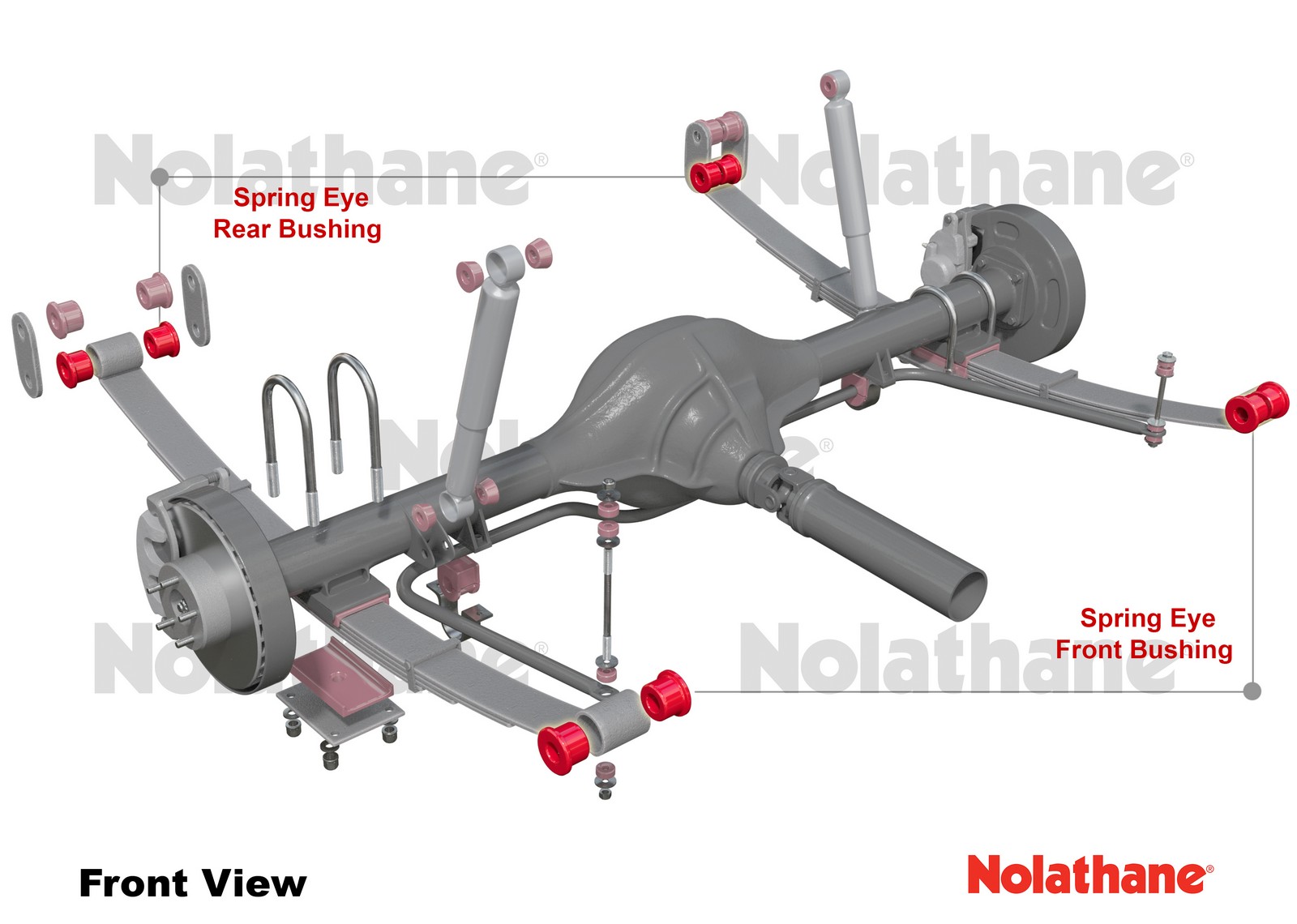

Leaf Spring - Front and Rear Eye Bushing Kit to Suit Toyota Coaster and Dyna

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	40.2 mm	22 mm	37.6 mm	3.2 mm	52.5 mm	2	22.2x16.2x75 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	40.2 mm
ID (B)	22 mm
Length (C)	37.6 mm
Flange Thickness (D)	3.2 mm
Flange OD (E)	52.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	22.2x16.2x75 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

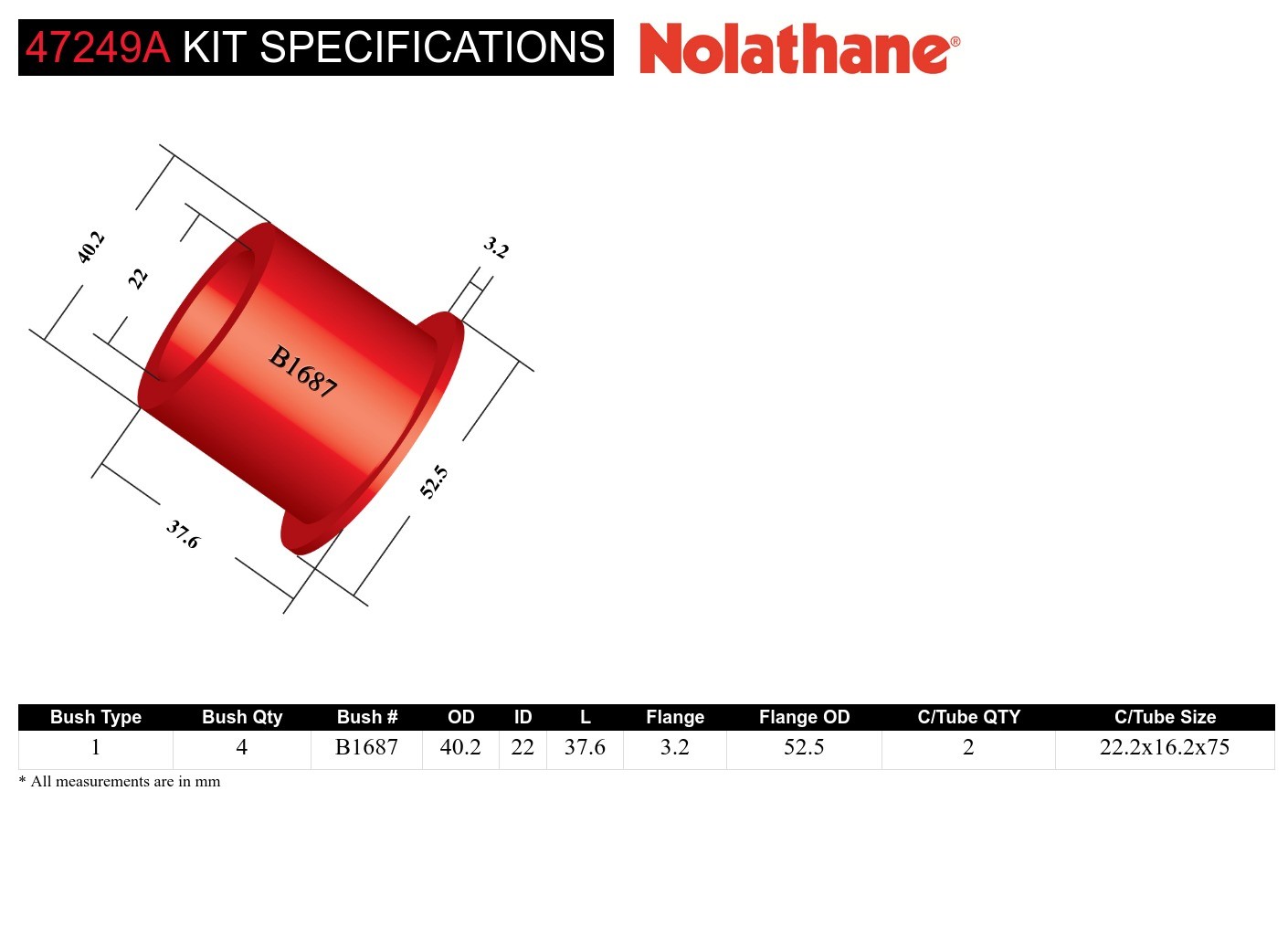

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	40.2	22	37.6	3.2	52.5	2	22.2x16.2x75	Click Here

Bush Type	1
QTY	4
OD (A)	40.2
ID (B)	22
Length (C)	37.6
FL (D)	3.2
FLOD (E)	52.5
C/Tube Qty	2
C/Tube Size	22.2x16.2x75
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.387kg	7cm	20cm	14cm
in/lbs	0.85lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.387kg	0.85lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	47249A
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924396320

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
