What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

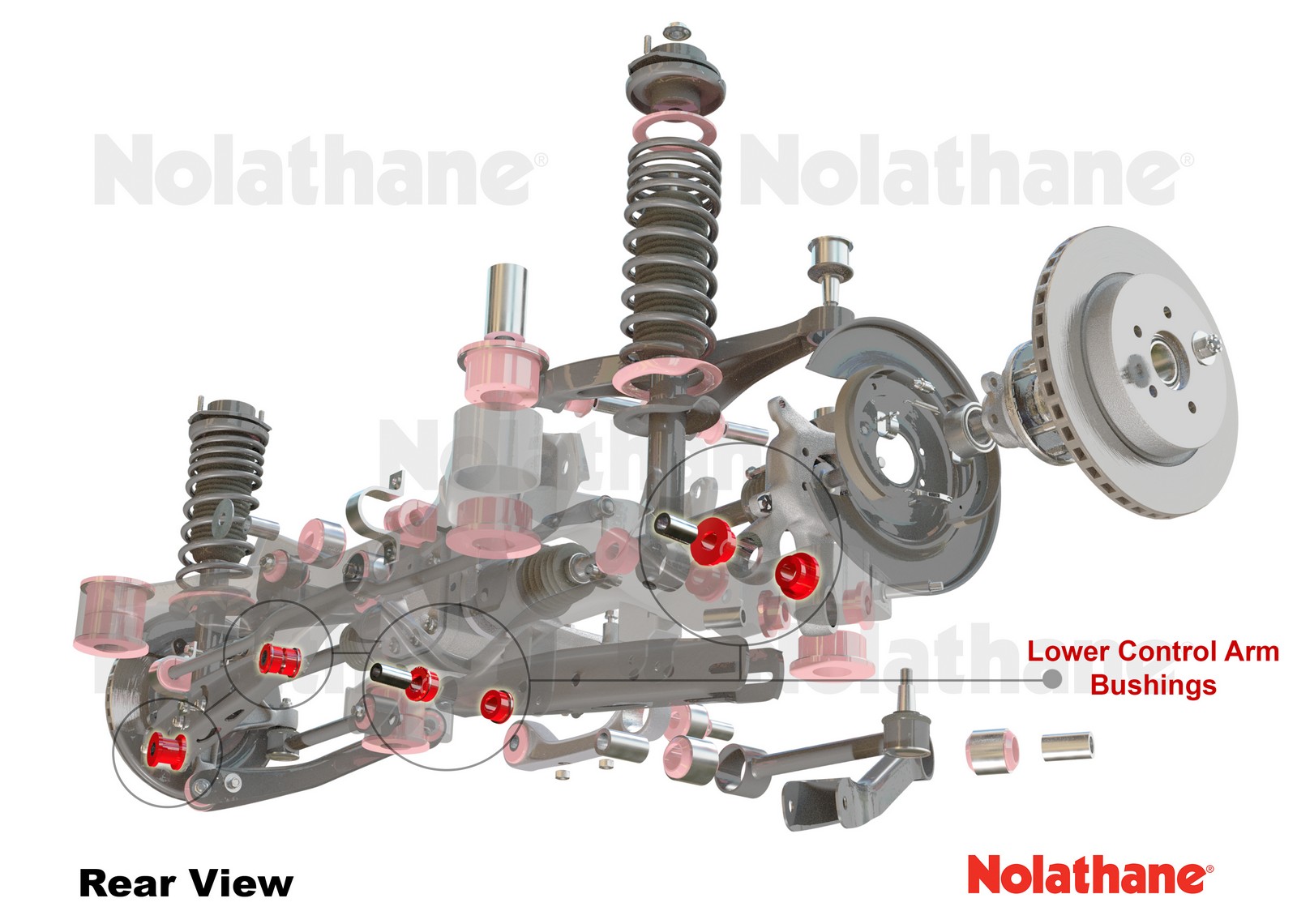

Rear Control Arm Lower Rear - Bushing Kit to Suit Nissan Pathfinder R51

Description

Benefit Note:
Nolathane adjustable toe kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

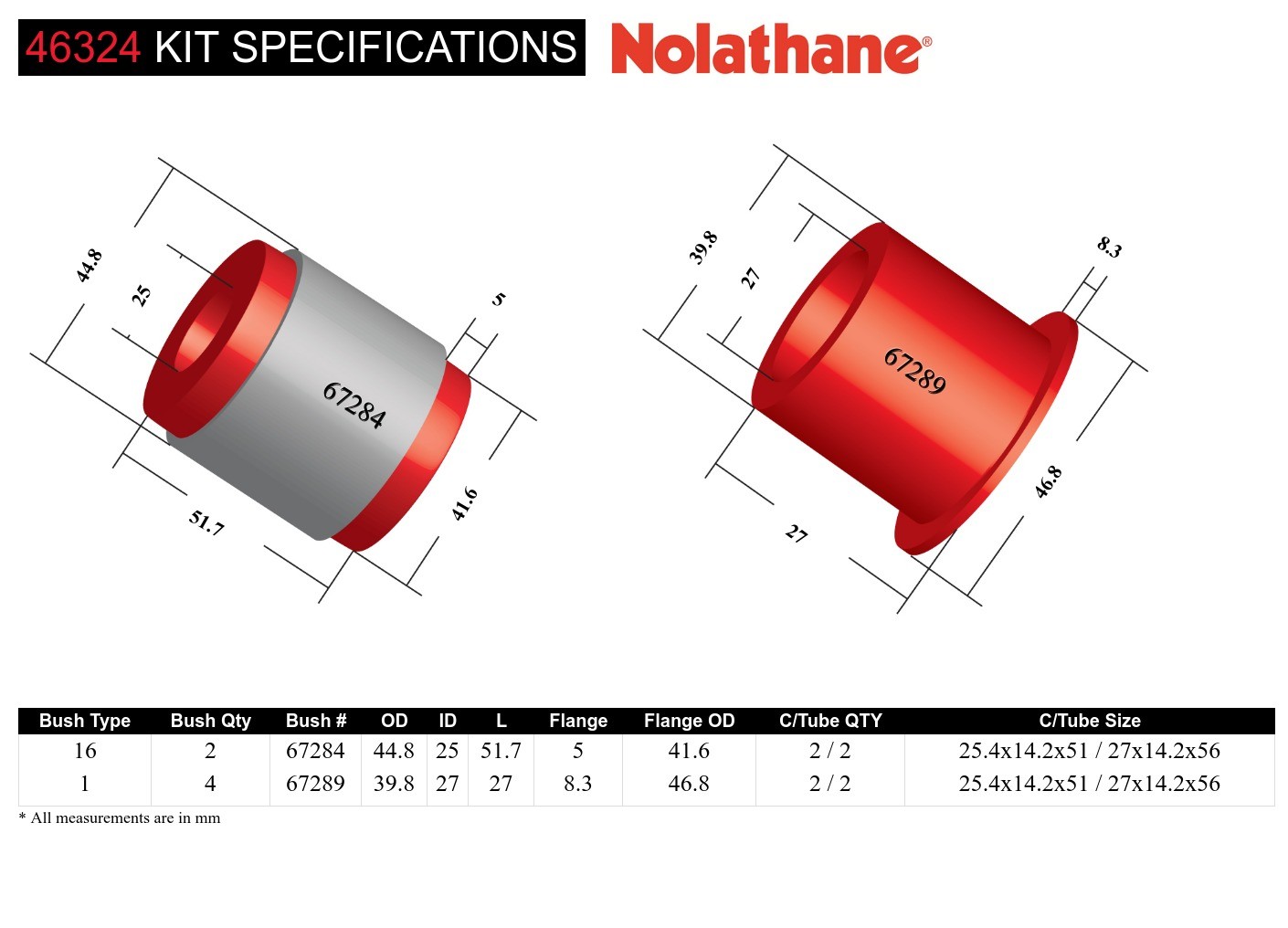

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	39.8 mm	27 mm	27 mm	8.3 mm	46.8 mm	2 / 2	25.4x14.2x51 / 27x14.2x56 mm	Click Here
16 - Shell Without Flange Bushing	2 mm	44.8 mm	25 mm	51.7 mm	5 mm	41.6 mm	2 / 2	25.4x14.2x51 / 27x14.2x56 mm	Click Here

Bush Type	1 - Shackle Bushing	16 - Shell Without Flange Bushing
Bush Quantity	4 mm	2 mm
OD (A)	39.8 mm	44.8 mm
ID (B)	27 mm	25 mm
Length (C)	27 mm	51.7 mm
Flange Thickness (D)	8.3 mm	5 mm
Flange OD (E)	46.8 mm	41.6 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	25.4x14.2x51 / 27x14.2x56 mm	25.4x14.2x51 / 27x14.2x56 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.245kg	10cm	26cm	16cm
in/lbs	2.74lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.245kg	2.74lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46324
Foot Note 1	Toe arm
Foot Note 3	Lifetime Warranty

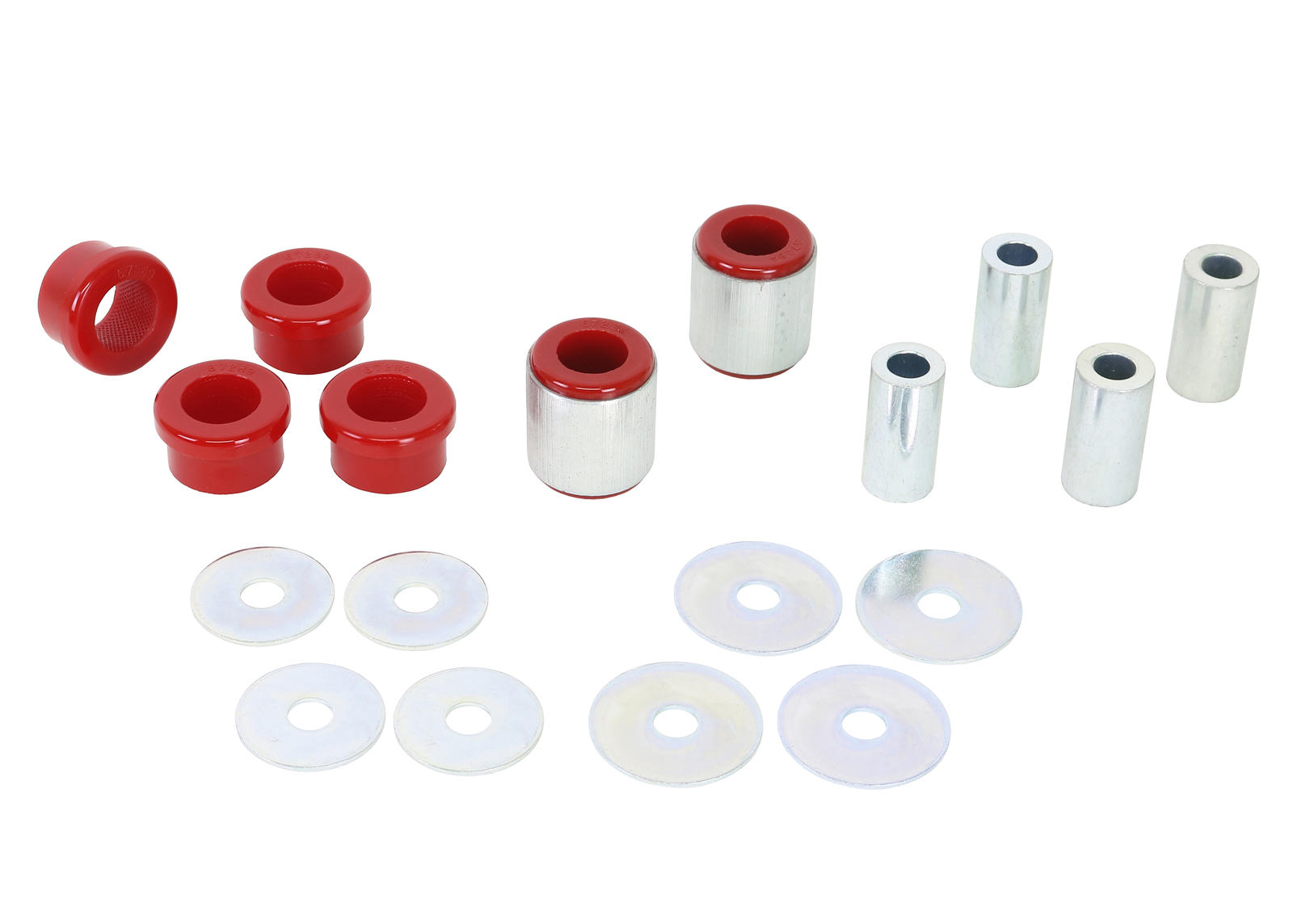

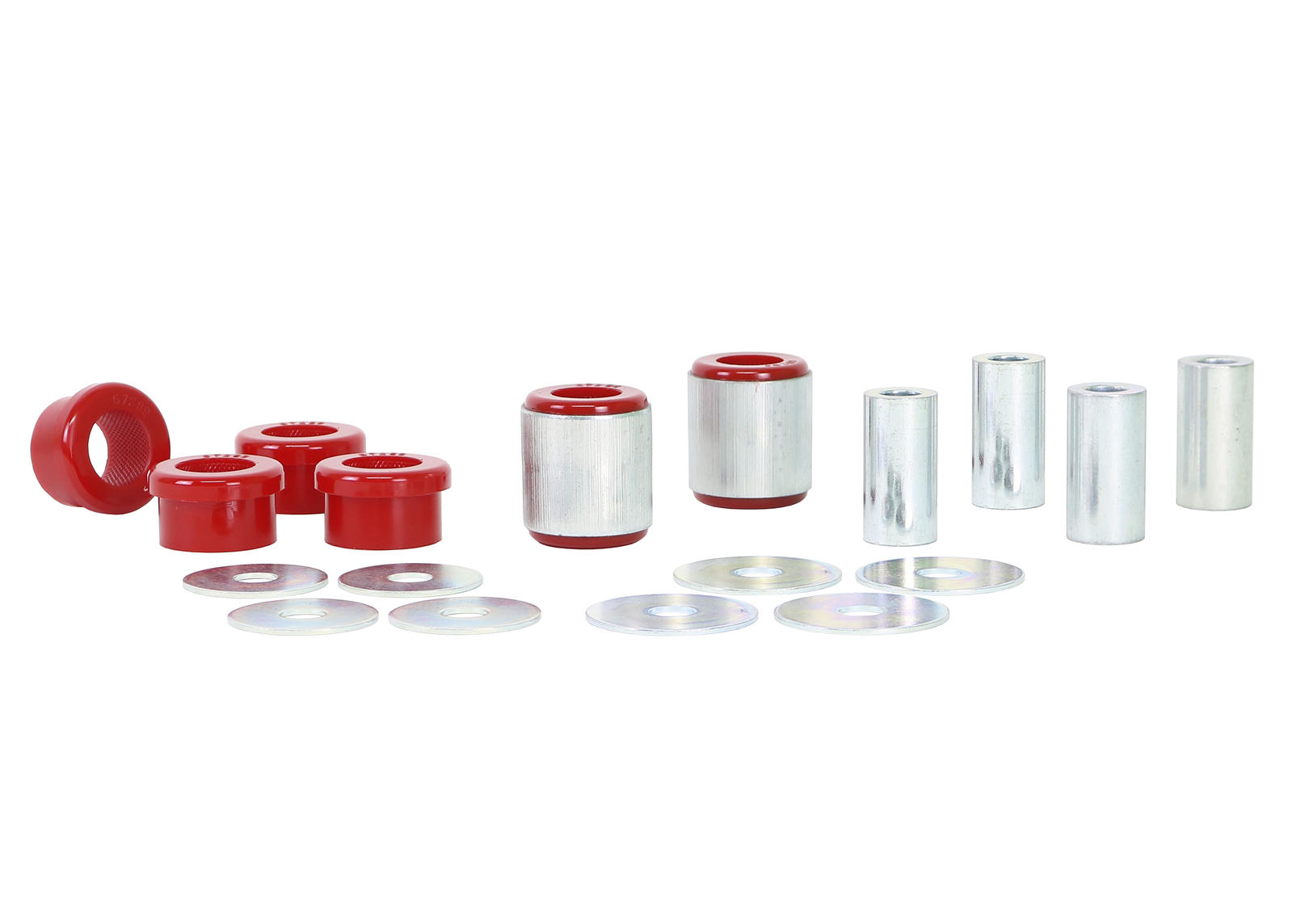

Components Per	2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
EAN	9319924380329

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
