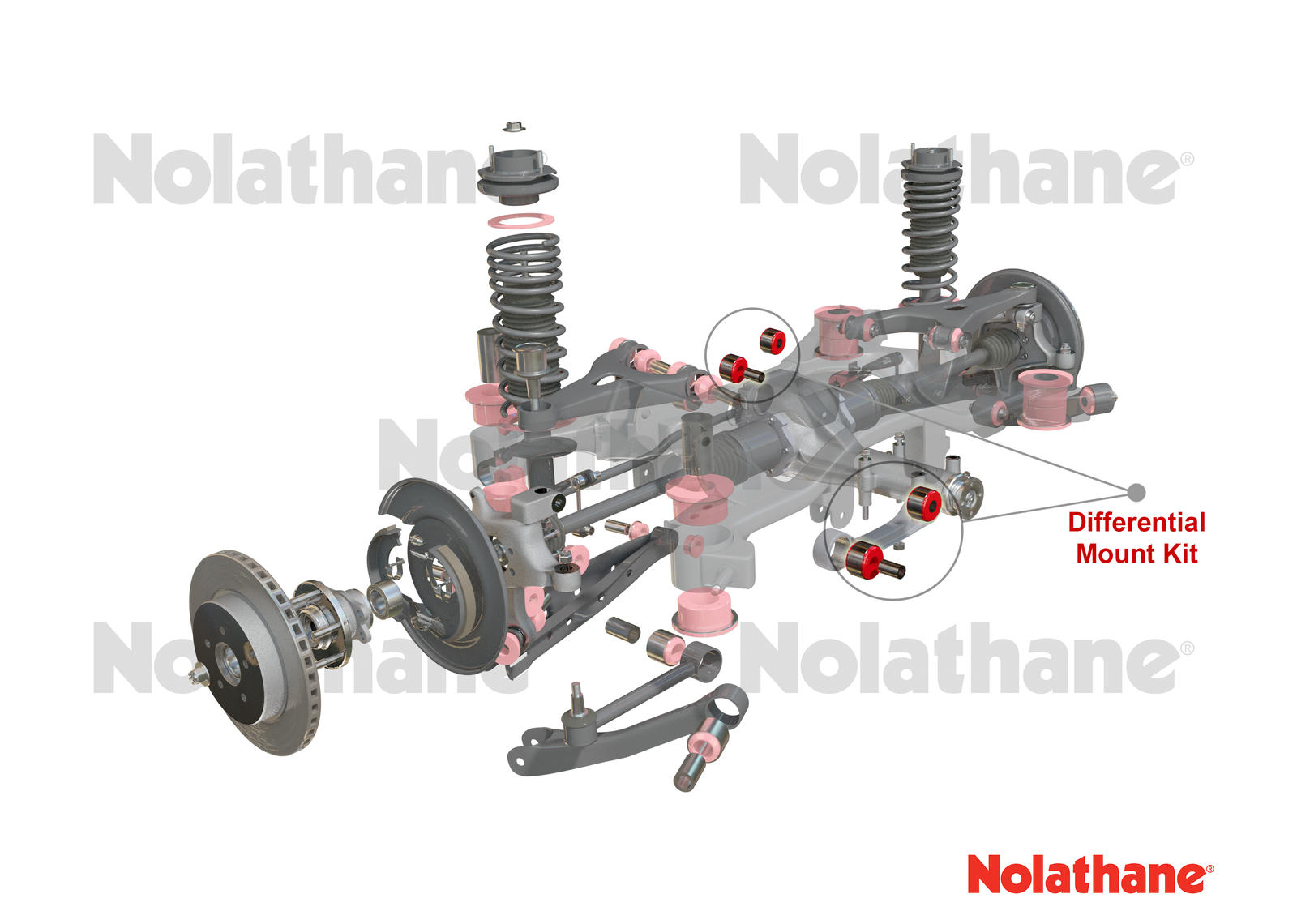

Rear Differential Mount - Bushing Kit to Suit BMW 3 Series, X3 and Z4

Description

Benefit Note:
Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

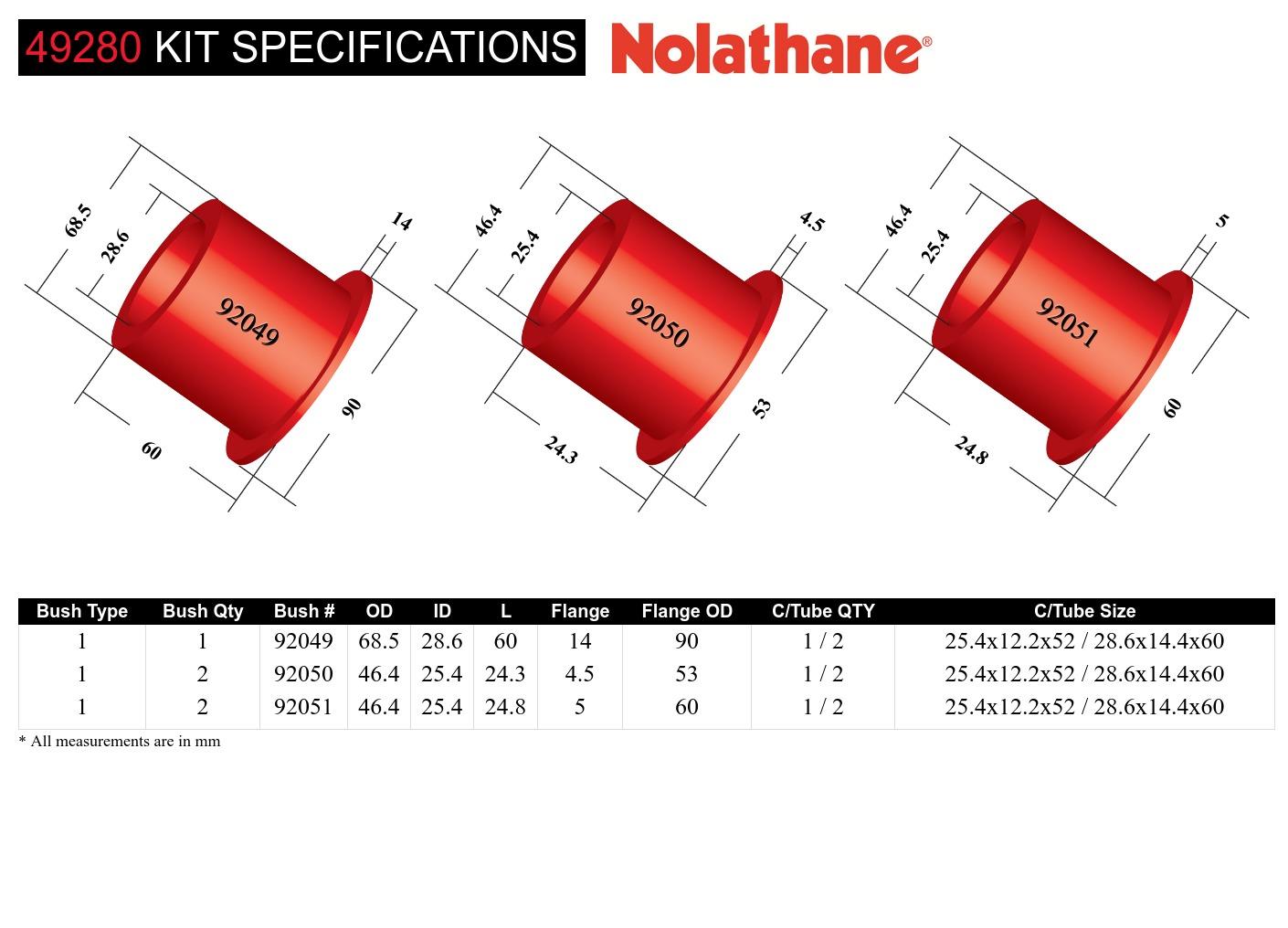

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	46.4	25.4	24.8	5	60	1 / 2	25.4x12.2x52 / 28.6x14.4x60	Click Here
1	2	46.4	25.4	24.3	4.5	53	1 / 2	25.4x12.2x52 / 28.6x14.4x60	Click Here
1	1	68.5	28.6	60.0	14	90	1 / 2	25.4x12.2x52 / 28.6x14.4x60	Click Here

Bush Type	1	1	1
QTY	2	2	1
OD (A)	46.4	46.4	68.5
ID (B)	25.4	25.4	28.6
Length (C)	24.8	24.3	60.0
FL (D)	5	4.5	14
FLOD (E)	60	53	90
C/Tube Qty	1 / 2	1 / 2	1 / 2
C/Tube Size	25.4x12.2x52 / 28.6x14.4x60	25.4x12.2x52 / 28.6x14.4x60	25.4x12.2x52 / 28.6x14.4x60
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.4kg	30cm	10cm	20cm
in/lbs	3.09lbs	11.81"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	1.4kg	3.09lbs
Length	30cm	11.81"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	49280
Foot Note 3	Lifetime Warranty

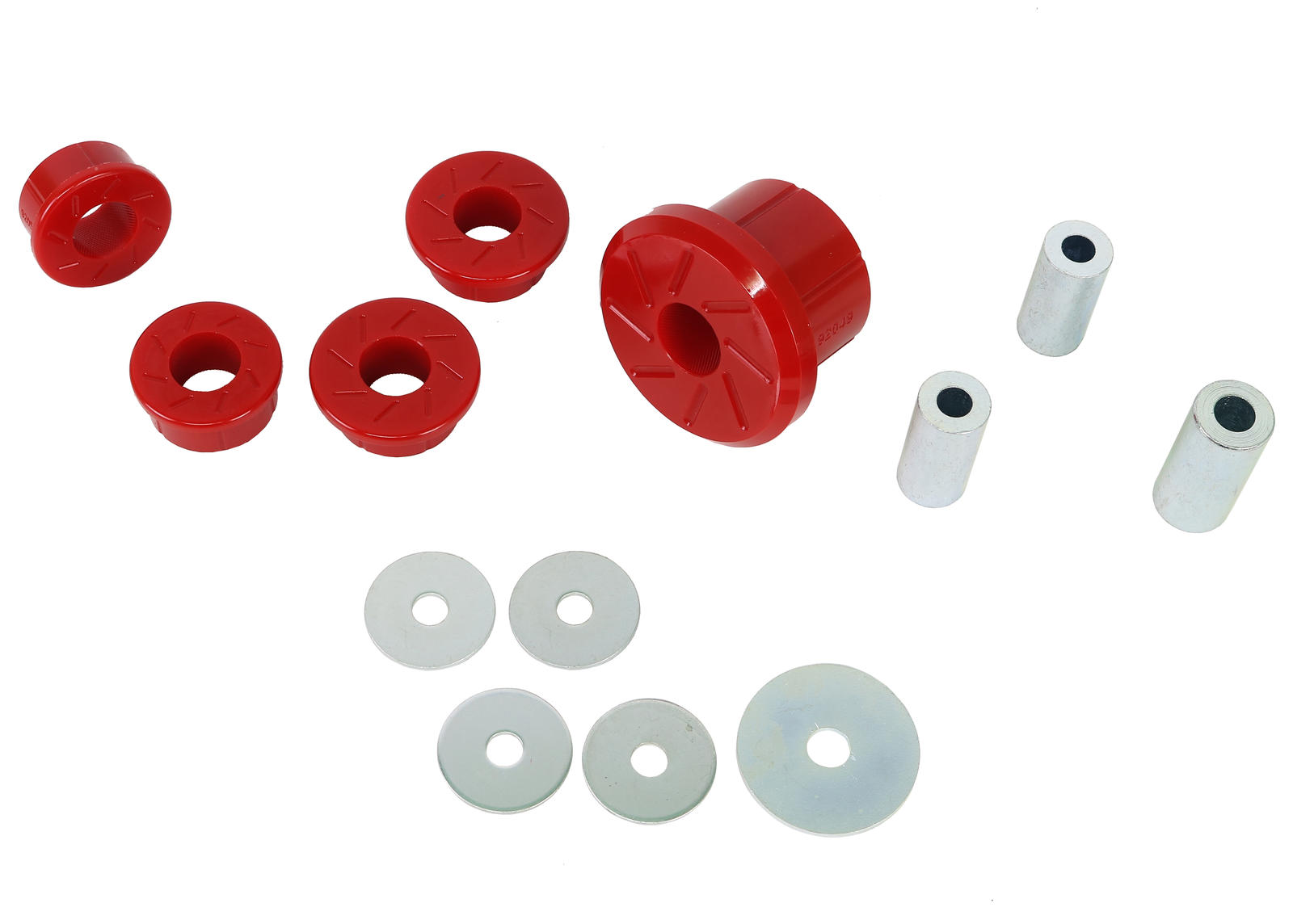

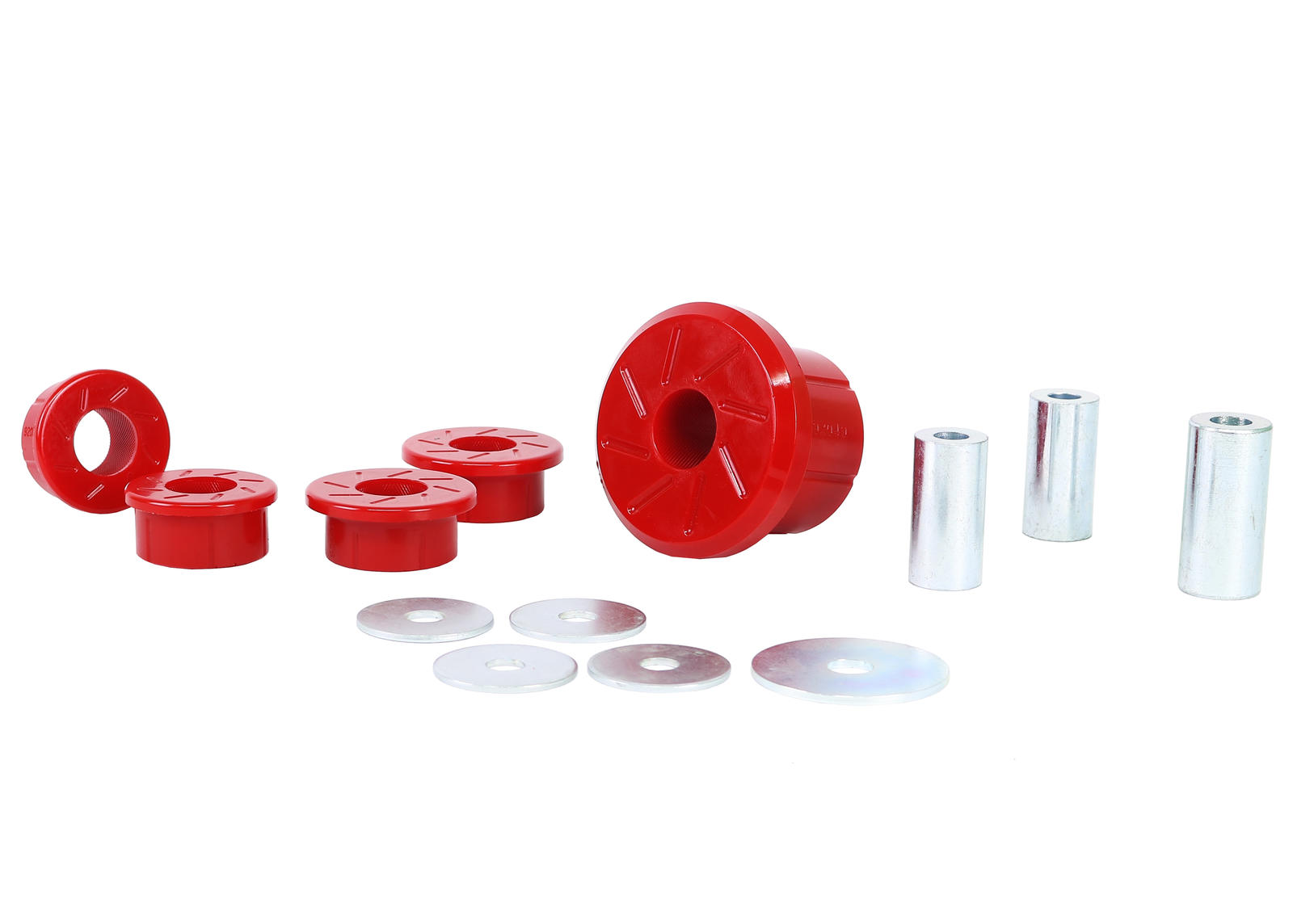

Components Per	5 Bushings, 3 Tubes, 5 Washers
Product Note	Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:
EAN	9319924468386

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	6 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
