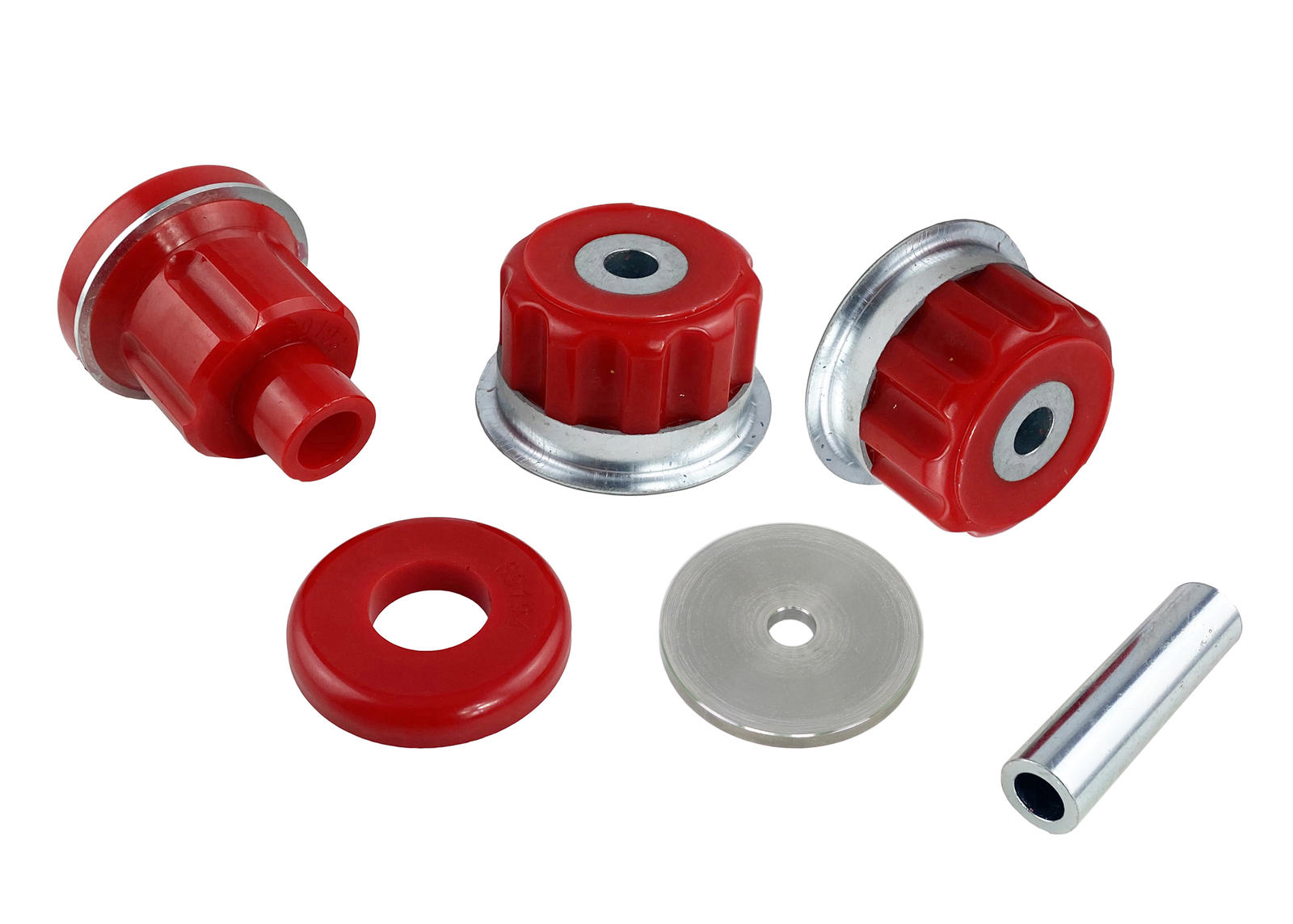

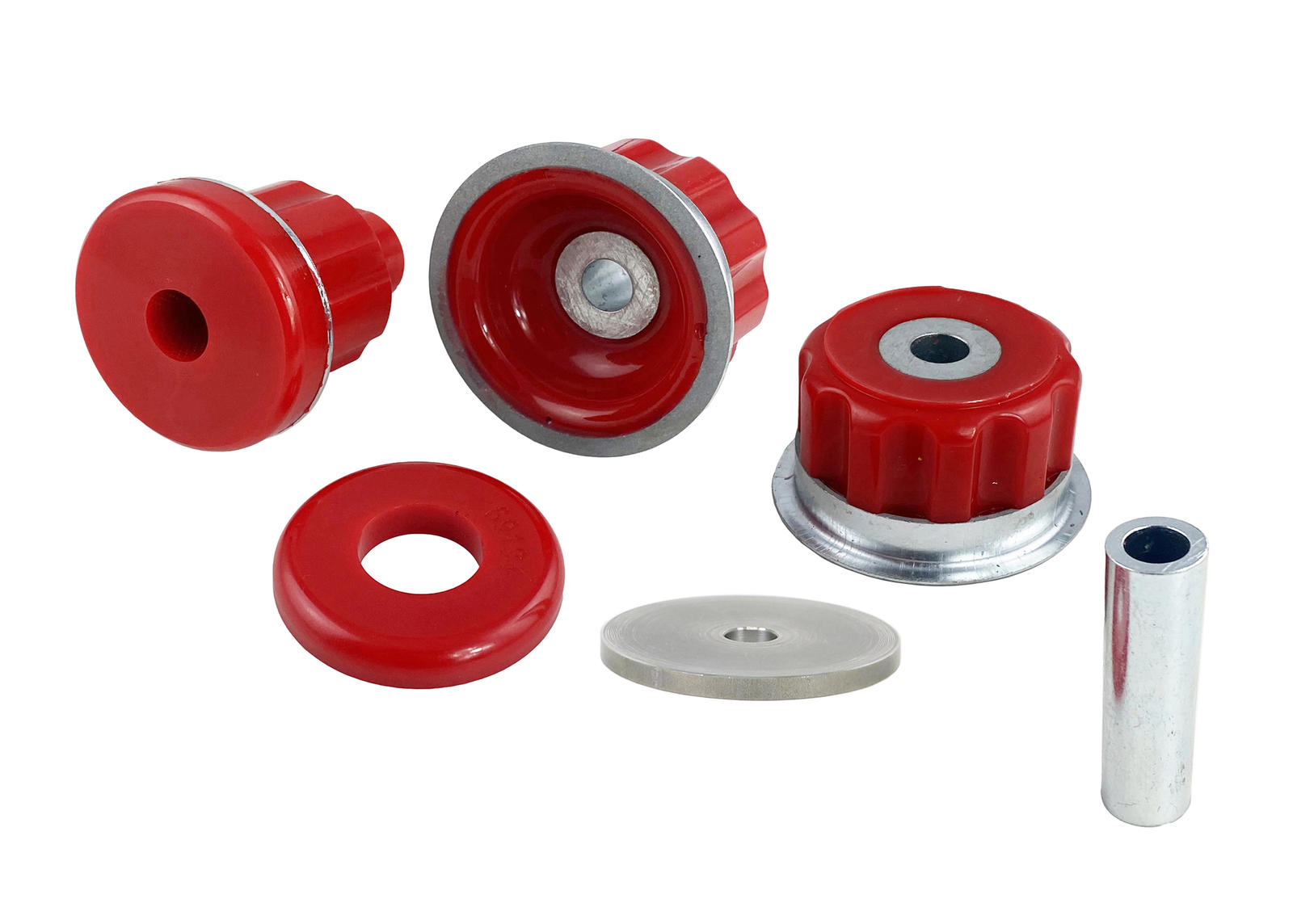

United StatesRear Differential Mount - Bushing Kit to Suit Ford Falcon/Fairlane AU
 SKU | 49189 |
|---|---|
 Warranty | lifetime warranty |
 Installation Time | 3 Hours |
 Fitting Position | Rear Axle |
Critical service item for the rear suspension. Nolathane's superior replacement solution to the worn and in worst cases disintegrated rubber factory mounts. Driveline clunks, shudders on take off are all symptoms of worn diff mounts. Nolathane's clever design and superior material formulation delivers unrivalled durability, performance and that as new feeling.
*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

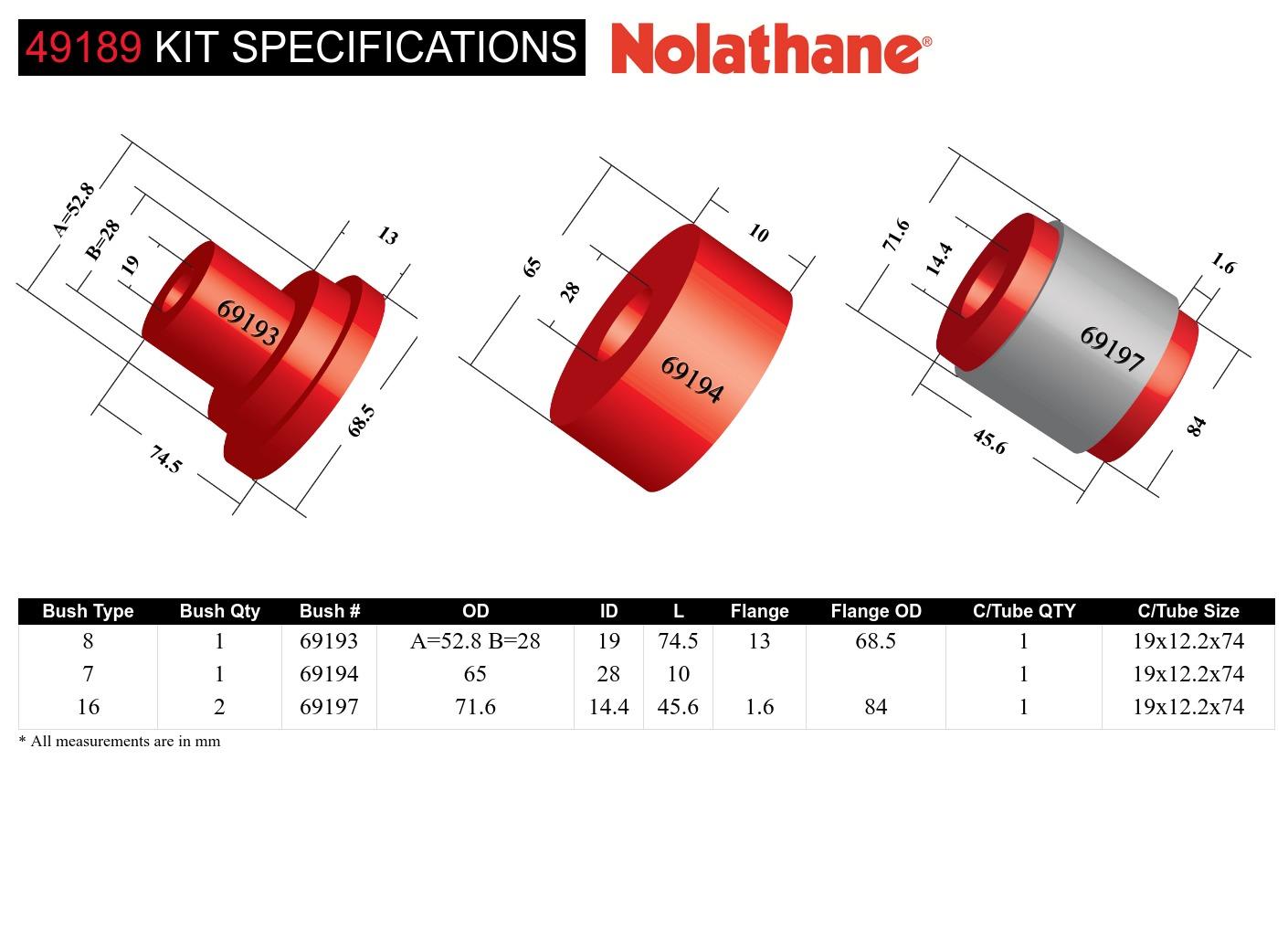

Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 7 - Pin Bush With & Without Spigot | 1 | 65 | 28 | 10 | 1 | 19x12.2x74 | Click Here | ||
| 16 - Shell Without Flange Bushing | 2 | 71.6 | 14.4 | 45.6 | 1.6 | 84 | 1 | 19x12.2x74 | Click Here |
| 8 - Stepped OD Shackle Bushing | 1 | AI=52.8 AII=28 | 19 | 74.5 | 13 | 68.5 | 1 | 19x12.2x74 | Click Here |
| Bush Type | 7 - Pin Bush With & Without Spigot | 16 - Shell Without Flange Bushing | 8 - Stepped OD Shackle Bushing |
|---|---|---|---|
| QTY | 1 | 2 | 1 |
| OD (A) | 65 | 71.6 | AI=52.8 AII=28 |
| ID (B) | 28 | 14.4 | 19 |
| Length (C) | 10 | 45.6 | 74.5 |
| FL (D) | 1.6 | 13 | |
| FLOD (E) | 84 | 68.5 | |
| C/Tube Qty | 1 | 1 | 1 |
| C/Tube Size | 19x12.2x74 | 19x12.2x74 | 19x12.2x74 |
| Similar Bushings | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | Weight | Length | Width | Height |
|---|---|---|---|---|
| cm/kg | 0.61kg | 10cm | 26cm | 16cm |
| in/lbs | 1.34lbs | 3.94" | 10.24" | 6.3" |
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.61kg | 1.34lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | 49189 |
| Foot Note 3 | Lifetime Warranty |
| Components Per | 4 Bushings, 1 Tube, 1 Washer |
| Product Note | Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes: |
| EAN | 9319924466085 |
 Install Guide | Downloads |
|---|---|
| Installation Time | 3 Hours |
 Installation Difficulty | Suspension Specialist recommended. |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Rear Wheel Alignment |
